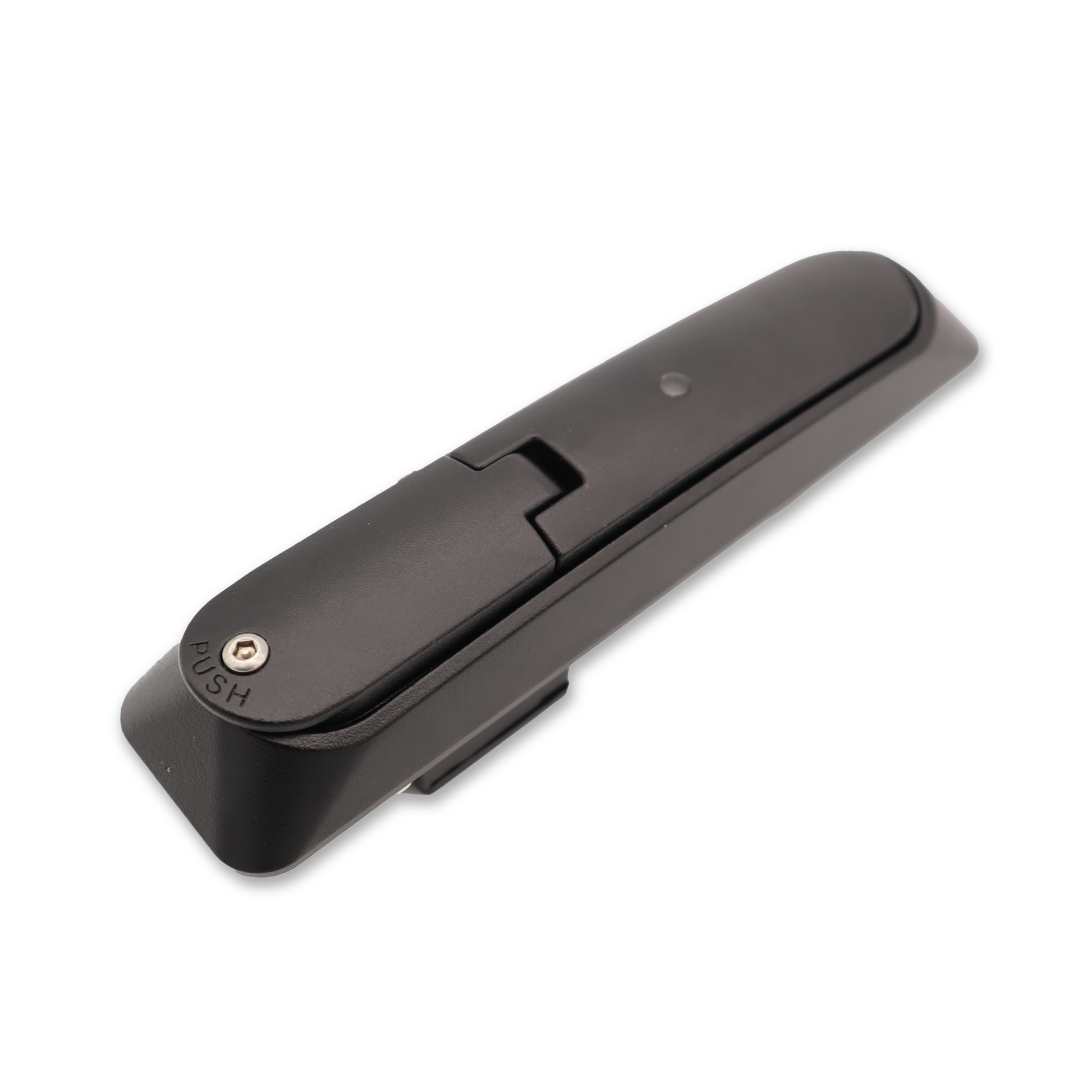

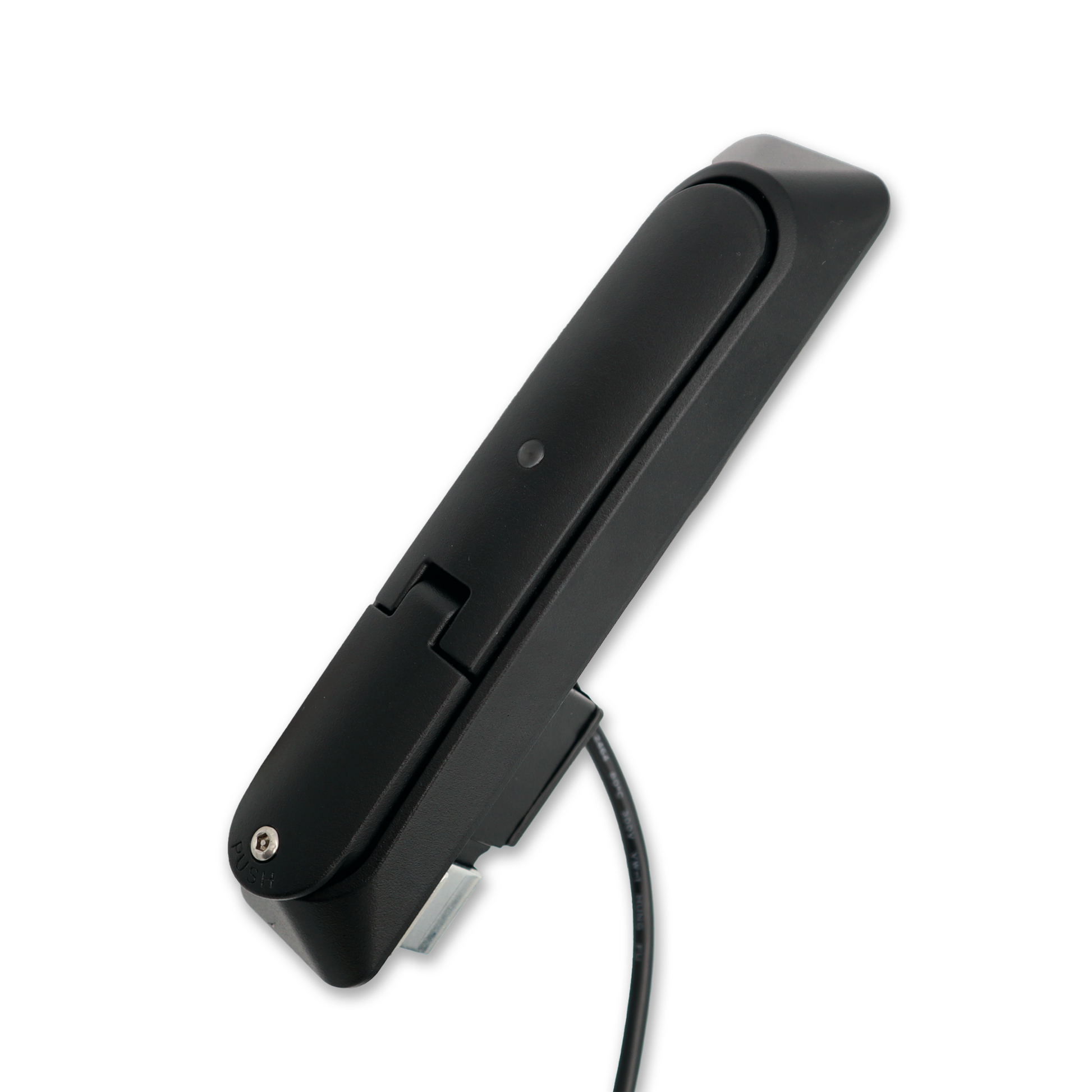

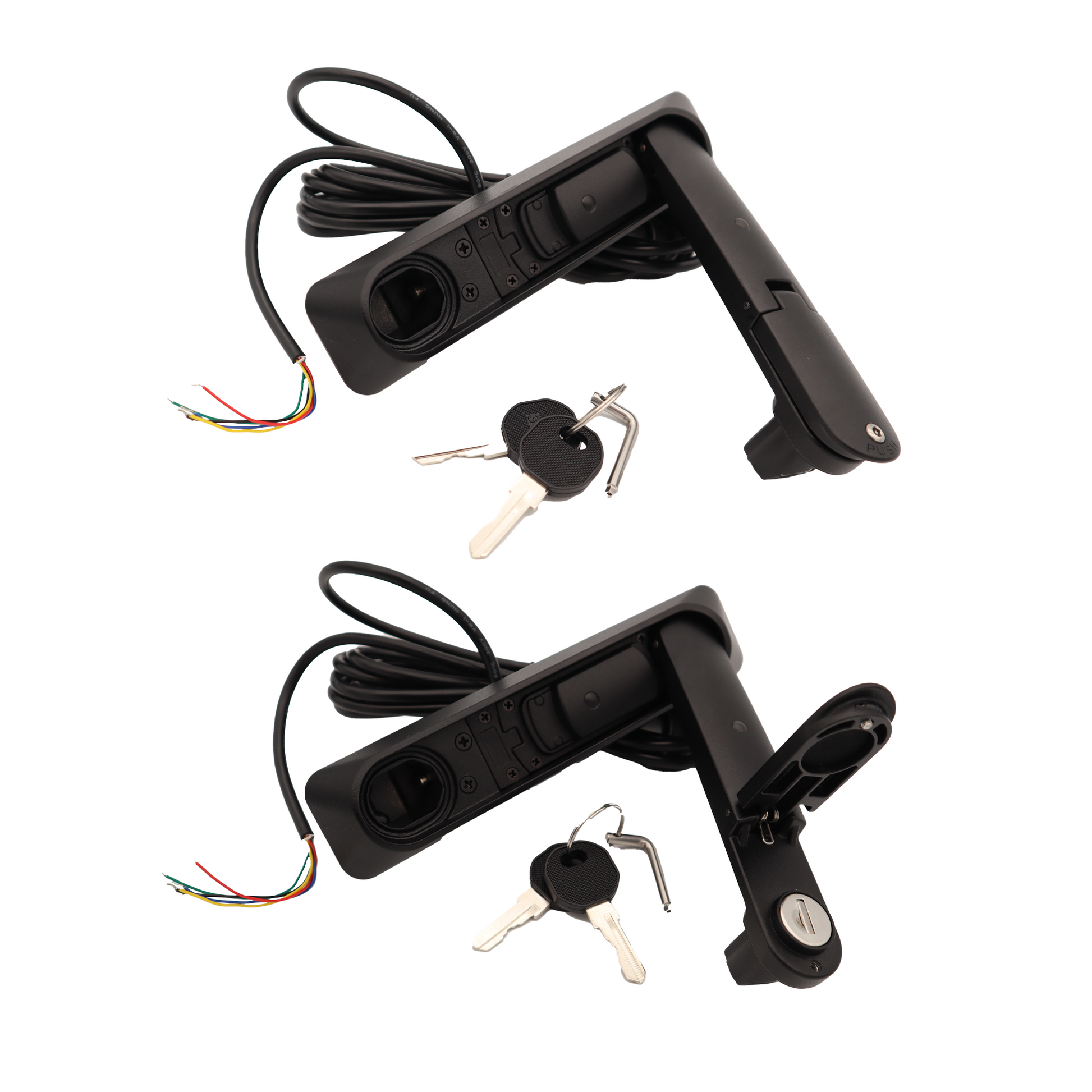

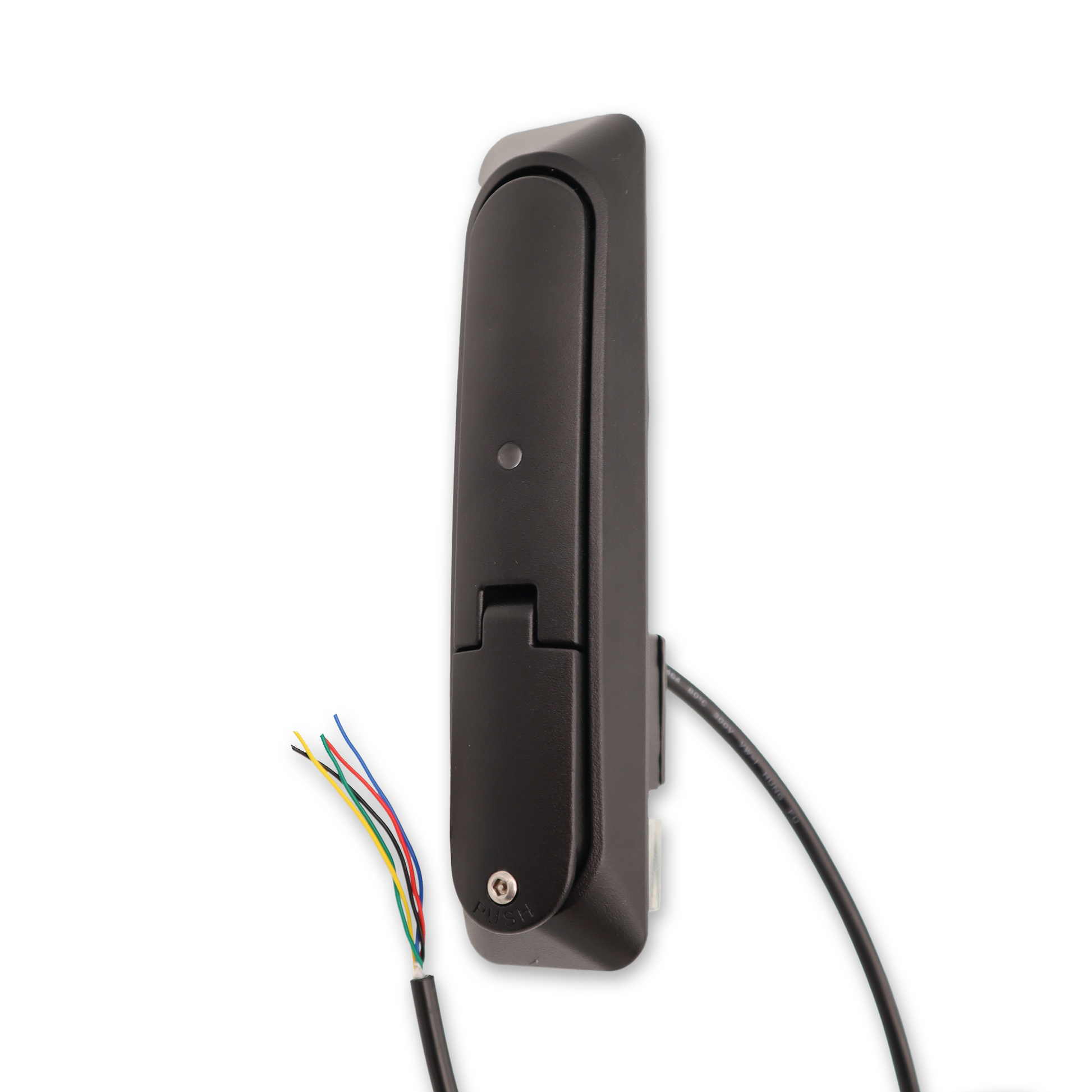

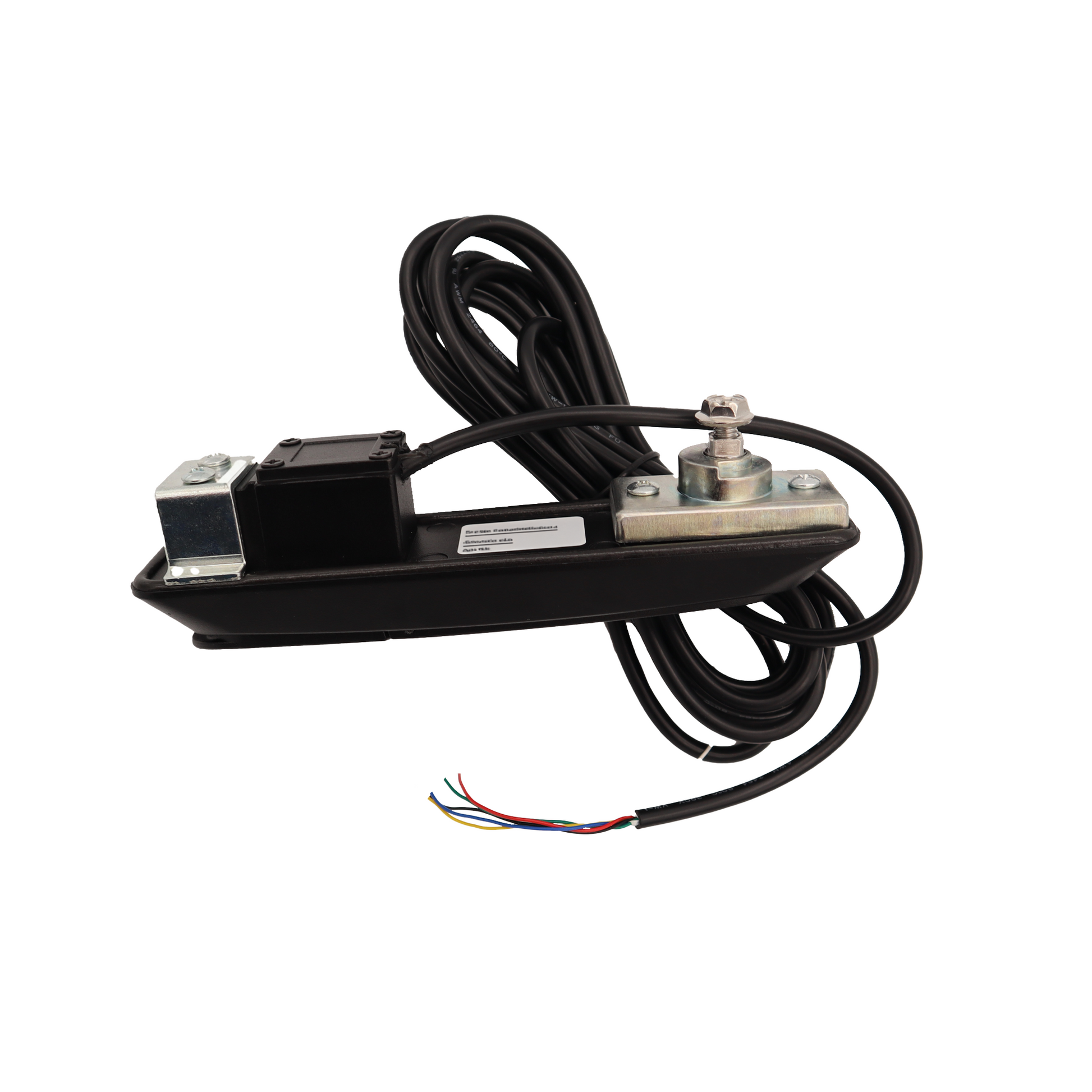

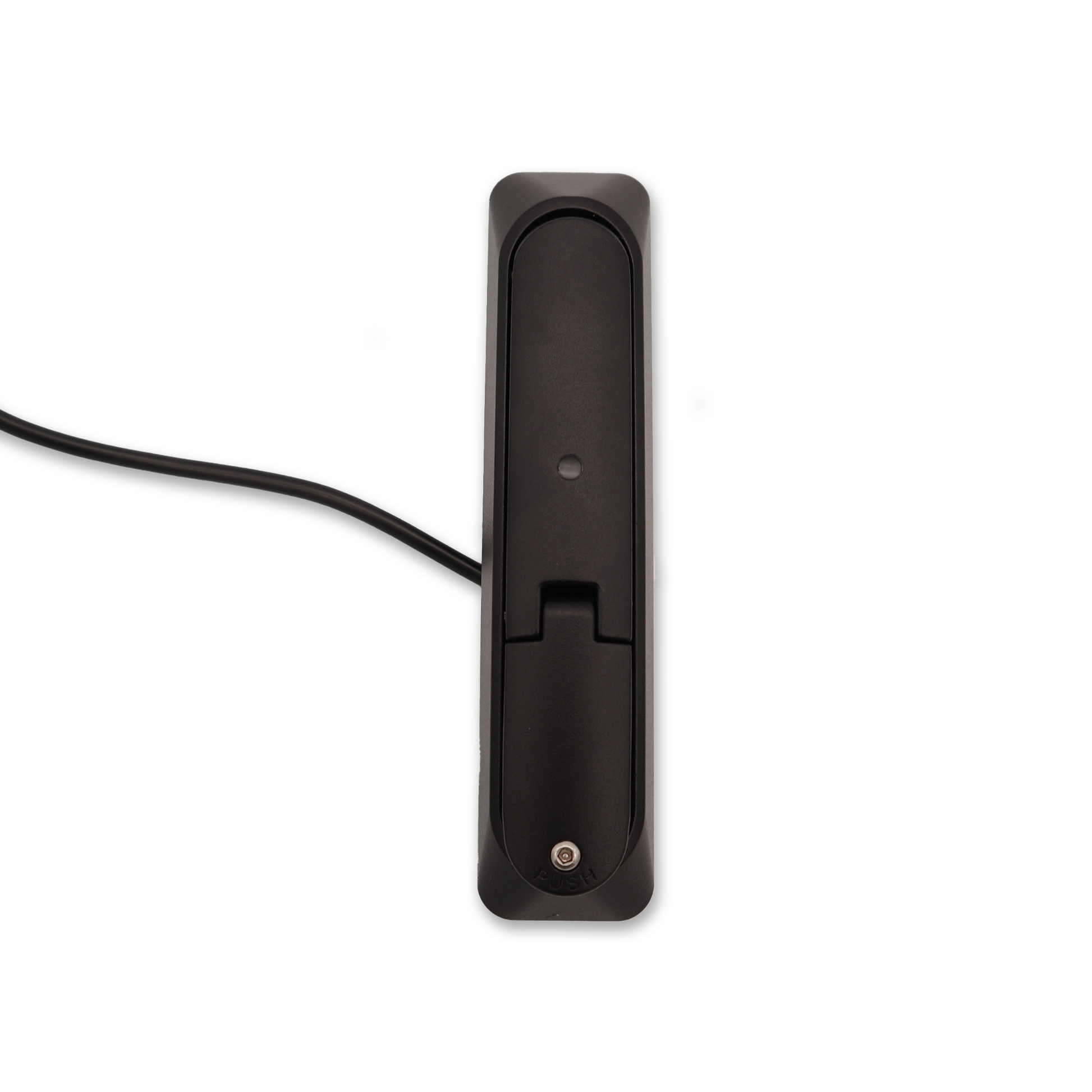

IoT Series Electronic Swing Handle (IP65)

IoT Series Electronic Swing Handle (IP65)

1107SBBE01-IND-C-001

$289.00 AUD
$289.00 AUD
Sale Out of Stock
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)

Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine, VIC)

Introducing: The IoT Series Electronic Swing Handle from Selectlok. This innovative new electronic swing handle is IP65 Ingress rated and RC2 pry rated so it is perfect for outdoor applications, it uses DO remote control communications so you can integrate it into your smart locking or digital access systems yet still provides a mechanical key override option and comes standard with a 12V powered, lock status indicator light so you can always tell if your handle is locked or not from a distance.

This handle is Perfect for datacentres, Ute canopies, intelligent traffic solutions, etc. (Note: Selectlok always recommends installation by a qualified auto electrician or smart locking consultant.)

Features:

  • Access method: Mechanical key + remote control (DO)
  • Lock status indicator light (blue/green)
  • IP65 ingress protection rated
  • Includes 3M loose wiring harnessRC2 pry proof rated
  • Unlock current ≤350mA
  • Standby current ≤50mA
  • Mechanical key lockable with cylinder barrel
  • Keyed alike 001 (Other codes may be available upon request)
  • Cams sold separately

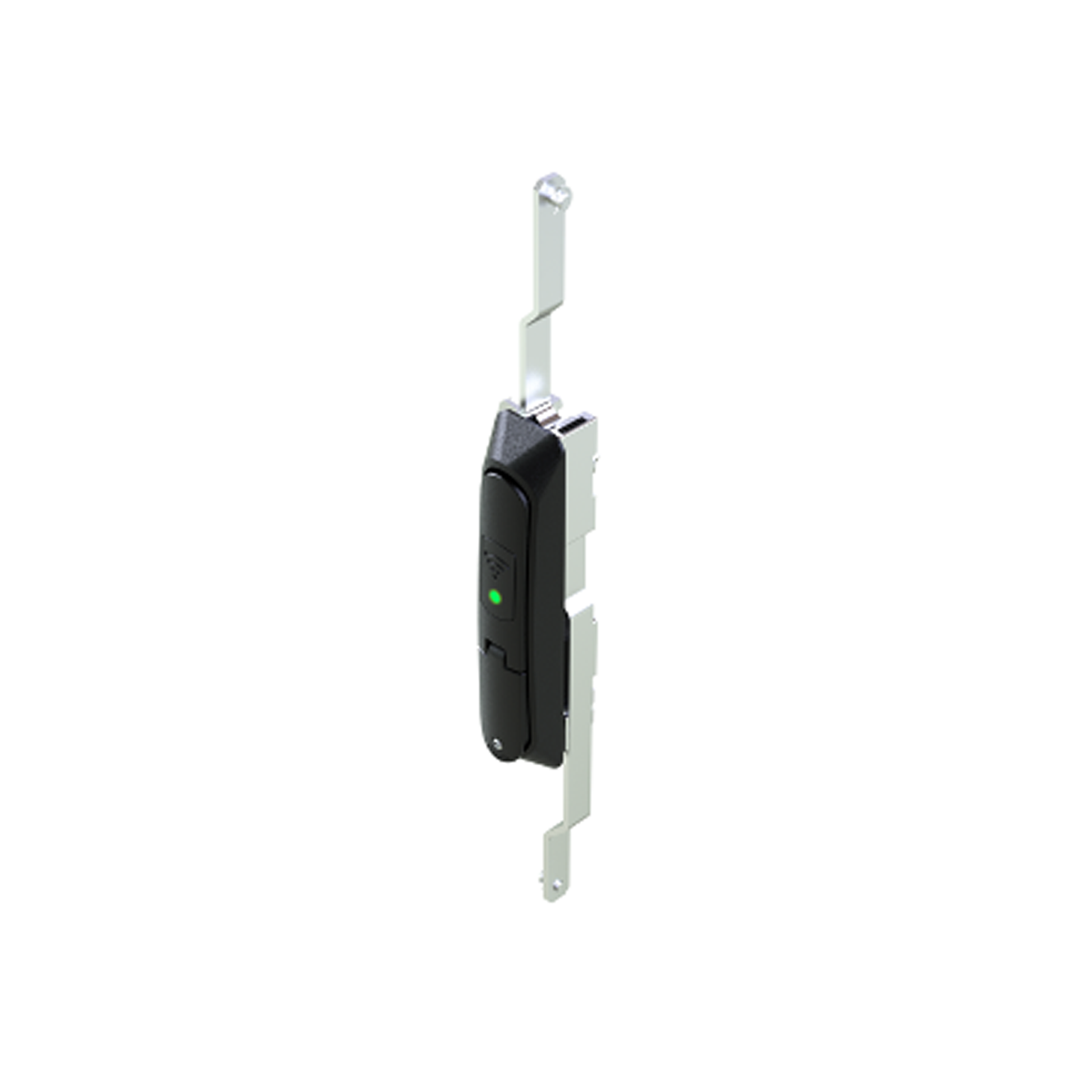

  • Rod control version available upon request

Cutout:

  • IND-C

Material & Finish:

  • Housing: Zinc, textured powder coated, black
  • Handle: Zinc alloy, textured powder coated, black
  • Mounting bracket: Mild steel, zinc plated
  • Cam: Mild steel, zinc plated
  • Cylinder: Zinc alloy, zinc plated

Standard Cams Available:

  • Note: The DO unlocking time is recommended to be 20s
  • Open with mechanical key: When the machine is opened, first open the dust cover with the dust cover key, then insert the mechanical key, press down and rotate clockwise to open the handle.
  • Open the IoT Lock with DO remote unlocking: Issue a remote command to unlock the lock, at this time the lock status indicator flashes from blue to green and accompanied by the buzzer sound, at this time, press the PUSH point at the end of the lock handle and the handle will automatically pop up. Rotate the handle to drive the locking mechanism such as a cam or rod control mechanism to complete the opening action.
  • Single-point cams available in various H= dimensions
  • Three-point cams available
  • Roller cams available

View Datasheet

Download Our Printable 1:1 Scale Cutout Template
