EXCLUSIVE AUSTRALIAN DISTRIBUTOR

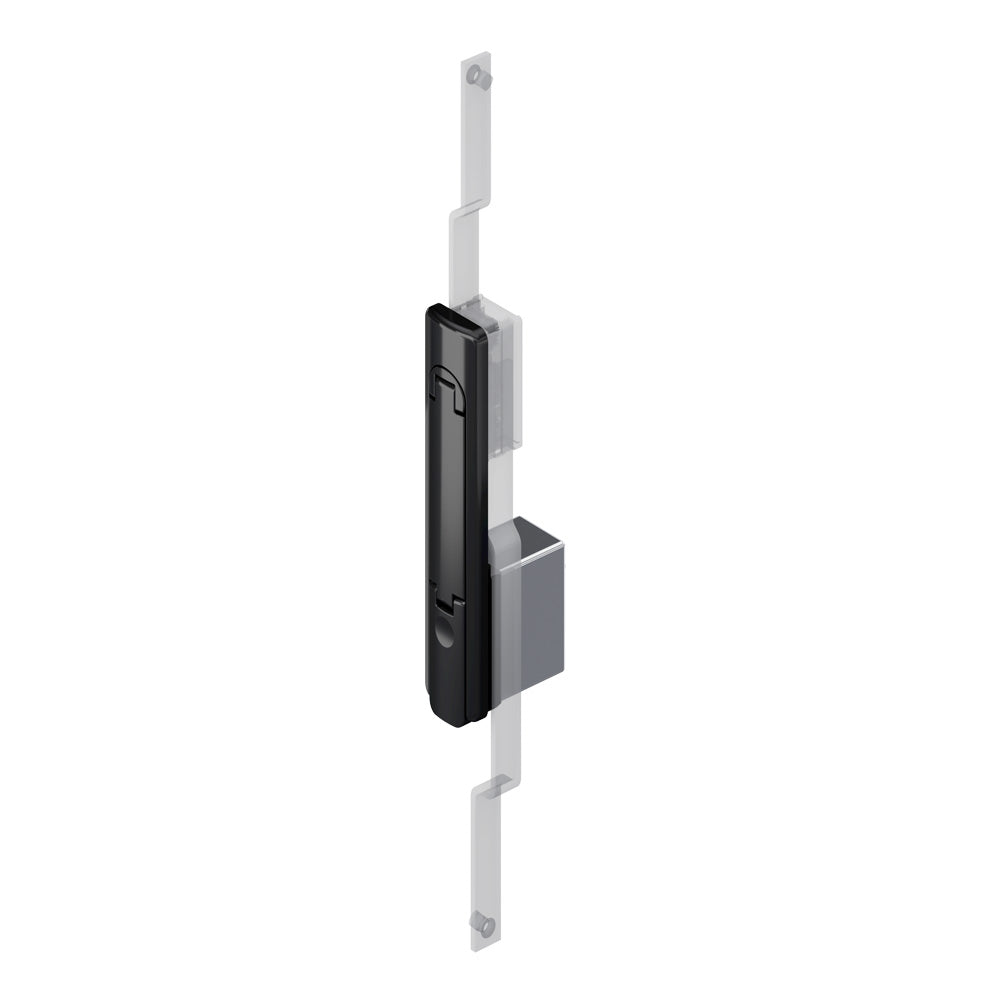

Dirak NT Swing Handle - FS PrC

Dirak NT Swing Handle - FS PrC

SKU:307-9359.02-00000

Price on Application

Please check availability: Dirak products are generally custom ordered from the supplier based on individual project requirements. Please note, some items may not be readily available in stock at time of enquiry. Delivery times from Dirak can vary accordingly however the majority of orders take between 14-21 days to be received into warehouse by Selectlok Australia.

Features:

  • Extremely narrow gap
  • Handle spring-loaded, remains in the opening position
  • The flush design prevents this swinghandle being used as climbing support
  • IP65 according to DIN EN 60529
  • RH / LH application
  • Permanent magnet keeps the cylinder cover closed
  • Grounding by grounding clip (optional)

Remarks:

  • (S) Door-thickness 1.5 - 2.5mm
  • Countersunk screws M5x16, for fastening the cylinder is included in the scope of delivery
  • Interchangeable inserts for other locking devices on request
  • Profile half cylinders and their assembly must be ordered separately

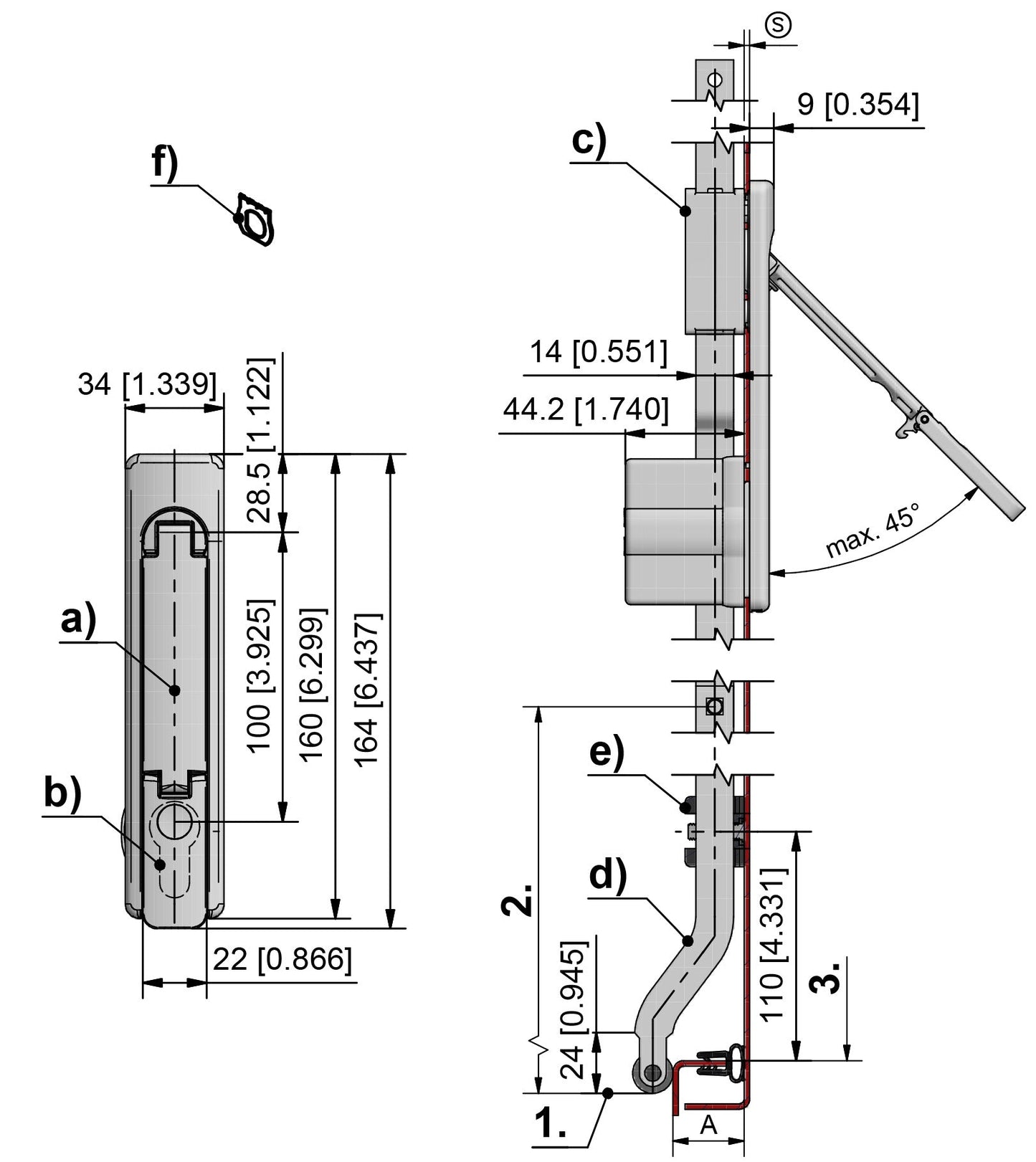

  1. stroke 24mm
  2. length L
  3. clearance

    Material & Finish:

    • Handle, lifting hook = AISI 304
    • Dish, cap, carrier = zinc die
    • Cap sealing and o-ring = NBR

    Download Datasheet

    Part Numbers: 307-9359.02-00000
