Dirak Cam With Stopper (L:45mm / L:35mm)

Dirak Cam With Stopper (L:45mm / L:35mm)

200-04xx, 200-06xx

Price on Application

Please check availability: Dirak products are generally custom ordered from the supplier based on individual project requirements. Please note, some items may not be readily available in stock at time of enquiry. Delivery times from Dirak can vary accordingly however the majority of orders take between 14-21 days to be received into warehouse by Selectlok Australia.

Features:

  • Cam with ramp and stopper
  • Single point locking
  • Available in lengths of 45mm and 35mm

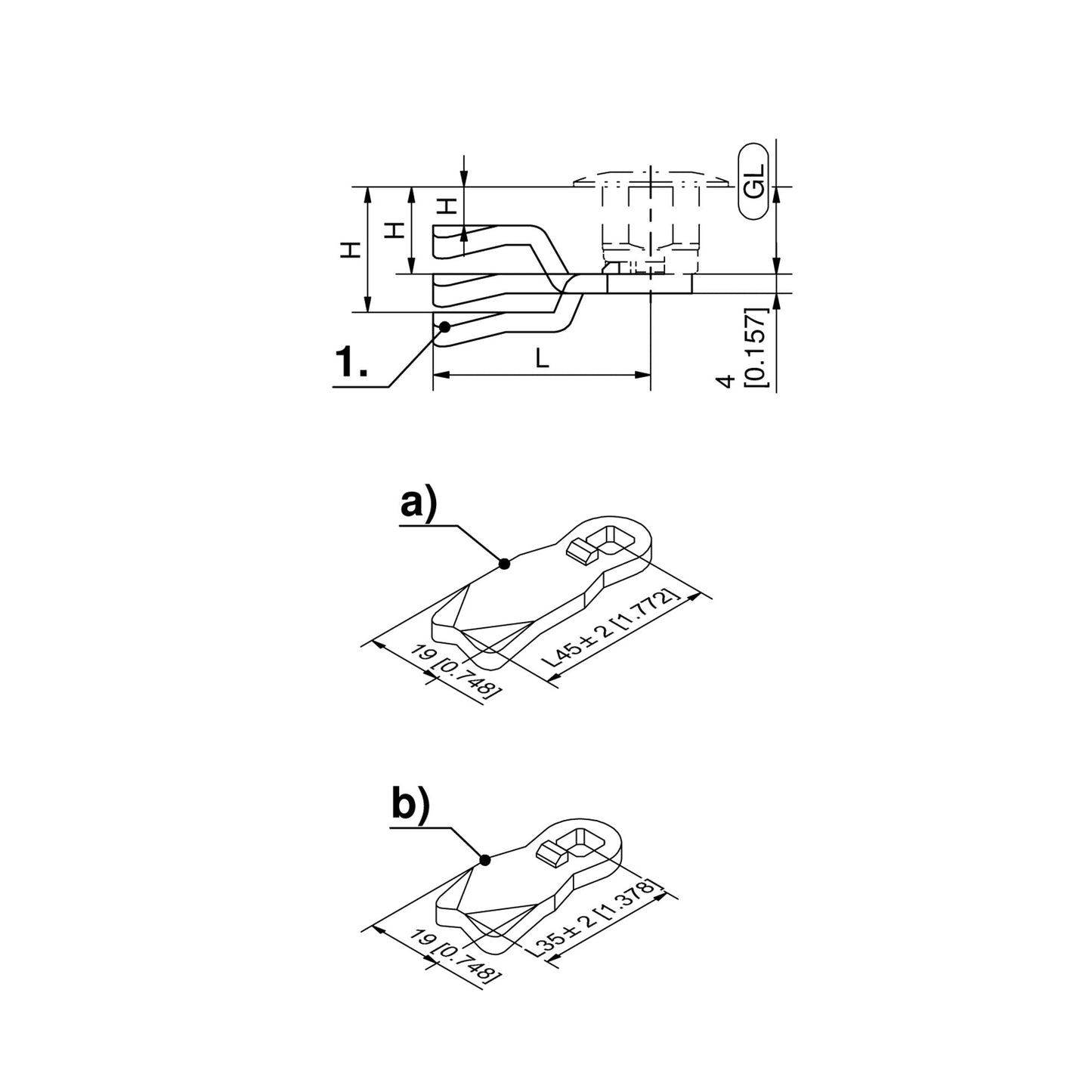

Dimensions:

Part Numbers: 200-04xx
  • Length = 45mm
  • Various H dimensions = 2mm to 55mm

OR

Part Numbers: 200-06xx

  • Length = 35mm
  • Various H dimensions = 6mm to 44mm

Materials:

  • Steel, zinc plated

Download Datasheet

Part Numbers - L:45mm
200-0402, 200-0404, 200-0406, 200-0408, 200-0410, 200-0413, 200-0414, 200-0416, 200-0418, 200-0420, 200-0422, 200-0424, 200-0425, 200-0426, 200-0428, 200-0430, 200-0432, 200-0434, 200-0435, 200-0436, 200-0438, 200-0440, 200-0442, 200-0444, 200-0445, 200-0447, 200-0450, 200-0453, 200-0455

Part Numbers - L:35mm
200-0606, 200-0608, 200-0610, 200-0413, 200-0614, 200-0616, 200-0618, 200-0620, 200-0622, 200-0624, 200-0625, 200-0626, 200-0628, 200-0630, 200-0435, 200-0638, 200-0640, 200-0642, 200-0644
