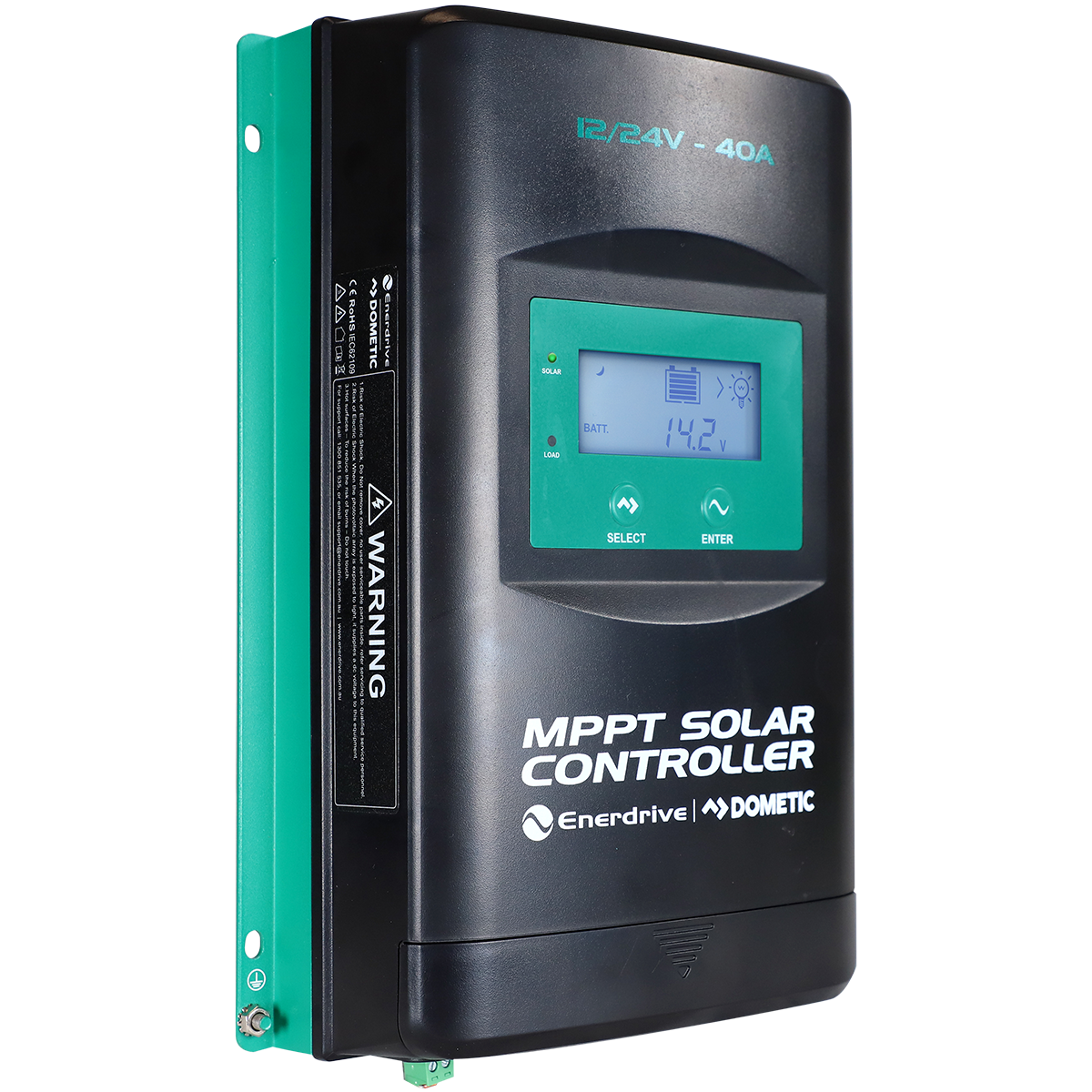

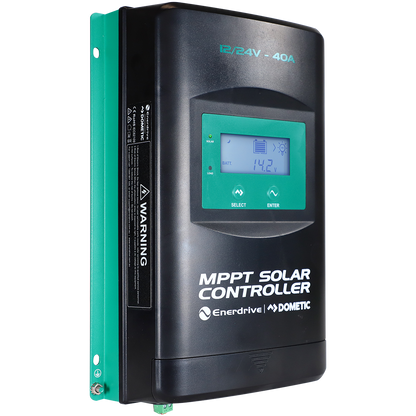

Enerdrive MPPT Solar Charge Controllers 12/24V 40Amp

Enerdrive MPPT Solar Charge Controllers 12/24V 40Amp

SKU:EN43540

Regular price $333.91 AUD
Regular price Sale price $333.91 AUD
Sale Out of Stock
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)

At Selectlok, we have access to the entire range of Enerdrive products, if you are looking for a specific component, or seeking advice for a part needed in your project, that isn't advertised on our website please get in touch with us here, or via the button below & we will be able to help you out with supplying what you require. PLEASE NOTE: Enerdrive | Dometic products are NOT available for Click & Collect or In-Store Pickup.

Description:

The Enerdrive | Dometic MPPT Solar Controllers adopt the advanced MPPT control algorithm, it can minimise the maximum power point loss rate and loss time, quickly track the maximum power point (MPP) of the PV array and obtain the maximum energy from solar array under any conditions; and it can increase the ratio of energy utilisation in the solar system by 20%-30% compared with PWM charging method.

The Enerdrive MPPT Solar Controllers has self-adaptive three-stage charging mode based on digital control circuit, which can effectively prolong the lifespan of batteries and significantly improve the system performance. It also has comprehensive electronic protection for overcharge, over discharge, PV & battery reverse polarity. This controller can be widely used for RV, Marine, remote off grid monitoring and many other applications.

IP33 Ingress protection and isolated RS485 design further improves the controller’s reliability and meet the different application requirements.

Features:

    Enerdrive MPPT Solar Controller Features:
    • CE certification (LVD EN/IEC62109,EMC EN61000-6-1/3)
    • LCD display
    • Advanced MPPT technology & ultra-fast tracking speed guarantee’s tracking efficiency up to 99.5%
    • Maximum DC/DC transfer efficiency is as high as 98.6%.
    • Advanced MPPT control algorithm to minimize the MPP lost rate and lost time
    • Accurate recognition and tracking of multi-peaks maximum power point
    • Wide MPP operating voltage range
    • Support lead-acid and lithium batteries
    • Real-time energy statistics function
    • Power reduction automatically over temperature value
    • Multiple load work modes
    • Comprehensive electronic protection
    • IP33 Ingress protection
    • Comms port included for future applications

    Download User Manual
