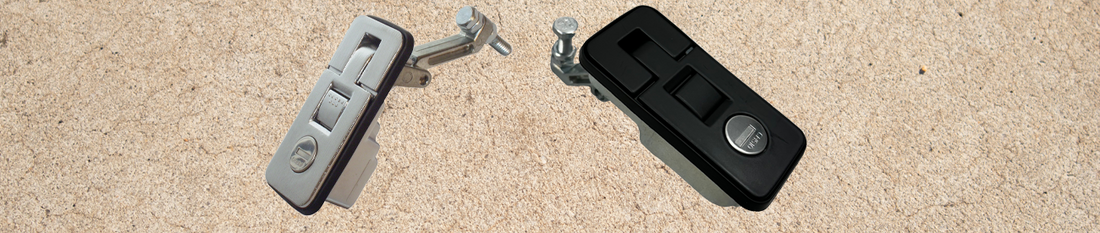

Best Practices for Installing Compression Locks on Insulated Panels

Best Practices for Installing Compression Locks on Insulated Panels

Insulated panels are widely used in industrial HVAC units and electrical enclosures to control temperature, reduce noise, and protect critical components. However, the performance of these panels depends heavily on correct hardware installation — particularly compression locks.

Incorrectly installed compression locks can compromise sealing, create vibration issues, damage insulation cores, and reduce IP performance. This guide outlines best-practice installation tips, common pitfalls to avoid, and practical optimisation advice to ensure long-term reliability.

Why Installation Quality Matters

Compression locks are designed to pull panels tight against the frame, applying controlled force to compress gaskets and stabilise the enclosure. On insulated panels, that force must be applied evenly and accurately to avoid:

  • Crushing insulation cores
  • Distorting skins or face sheets
  • Creating air leaks or moisture ingress
  • Premature gasket and lock failure
  • Correct installation protects both the panel structure and the lock’s compression function.

Step-by-Step Best Practices

1. Verify Panel Construction Before Installation

Before selecting or installing a compression lock, confirm:

  • Total panel thickness (including insulation and skins)
  • Core material (PU, PIR, EPS, mineral wool)
  • Skin material and thickness (steel, aluminium, composite)
  • Gasket type and compression depth

Best practice: Always measure the actual finished panel thickness, not nominal values from drawings.

2. Select the Correct Grip Range

The lock’s grip range must accommodate:

  • Panel thickness
  • Gasket compression (typically 2–5 mm)
  • Manufacturing tolerances

Optimisation tip:
Choose a compression lock with adjustable cams or spacers to fine-tune engagement without over-compressing the panel.

3. Use Accurate Cut-Outs and Clean Edges

Insulated panels are especially sensitive to poor cut-outs.

  • Follow manufacturer cut-out templates exactly
  • Ensure square, burr-free edges
  • Seal exposed insulation cores if required

Common mistake: Oversized or uneven cut-outs lead to panel movement and inconsistent compression.

4. Install Reinforcement Where Required

On softer or thick insulated panels:

  • Use backing plates or reinforcement washers
  • Spread load across both panel skins
  • Prevent “oil-canning” under compression

This is particularly important for larger access doors or panels exposed to vibration.

5. Align the Lock and Frame Engagement Point

Compression locks rely on precise alignment between:

  • Cam or roller
  • Frame receiver or striker
  • Gasket compression zone

Best practice:
Dry-fit the lock and frame engagement before final tightening to ensure smooth rotation and even compression.

6. Apply Correct Torque During Commissioning

Compression locks should be adjusted to:

  • Fully compress the gasket
  • Prevent panel movement
  • Avoid skin deformation

Typical target range:
2–5 Nm depending on panel stiffness and gasket type.

Do not overtighten. Excessive torque damages insulation cores and shortens gasket life.

7. Test Sealing and Access Function

Once installed:

  • Check uniform gasket compression around the panel
  • Verify smooth lock operation
  • Confirm panel does not rattle under vibration
  • Validate IP performance if applicable

Re-adjust compression if necessary — small changes make a big difference.

Common Installation Pitfalls (and How to Avoid Them)

Pitfall

Consequence

Solution

Incorrect grip range

Loose or over-compressed panels

Loose or over-compressed panels

Over-tightening

Panel distortion, gasket failure

Set torque carefully

No reinforcement

Crushed insulation core

Use backing plates

Poor alignment

Uneven sealing, lock wear

Dry-fit before final install

Generic cam locks

Poor sealing, vibration

Specify true compression locks

Optimising for HVAC & Electrical Applications

Correctly installed compression locks deliver:

  • Improved air-tightness and thermal efficiency
  • Stable IP ratings (IP65/IP66+)
  • Reduced vibration and noise
  • Longer panel and gasket lifespan
  • Faster servicing and safer access

For OEMs and contractors, consistent installation also means:

  • Fewer callbacks
  • Better compliance outcomes
  • More predictable system performance

Final Takeaway

Compression locks are precision components — and insulated panels demand precision installation.

By following structured installation steps, selecting the correct grip range, controlling torque, and avoiding common pitfalls, HVAC and electrical professionals can significantly improve enclosure performance and reliability.

Well-installed compression locks don’t just secure access panels — they protect system efficiency, safety, and long-term value.

👉 Explore Selectlok’s range of compression locks engineered for insulated HVAC and electrical panels, with options designed for adjustable grip, high ingress protection, and real-world installation conditions.
