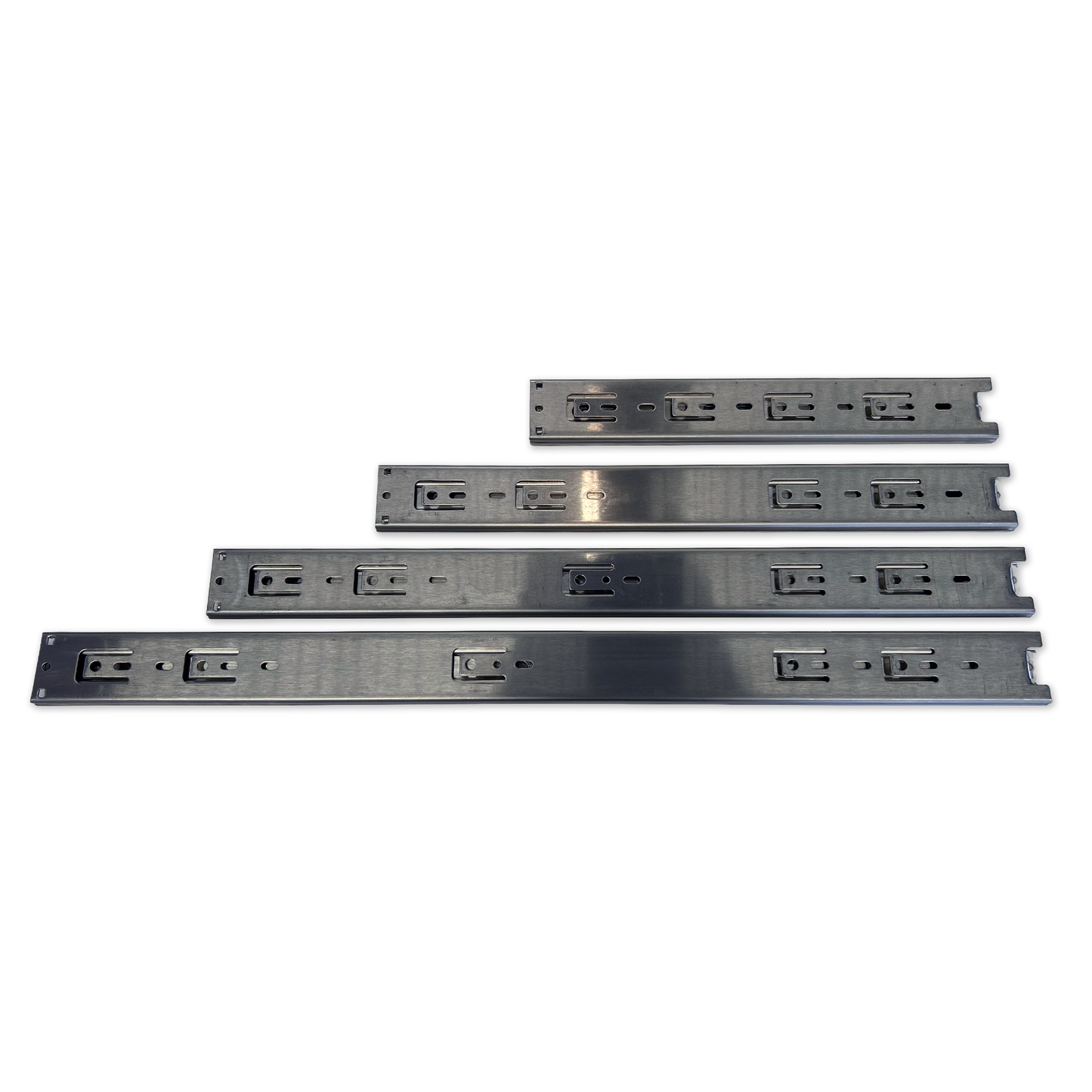

Light-Duty SS Drawer Slides - 45kg Rating (Pair / Stainless Steel)

• Stainless steel
• Sold as matching pairs (non-locking)
• Light-duty range (3045)
• 45kg load rating (per pair)
• Ultra smooth ball bearing, gliding motion
• High rigidity design with enhanced stability
• Durable pneumatic damping system with fast response capability

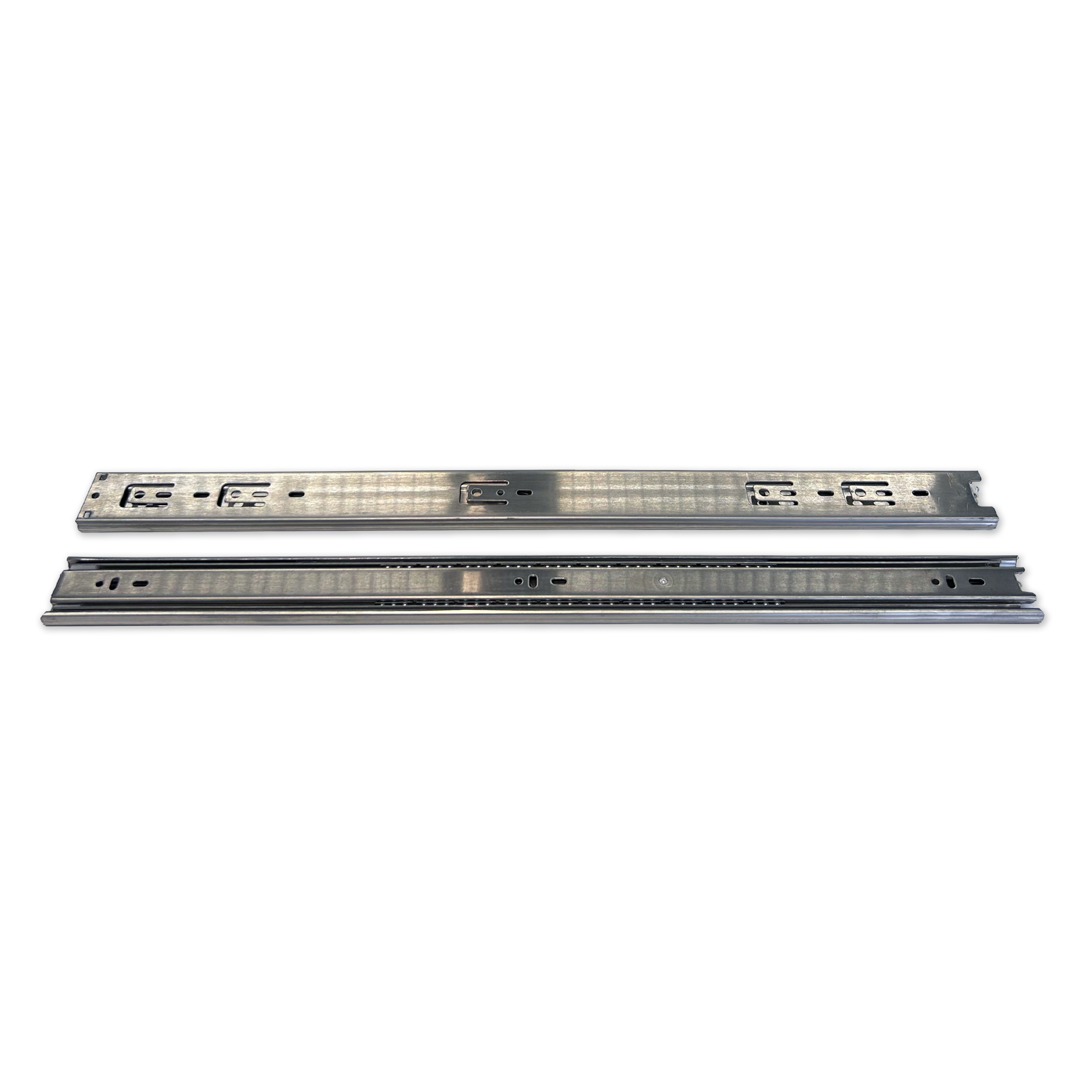

• Variant lengths (mm) are as "closed,"

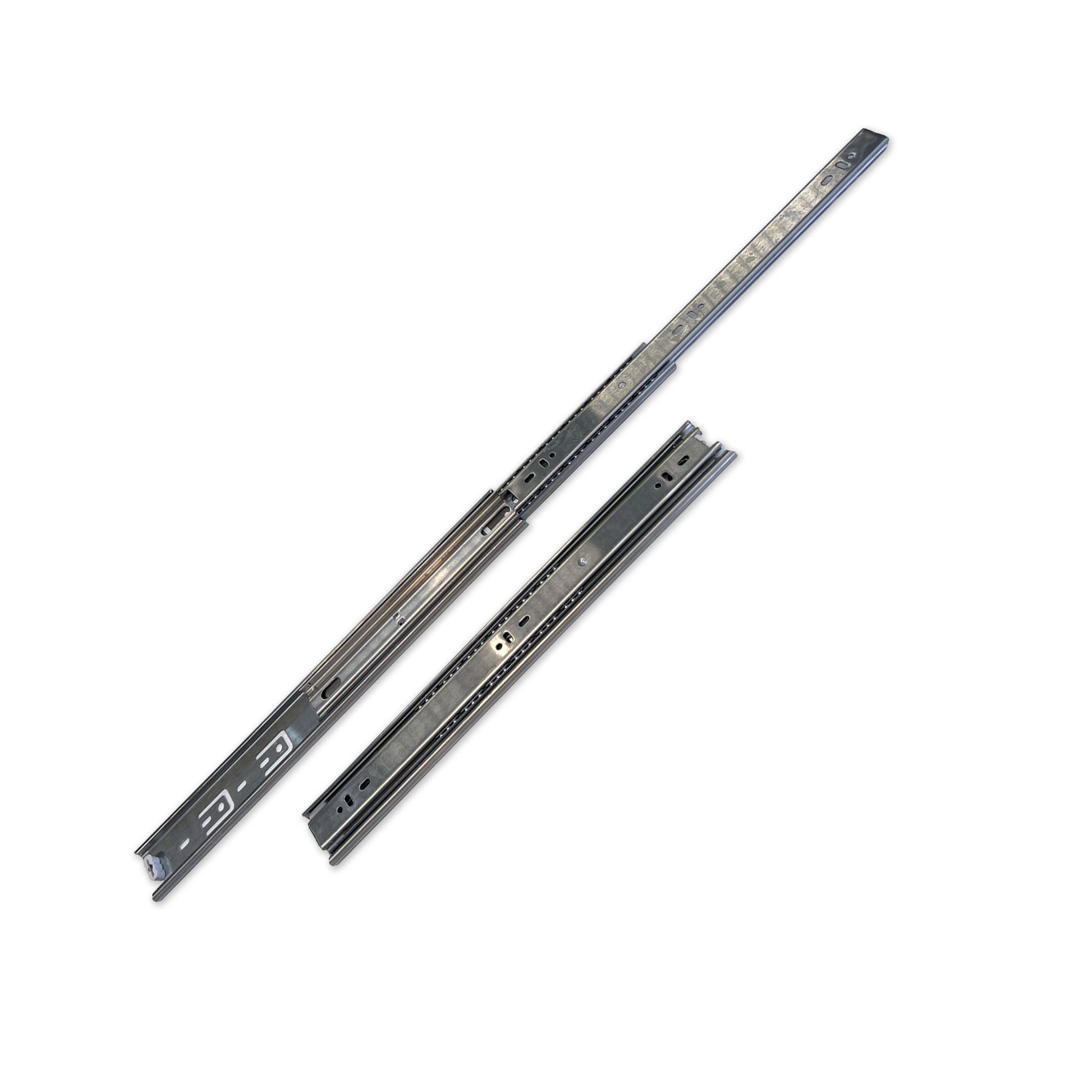

• Extended lengths are approximately “double”

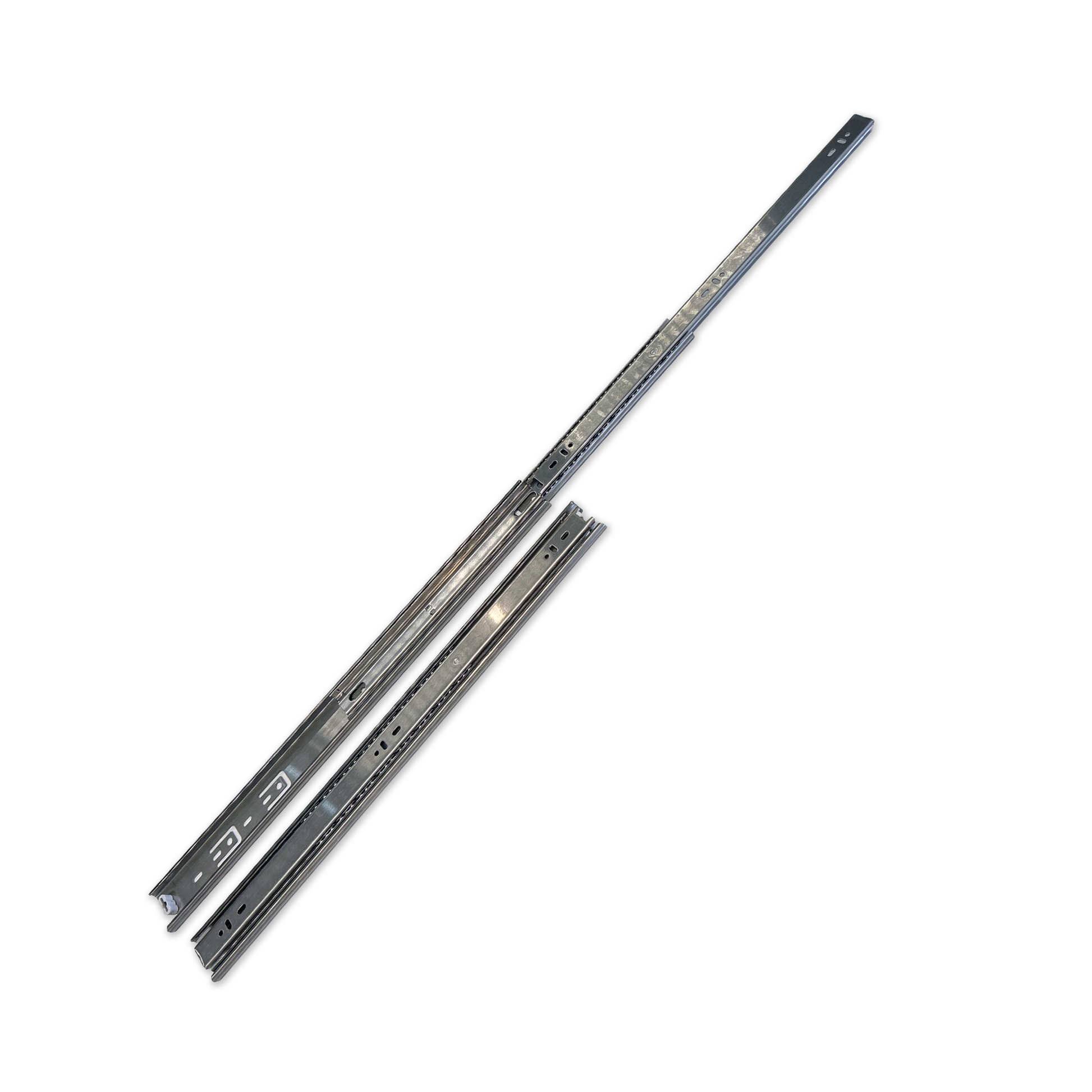

• Full travel extension (inner rail extends the full length of the slide)
• Mounting: Side mount

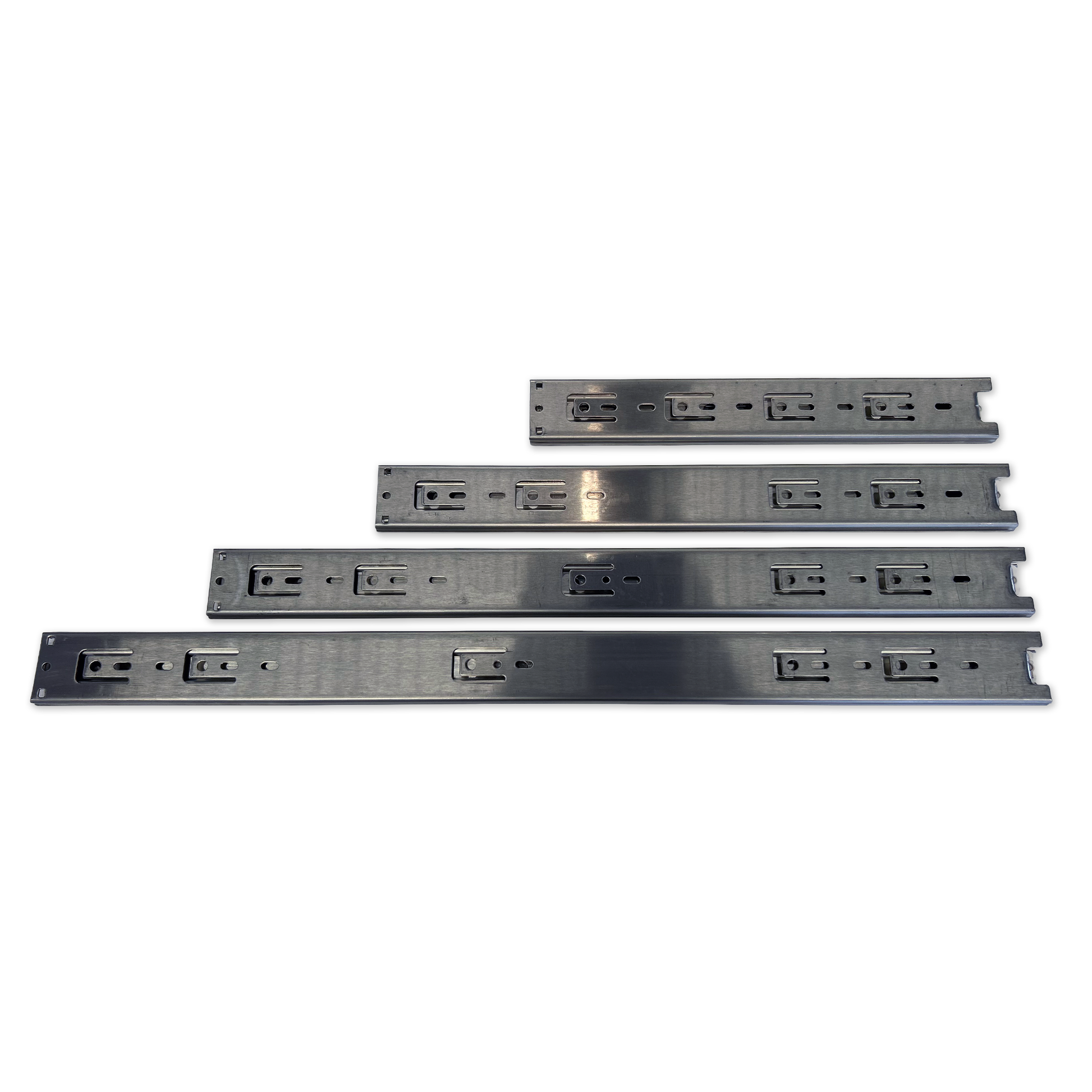

• Length: 300mm ~ 600mm
• Height: 44.6mm
• Width: 12.8mm
• Material: 201 Grade, Stainless Steel

• Detailed technical drawings on datasheet (see below)
• Please note: Does not come with fixing hardware
• If you require either a size that isn't presently available, please contact our customer service team to see if we are able to further assist you. (Maybe subject to MOQ, additional costs and/or lead times.)
• Selectlok Australia recommends the periodic application of a corrosion inhibiting lubricants. - Such as; white lithium grease, silicone spray, or a specialized drawer slide wax to ensure smooth operation and longevity.
• 201-Grade Stainless Steel: Suitable for both outdoor use and 'light' marine applications. (Not suitable for regular or full exposure marine use.)

View Our Technical Datasheet

Understanding Your Drawer Slide's Load Ratings, Click Here To Read Article.
