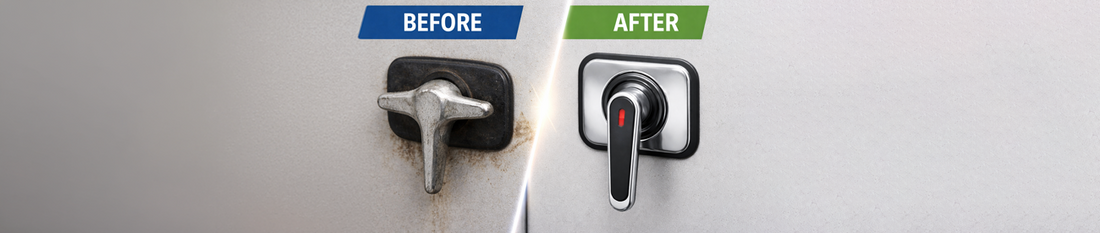

Retrofitting Legacy Doors with Modern Locking Systems

Retrofitting Legacy Doors with Modern Locking Systems

Retrofitting older doors and panels is a reality across HVAC plant rooms, electrical switchboards, transport canopies, caravans, and service bodies. Frames are already built, cut-outs are fixed, and downtime is rarely an option. The challenge? Upgrading security, sealing, and usability without rebuilding the door from scratch.

With the right hardware choices and a few smart retrofit techniques, legacy doors can be brought up to modern performance standards quickly and cost-effectively.

Why Retrofit Instead of Replace?

Full door or panel replacement is expensive and disruptive. Retrofitting locking hardware delivers immediate gains:

  • Improved sealing and IP performance
  • Better vibration resistance for mobile or rooftop installations
  • Safer access with lockable or emergency-release options
  • Cleaner aesthetics and easier operation
  • Extended service life of existing panels

For many trade builds, a hardware retrofit solves 80% of the problem at a fraction of the cost.

Common Retrofit Challenges (and How to Solve Them)

1. Unknown or Inconsistent Panel Thickness

Older doors often vary in thickness due to insulation upgrades, corrosion repairs, or laminate layers.

Retrofit hack:
Use compression locks with wide grip ranges (typically 5–25 mm). These accommodate variations without shimming or reworking the panel.

Selectlok solution:
Compression locks with adjustable cams and threaded bodies allow precise take-up without stressing the panel.

2. Poor Sealing or Air Leakage

Legacy cam locks and latches often pull panels closed but don’t apply compression, leading to air leaks, dust ingress, and rattling.

Retrofit hack:
Upgrade to a compression lock and pair it with a new perimeter gasket. Even modest compression dramatically improves sealing and noise control.

Ideal for:

  • HVAC access panels
  • Electrical enclosures
  • Outdoor cabinets and marine compartments

3. Oversized or Damaged Cut-Outs

Repeated hardware changes can leave elongated or worn cut-outs that won’t securely hold new locks.

Retrofit hack:
Choose locks with larger faceplates or escutcheons to cover damaged areas while maintaining strength.

Selectlok solution:
Compression and quarter-turn locks with larger front plates (50–100 mm formats) hide imperfections and restore structural integrity.

4. Vibration Fatigue in Mobile Builds

Transport canopies, caravans, trailers, and service bodies place constant stress on legacy latch systems.

Retrofit hack:
Use compression locks or paddle handles that preload the door against the frame, reducing movement and fastener fatigue.

Selectlok solution:

  • Compression locks for sealed doors
  • Paddle handles with multi-point engagement for larger panels

5. Safety and Compliance Gaps

Older enclosures may lack lockability or internal release, creating safety risks.

Retrofit hack:
Replace simple latches with lockable quarter-turns or paddle handles with internal emergency release.

Ideal for:

  • Generator enclosures
  • HVAC service compartments
  • Canopies and RV storage areas

Choosing the Right Lock for the Retrofit

🔒 Compression Locks

Best for: HVAC, electrical panels, outdoor enclosures
Why retrofit with them:

  • Apply controlled compression
  • Improve IP ratings (IP65–IP66+)
  • Reduce vibration and noise
  • Adjustable grip for unknown panel thicknesses

🔄 Quarter-Turn Locks

Best for: Service access panels, canopies, caravans
Why retrofit with them:

  • Minimal modification required
  • Fast access for maintenance
  • Available in lockable and non-locking versions

🚪 Paddle Handles

Best for: Large or frequently accessed doors
Why retrofit with them:

  • Ergonomic operation
  • Strong door retention
  • Options with internal emergency release for safety-critical applications

Practical Retrofit Tips from the Field

  • Measure grip, not just panel thickness — include gaskets and compression range
  • Replace gaskets when upgrading locks to unlock full sealing benefits
  • Avoid over-torqueing — compression locks work best when adjusted, not forced
  • Standardise hardware across upgrades to simplify future servicing
  • Check IP and material specs for outdoor, rooftop, or marine environments

Ideal Retrofit Applications

  • HVAC access doors and duct panels
  • Electrical switchboards and control cabinets
  • Ute canopies and service bodies
  • Caravans, trailers and horse floats
  • Marine hatches and storage compartments

Final Takeaway

Retrofitting legacy doors doesn’t need to be complex or costly. By upgrading to modern compression locks, quarter-turn locks, or paddle handles, trade professionals can dramatically improve sealing, safety, and durability — all while keeping existing doors in service.

👉 Explore our retrofit-friendly locking solutions, grip ranges, and technical specifications and turn ageing panels into modern, professional-grade enclosures with confidence.
