Rubber Sealing for Caravans, Canopies and DIY Builds: How to Choose the Right Seal

Keep Dust, Water, Noise and Vibration Outside Where They Belong

When building or upgrading a caravan, ute canopy, camper trailer, toolbox or outdoor storage system, it is easy to focus on the visible hardware.

You might spend hours selecting the right handles, locks, hinges, drawer slides and gas struts — then treat the rubber seal around the door as an afterthought.

However, a seal that is too small, too rigid, positioned incorrectly or unsuitable for the environment can affect the performance of the entire build.

This guide explains where rubber seals are commonly used in caravans and canopies, how different seal types work, and what to measure before choosing a profile.

What Does Rubber Sealing Do?

Rubber seals are flexible components designed to close small gaps between two surfaces.

In a canopy or caravan, the seal is generally fitted around the edge of a door, hatch, window or opening. When the door closes, the seal compresses and helps create a barrier against the outside environment.

A correctly selected seal can help:

✓ Reduce dust ingress
✓ Minimise water entry
✓ Reduce rattles and vibration
✓ Protect exposed panel edges
✓ Improve the fit between doors and frames
✓ Reduce metal-to-metal contact
✓ Protect stored equipment

The seal works as part of a complete system. The door, hinges, latch, frame and rubber profile all need to work together.

A high-quality seal cannot compensate for a badly aligned door or an incorrectly positioned latch. Likewise, a strong latch cannot create an effective seal if the rubber profile is too small or does not contact the mating surface.

Where Is Rubber Sealing Used?

Rubber seals appear throughout many recreational and touring builds.

1. Ute Canopy Doors

Side and rear canopy doors are among the most common applications for pinchweld sealing.

A seal fitted around the door opening can help protect internal storage areas from:

• Dust
• Road spray
• Rain
• Mud
• Wind-driven moisture

This is particularly important when carrying:

• Power tools
• Recovery equipment
• Camping gear
• Refrigeration equipment
• Batteries and electrical systems

For off-road vehicles, sealing performance is especially important because fine dust can enter through very small gaps.

2. Caravan Entry and Storage Doors

Caravans often use rubber sealing around:

• External storage lockers
• Front boots
• Tunnel boots
• Service compartments
• Access hatches
• Exterior doors

These compartments may store valuable equipment, so a reliable seal can help reduce exposure to water and dust during travel.

When replacing an existing seal, do not assume that a similar-looking profile will provide the same fit. Measure the original profile and check how the door compresses the seal.

3. Camper Trailer Hatches

Camper trailers experience regular vibration, movement and exposure to changing weather conditions.

Rubber sealing may be used around:

• Kitchen compartments
• Storage hatches
• Toolboxes
• Electrical compartments
• Rear access doors

A suitable profile can help reduce rattling while providing a consistent seal around the opening.

4. Toolbox Doors

Toolboxes are often exposed to rain, road spray, dust and vibration.

Rubber sealing can help protect:

• Hand tools
• Power tools
• Electrical equipment
• Fasteners
• Recovery gear

For a toolbox door, the seal must work with the locking mechanism. If the latch does not pull the door firmly into the seal, gaps may remain even when the door appears closed.

5. Windows and Glazed Panels

Rubber profiles may be used to support, protect or seal window panels.

The correct profile depends on:

• Panel thickness
• Frame design
• Required edge protection
• Exposure to weather
• Whether the window is fixed or opening

Understanding the Main Types of Rubber Sealing

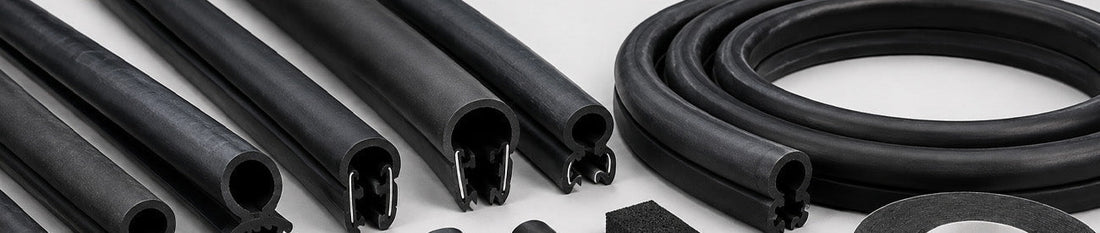

Pinchweld Seals

Pinchweld seals are designed to grip onto the edge of a panel.

They generally combine:

• A gripping section that attaches to the panel edge
• A flexible sealing bulb that compresses against the opposing surface

Selectlok offers pinchweld options with top-bulb and side-bulb configurations, allowing the sealing section to be positioned in different directions depending on the door and frame design.

Common uses

• Ute canopy doors
• Caravan storage doors
• Toolboxes
• Camper trailer hatches
• Access panels

Why the bulb direction matters

The bulb needs to contact the mating surface when the door closes.

A top-bulb seal may be suitable where the opposing surface approaches from above or directly across the profile. A side-bulb seal may be more appropriate where the sealing surface is offset.

The correct choice depends on the geometry of the door and frame — not simply on which profile looks closest to the existing seal.

Pinchweld Edge Protection

Edge protection is used where the main goal is to cover and protect an exposed panel edge.

It can help:

• Reduce the risk of sharp metal edges
• Protect paint or powder coating
• Improve the appearance of cut edges
• Reduce contact between adjacent components

Edge protection may not provide the same weather seal as a bulb-style pinchweld profile. If you need both edge protection and environmental sealing, choose a profile designed to perform both functions.

Foam Tapes and Gaskets

Foam sealing products are useful where a thin, compressible gasket is required.

Common DIY applications include:

• Electrical boxes
• Access panels
• Lightweight cabinet doors
• Caravan service openings
• Small equipment enclosures

Foam tape can be useful for flat mating surfaces where a pinchweld profile is not suitable.

Selectlok’s range includes nitrile and EPDM foam tapes and gaskets, providing options for different environmental and application requirements.

When selecting foam tape, consider:

• Width
• Thickness
• Compression requirements
• Surface condition
• Moisture exposure
• Temperature conditions

Special Profile Extrusions

Some doors and openings have unusual shapes that standard pinchweld profiles cannot accommodate.

Special profiles may be required for:

• Custom canopy designs
• Caravan doors
• Window systems
• Complex panel interfaces
• Non-standard extrusions

If your build uses an aluminium extrusion or a custom frame, compare the profile carefully before ordering.

PVC Door and Refrigeration Seals

Specialised PVC profiles can be used in applications requiring larger or more specific door-sealing arrangements.

These may be relevant to:

• Truck bodies
• Refrigerated compartments
• Large service doors
• Custom enclosures

Selectlok’s range includes H, J and refrigeration-style door seals, along with corner tabs, for applications requiring specialised door profiles.

How to Choose the Right Rubber Seal

Selecting a seal is easier when you work through the following steps.

Step 1: Identify What You Are Sealing

Start with the application.

Are you sealing:

• A ute canopy door?
• A caravan storage hatch?
• A toolbox lid?
• A camper trailer compartment?
• A window?
• An electrical enclosure?

The application will help determine the required profile, material and level of compression.

Step 2: Measure the Panel Edge

For pinchweld seals, measure the thickness of the panel edge where the seal will be fitted.

Use vernier calipers if possible.

Measure:

• The panel thickness
• The edge shape
• Any folds or return flanges

The gripping section must match the panel thickness closely enough to remain secure without being excessively difficult to install.

Avoid selecting a seal based only on the outside dimensions of the bulb.

Step 3: Measure the Gap

Close the door carefully and determine the distance between the panel and the mating surface.

This is one of the most important measurements.

If the bulb is too small:

• It may not contact the frame
• Dust and water may enter
• The door may rattle

If the bulb is too large:

• The door may be difficult to close
• The latch may be placed under excessive load
• The seal may become permanently compressed
• Door alignment may be affected

The seal should compress when the door closes, but it should not be crushed flat. Over-compression can actually decrease contact with the sealing surfaces.

Step 4: Check the Direction of the Sealing Surface

Look at how the door closes.

Does the frame contact the:

• Top of the seal?
• Side of the seal?
• Front face of the seal?

This determines whether a top-bulb, side-bulb or alternative profile is most appropriate.

A useful approach is to place a small piece of the proposed profile against the panel and manually close the door before fitting the full length.

Step 5: Consider the Environment

Your seal needs to suit where the vehicle or equipment will be used.

Consider exposure to:

• UV
• Rain
• Dust
• Mud
• Salt air
• Heat
• Cold
• Vehicle vibration

For caravans and canopies used in Australian conditions, environmental durability is an important part of the selection process.

Step 6: Check the Door and Latch Operation

Before replacing the seal, inspect:

• Door alignment
• Hinge condition
• Latch engagement
• Compression force
• Frame straightness

A new seal may not solve a leak if the door is warped or the latch is not pulling the panel into position.

Compression locks and compression-style handles can be particularly useful where controlled sealing pressure is required.

A Simple Rubber Seal Selection Guide

Application	Common Seal Type	Key Consideration
Ute canopy side door	Pinchweld with sealing bulb	Panel thickness and bulb direction
Caravan storage hatch	Pinchweld or foam gasket	Gap size and weather exposure
Toolbox lid	Pinchweld or compressible gasket	Vibration and latch compression
Camper trailer compartment	Pinchweld seal	Dust protection and door alignment
Electrical enclosure	Foam tape or gasket	Flat sealing surface and compression
Window or glazed panel	Special profile	Panel thickness and frame design
Large truck or refrigeration door	Specialised PVC profile	Door geometry and sealing requirements

Installation Tips for DIY Builders

Once you have selected the correct profile, installation is usually straightforward.

Clean the Panel Edge

Remove:

• Dust
• Grease
• Old adhesive
• Loose paint
• Rust

A clean edge helps the seal sit evenly.

Start at a Straight Section

Begin fitting the seal along a straight edge.

Press it into place gradually rather than stretching it.

Stretching the seal during installation may cause it to shrink or pull away later.

Work Around Corners Carefully

Do not force the profile tightly around a corner.

Allow the seal to follow the shape naturally.

For tight corners, check whether the profile needs to be relieved, joined or finished using an appropriate corner solution.

Cut Slightly Long

Measure carefully and make the final cut only after checking the fit.

A small amount of extra length is generally easier to trim than a seal that is cut too short.

Test the Door Before Finalising

Close the door and check:

✓ Does the seal contact the mating surface?
✓ Is the compression reasonably even?
✓ Does the door close without excessive force?
✓ Does the latch engage correctly?
✓ Are there visible gaps?

A simple paper test can help identify uneven compression. Place a strip of paper between the seal and the mating surface, close the door, and gently pull the paper. Repeat around the perimeter.

If the paper slides out freely in one area but is tightly held elsewhere, the door or seal may not be compressing evenly.

Common Mistakes to Avoid

Choosing by Appearance Alone

Two profiles can look similar but have different:

• Grip ranges
• Bulb sizes
• Bulb directions
• Compression characteristics

Always measure before ordering.

Using a Seal That Is Too Large

A larger bulb does not automatically provide a better seal.

Excessive compression can make the door difficult to close and increase stress on hinges and locks.

Ignoring Door Alignment

A seal cannot correct a bent frame, damaged hinge or poorly aligned latch.

Fix the mechanical issue first.

Stretching the Seal During Installation

Pulling the seal tight may cause it to shrink over time.

Fit the profile naturally and avoid unnecessary tension.

Forgetting the Corners

Corners are common areas for leaks.

Check that the seal remains in contact around the entire opening.

Final Takeaway

Rubber sealing may not be the most visible part of a caravan or canopy build, but it can have a major impact on comfort, durability and equipment protection.

The right seal can help keep dust and water out, reduce vibration, protect panel edges and create a cleaner, more professional finish.

Before selecting a profile:

1. Identify the application
2. Measure the panel thickness
3. Measure the gap
4. Check the direction of the sealing surface
5. Consider the environment
6. Confirm that the door, hinges and latch are correctly aligned

Whether you are sealing a ute canopy, replacing a caravan hatch seal, upgrading a toolbox or completing a custom camper build, choosing the correct profile before installation can save time, reduce rework and help your build perform better on the road.
