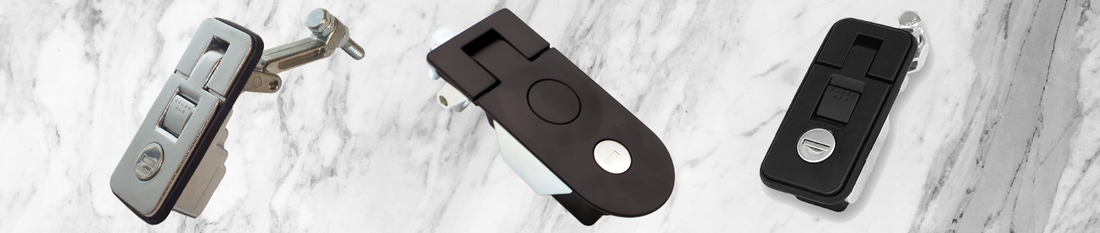

Why Torque & Grip Matter in Compression Locks

Why Torque & Grip Matter in Compression Locks

In industrial HVAC and electrical systems, access panels are more than service points — they are critical interfaces that protect equipment, maintain environmental control, and ensure compliance with safety and ingress standards. While panels and enclosures often receive careful engineering attention, locking hardware is still frequently under-specified.

Compression locks play a decisive role in enclosure performance. Understanding torque and grip range — and how they interact with panel construction, seals, and operating environments — is essential for long-term system reliability.

What a Compression Lock Actually Does

Unlike standard cam locks that simply rotate behind a panel, compression locks actively draw the panel tight against the frame, applying controlled force to:

  • Compress gaskets evenly
  • Eliminate play and vibration
  • Maintain consistent sealing pressure

This mechanical compression directly impacts air leakage, ingress protection, noise, and component longevity — especially in HVAC ducting and electrical switchboard panels.

Why Torque Matters

Torque defines how much rotational force is applied to generate compression. In HVAC and electrical applications, torque must be sufficient, but not excessive.

Under-torqued locks

  • Incomplete gasket compression
  • Air leakage and pressure loss
  • Reduced IP rating performance
  • Panel movement and vibration noise

Over-torqued locks

  • Crushed or prematurely failed gaskets
  • Panel distortion or oil-canning
  • Increased wear on lock components
  • Difficult access during servicing

Typical optimisation range:
Most industrial compression locks operate effectively between 2–5 Nm, allowing designers to balance sealing performance with serviceability.

Selectlok compression locks are engineered with controlled torque profiles to deliver consistent compression without overstressing panels — a critical advantage in thin sheet metal and insulated sandwich panels.

Grip Range: The Hidden Specification That Gets Missed

Grip range defines the total panel thickness a lock can accommodate — including:

  • Panel material
  • Insulation layers
  • Gaskets or seals
  • Manufacturing tolerances

Why grip range matters:

  • Panels vary across HVAC units and electrical enclosures
  • Retrofit projects often introduce thickness changes
  • Incorrect grip causes either loose panels or over-compression

Optimised grip ranges (commonly 1.5 mm to 25 mm) allow:

  • One lock model across multiple panel designs
  • Reduced SKUs for OEMs
  • Faster installation and fewer site issues

Selectlok compression locks offer adjustable cam and spacer options, making them ideal for both OEM production and retrofit environments.

Compression, Sealing & IP Ratings

Ingress protection performance is directly tied to compression consistency.

To achieve IP65, IP66 or higher, locks must:

  • Apply uniform force around the panel perimeter
  • Maintain compression under vibration and thermal cycling
  • Resist loosening over repeated access cycles

Compression locks outperform standard quarter-turn locks in outdoor HVAC and electrical installations because they maintain sealing force, even in rooftop, coastal, or wash-down environments.

Material Selection for Industrial Conditions

Torque and grip performance are only effective if materials withstand the environment.

Common Selectlok compression lock materials include:

  • PA6GF30 – lightweight, UV-stable, electrically insulating
  • Zinc alloy – high strength, corrosion-resistant with plated finishes
  • Stainless steel – ideal for coastal, wash-down, and high-corrosion zones

Material choice affects:

  • Long-term torque retention
  • Corrosion resistance
  • Thermal stability
  • Electrical safety compliance

Standardisation & System Efficiency

For large HVAC systems or electrical switchboards, consistency matters.

Using specification-grade compression locks enables:

  • Uniform torque across all access panels
  • Predictable seal compression
  • Easier integration with automated or IoT-enabled monitoring systems
  • Reduced warranty and maintenance claims

This is particularly valuable for OEMs and contractors managing multi-panel enclosures, where inconsistent hardware performance can compromise the entire system.

Best-Practice Specification Checklist

When selecting compression locks for HVAC or electrical panels, ensure the following are defined:

  • Required torque range (Nm)
  • Grip range covering panel + gasket tolerance
  • Target IP rating
  • Material compatibility with environment
  • Cycle life (25,000+ actuations recommended)
  • Cut-out compatibility for OEM or retrofit use

Conclusion

In industrial HVAC and electrical panels, compression locks are not just access components — they are performance-critical hardware.

Correctly specified torque and grip range ensure:

  • Reliable sealing
  • Reduced energy loss
  • Improved safety and compliance
  • Longer system life

By selecting compression locks engineered for controlled compression, robust materials, and real-world tolerances, designers and installers can significantly improve enclosure performance across the entire lifecycle.
