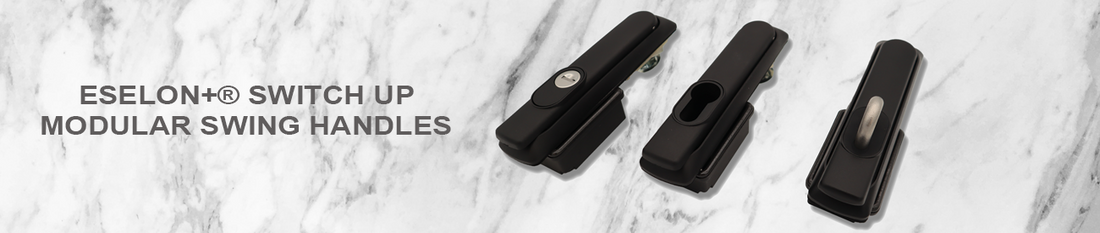

Product Spotlight: Eselon+® Series “Switch Up” Modular Swing Handle

Product Spotlight: Eselon+® Series “Switch Up” Modular Swing Handle

As enclosure design shifts towards modularity and symmetrical door frame systems, smarter hardware solutions are essential. Selectlok’s Eselon+® Switch Up Swing Handle answers that call — delivering adaptability, efficiency, and innovation in a single handle system.



What Makes the Switch Up Handle Different?

The Eselon+® Switch Up Modular Swing Handle is built around a simple idea: one handle, multiple solutions, designed as a true modular handle platform:

  • Helps reduce inventory complexity — one handle fits many configurations. Simply Switch Up the insert to make the handle pad-lockable, keyed (CL001, 92268, CL604, CL003), half-euro profile, or non-locking (when no insert is installed).
  • Sleek, low-profile styling - Low profile, vandal-resistant and designed to suit any enclosure aesthetic.
  • IP42 rated - Polyamide handle: Ideal for indoor or controlled environments.
  • IP66 rated - Zinc handle: Built for outdoor exposure; available in black powder-coated (sand grain) or chrome-plated (polished) finishes.
  • S-to-F Cutout compatibility - Perfect for biaxial symmetrical door frames using Selectlok’s advanced F-Series™ Symmetrical Door Technology (FSDT™).
  • Environmentally friendly — only damaged inserts need replacing, extending product life.



The Short-Shaft Breakthrough

At the heart of all Eselon+® Switch Up Modular Swing Handles is our proprietary short cam-shaft design — an innovative solution to a common real-world problem.

Traditional swing handles use long 8mm square spindle shafts (often 65 mm or longer) that often need trimming during installation. The Eselon+® Switch Up Modular Swing Handle eliminates this issue with a compact short cam-shaft design that:

  • Fits directly into industry-standard S Cutout profiles.
  • Enables faster, cleaner installation without modifications.
  • Maintains a low-profile, vandal-resistant aesthetic.



Built for Symmetry and Flexibility

  • Eselon+® Switch Up Modular Swing Handles are compatible with both S Cutout and F Cutout profiles, supporting Selectlok’s F-Series™ Symmetrical Door Technology (FSDT™).
  • With the F Cutout Adapter Plate, the same handle can be installed on either left-hand or right-hand doors.
  • Supports both single- and multi-point locking with consistent seal compression and secure latching.
  • Provides 180° rotational handle symmetry — simplifying design and installation across enclosure builds.



Engineered for Any Environment

Eselon+® Switch Up Modular Swing Handles are available in configurations to suit diverse applications:

  • Polyamide (IP42) — ideal for indoor or controlled environments.
  • Zinc diecast (IP66) — built for outdoor exposure, available in black powder-coated or polished chrome finishes.
  • Pad-lockable hasp inserts — stainless steel 316 for strength and durability.



Key Benefits at a Glance

 ✔ One handle system for multiple configurations.
 ✔ Short cam-shaft eliminates trimming.
 ✔ Quick insert change = reduced downtime.
 ✔ Compatible with both S and F Cutouts.
 ✔ Stylish, low-profile, vandal-resistant design.
 ✔ IP42 and IP66 options for indoor/outdoor use.



The Eselon+® SwitchUp Modular Swing Handle is more than a locking solution — it’s a forward-thinking system designed to streamline manufacturing, simplify maintenance, and futureproof enclosure builds.

👉 Ready to SwitchUp? Contact Selectlok today to learn more.
