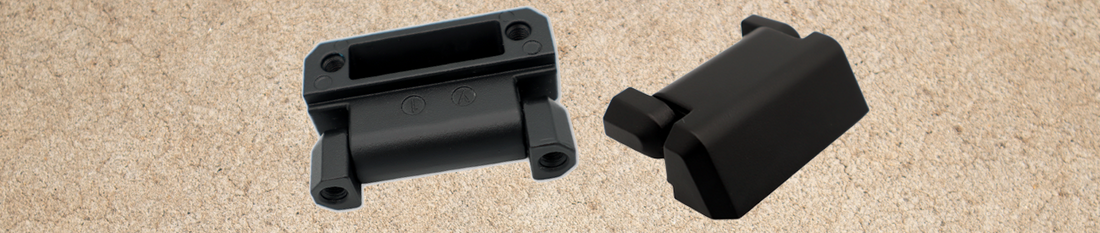

Product Spotlight – Rotor-Stator Torque Hinge (Screw-On 270°, Asymmetric 4.1/2.4 Nm)

Product Spotlight – Rotor-Stator Torque Hinge (Screw-On 270°, Asymmetric 4.1/2.4 Nm)

Professional-Grade Torque for Heavy-Duty Doors

Perfect for toolbox lids, large hatches, ute canopies and underbody boxes and industrial enclosures. Provide support to doors and hatches in applications where gas sturts are not feasible or desired, preventing against uncontrolled swing which can cause:

  • Door slamming and damage in mobile or transport applications.

  • Misalignment and compromised sealing from uneven hinge movement.

  • Stress on panels and welds, shortening component life.

Professional build projects require a high-spec hinge that delivers controlled torque, durability, a modern aesthetic and adjustable mounting for demanding applications.


The Premium Solution: A 270° Range of Motion, Screw-On Torque Hinge

The rotor-stator: screw-on torque hinge provides an asymmetric torque value (4.1 Nm forward / 2.4 Nm reverse) with full 270° rotation, it is ideal for drop-down lids or upward-opening panels in rugged environments (such as underbody boxes on ute trays and canopies) It's rotary-static design protects frames while offering predictable torque and range of motion.

Key Features and Benefits

  • Rotor + Stator Design: Movement borne by the rotor leaf, reducing frame stress.

  • Preset Asymmetric Torque: Forward 4.1 Nm (opening), Reverse 2.4 Nm (closing) — ideal for drop-down lids.

  • Full 270° Swing: Maximum motion range for flexible panel applications.

  • High Cycle Life: Over 25,000 cycles ensures industrial-grade reliability.

  • Robust Construction: Zinc alloy die-cast body, steel pins, available in black powder coat or satin chrome finish.

  • Easy Installation: Rear fixing with M5 screws (calculate length per panel thickness), supports left/right-hand orientation.

  • Customisable Options: Symmetric/asymmetric torque, adjustable torque variants, and various finishes available.

Pro Tip: Use asymmetric torque to match lid movement — higher forward torque holds drop-down lids open, higher reverse torque suits lift-up (upwards lifting) lids.

Technical Snapshot

  Specification

  Value

  Notes

Hinge size

 60×35.4×18.4 mm

Heavy-duty screw-on design

Forward torque

 4.1 Nm

Holds lid open

Reverse torque

 2.4 Nm

Smooth closing

Range of motion

 270°

Maximum swing angle

Life-span

 >25,000 cycles

Durable for industrial use

Material

Zinc alloy die-cast, steel pin

Rugged construction

Finish

Black powder coat / satin chrome

Corrosion-resistant

Mounting

M5 screws, rear fixing

Ensure correct screw length for flush fit


Ideal Applications

  • Heavy-duty ute service body rear doors or underbody toolboxes

  • Trailer compartments and mobile workshops

  • Industrial enclosures and outdoor cabinetry exposed to wind or vibration

  • Drop-down or lift-up lids requiring predictable torque and hold positions

The rotor-stator: screw-on torque hinge delivers professional-grade torque, long life, and full-range motion for demanding industrial, fleet, and mobile applications. With controlled movement, asymmetric torque, and robust materials, it’s the ideal choice for high-spec lids, doors, and enclosures.
