Rotor-Stator: Screw-On Torque Hinge

Features

• Range of motion (ROM): Full 270° rotation
• Rotary-static design (rotor-stator):
  • Rotor - Rotating (moving) "hinge"/leaf component (door)
  • Stator - Stationary (non-moving) "lid"/leaf component (enclosure)
• Torque specifications:
  • Forward rotation - 4.1 Nm
  • Reverse rotation - 2.4 Nm
  • Static torque - Within ± 20%
• Torque function: Asymmetric (symmetric options available - see remarks)
• Torque adjustment: Non-adjustable
• Life-span: Over 25,000x cycles
• Easy installation: Rear fixing with M5 bolts (not supplied)
  • To calculate required screw length - L= door thickness (DT) + 6mm
• Application: Suits both left hand and right hand install orientations

Material & Finish

• Hinge body: Zinc alloy, die-cast
• Pin: Mild steel

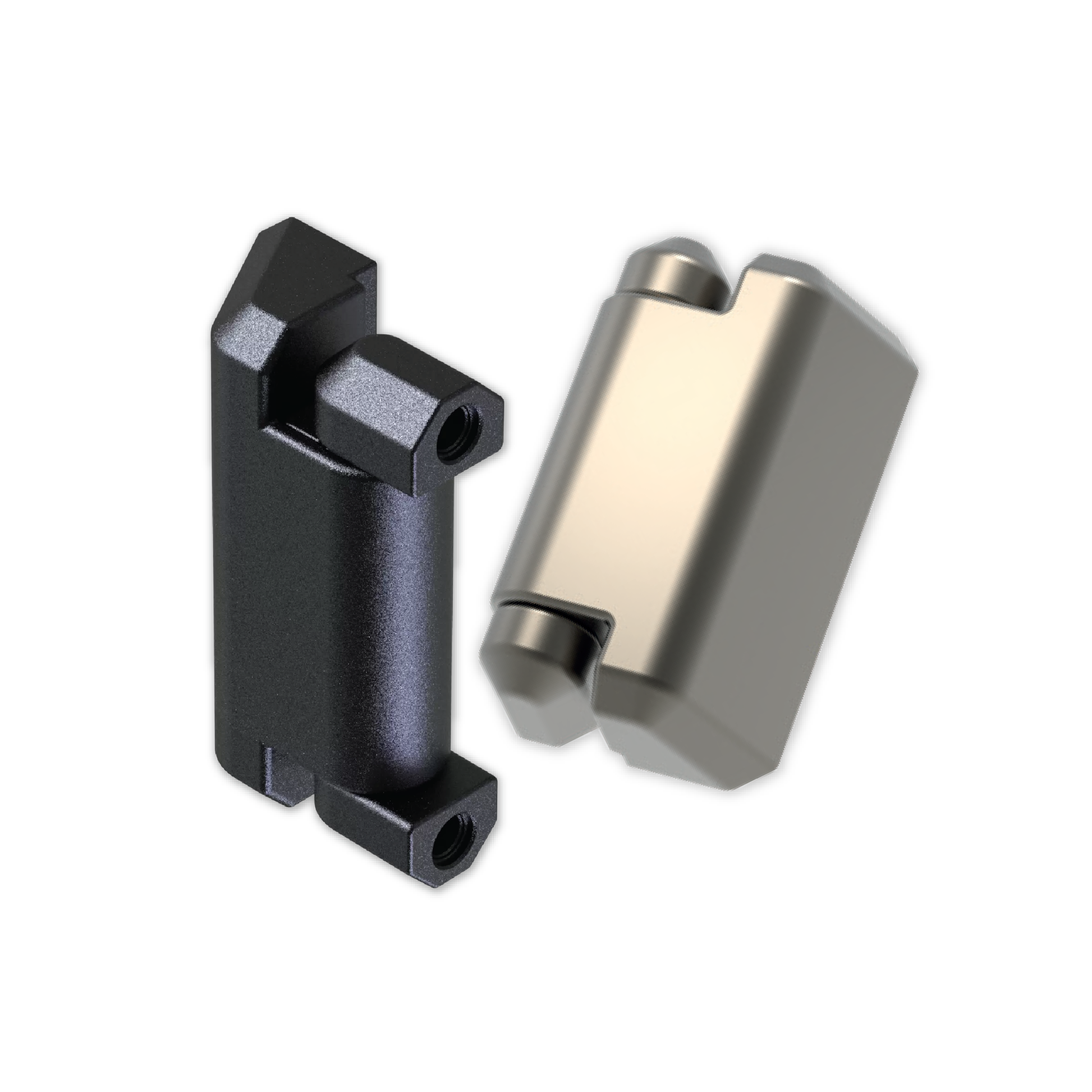

• Finishes:

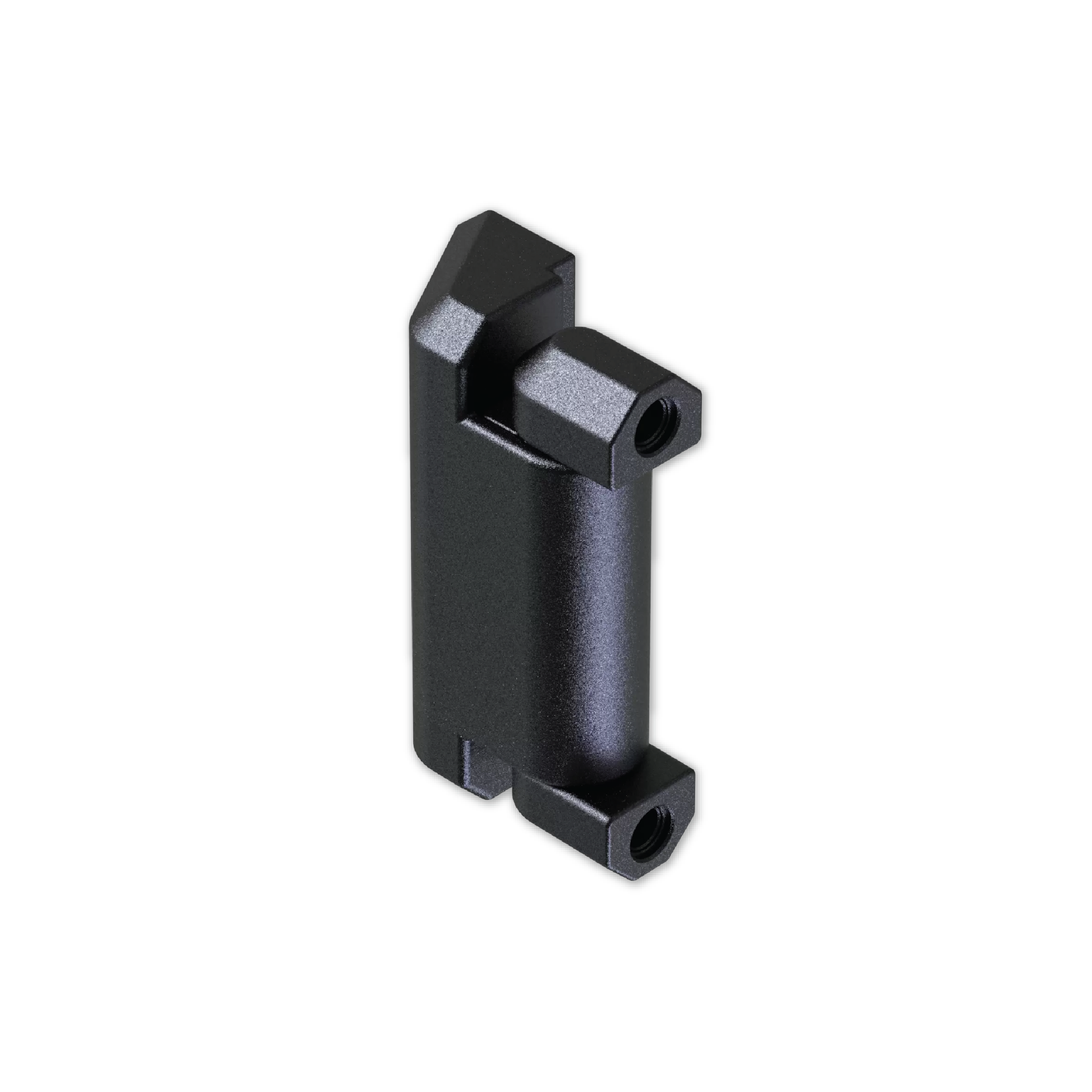

  • Black - Textured powder-coat

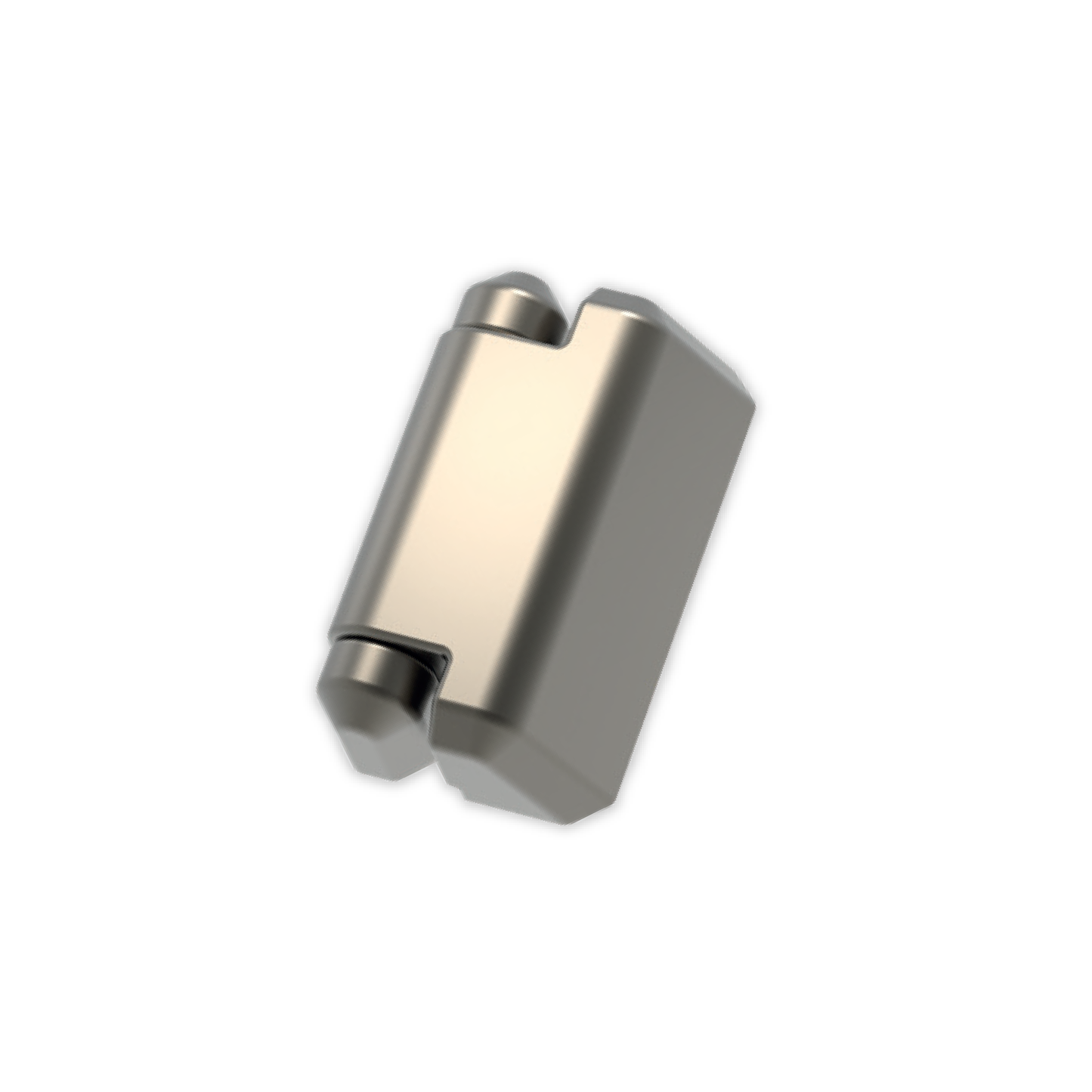

  • Satin silver - Satin chrome-plating
• Base dimensions: 60mm (L) x 35.4mm (W) x 18.4mm (T)
• Template mounting holes: Ø5.2mm (dia) x 4 (qty)

Remarks

• Alternative sizes (mm), torque specifications (Nm), torque functions (symmetric/asymmetric), materials and/or finishes may be available upon request (subject to additional costs, MOQs and lead times)

Please note

Asymmetric torque ratings:

• • F(Nm) > R(Nm) torque - If the forward (opening) torque is greater than (>) the reverse (closing) torque, the hinge is better suited for drop-down style doors (ie: underbody toolboxes)
  • F(Nm) < R(Nm) torque - If the forward (opening) torque is less than (<) the reverse (closing) torque, the hinge is better suited for lift-up style doors (ie: service body doors or chest style toolbox lids)

Usage Applications

• Ute canopies, transport service bodies, electrical enclosures, storage cabinets, hatches and lids
