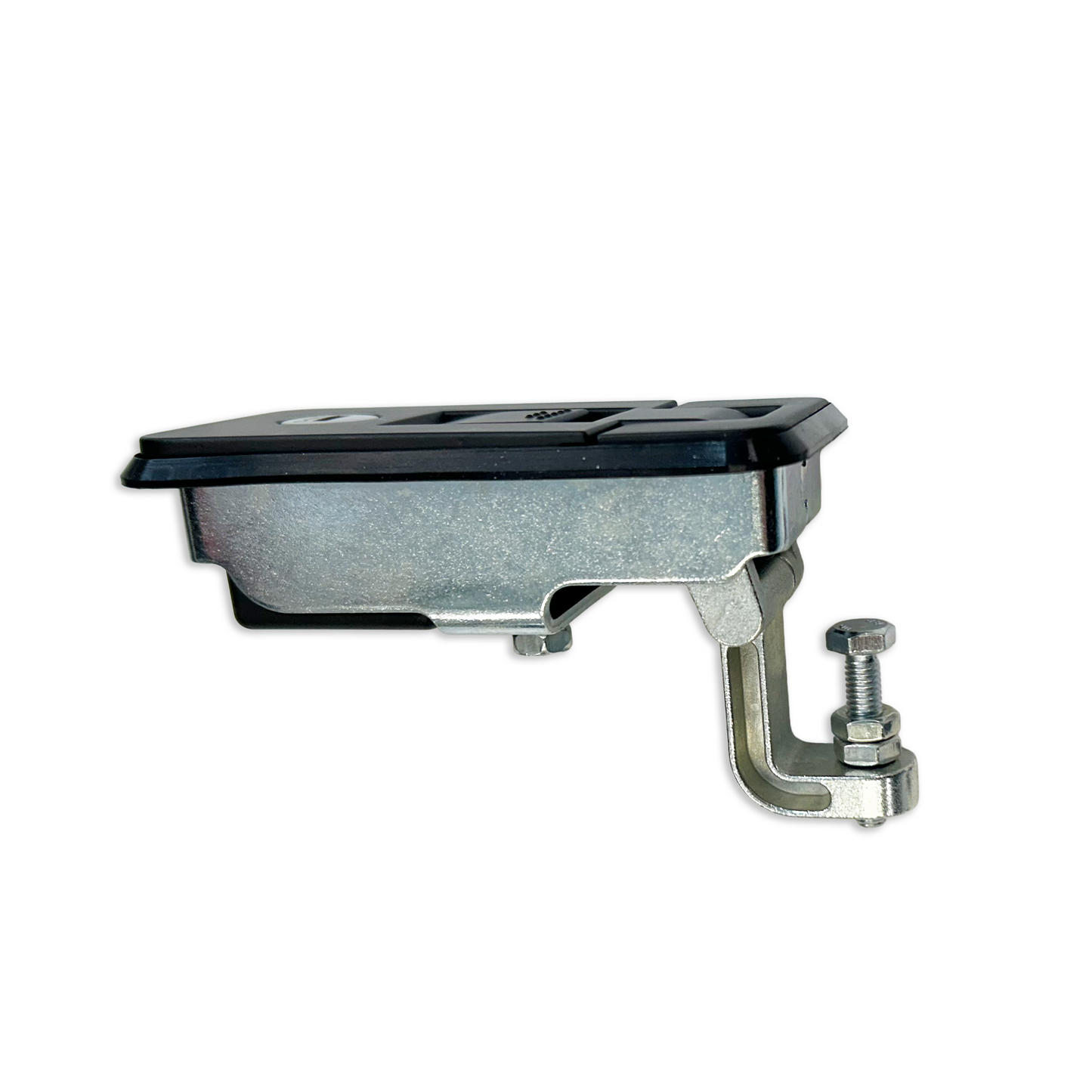

Square Push-Button Compression Latch - Large (Black)

Disclaimer: Please ensure you select the correct grip range for your application. Grip range is calculated from the material in your build. Please read the product datasheet to assist in determining the correct grip range before purchase.

20% restocking fee may apply for non-warranty returns.

Why Do We Need Compression Latches?

Selectlok's Large, Square Push-Button Compression Latches are perfect for securely fastening doors or panels while applying a clamping force that reduces vibration and rattling. This compression action also applys pressure to the gasket to create a reliable seal against dust, moisture, and other environmental factors. Ideal for machinery and enclosures, they can help protect internal components, reduce maintenance, and extend service life.

Features

• Square-button/squared handle design
• Large profile size
• Compression action
• Push-button operation
• Supplied with gasket
• Flush fitting
• Keyed: CH510

• Alternative key codes may be available on request (Subject to MOQ’s and leadtimes)

Dimensions, Material & Finish

• Handle: Zinc, die-cast
• Finishes: Black powder coated
• Bracket: Mild steel, zinc plated
• Cam: Zinc die-cast
• Dimensions: 102.8mm (L) x 50mm (W) x 25mm (D)
• Panel thickness: 1-4mm
• Weight: 360g

Remarks

• Grip Range: Please refer to the datasheet for "Grip & Reach" dimensions - As alternative grip range variants use a different offset arm design.

View our technical Datasheet
