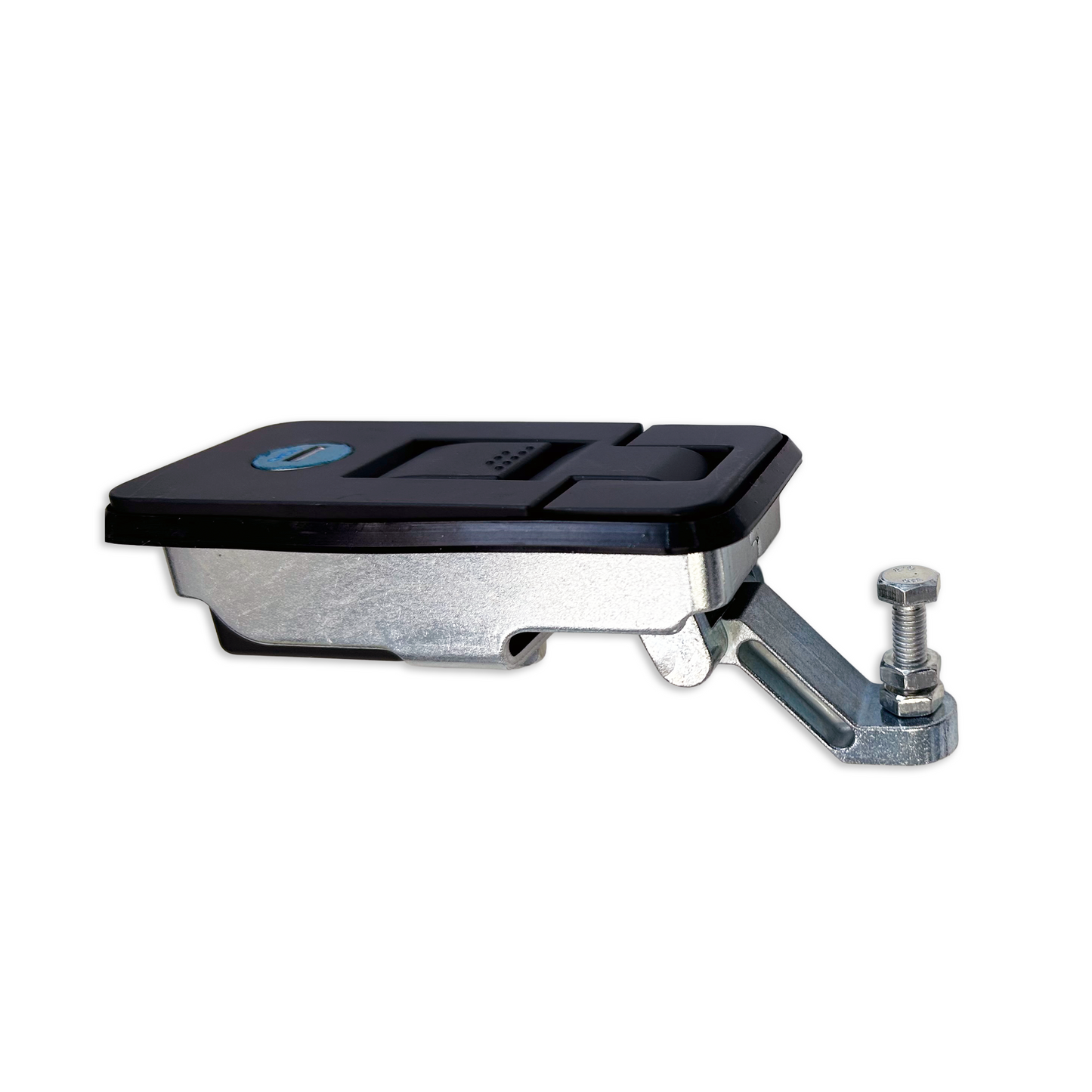

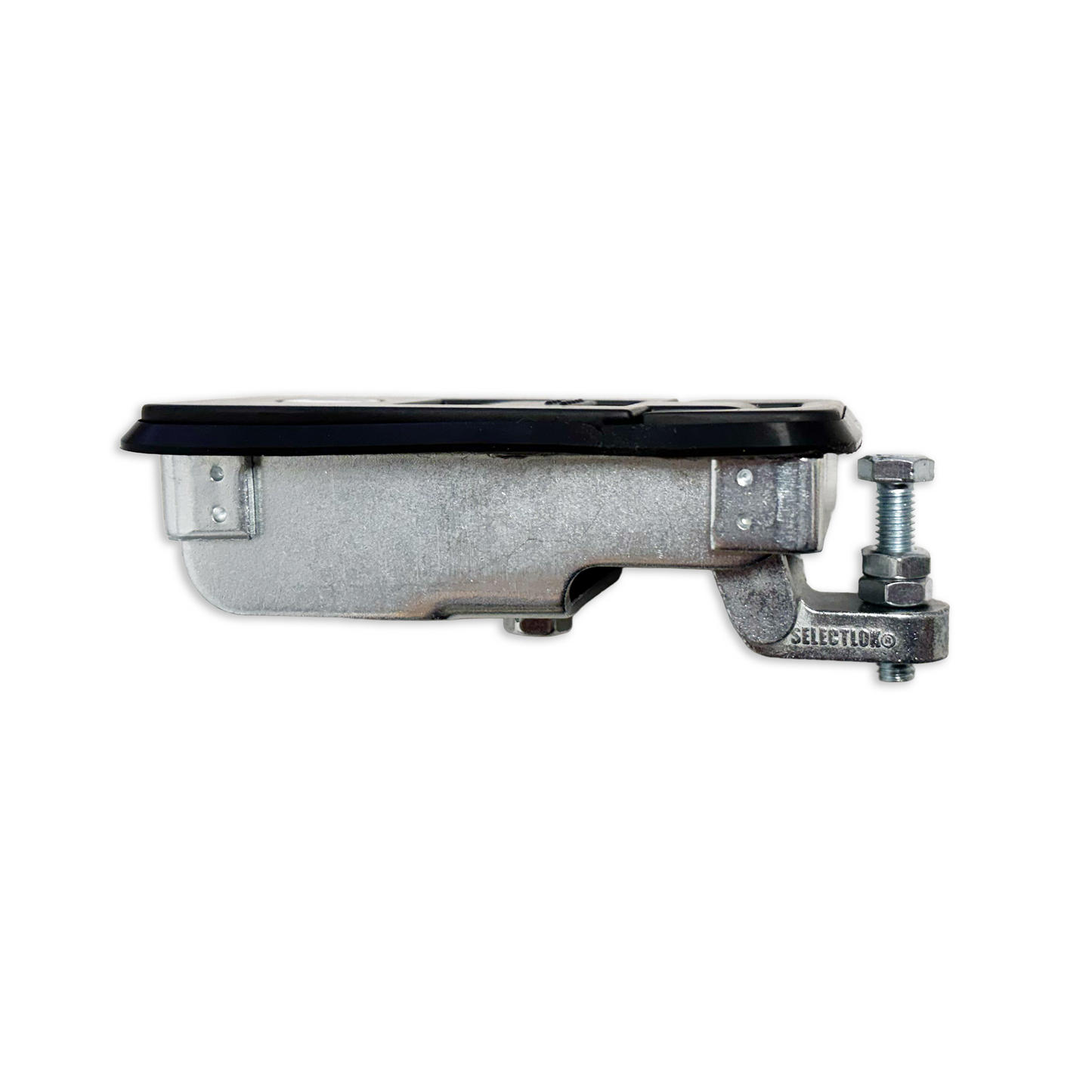

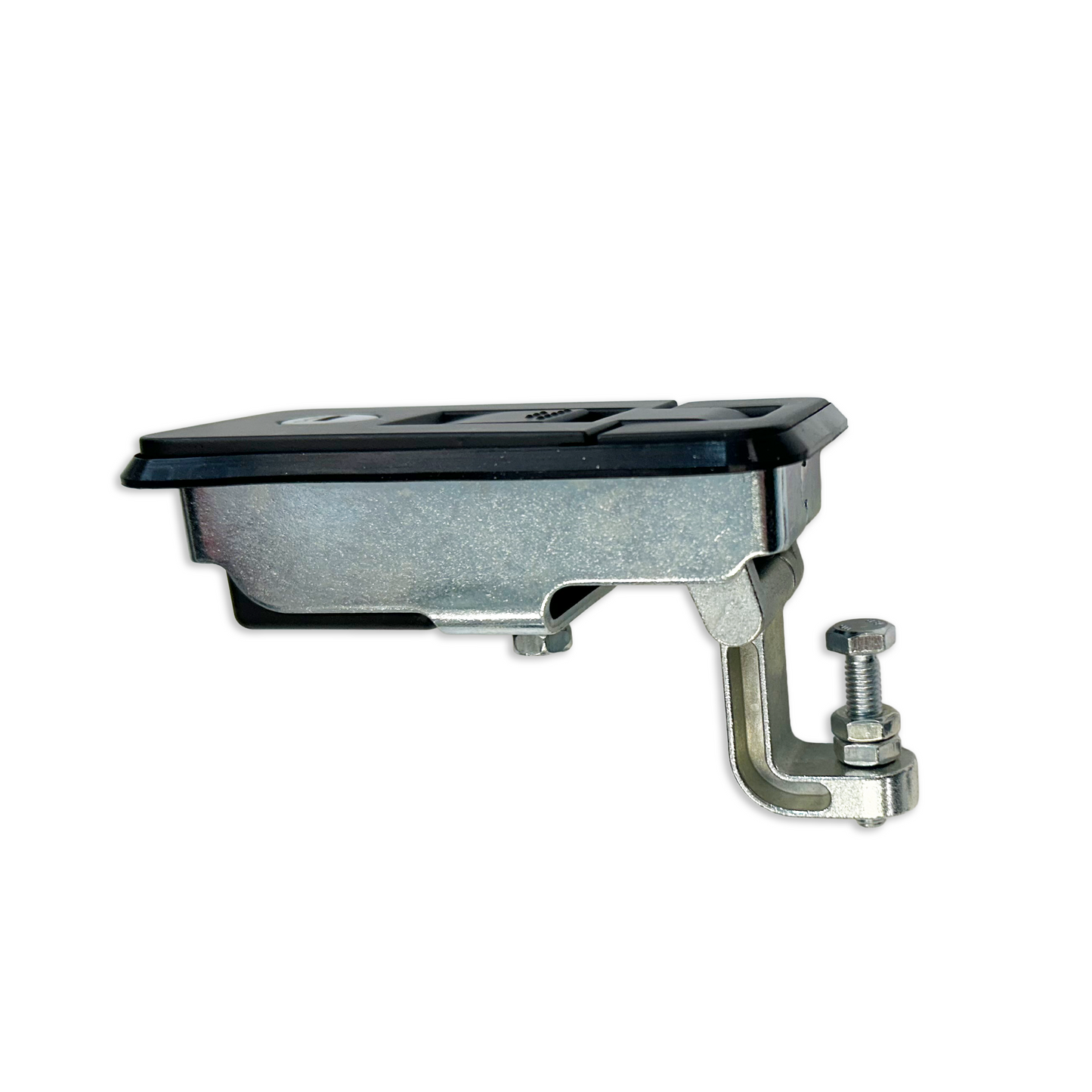

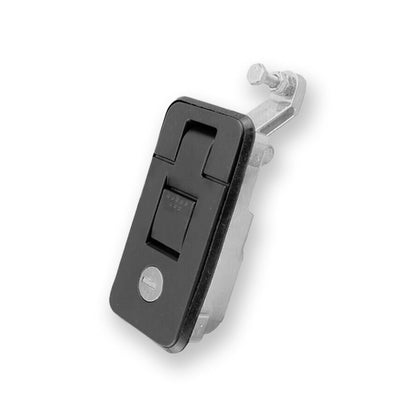

Square Push-Button Compression Latch - Large (Black)

Square Push-Button Compression Latch - Large (Black)

10207A-CH510-BLK

$20.65 AUD
$20.65 AUD
Sale Out of Stock
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)

Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine, VIC)

Why Do We Need Compression Latches?

Selectlok's Large, Square Push-Button Compression Latches are perfect for securely fastening doors or panels while applying a clamping force that reduces vibration and rattling. This compression action also applys pressure to the gasket to create a reliable seal against dust, moisture, and other environmental factors. Ideal for machinery and enclosures, they can help protect internal components, reduce maintenance, and extend service life.

Features

  • Square-button/squared handle design
  • Large profile size
  • Compression action
  • Push-button operation
  • Supplied with gasket
  • Flush fitting
  • Keyed: CH510
  • Alternative key codes may be available on request (Subject to MOQ’s and leadtimes)

Dimensions, Material & Finish

  • Handle: Zinc, die-cast
  • Finishes: Black powder coated
  • Bracket: Mild steel, zinc plated
  • Cam: Zinc die-cast
  • Dimensions: 102.8mm (L) x 50mm (W) x 25mm (D)
  • Panel thickness: 1-4mm
  • Weight: 360g

Remarks

  • Grip Range: Refer to the datasheet

View our technical Datasheet
