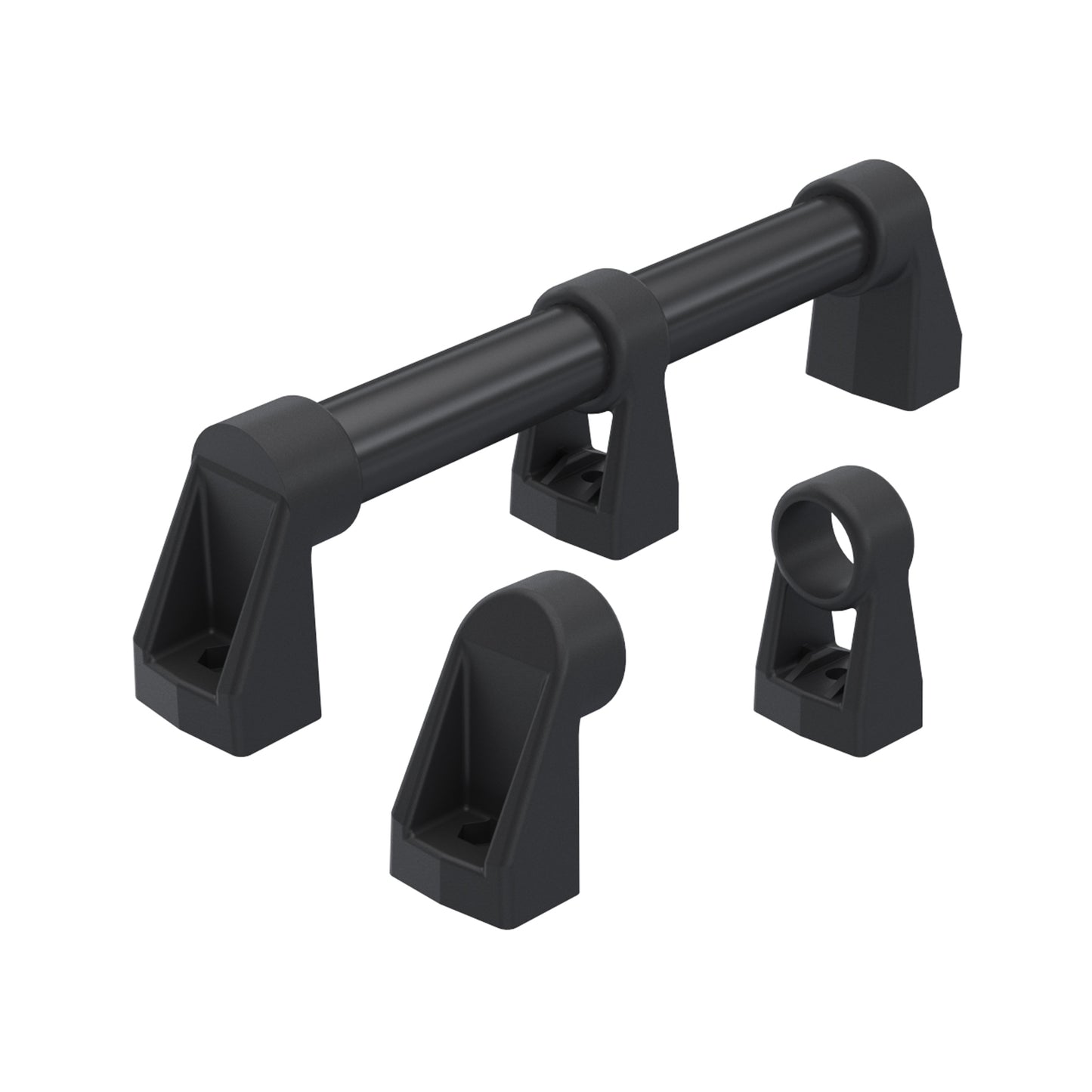

Dirak Bridge Handle - Steel Tube Ø30mm Rod Handle
Dirak Bridge Handle - Steel Tube Ø30mm Rod Handle
SKU:213-0401.00-00000
Price on Application
Please check availability: Dirak products are generally custom ordered from the supplier based on individual project requirements. Please note, some items may not be readily available in stock at time of enquiry. Delivery times from Dirak can vary accordingly however the majority of orders take between 14-21 days to be received into warehouse by Selectlok Australia.
Features:
- For product system 6-1600DST, 6-1600.01, 6-1600.02, 6-1680.
Dimensions:

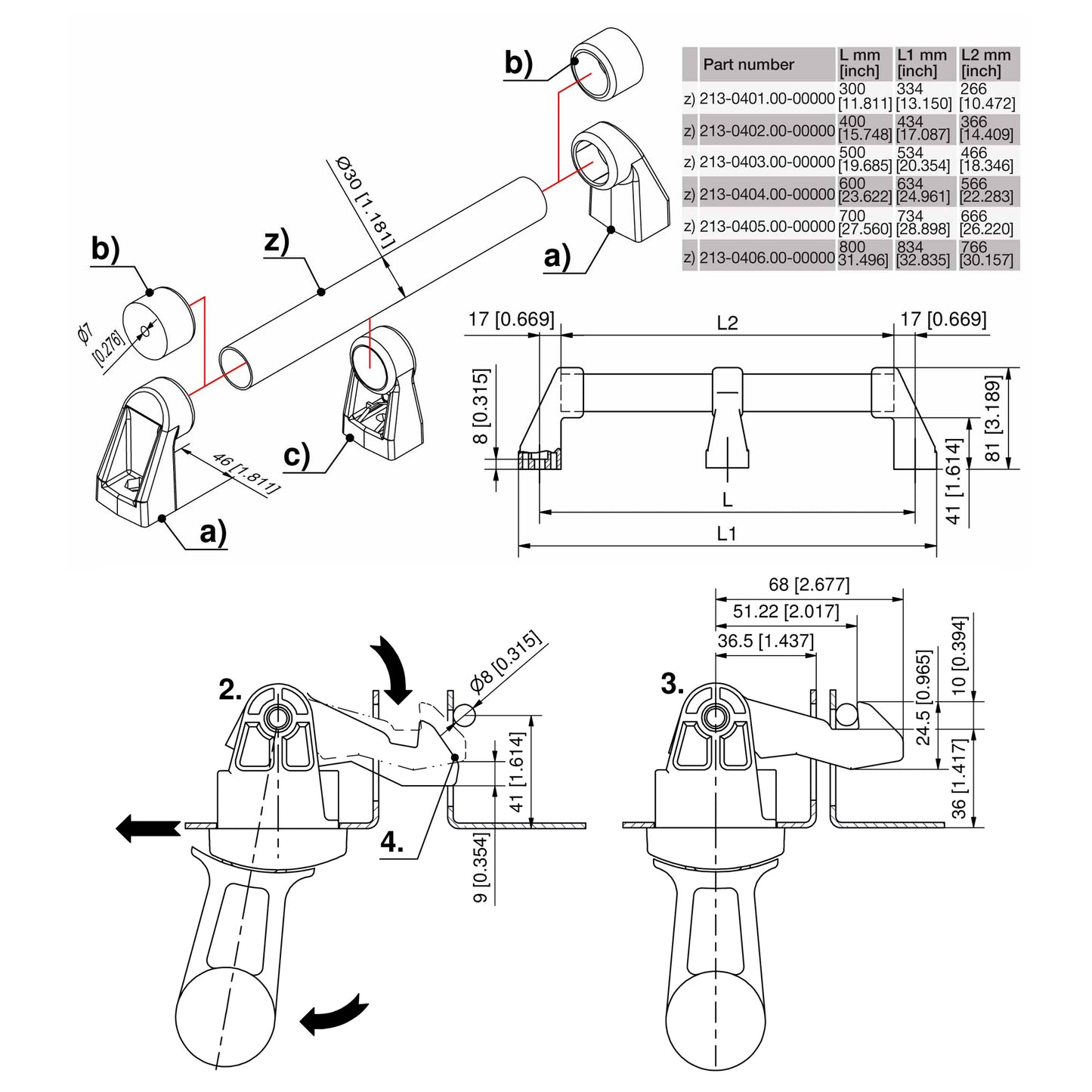

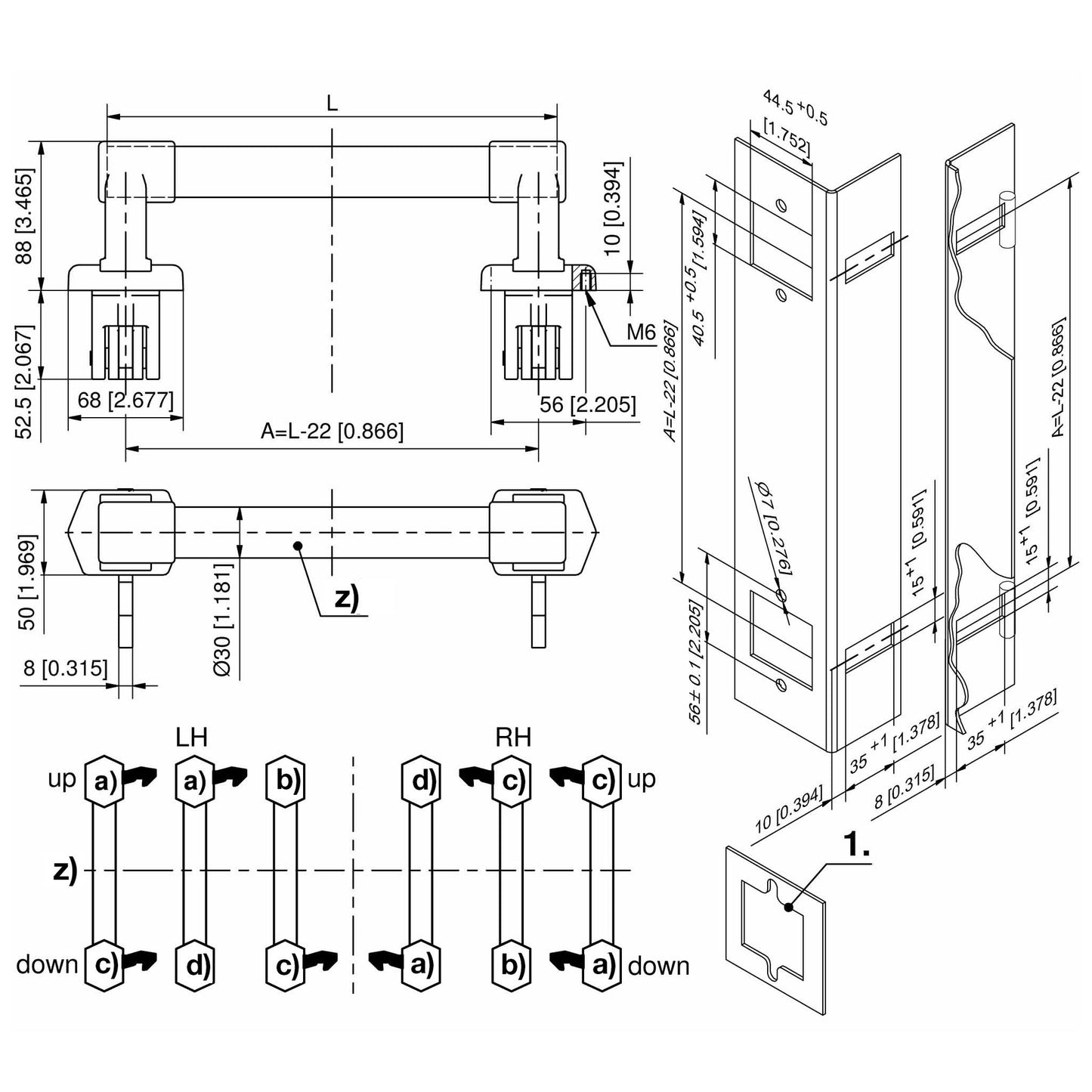

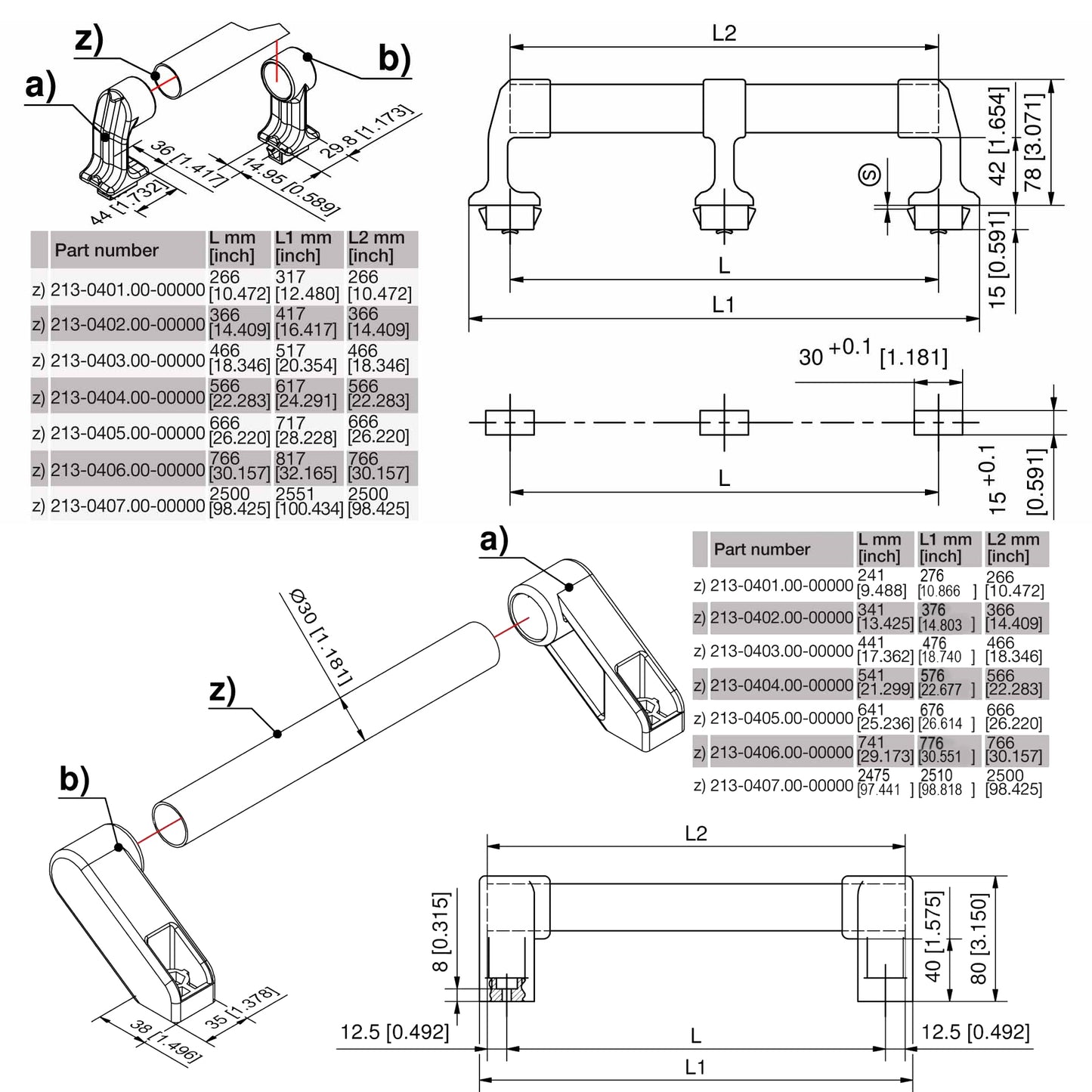

- Please refer to drawings and datasheet
- Steel tube Ø30mm
- 213-0401.00-00000 = 266mm
- 213-0402.00-00000 = 366mm
- 213-0403.00-00000 = 466mm
- 213-0404.00-00000 = 566mm
- 213-0405.00-00000 = 666mm
- 213-0406.00-00000 = 766mm
- 213-0407.00-00000 = 2500mm
-
213-0408.00-00000 = variable length (special order)
Material & Finish:
- Steel tubes = steel, PVC with steel spring core
Part Numbers: 213-0401.00-00000; 213-0402.00-00000; 213-0403.00-00000; 213-0404.00-00000; 213-0405.00-00000; 213-0406.00-00000; 213-0407.00-00000; 213-0408.00-00000
