DIRAK "6-1600" Pipe Handle System - Centers, Ends & Wall-Ends | Supports Only (PA)

DIRAK "6-1600" Pipe Handle System - Centers, Ends & Wall-Ends | Supports Only (PA)

213-0101.03-00000

Price on Application

Please check availability: Dirak products are generally custom ordered from the supplier based on individual project requirements. Please note, some items may not be readily available in stock at time of enquiry. Delivery times from Dirak can vary accordingly however the majority of orders take between 14-21 days to be received into warehouse by Selectlok Australia.

Features:

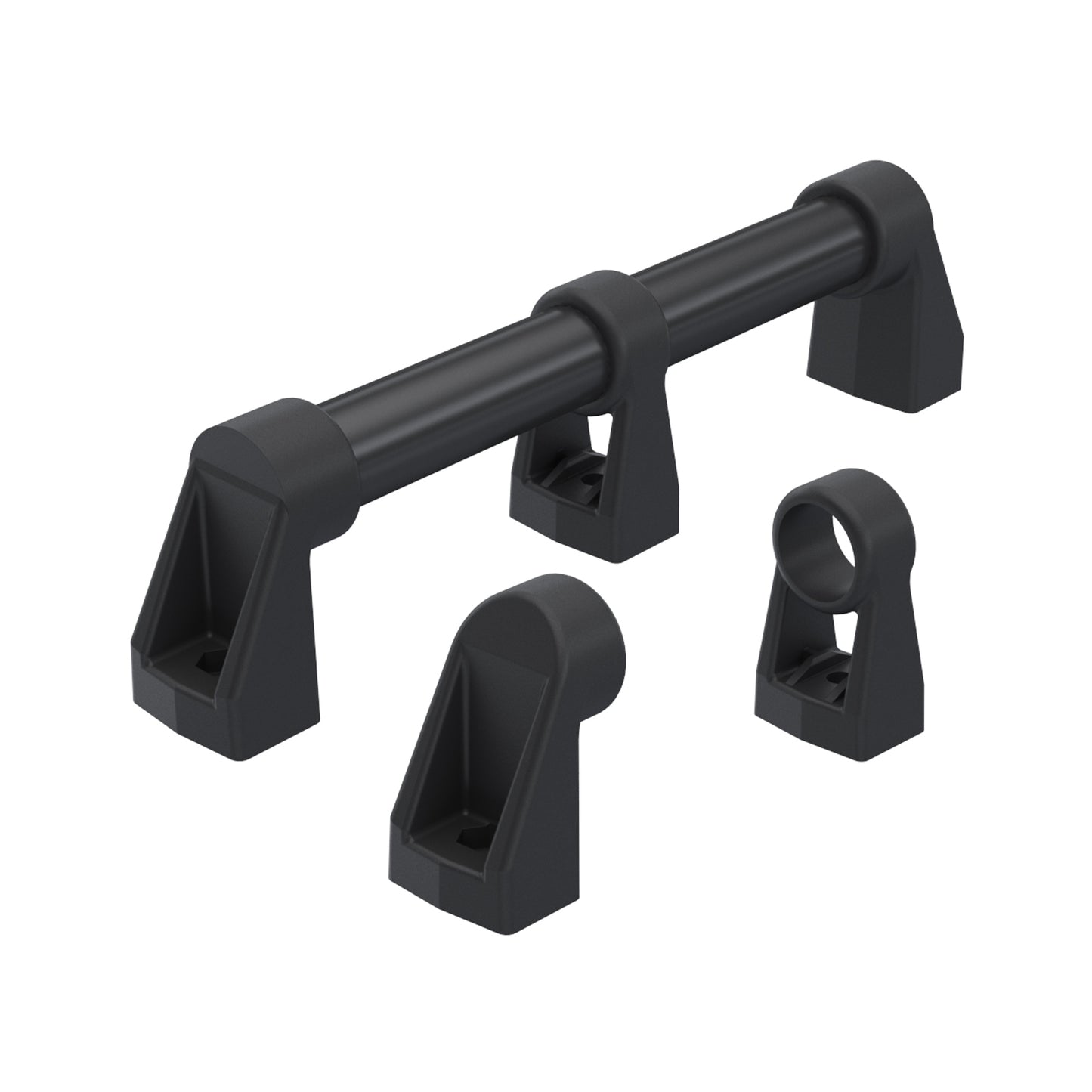

This lisiting is for: Ends, Wall-Ends and Center Support pieces (Components ONLY) to suit Ø30mm Steel Tube/Pipe used to assemble: DIRAK "6-1600" Pipe (Bridge) Handle System (For product systems: 6-1600.900)

  • Suits: Tube/pipe handle with Ø30mm in various length.
    • The Ø30mm diameter of the tube guarantees a sure and firm grip.
  • Precise and tight fit: Of the tube in the center support and the end pieces.
  • Application:
    • For vertical or horizontal applications.

Remarks:

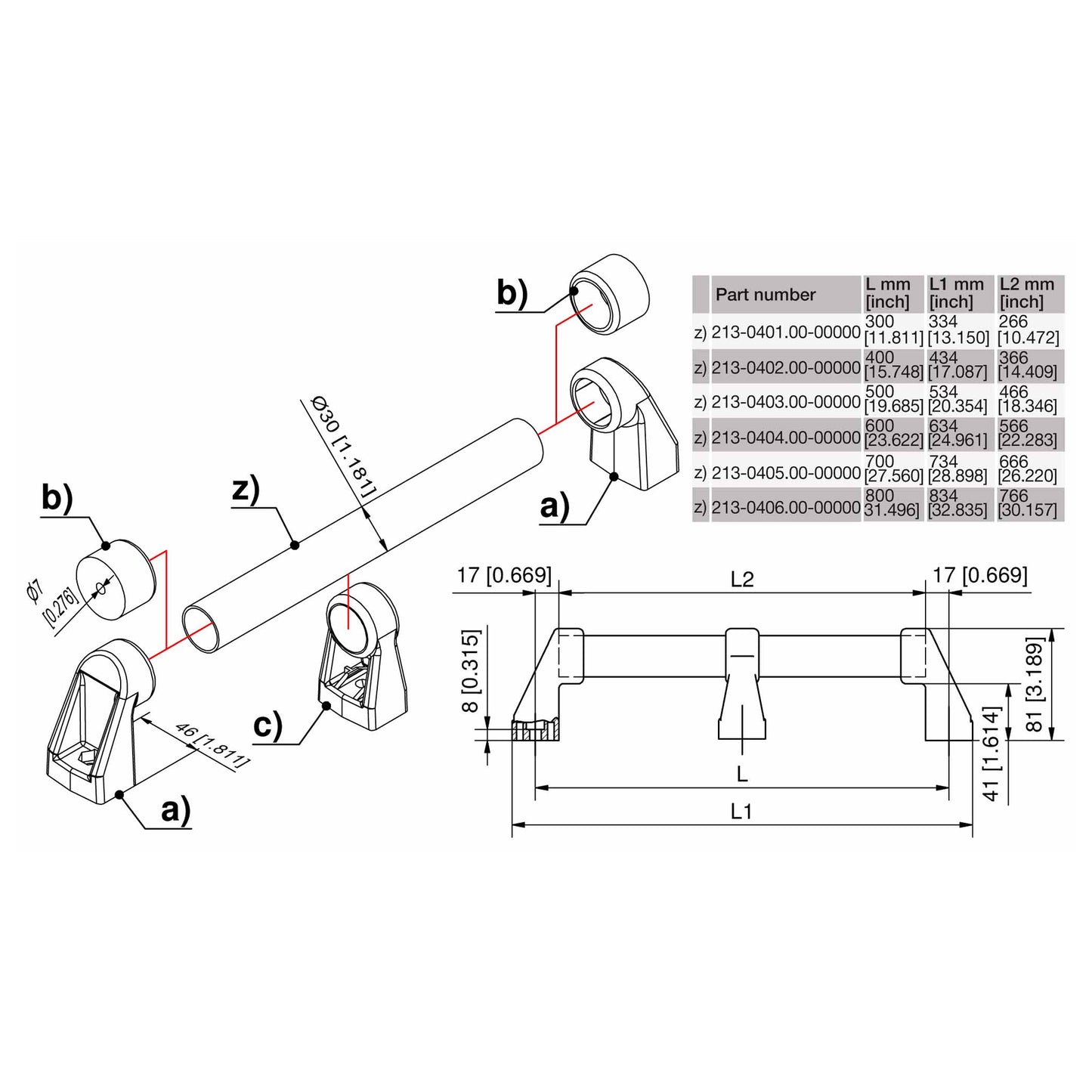

  • 213-0101.03-00000:  End support piece
  • 213-0102.03-00000:  Center support piece
  • 213-0107.03-00000:  Wall-end support piece
  • Fastening by: Hex. socket head cap screws M8, or hex. screws or with countersunk screws M8.
  • For the total size: Please add 68mm to the tube length.
  • For wall fastening: Please take the end piece (b).
  • The center support is optional: However it should be applied for tube lengths over 466mm.

Material & Finish:

  • End support pieces:  PA, black
  • Wall-end support pieces:  PA, black
  • Center support pieces:  PA, black

View DIRAK's Technical Datasheet

Part Numbers: 213-0101.03-00000; 213-0102.03-00000; 213-0107.03-00000
