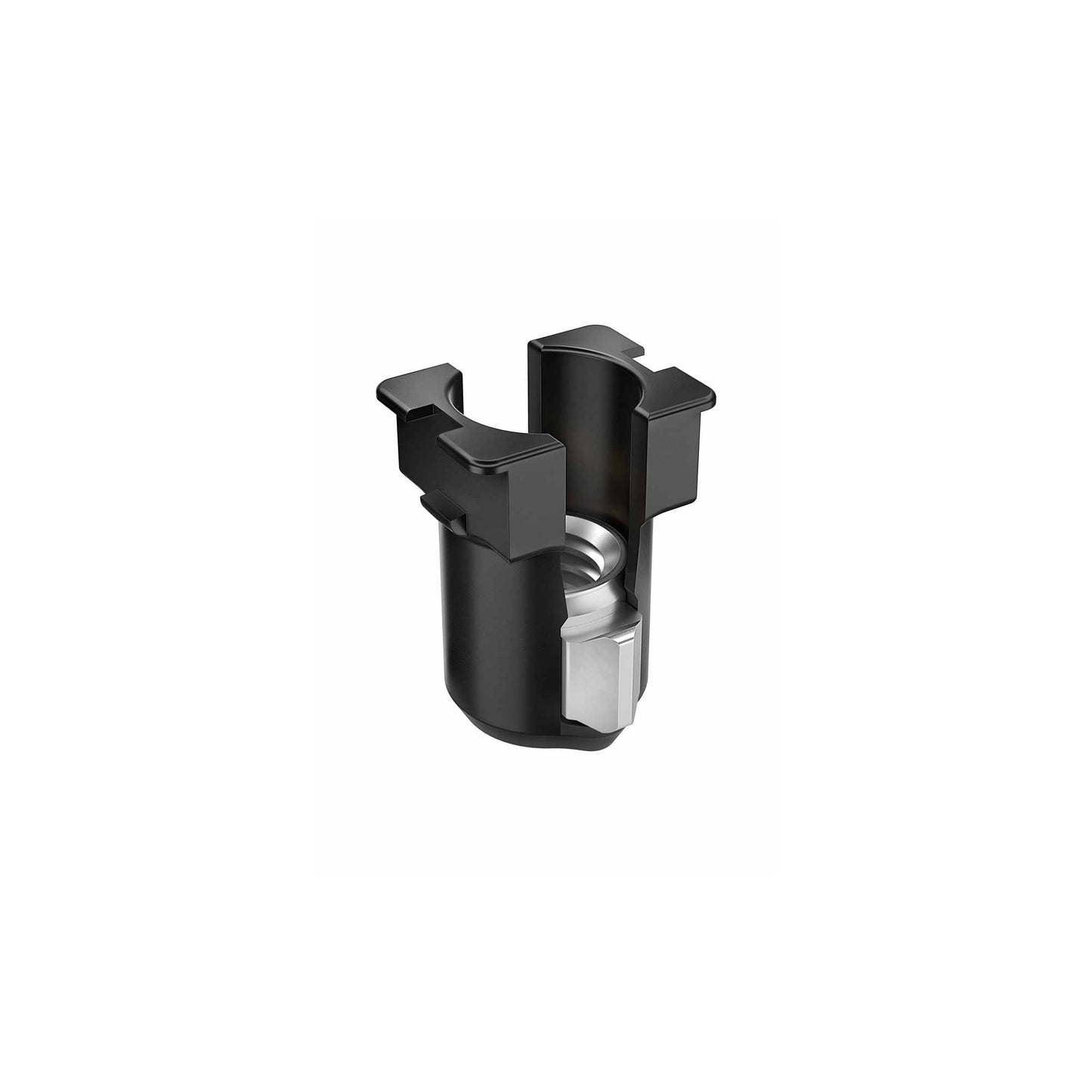

Dirak Grounding Cage Nut

Dirak Grounding Cage Nut

SKU:203-1901.06-00095; 203-1904.15-00006

Price on Application

Please check availability: Dirak products are generally custom ordered from the supplier based on individual project requirements. Please note, some items may not be readily available in stock at time of enquiry. Delivery times from Dirak can vary accordingly however the majority of orders take between 14-21 days to be received into warehouse by Selectlok Australia.

Features:

  • For the secure joining of metal sheets
  • With grounding nut M6
  • Tested according to DIN EN 61439-1 (VDE 0660 part 600): 2012-06
  • Can be installed in the cutout without tools from the front as well as from behind
  • Secure fit of the cage in the cutout through fitted square
  • Suitable for high torque and high tensile force from 3nm to 8nm
  • Cage and grounding nut packed in bulk

    Material & Finish:

    • Cage = PA, black
    • Grounding Nut = steel, zinc plated

    Download Datasheet

    Part Numbers: 203-1901.06-00095; 203-1904.15-00006
