Drawer Slide Locking Bar Kit - Heavy-Duty Range (3076)

Drawer Slide Locking Bar Kit - Heavy-Duty Range (3076)

3076-LBAR

$30.01 AUD
$0.00 AUD $30.01 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine, VIC)


Locking Bar Accessory Kit: For heavy-duty drawer and fridge slides. (227kg range with external locking tabs)

Features

  • Allows smooth, single handed operation of drawers and slides
  • Easy installation
  • High rigidity design with enhanced stability
  • Bar length (mm) can be cut down and modified to suit drawers and slides of different widths

Dimensions, & Finish

  • Tube length: 1,000mm/1 mtr. (L) x ø12mm (OD)
  • Tube & lever finish: Mild steel, black powder-coated

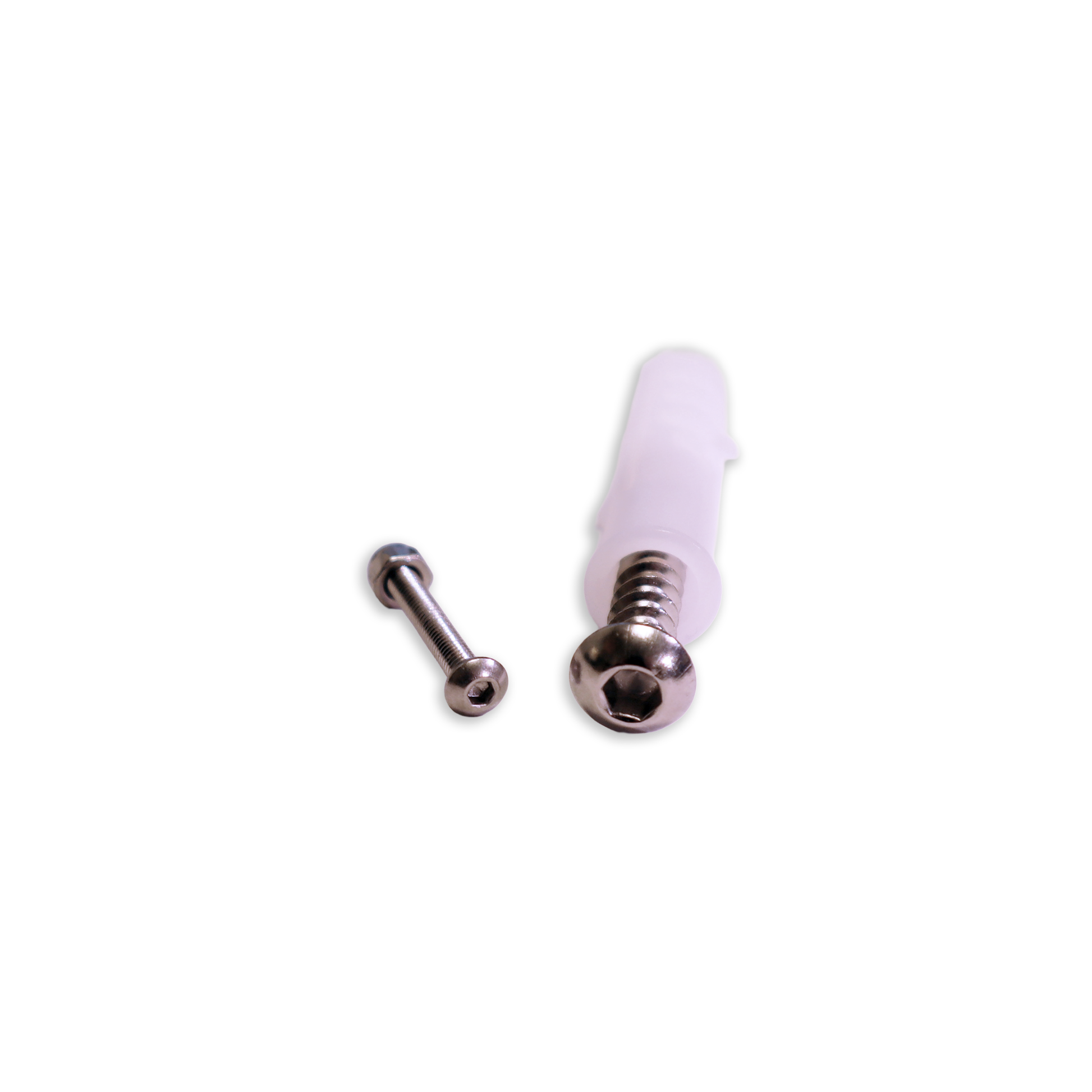

  • Fixing hardware: Stainless steel

Remarks

  • Suits (only): 227kg heavy-duty "locking" drawer slides (3076-###-L)

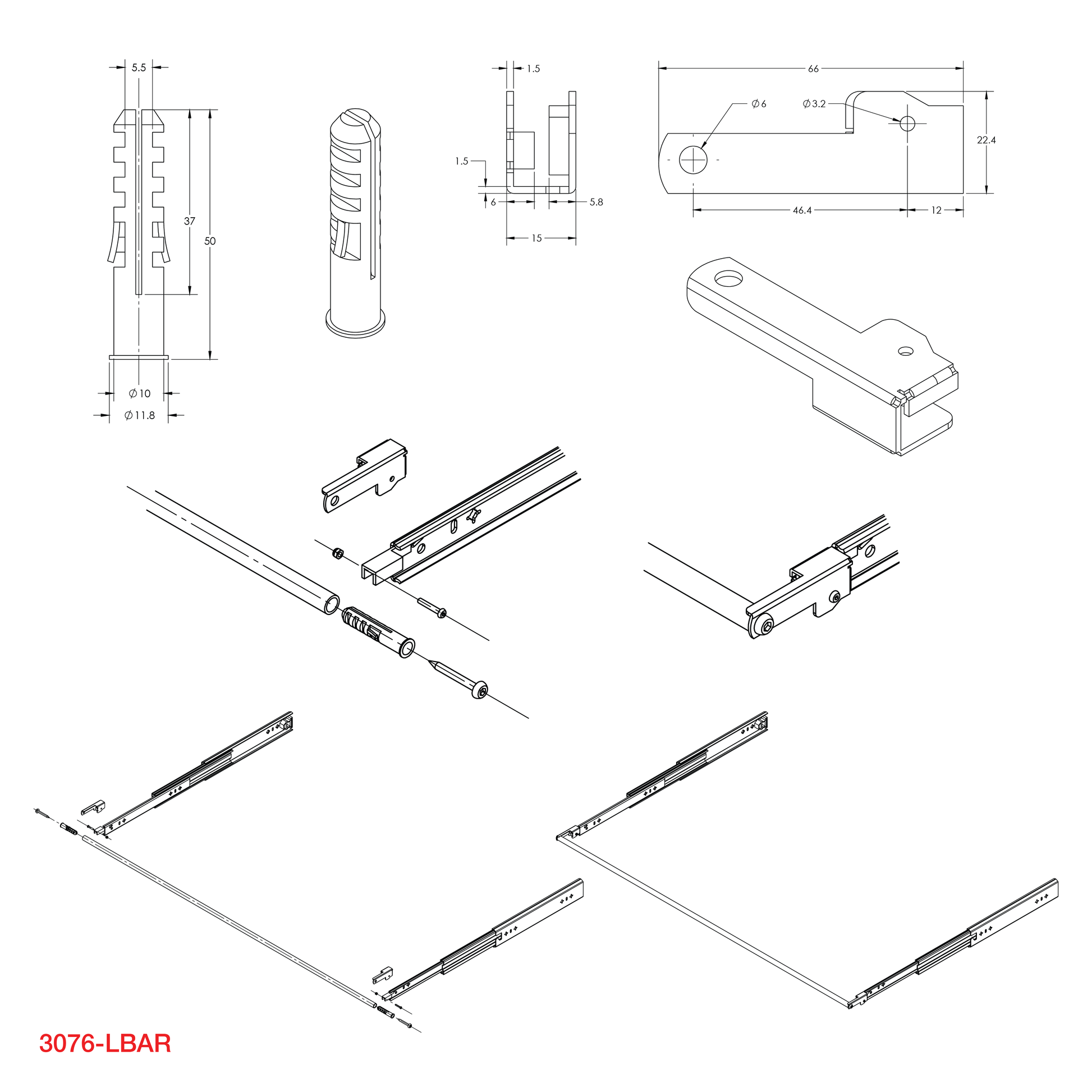

  • When fitting: Blue molded locking tab cover on slides needs to be removed to allow fitment of lever set.

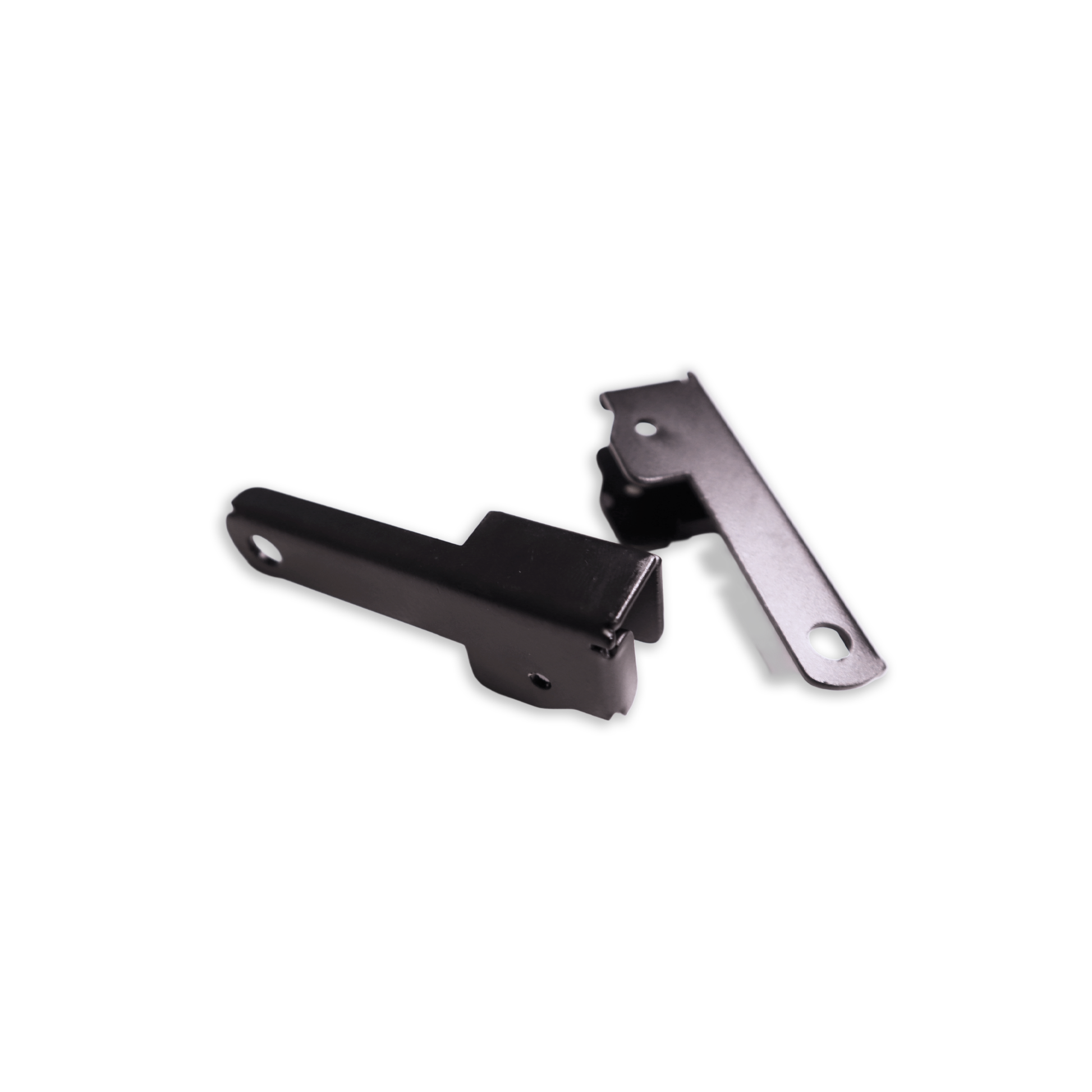

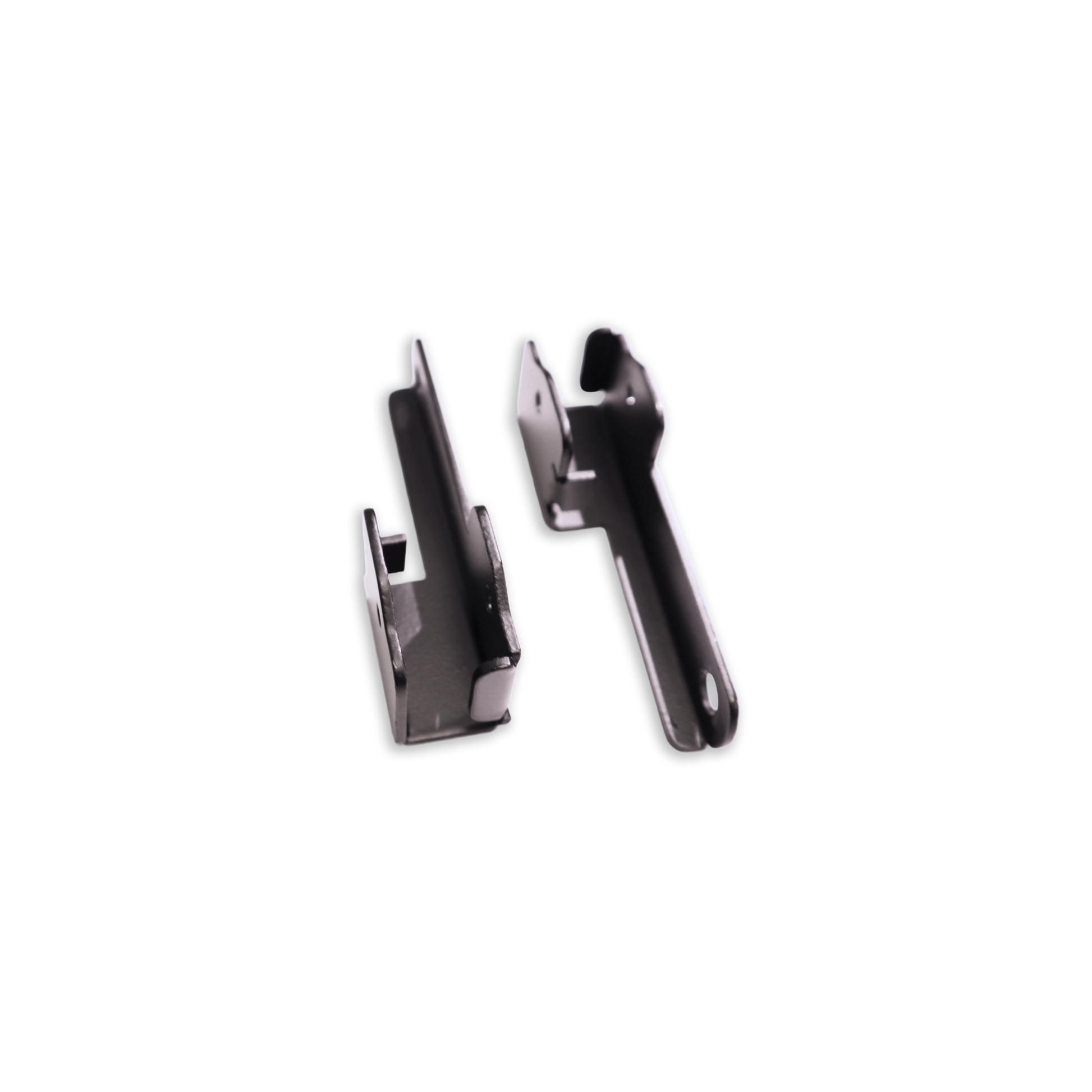

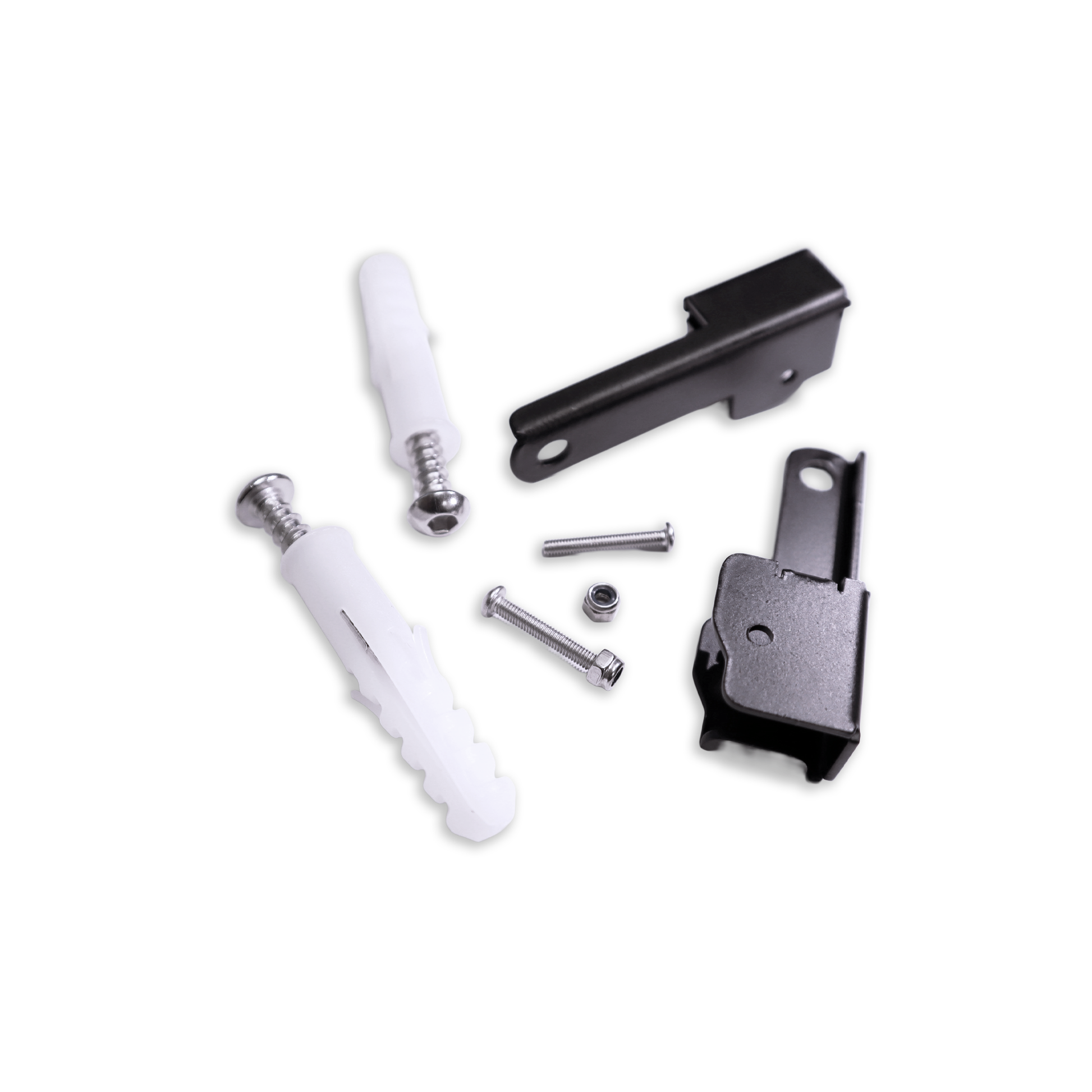

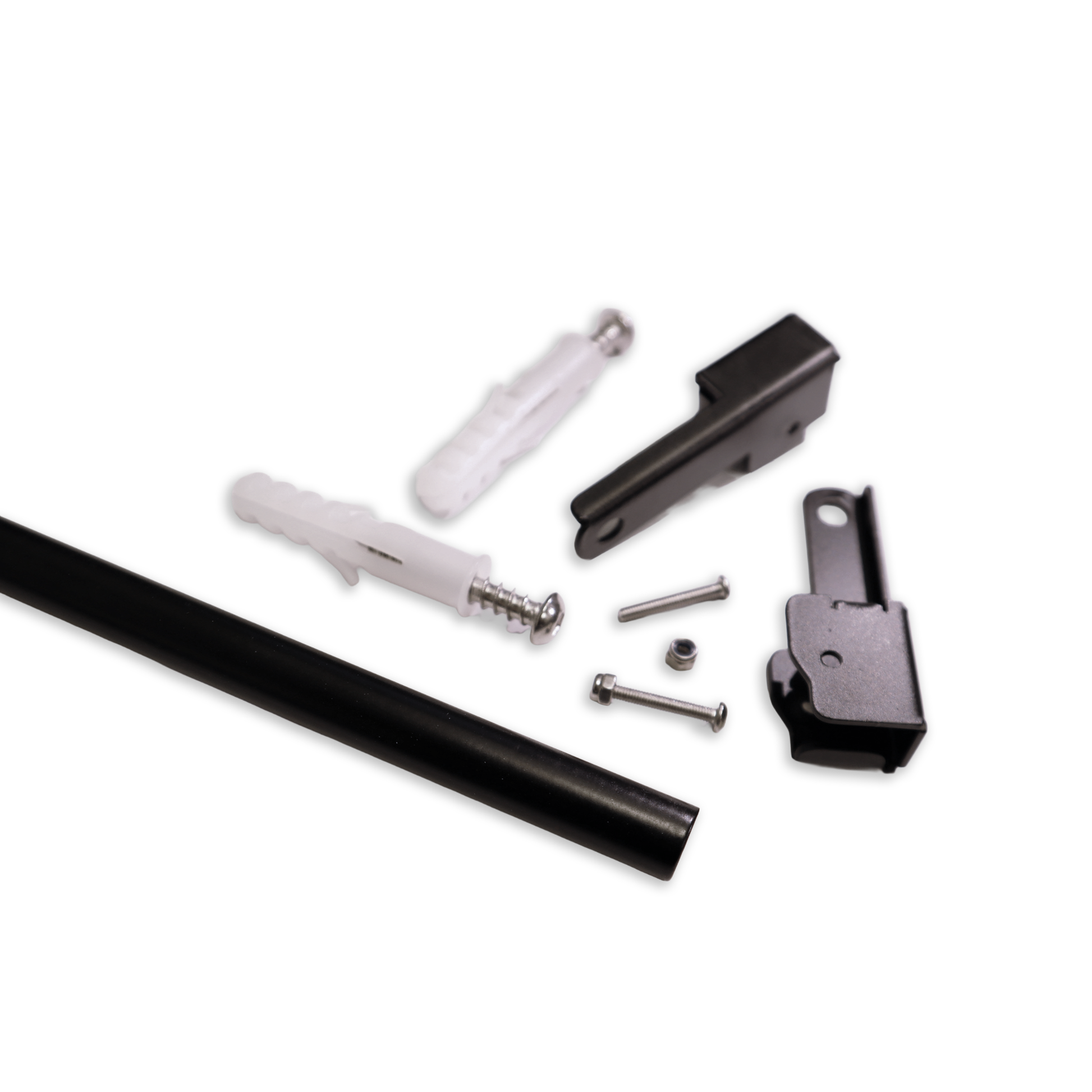

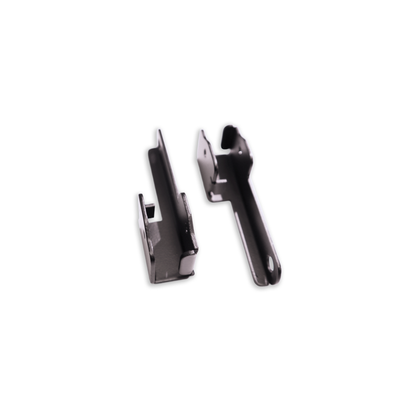

  • Comes with: Lever sets (2x) with connection rod
  • Perfect for: Van & ute canopy drawers, fridge slides, slide out kitchens & pantries

Please Note

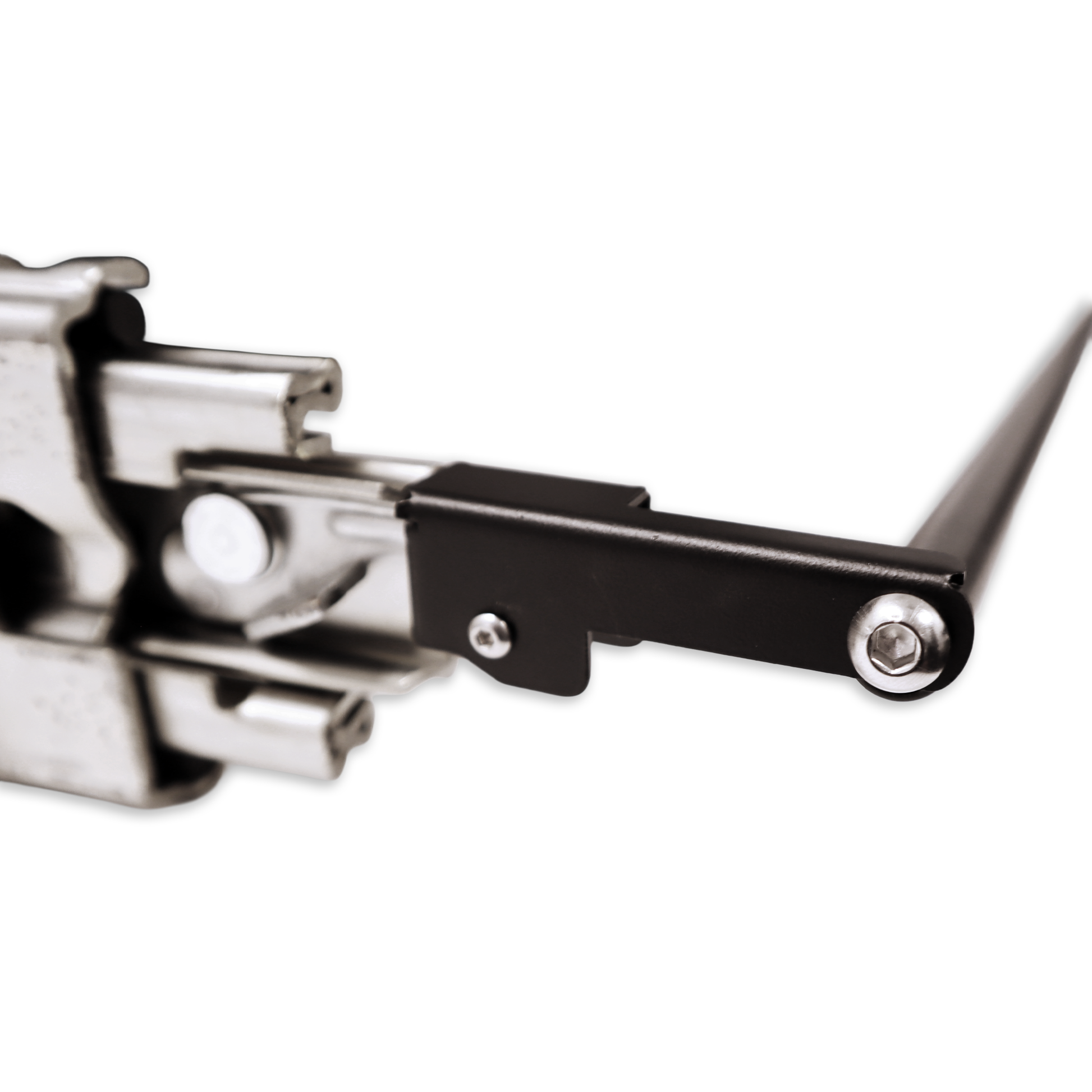

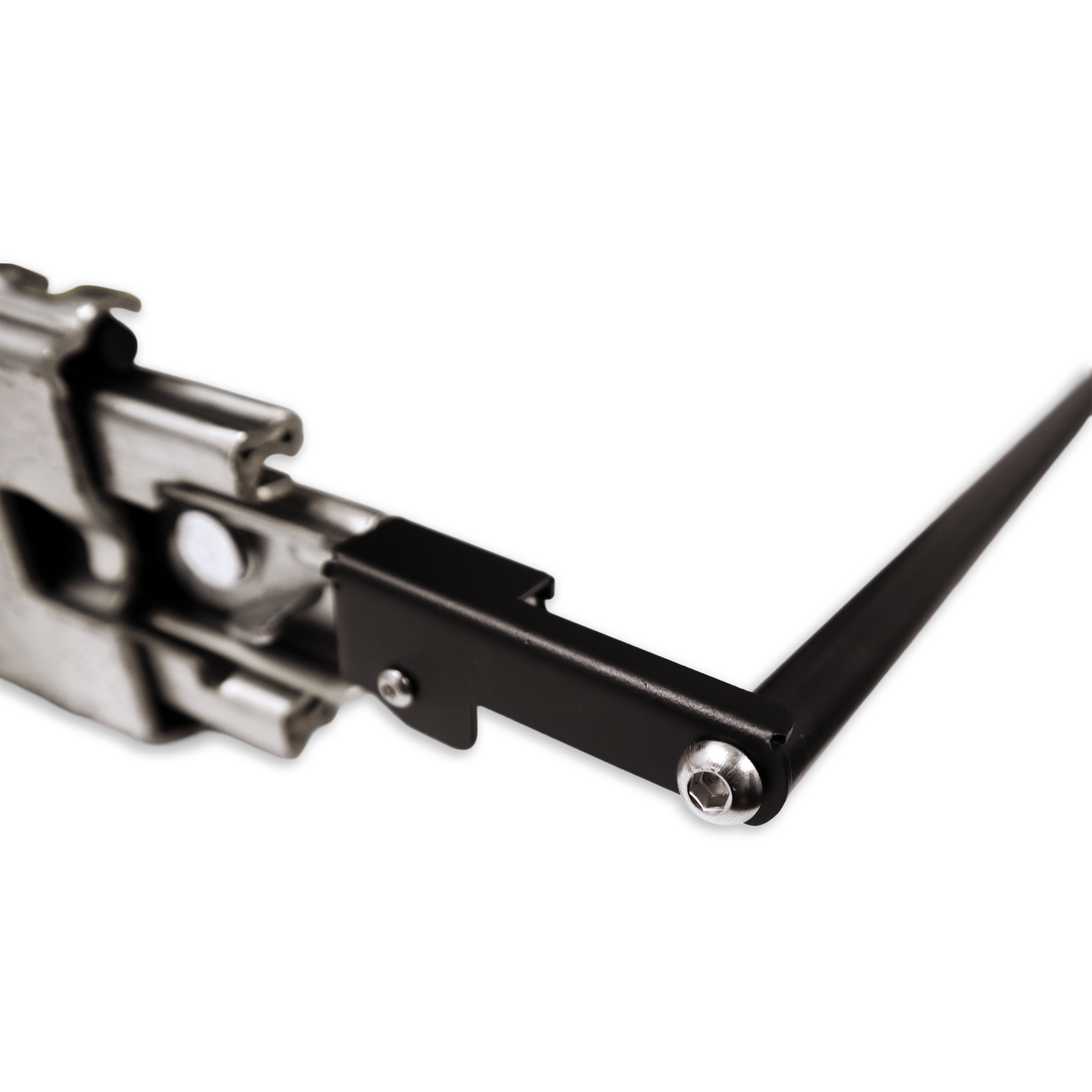

Locking bar is designed to act as a one-piece lever mechanism for activating lock/unlock tabs on "locking" style drawer and fridge slides.

Due to OHS practices they are not intended to be used as a "handle" for physically opening/closing the draw unit.

Please use a dedicated grab handle for this function of your draw design



Technical Resources

View Our Technical Datasheet
