Enerdrive 12V 40A+ DC2DC Battery Charger

Enerdrive 12V 40A+ DC2DC Battery Charger

SKU:EN3DC40+

Regular price $629.00 AUD
Regular price Sale price $629.00 AUD
Sale Out of Stock
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)

At Selectlok, we have access to the entire range of Enerdrive products, if you are looking for a specific component, or seeking advice for a part needed in your project, that isn't advertised on our website please get in touch with us here, or via the button below & we will be able to help you out with supplying what you require. PLEASE NOTE: Enerdrive | Dometic products are NOT available for Click & Collect or In-Store Pickup.

Description:

The Enerdrive | Dometic ePOWER DC2DC 40A+ Battery Charger is a fully automatic multistage, multi input battery charger with the ability to charge from either an alternator linked to a battery; or via solar power with the in built Maximum Power Point Tracking (MPPT) Solar Controller. With two inputs available, the main/house battery will be charged from either the engine while underway, or via the solar panels when stationary. The process to choose either engine or solar is fully automatic and both functions are controlled from within the unit itself without the need for external relays.

During normal operation the ePOWER DC2DC+ Battery Charger will do a full charge cycle to float stage on the house battery bank with ability to choose either GEL, AGM, Flooded, Custom Programmable or Lithium. Once float stage is reached the charger transitions to a power supply mode to support any on-board DC loads.

Features:

  • Two totally independent DC Inputs for both engine and solar regulation charging, one house battery bank output

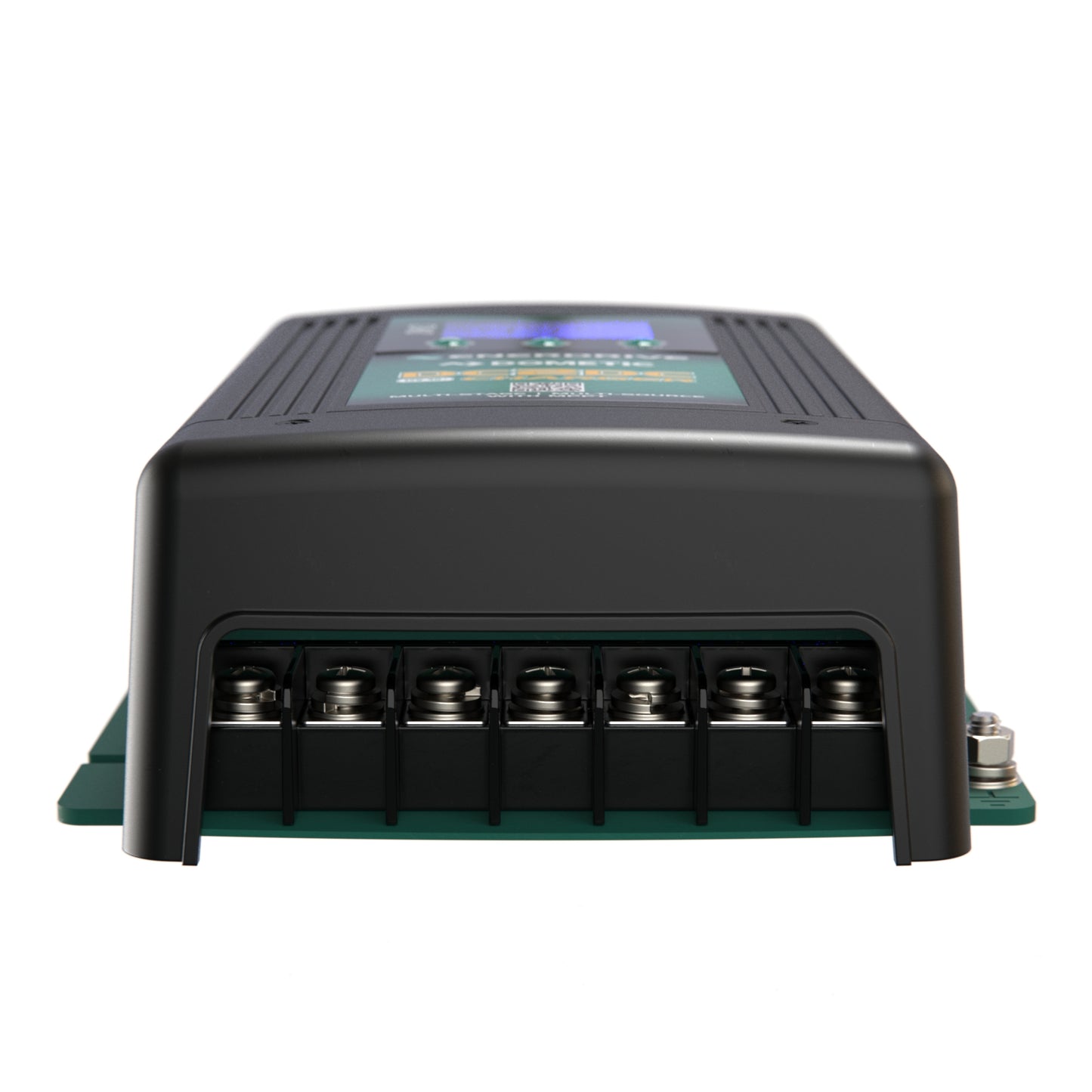

  • DC M6 screw terminals that will allow for large battery cable connection between all sources
  • A dedicated Maximum Power Point (MPPT) solar regulator
  • The same battery algorithms as included in our AC mains ePOWER battery charger. GEL, AGM, Flooded, Lithium and the ability to create  a full custom profile
  • Vehicle input allows for either 12 or 24v and a maximum solar input of 45V/800W
  • 40A+ output up to 40+°C with thermo controlled fan cooling

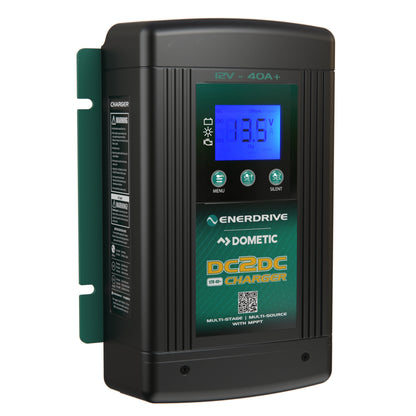

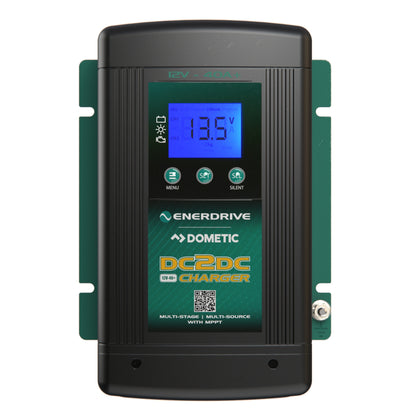

  • Fully programmable LCD display to show which source is charging the battery along with charger status, voltage and amperage
  • Temperature sensor included with charger for more accurate battery charging

Multistage Charging Process:

The Enerdrive | Dometic ePOWER DC2DC 40A+ Battery Charger is a fully automatic, set and forget charger. It is designed to quickly and accurately recharge your deep cycle batteries utilising charger algorithms that help to maximise the life of your specialised deep cycle batteries.

The Enerdrive | Dometic ePOWER DC2DC 40A+ Battery Charger features multistage smart charging technology that enables the charger to be connected to your battery bank permanently. With the input of multiple sources, you can be assured of charging your batteries whenever underway; or when the sun is shining on your solar array.

As dictated by battery manufacturer’s recommendations, deep cycle batteries require a multistage charge sequence for perfect, fast and accurate charging. The Enerdrive | Dometic ePOWER DC2DC 40A+ smart charger delivers three primary charge stages.

Stage 1 – Bulk or Boost charge; The battery is charged at full rated output current of the charger until the battery reaches its final charging voltage, known as its absorption voltage. In this step, around 80% of the battery is recovered as fast as possible.

Stage 2 – Absorption Charge; With the charger voltage held steady, the remaining 20% is replaced with the charger allowing the current to taper off as the battery approaches full charge.

Stage 3 – Float; Finally, in the float stage the charger voltage is lowered and held at a constant and safe predetermined level. This prevents the battery from being overcharged, yet allows the charger to supply enough current to make up for the self-discharge losses of the battery, while supporting any additional loads connected to the battery (such as DC lighting and refrigerators). This stage allows for the charger to be used as a DC power supply.

Smart Charging Feature:

The Enerdrive | Dometic ePOWER DC2DC 40A+ Battery Charger will regulate its output based on the loads connected to your battery bank. This function is important to maintain the life of your battery bank as some battery chargers mistake loads for discharge and continue to keep the batteries in the bulk or absorption stage for extended periods of time, which will damage the battery bank. The Enerdrive | Dometic ePOWER DC2DC 40A+ Battery Charger has two methods of load based regulation to ensure your battery charger transitions to float when it should do so.

Battery Temperature Sensor:

Included standard with all ePOWER Battery Chargers.

Specifications:

Note: Specifications subject to change without notice.

Maximising your Solar Harvest using the DC2DC+

The Solar Input on the DC2DC+ unit has a maximum rated INPUT current of 30amps. This means it is optimised for using higher voltage ‘grid’ type modules for best output performance. The maximum achievable output using standard 20Voc solar modules will be approx 35amps @ 14.4Vdc

Panel Array Rated Wattage & Volts Open Circuit rating Estimated DC Amps Output (## See Below)
1 150watt @ 20Voc 150watts 10
1 200watt @ 43Voc 200watts 13
2 150watt @ 20Voc 300watts 21
2 200watt @ 43Voc 400watts 27
3 150watt @ 20Voc 450watts 31
3 200watt @ 43Voc 600watts 42
4 150watt @ 20Voc 600watts 35*
4 200watt @ 43Voc 800watts 47**
5 150watt @ 20Voc 1000watts Not Recommended
5 200watt @ 43Voc 1000watts Not Recommended

* Maximum achievable output on the DC2DC+ unit when using 20Voc Solar Panels will be the approx 35amps. ** Maximum achievable output on the DC2DC+ unit when using 43Voc Solar Panels will be the approx 47amps.

## IMPORTANT NOTE: Estimated Amps Output is quoted based upon PERFECT Solar conditions including Sun Angle, Panel Mounting angle and Orientation to the sun. It needs to be noted that panel performance alters dramatically between Summer and Winter periods and actual performance may be impossible to predict.
