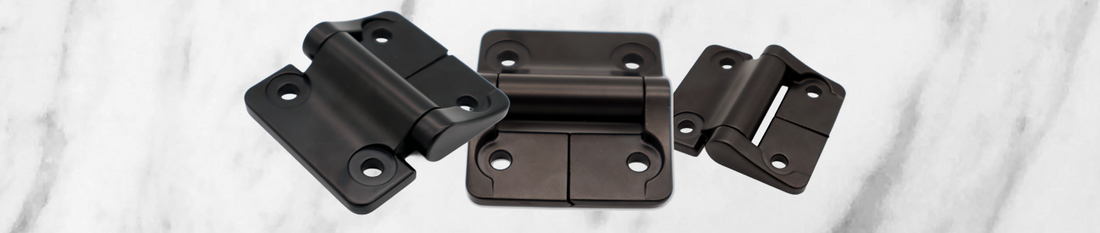

Product Spotlight – Rotor-Stator: Torque Butt-Hinge (50×50 Preset Model)
Control Lid Movement in Professional Builds
In service bodies, toolboxes, vehicle canopies, and hinged enclosures, unsupported or disproportionate lid and/or door movement can cause:
- Doors that fall freely and/or slam, risking damage or injury.
- Misalignment affecting seals, allowing dust, water, and vibration to cause fatigue.
- Inconsistent torque from replacements, making specification and maintenance difficult.
Professionals need a hinge that holds doors in place, resists vibration, and provides predictable movement across thousands of cycles.
An Entry-Level Solution: 50×50 Preset Torque Hinge
The 50×50 Rotor-Stator torque butt-hinge delivers controlled movement with symmetric preset torque (2 Nm), ideal for lightweight lids and access panels in applications where gas struts are not feasible or desired. Its rotary-static design ensures that movement is borne by the moving leaf (rotor), protecting the frame and welds.
Key Features and Benefits
-
Rotor + Stator Design: Rotor leaf moves, stator fixed — ensures consistent, reliable torque.
-
Preset Torque: Symmetric 2 Nm torque holds doors or lids in desired positions.
-
Compact 50×50 mm Form Factor: Suits smaller panels, mobile service compartments, and tight-fit applications.
-
Full Range of Motion: Up to 180°, allowing predictable swing and retention.
-
High Cycle Life: Designed for 25,000+ opening/closing cycles.
-
Robust Materials: Zinc alloy body, steel pin, black textured powder-coated finish.
- Flexible Installation: Front or rear fixing; left/right-hand orientation supported.
Pro Tip: Perfect for lightweight lids where controlled hold-open and gentle closing are required without additional adjustments.
Technical Snapshot
|
Specification |
Value |
Notes |
|
Hinge size |
50×50 mm |
Compact, entry-level option |
|
Torque |
2 Nm symmetric |
Preset; no adjustment required |
|
Range of motion |
180° |
Standard lid swing |
|
Life-span |
>25,000 cycles |
Industrial-grade durability |
|
Material |
Zinc alloy body, steel pin |
Robust for mobile and transport use |
|
Finish |
Black powder coat |
Durable and corrosion-resistant |
|
Mounting |
Front/rear |
Flexible installation |
Ideal Applications
- Toolboxes and mobile service compartments
- Lightweight canopy doors and access panels
- Small enclosures and industrial cabinets where predictable, controlled movement is needed
The 50×50 Rotor-Stator: torque butt-hinge provides consistent and controlled torque in a compact package. Perfect for smaller entry/access doors or lids, it ensures reliable hold-open, smooth closure, and consistent performance, ideal for trade and mobile applications.
