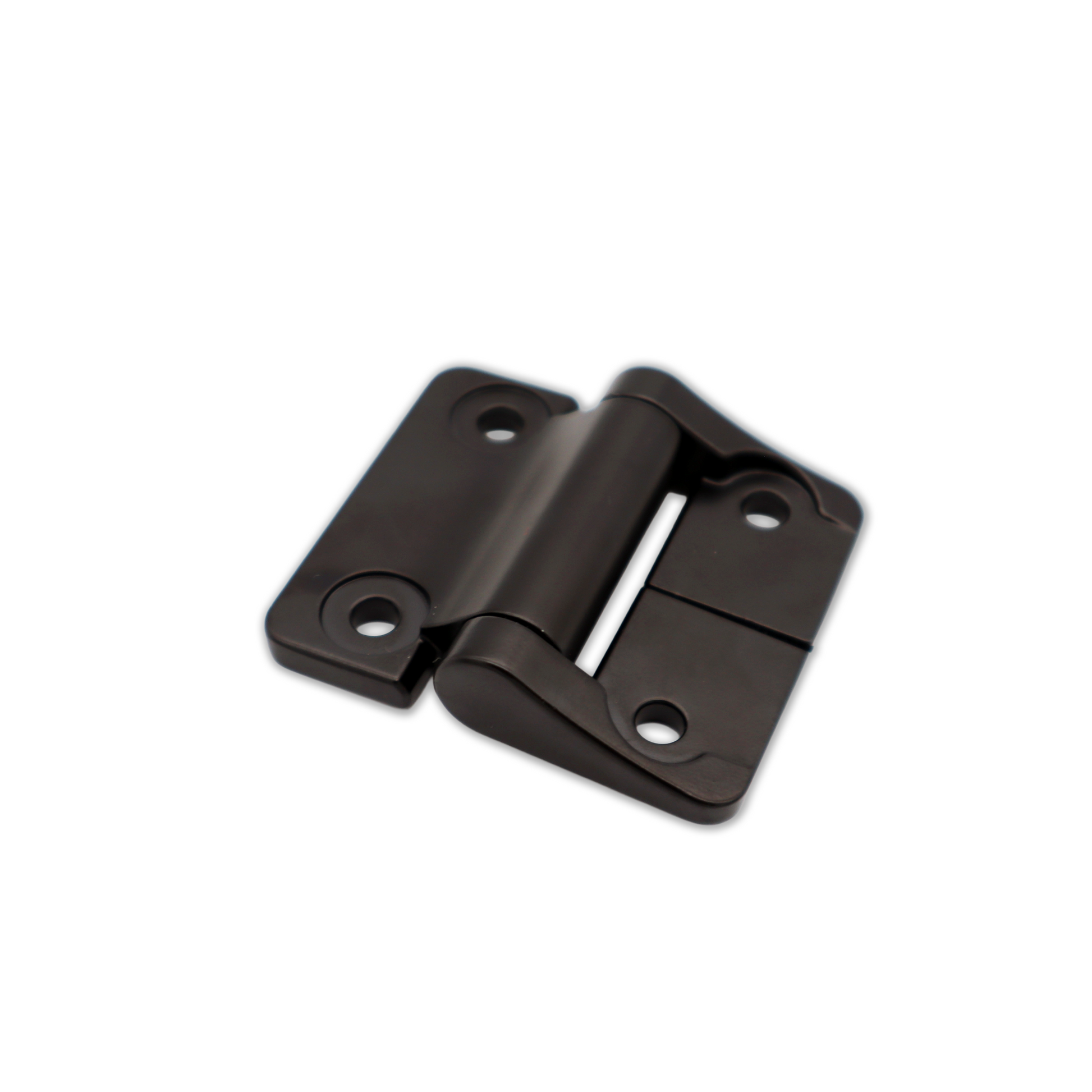

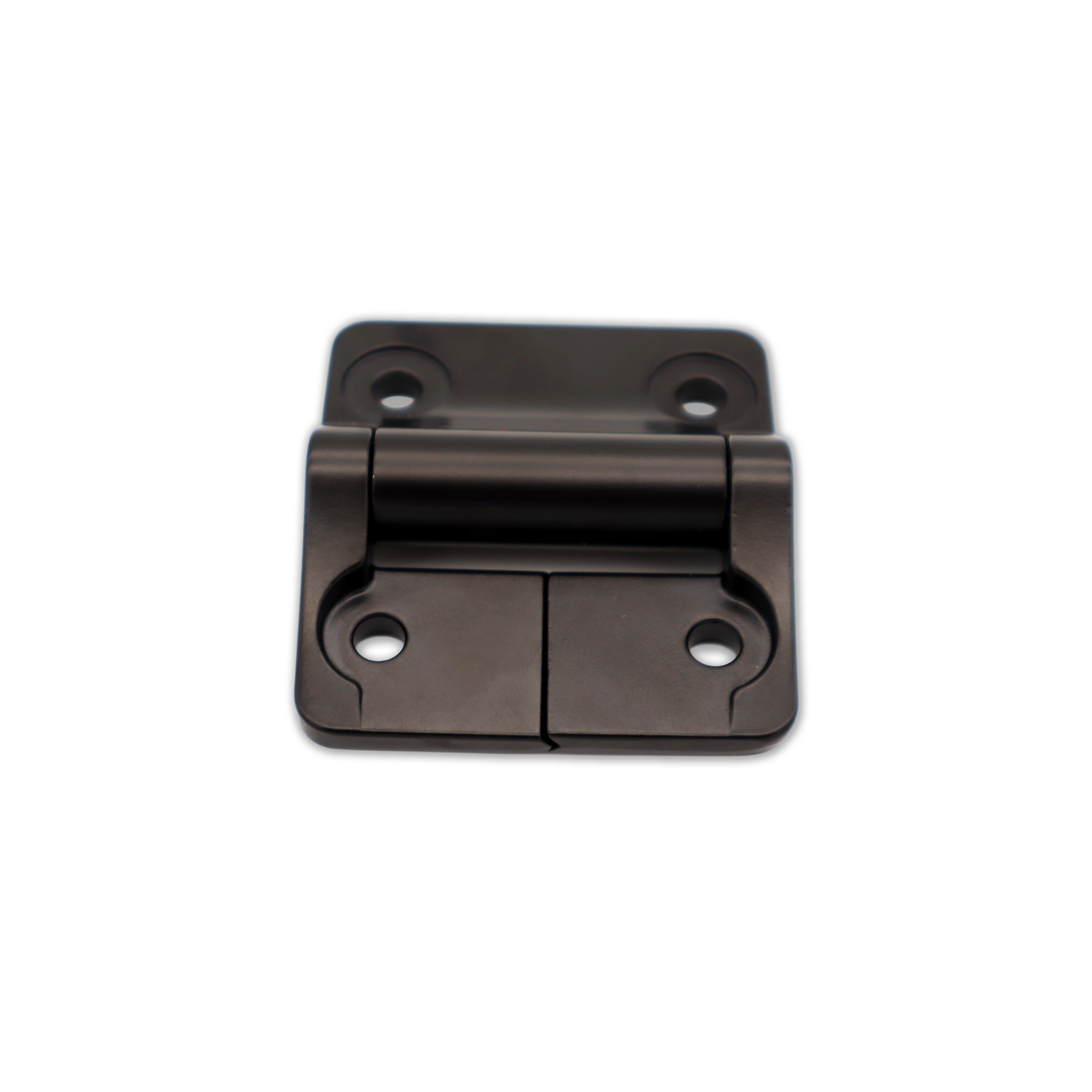

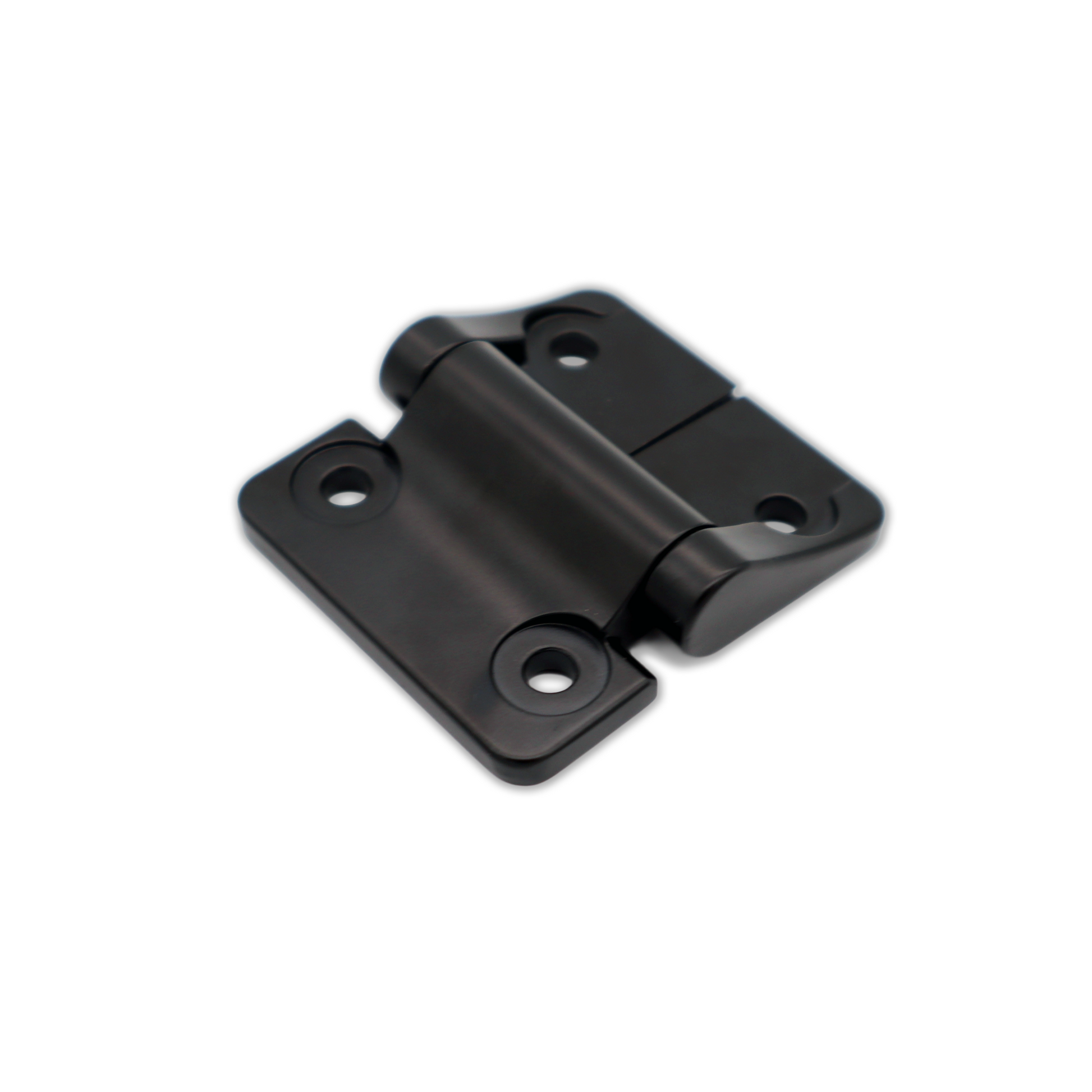

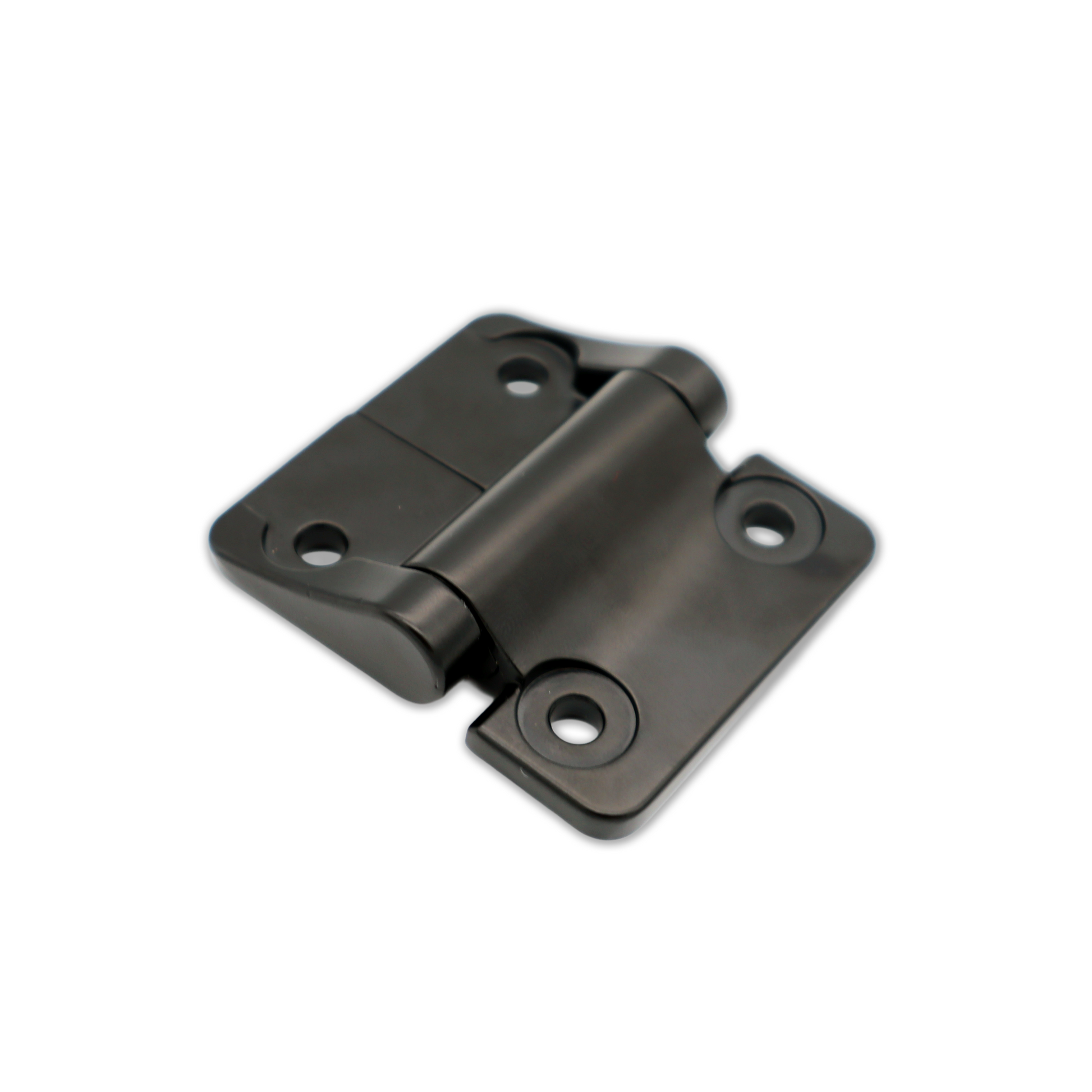

Rotor-Stator: 50x50 Torque Butt-Hinge

Rotor-Stator: 50x50 Torque Butt-Hinge

TH161-5050-2N-1

$17.45 AUD
$21.81 AUD $17.45 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine, VIC)

Features

  • Range of motion (ROM): Full 180° rotation
  • Rotary-static design (rotor-stator):
    • Rotor - Rotating (moving) "hinge"/leaf component (door)
    • Stator - Stationary (non-moving) "lid"/leaf component (enclosure)
  • Torque specifications: 2 Nm
  • Static torque: Within ± 20%
  • Torque function: Symmetric
  • Torque adjustment: Non-adjustable
  • Life-span: Over 25,000x cycles
  • Easy installation: Front fixing, M5 bolts (not supplied)
  • Application: Suits both left hand and right hand install orientations

Dimensions, Material & Finish

  • Hinge body: Zinc alloy, die-cast
  • Pin: Mild steel, nickel-plated (stainless steel option available - see remarks)
  • Finish: Black, electrophoresis (plastic spray)
  • Base dimensions: 50mm (L) x 50mm (W) x 4.5mm (T)
  • Mounting holes: Ø5.2mm (dia) x 4 (qty)

Remarks

  • Alternative sizes (mm), torque specifications (Nm), materials and/or finishes may be available upon request (subject to additional costs, MOQs and lead times)
