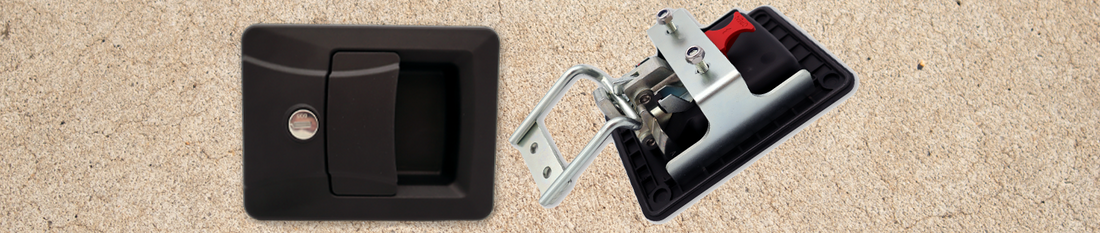

Product Spotlight – Selectlok Paddle Handle with Internal Emergency Release

Product Spotlight – Selectlok Paddle Handle with Internal Emergency Release

Secure, Flush Access for Mobile and Industrial Applications

Used in service bodies, generator unit enclosures, floats & trailers, toolboxes, and RV compartments, easy to access enclosure hardware must satisfy multiple demands:

  • Flush-mounted design for a clean look and snag-free operation in tight spaces.

  • Reliable latching with IP66 ingress rating to protect against moisture and dust in outdoor or harsh environments.

  • Emergency egress from inside the compartment, even if locked externally, via an internal release latch.

  • Robust construction to withstand vibration, weather, and frequent use.

Without the right handle, you face the prospect of failure, corrosion, blocked emergency exit, or interference with vehicle or cabinet ergonomics.

Why the Selectlok Paddle Handle Stands Out

The Selectlok Paddle Handle with Internal Emergency Release combines flush-mount aesthetics, IP66 ingress protection, two-stage rotary slam latch, and a built-in internal emergency release tab — all designed for trade-grade reliability.

Key Features and Benefits:

  • Flush-Mounted Paddle Design: Sits neatly within the panel to reduce protrusion and snag risk — ideal for canopies, trailers, and tight-fit compartments.

  • IP66 Rated: Dust-tight and resistant to torrential rainfall or powerful water jets for transport, outdoor, and harsh-environment applications.

  • Two-Stage Rotary “Burst-Style” Slam Latch: Primary click secures the door; secondary click compresses the gasket for superior sealing.

  • Internal Emergency Release Tab (Red): Ensures safe exit from inside the compartment if locked from the outside.

  • High-Quality Materials: Handle/dish: PA6 + 30% glass-fibre (black); Zinc-alloy inserts/bracket: trivalent chromate plated; Striker: Q235 zinc plated.

  • Rear-Fixing Mounting Bracket: Mounts from inside, reducing tampering and keeping external aesthetics clean.

  • Keyed Options: CH751 and CH805 allow keyed alike or separate access control for fleets or equipment.

Technical Specifications

  Specification

  Value

  Notes

 Cut-out dimensions

82 mm H × 112 mm W

Required panel cut-out size

 Handle and dish

PA6 + GF30 (black)

Durable polymer construction

 Insert / bracket

Zinc alloy, trivalent chromate plated

Corrosion-resistant mounting hardware

 Striker

Q235 steel, zinc plated

Sold separately (PH-001-01-01)

 Protection rating

IP66

Suitable for outdoor and harsh environments

Locking profiles

CH751 and CH805

 Key options for access control

Pro Tip: Select the correct keyed option and ensure proper striker alignment for secure and reliable operation.

Performance Advantages

  • Two-Stage Latch and Internal Release: Enhances sealing and safety beyond standard flush paddle handles.

  • IP66 Protection: Dust-tight and water-jet resistant for outdoor and vehicle applications.

  • Rear Mounting and Keyed Options: Ideal for professional fleet builds, industrial cabinets, and mobile service units.


Ideal Applications

  • Fleet Vehicle Service Bodies & Canopies: Service van or ute canopy compartments requiring flush handles, secure locking, and weather-proofing.

  • Generator Sets and Outdoor Enclosures: Ensure ingress protection and emergency escape capability.

  • Floats, Trailers and Mobile Toolboxes: Tight panel integration with durable, secure handles.

  • Industrial Cabinets and Infrastructure: Flush access, sealed enclosure integrity, and controlled access.

The Selectlok Flush-Mounted Paddle Handle with Internal Emergency Release is a professional-grade, flush access solution for mobile, outdoor, and industrial cabinetry. Combining robust materials, IP66 protection, two-stage sealing, and built-in emergency release, it meets the demands of trade and industry professionals specifying secure, safe, and reliable access hardware.

For specification support, CAD files, or large-volume project quotations, contact your Selectlok account representative or download our technical datasheet via the product page.
