Paddle Handle with Internal Emergency Release
Paddle Handle with Internal Emergency ReleaseSKU:PH-001-01
Regular price
$134.31 AUD
Regular price
Sale price
$134.31 AUD
Unit price
per
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine, VIC)
Couldn't load pickup availability

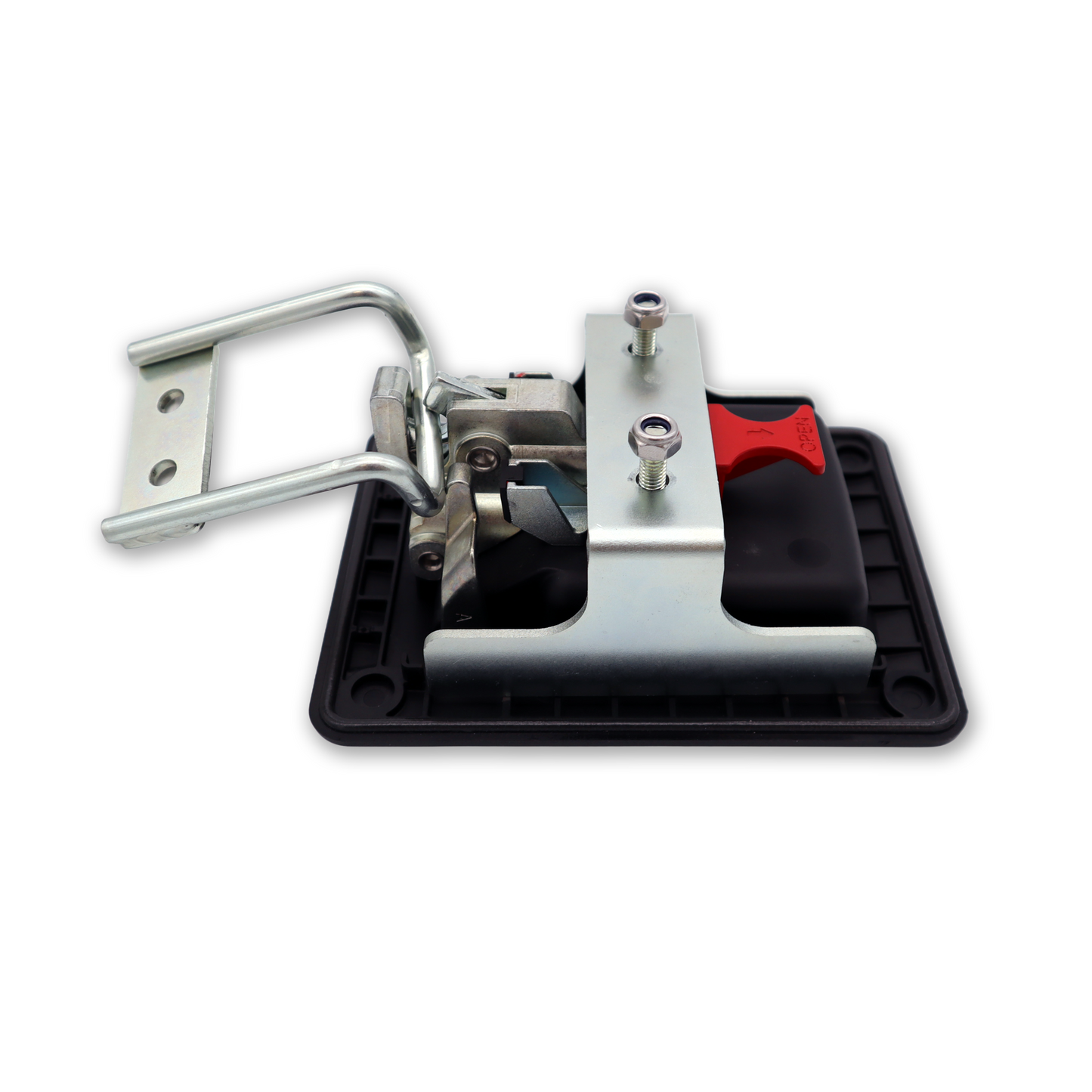

Introducing our new Flush-Mounted Paddle Handle.
Featuring a two-stage rotary "burst-style" slam latch with an internal emergency release tab and manufactured from high-quality black polyamide, it is both aesthetically pleasing and IP66 ingress-rated for outdoor use.
Ideal for RVs, canopies, generator sets, special vehicles, and a wide range of other applications, it could be the perfect handle for your next build or project.
Features:
- Aesthetically pleasing design
- IP66 rated for outdoor applications
- Two-step locking for enhanced security:
- Primary click - secures the door,
- Secondary click - compresses the gasket
-
Internal emergency release tab (RED) for safety:
- The handle can be opened from inside even if the door is locked from the outside
- Available in CH751 and 805 keys
- Rear fixing: Mounting bracket
- Striker (locking bar): Sold separately (PH-001-01-01)
Cutout Dimensions:
- Height: 82mm
- Width: 112mm
Material & Finish:
- Handle & dish: PA6+GF30, black
- Insert: Zinc alloy, trivalent chromate zinc plated
- Bracket mount: Zinc alloy, trivalent chromate zinc plated
- Striker: Q235, trivalent chromate zinc plated
- Key head: PA6+GF30, black
