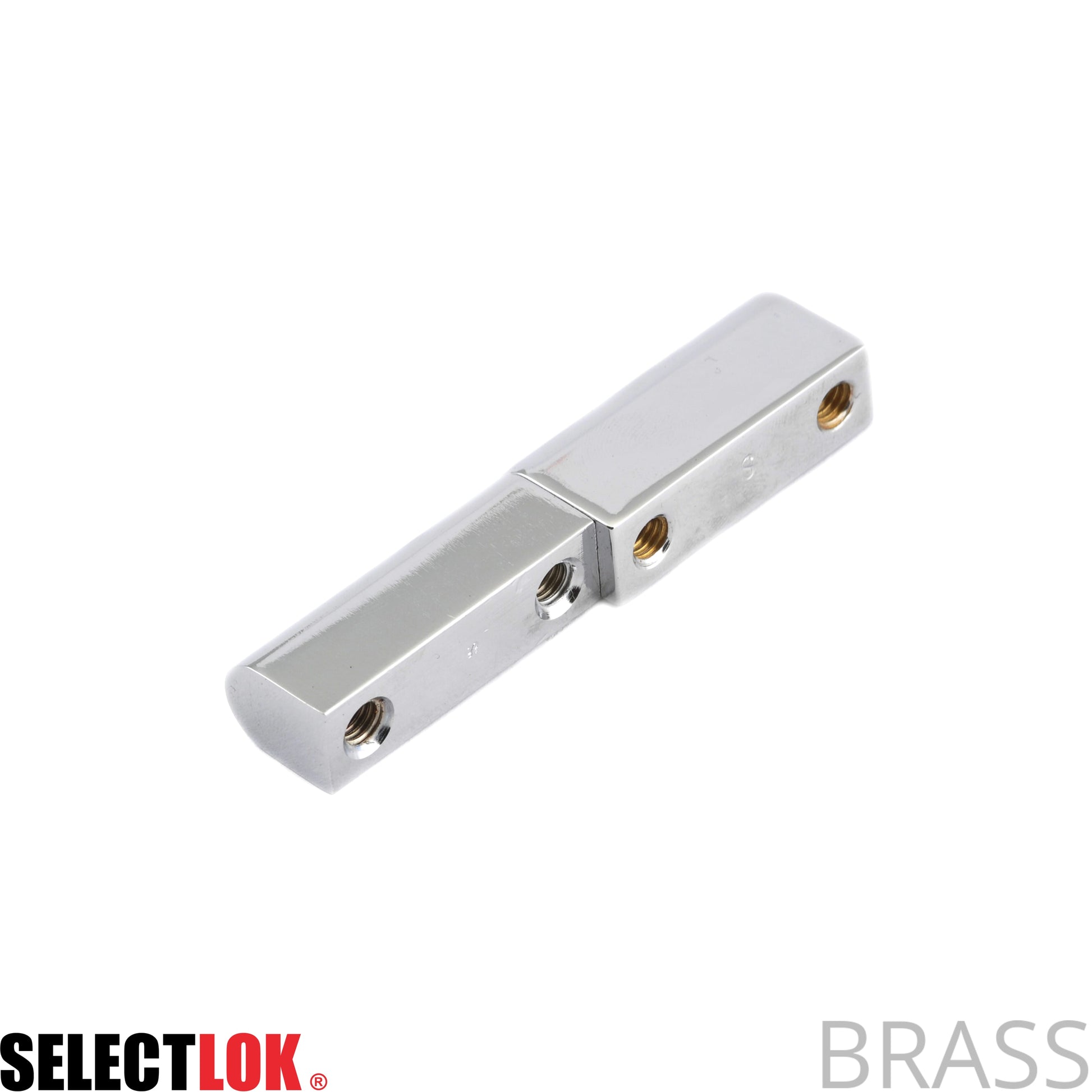

82mm Pintle Hinge - 16mm/19mm High (Stepped)
82mm Pintle Hinge - 16mm/19mm High (Stepped)
SKU:HIB820-1
Regular price
$12.12 AUD
Regular price
$12.12 AUD
Sale price
$12.12 AUD
Unit price
/
per
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)
Couldn't load pickup availability
Features:
- Stepped 16mm ~ 19mm body height
- Interchangeable male & female components
- Screws available - sold separately
Dimensions:
- Body height (female): 16mm
- Body height (male): 19mm
- Body length: 82mm
- Pin diameter: 6mm
- Pin length: 25mm
Material & Finish:
- Hinge body: Brass, chrome plated
- Pin: Stainless steel 304
Remarks:
- Hex multi-head screws available: F-HMHSS-M6X8
- Large hex multi-head screws available: HIB650-SCREW
- Socket head cap screws available: F-SCS-M6X8-ZP
