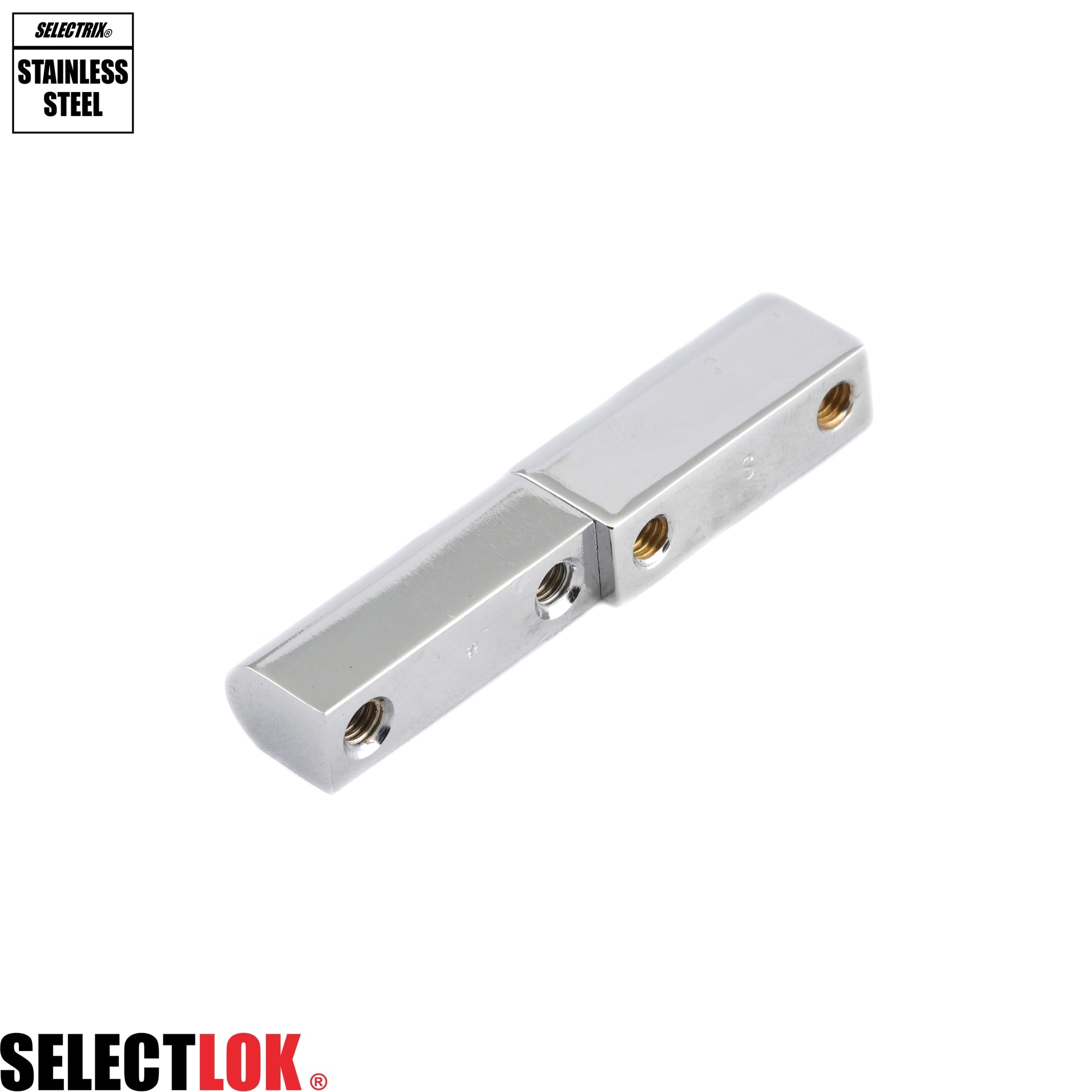

82mm Pintle Hinge - 16mm/19mm High (Stepped, Stainless Steel)
82mm Pintle Hinge - 16mm/19mm High (Stepped, Stainless Steel)
SKU:HIB820-1-SS
Regular price
$63.75 AUD
Regular price
$0.00 AUD
Sale price
$63.75 AUD
Unit price
/
per
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)
Couldn't load pickup availability
Features:
- Stepped 16mm ~ 19mm body height
- Stainless steel 316
- Interchangeable male & female components
- Screws available - sold separately
Dimensions:
- body height (female): 16mm
- Body height (male): 19mm
- Body length: 82mm
- Pin diameter: 6mm
- Pin length: 25mm
Material & Finish:
- Hinge body: Stainless steel 316, polished
- Pin: Stainless steel 304
Remarks:
- SS-304 hex multi-head screws available: F-HMHSS-M6X8-SS
- SS-316 large hex multi-head screws available: HIB650-SCREW-SS
- SS-304 socket head cap screws available: F-SCS-M6X8-SS
