82mm Pintle Hinge - 16mm High (Brass, Zinc & Stainless Steel)
82mm Pintle Hinge - 16mm High (Brass, Zinc & Stainless Steel)
SKU:HIB650-1
Regular price
$7.00 AUD
Regular price
$0.00 AUD
Sale price
$7.00 AUD
Unit price
/
per
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)
Couldn't load pickup availability
Features:
- 16mm body height
- Available in Brass, Zinc or Stainless Steel 316
- Interchangeable male & female components
- Screws available - sold separately
Dimensions:
- Body height: 16mm
- Body length: 82mm
- Pin diameter: 6mm
- Pin length: 25mm
Material & Finish:

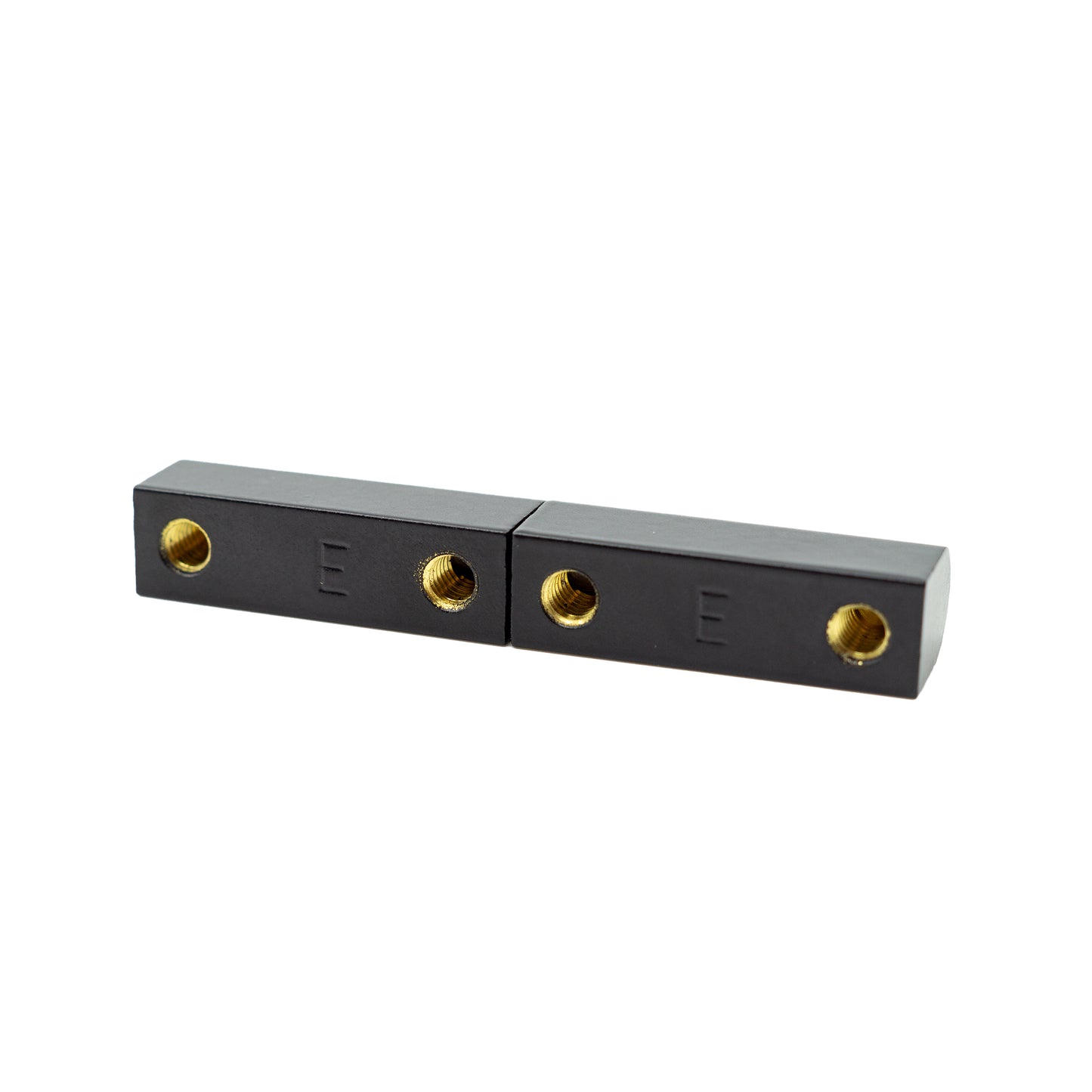

Brass
- Hinge Body: Brass
- Pin: Stainless steel 304
- Finish: Chrome, plated or black, EDP coated

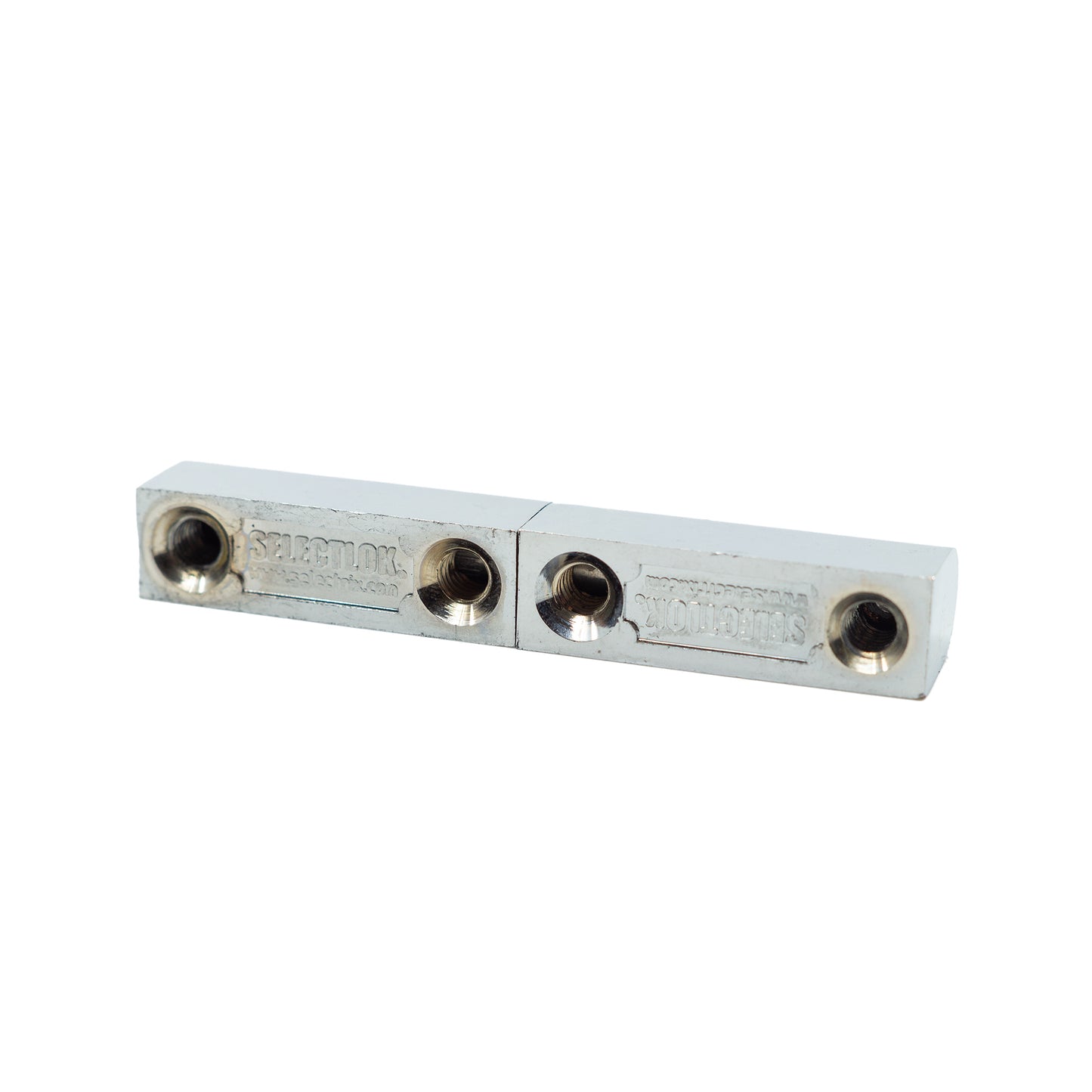

Zinc Die Cast
- Hinge Body: Zinc die cast
- Pin: Stainless steel 304
- Finish: Chrome, plated

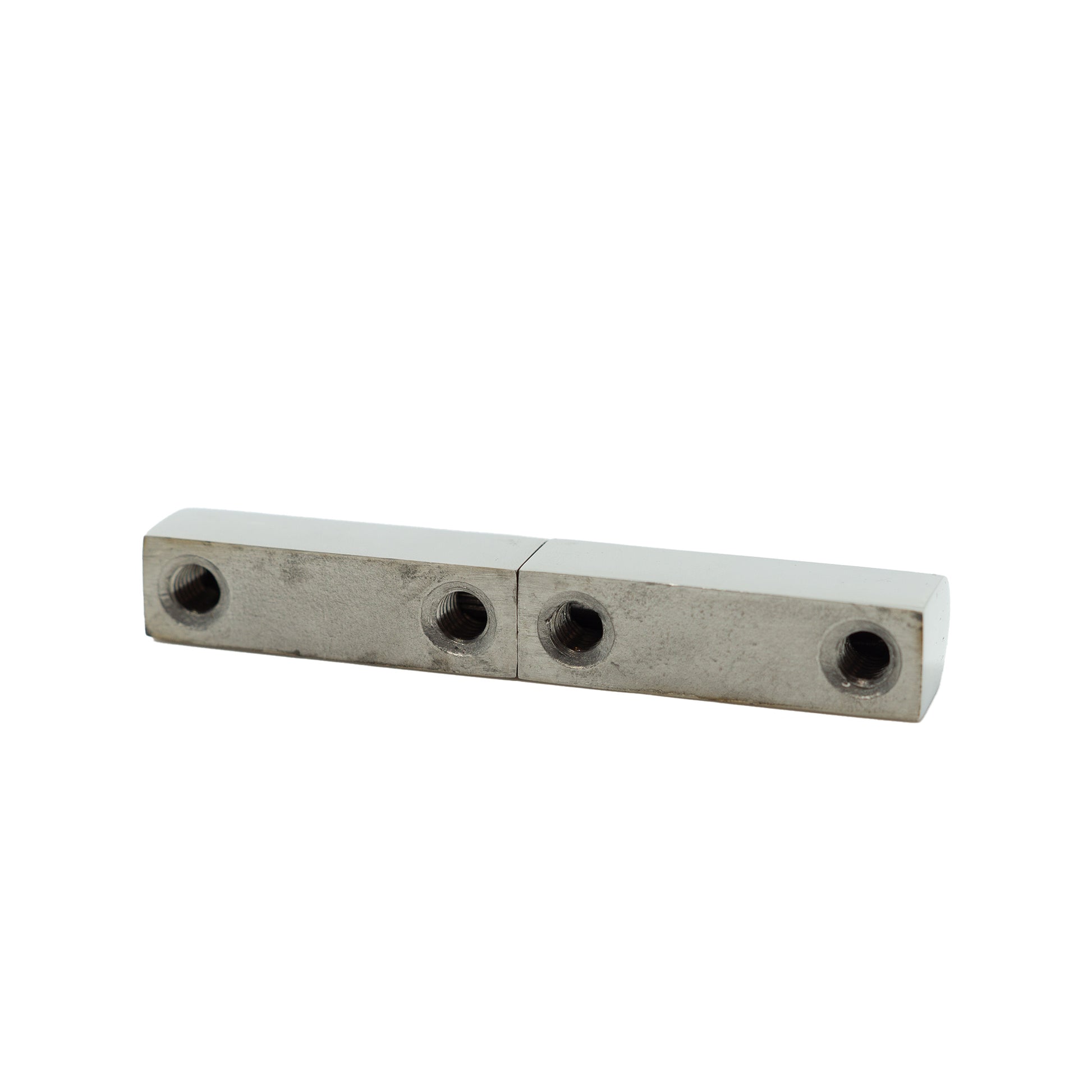

Stainless Steel
- Hinge Body: Stainless steel 316
- Pin: Stainless steel 304
- Finish: Polished
Remarks:
Screws - Mild Steel, Zinc Plated
- Hex multi-head screws available: F-HMHSS-M6X8
- Large hex multi-head screws available: HIB650-SCREW
- Socket head cap screws available: F-SCS-M6X8-ZP
Screws - Stainless Steel
- SS-304 hex multi-head screws available: F-HMHSS-M6X8-SS
- SS-316 large hex multi-head screws available: HIB650-SCREW-SS
- SS-304 socket head cap screws available: F-SCS-M6X8-SS
