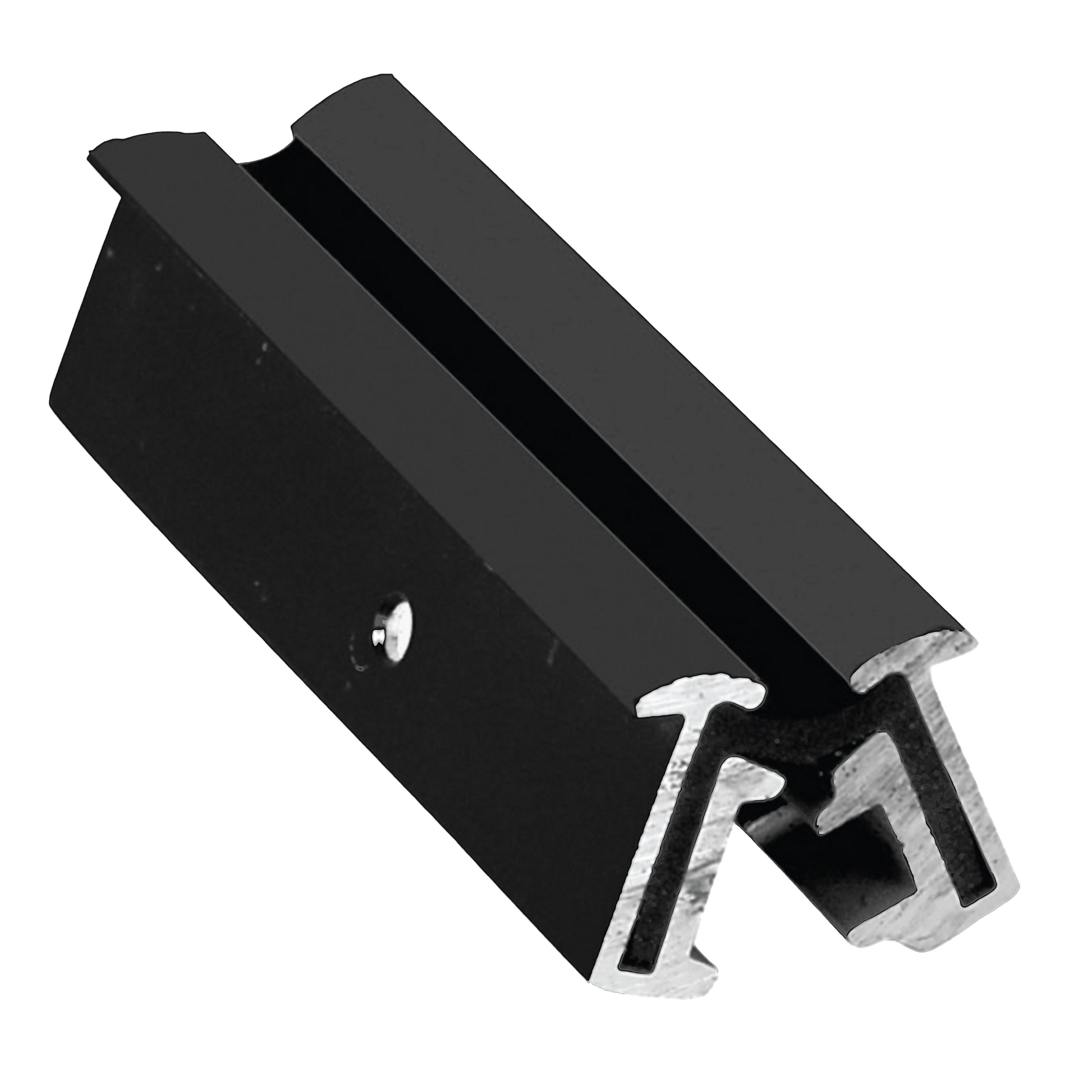

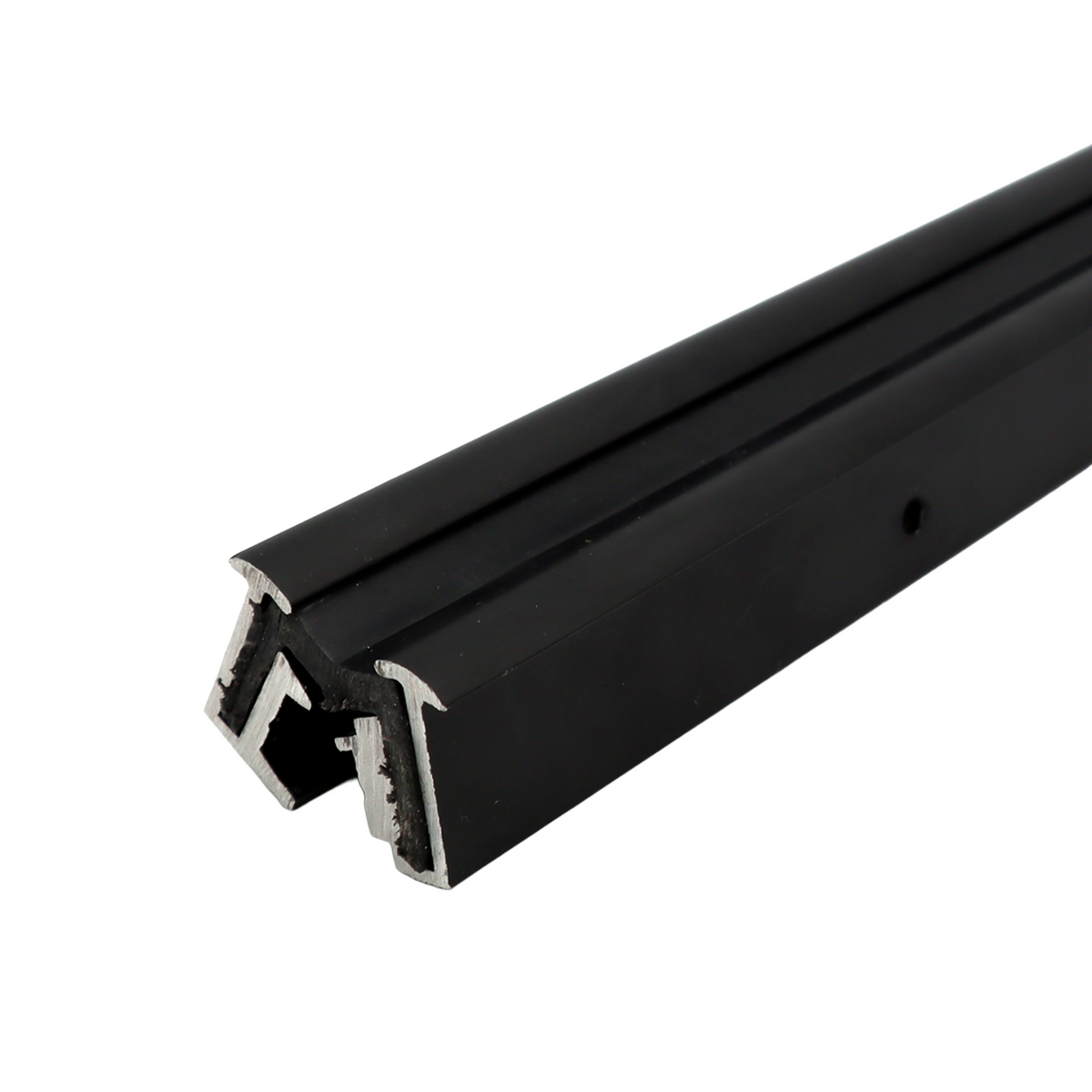

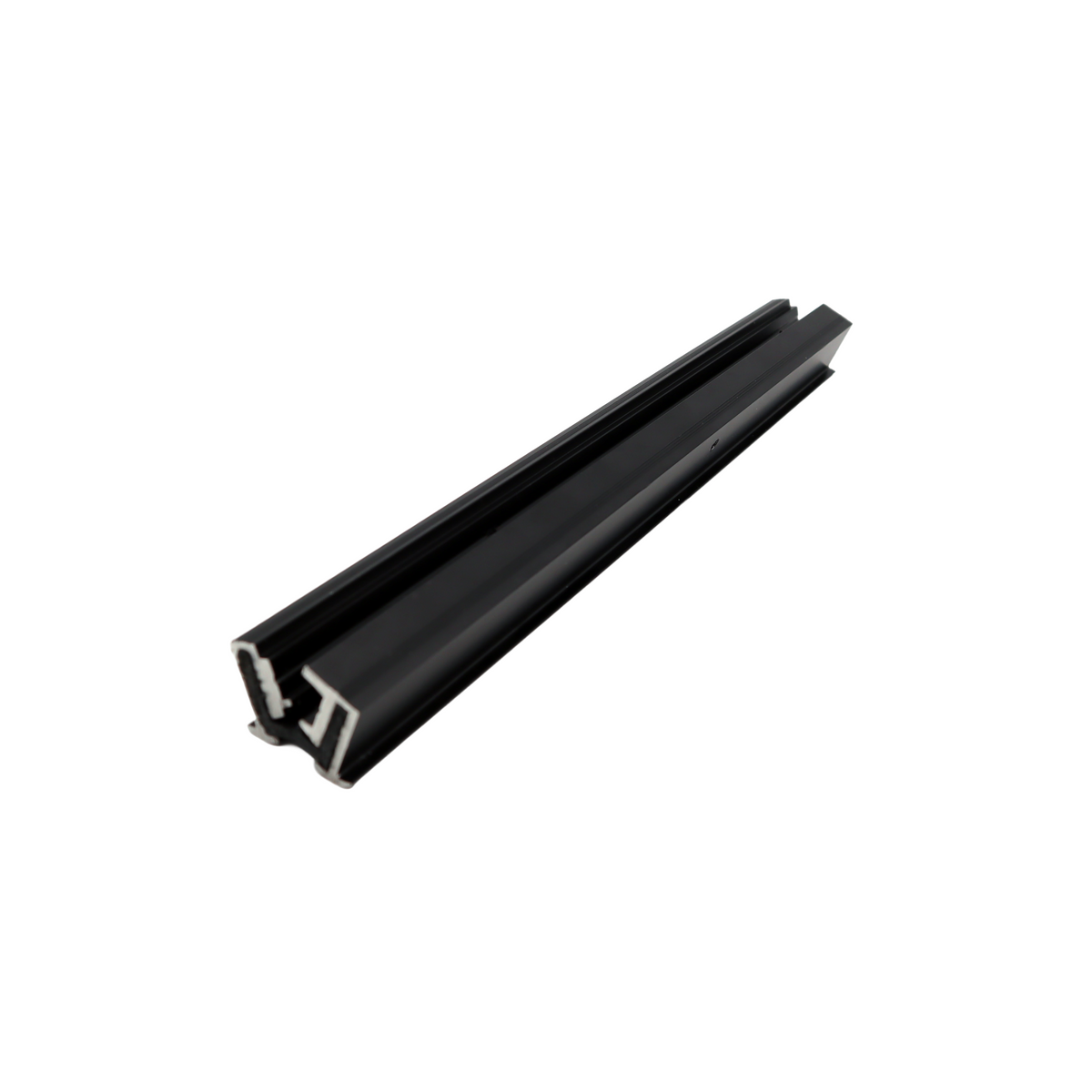

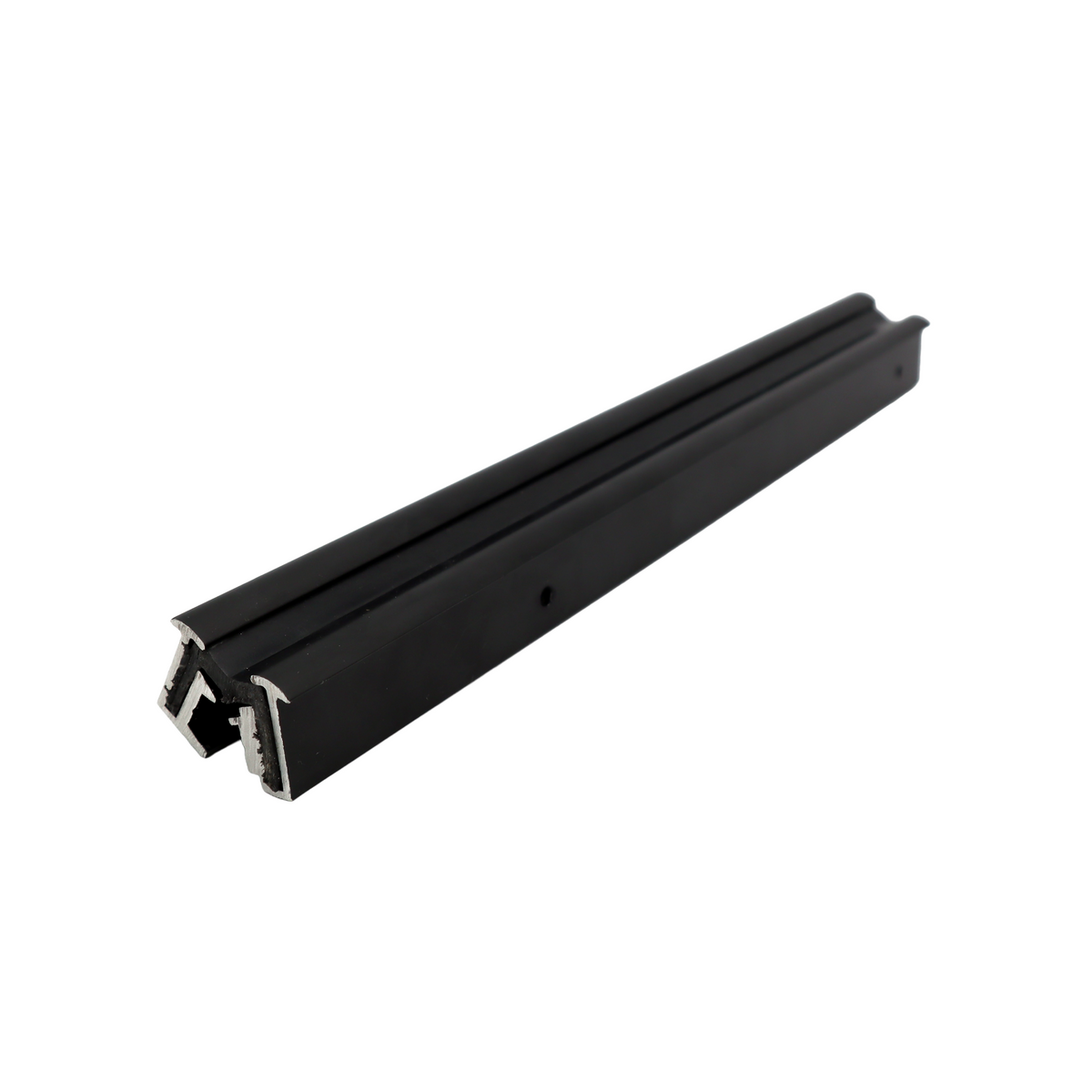

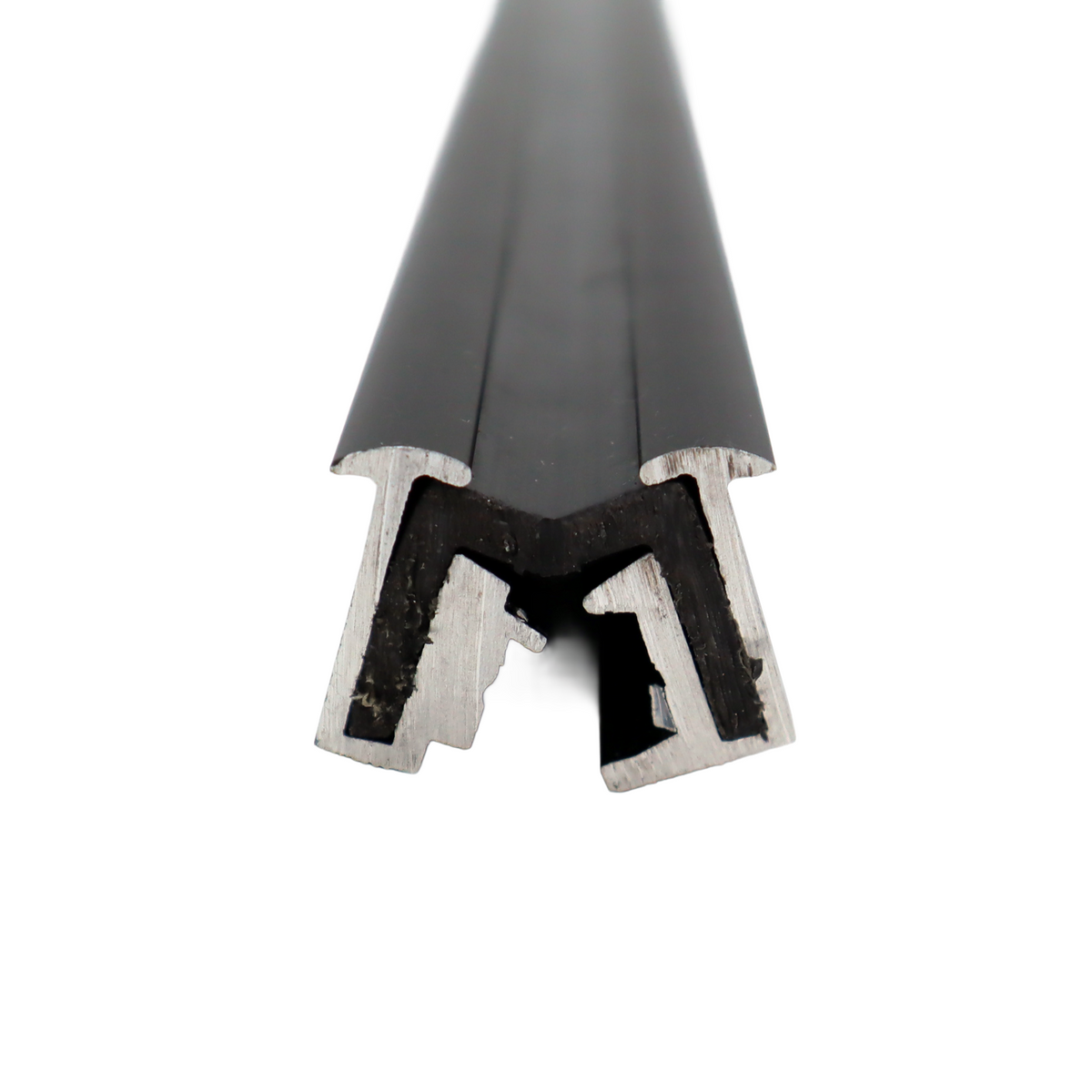

Aluminium Profile Hinge (Black)

Aluminium Profile Hinge (Black)

NP0012-2-2000

$424.49 AUD
$424.49 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine, VIC)

Features

  • 180˚ opening angles
  • Pre-drilled holes: 4.0mm (dia.) x 200mm spacing (stepped/offset to the opposing face)
  • Temperature range -40℃ to +80℃
  • Hydrolysis and bacteria resistant
  • Contact us for custom lengths, sizes and hole spacings (Additional costs, leadtimes or MOQ’s may apply)

Dimensions

  • Height = 22mm
  • Width = 24mm
  • Length = Various

Specifications

  • NP0012-2-2000: 2,000mm Long / 19 x mounting holes
  • NP0012-2-2400: 2,400mm Long / 23 x mounting holes
  • NP0012-2-3000: 3,000mm Long / 29 x mounting holes

Material & Finish

  • Aluminium profile - EN AW-6063
  • Anodised finish - EV6, matt black
  • Elastomer profile - Polyurethane elastomer plastic (TPU), black

 Remarks

  • Sold in individual lengths

  • Packing: 2x off in sealed plastic wrapping
