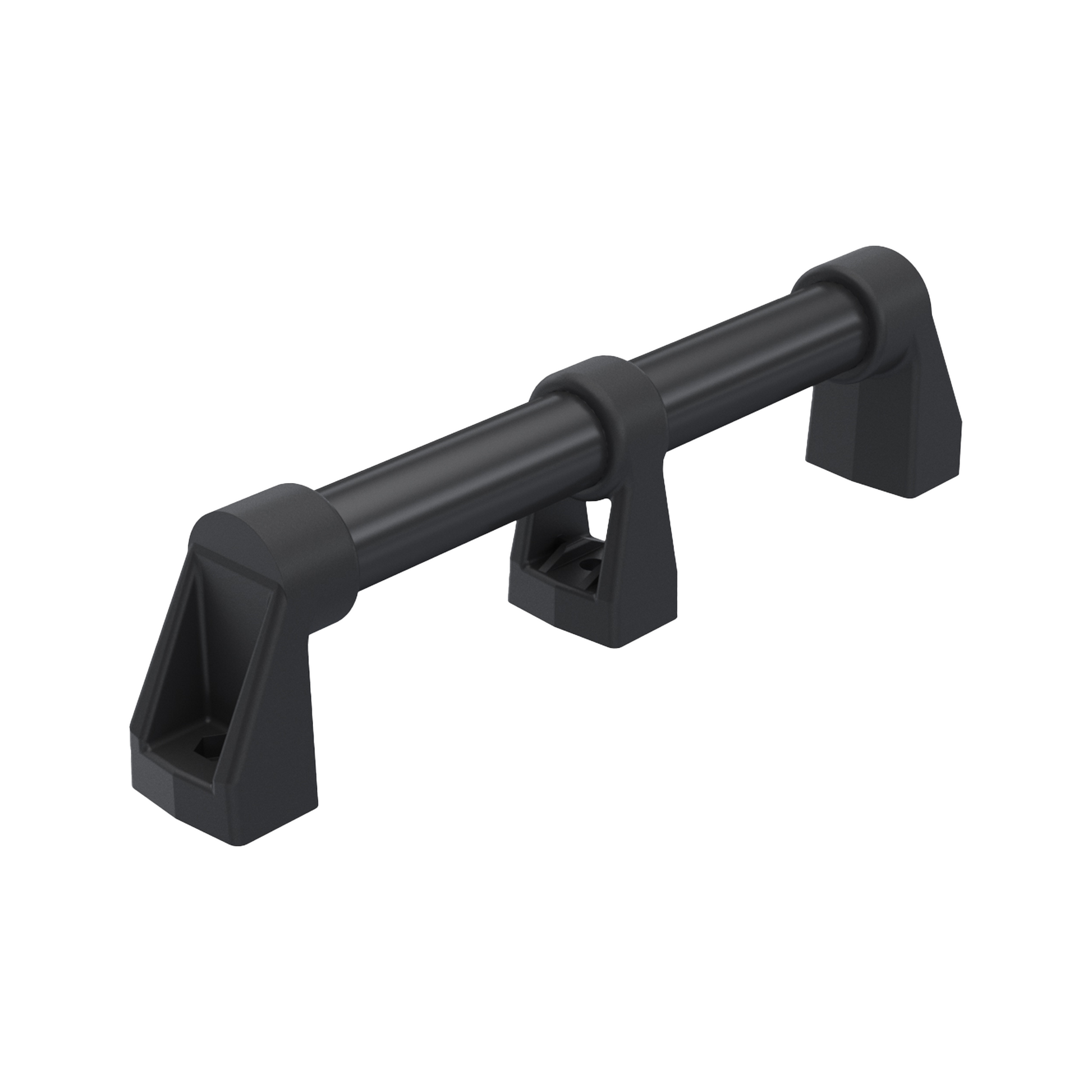

BH: Modular Bridge Door Handle - COMPLETE UNIT (Mild Steel / PA6)

Introducing Selectlok's BH Series: Modular - "Bridge" Door Handle (Available as either complete units/handles or individual componentry)

Commonly used in the manufacture of: Camper Trailers, Caravans & RVs, Marine & Luxury Yachts, Large Electrical/HV Enclosures & Doors and Power Generation Units.

Features:

• Modular handle with Ø30mm tube/pipe in various lengths
• The Ø30mm Dia of the tube guarantees a sure & firm grip
• Precise & tight fit of the tube into the middle & end support bases
• Fasten via M8 (hex.) nuts/bolts (not supplied)
• When calculating total assembled length, add +64mm to the tube/pipe (L=)
• Suitable for either vertical or horizontal applications
• Included: Ø30mm tube/pipe in desired length, 1x middle support base & 2x end support bases
• Individual components & accessories: Sold Separately

Material & Finish:

• Support base - end: PA6, black (PA+GF)
• Support base - middle: PA6, black (PA+GF)
  • BH-01 & BH-02 SKU: Middle supports - sold separately (Part no. BH-MID-01)
• Ø30mm tube/pipe: Mild steel, black powder coated

Remarks:

• Longer length handles/pipes available upon request
• Steel pipe can be cut to allow shorter length handles combinations

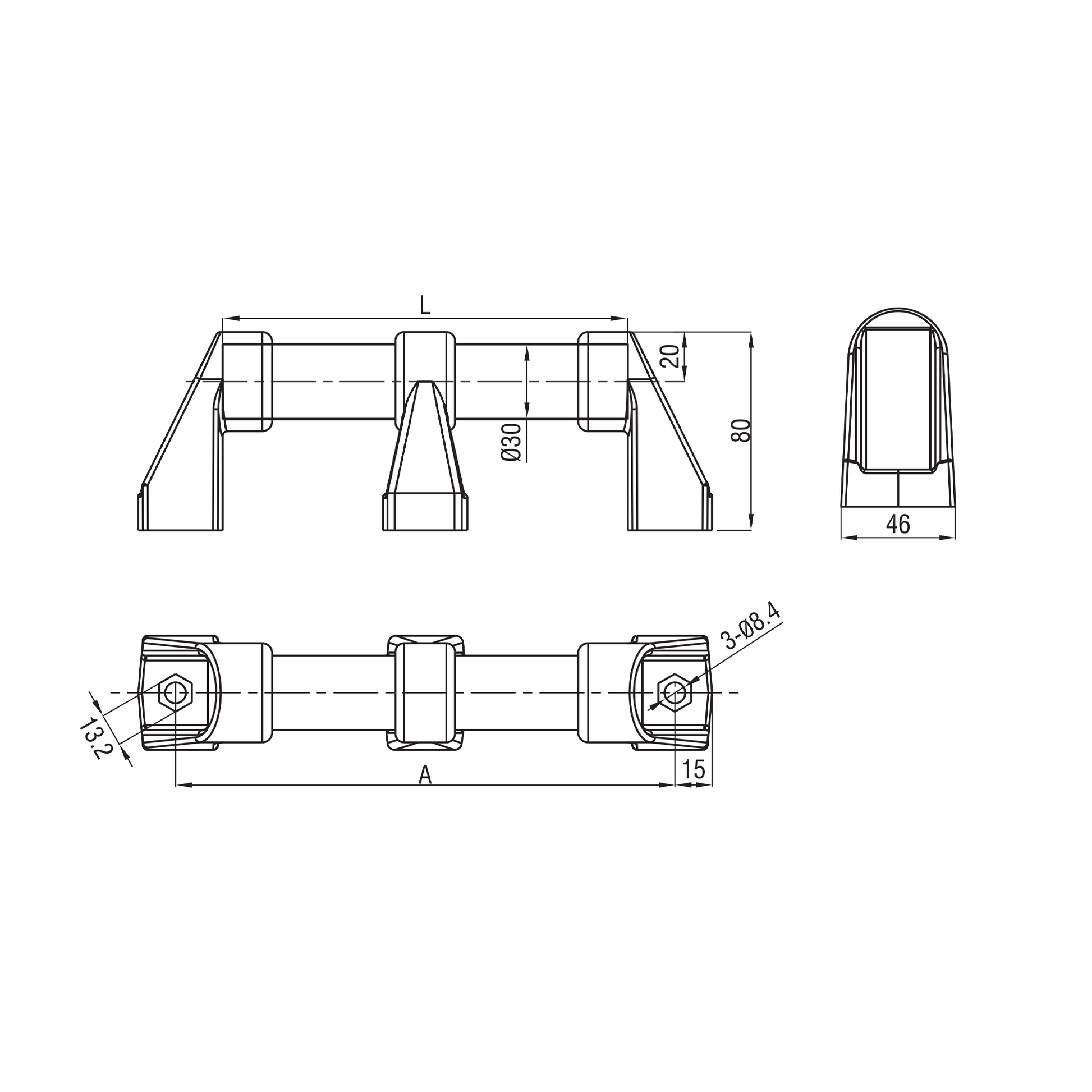

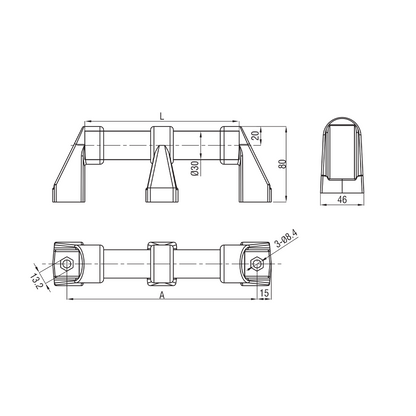

• “A” measurement: (A=) denotes the distance between hole centres on the end support bases when assembled
