DIRAK "6-1600" Pipe Handle System - Bent Ends | Supports Only (PA)
DIRAK "6-1600" Pipe Handle System - Bent Ends | Supports Only (PA)SKU:213-0103.03-00000
Price on Application
Please check availability: Dirak products are generally custom ordered from the supplier based on individual project requirements. Please note, some items may not be readily available in stock at time of enquiry. Delivery times from Dirak can vary accordingly however the majority of orders take between 14-21 days to be received into warehouse by Selectlok Australia.
Couldn't load pickup availability
Features:

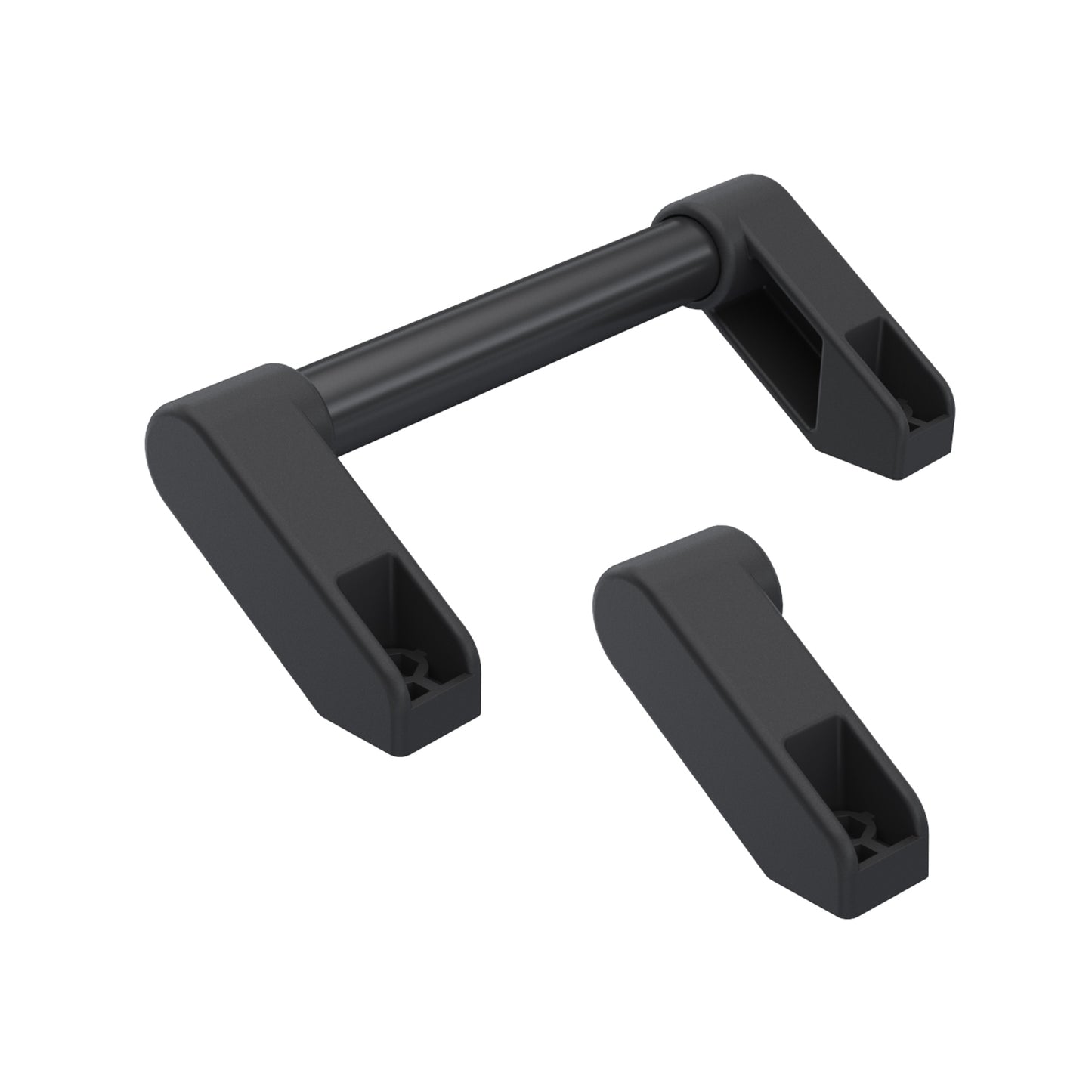

This lisiting is for: Bent End Supports (Components ONLY) to suit Ø30mm Steel Tube/Pipe used to assemble: DIRAK "6-1600" Pipe (Bridge) Handle System (For product systems: 6-1600.900)
- Handle supports: Bent
-
Suits: Tube/pipe handle with Ø30mm in various length.
- The Ø30mm diameter of the tube guarantees a sure and firm grip.
- Precise and tight fit: Of the tube in the center support and the end pieces.
-
Application:
- For vertical or horizontal applications.
- This handle is suitable for large and heavy doors and controlling enclosures.
Remarks:

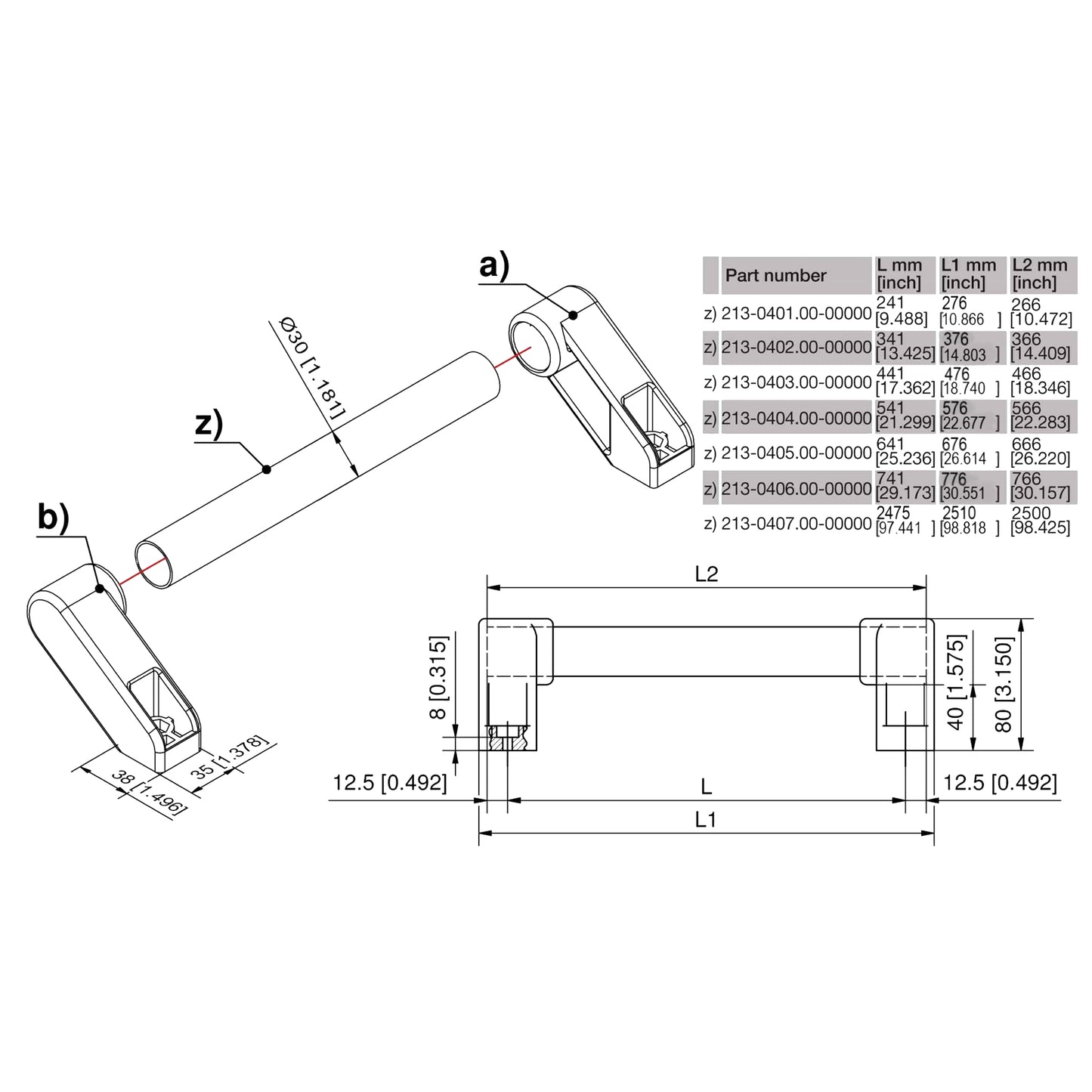

- 213-0103.03-00000: End support piece, - RH, bent
- 213-0104.03-00000: End support piece - LH, bent
- Fastening by: Hex. socket head cap screws M8, or hex. screws or with countersunk screws M8.
- For the total size: Please add 10mm to the tube length.
- For wall fastening: Please take the end piece (b).
- The center support is optional: However it should be applied for tube lengths over 466mm.
- If required: The center supports and wall end pieces from handle 6-1600.01 can be used.
Material & Finish:
- RH, bent (end support piece): PA, black
- LH, bent (end support piece): PA, black
View DIRAK's Technical Datasheet
Part Numbers: 213-0103.03-00000; 213-0104.03-00000
