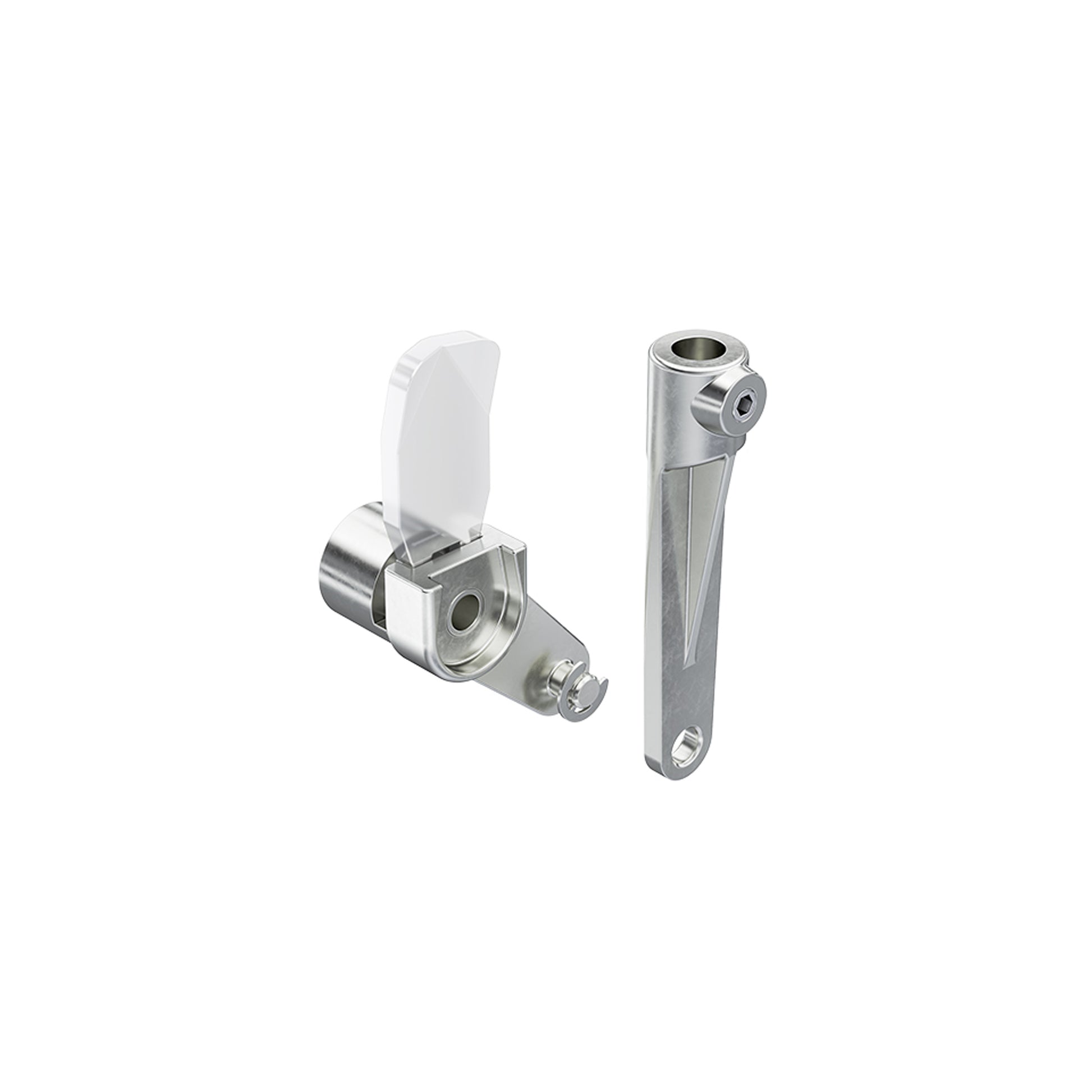

Dirak Cam Adapter for Multi-Locking System

Dirak Cam Adapter for Multi-Locking System

100-9033.00-00000

$16.86 AUD
$16.86 AUD
Sale Out of Stock
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)

Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine, VIC)

Features:

  • For designing multipoint locking systems.
  • RH / LH application.
  • Flexible use on quarter-turns with 18mm housings or swinghandles.

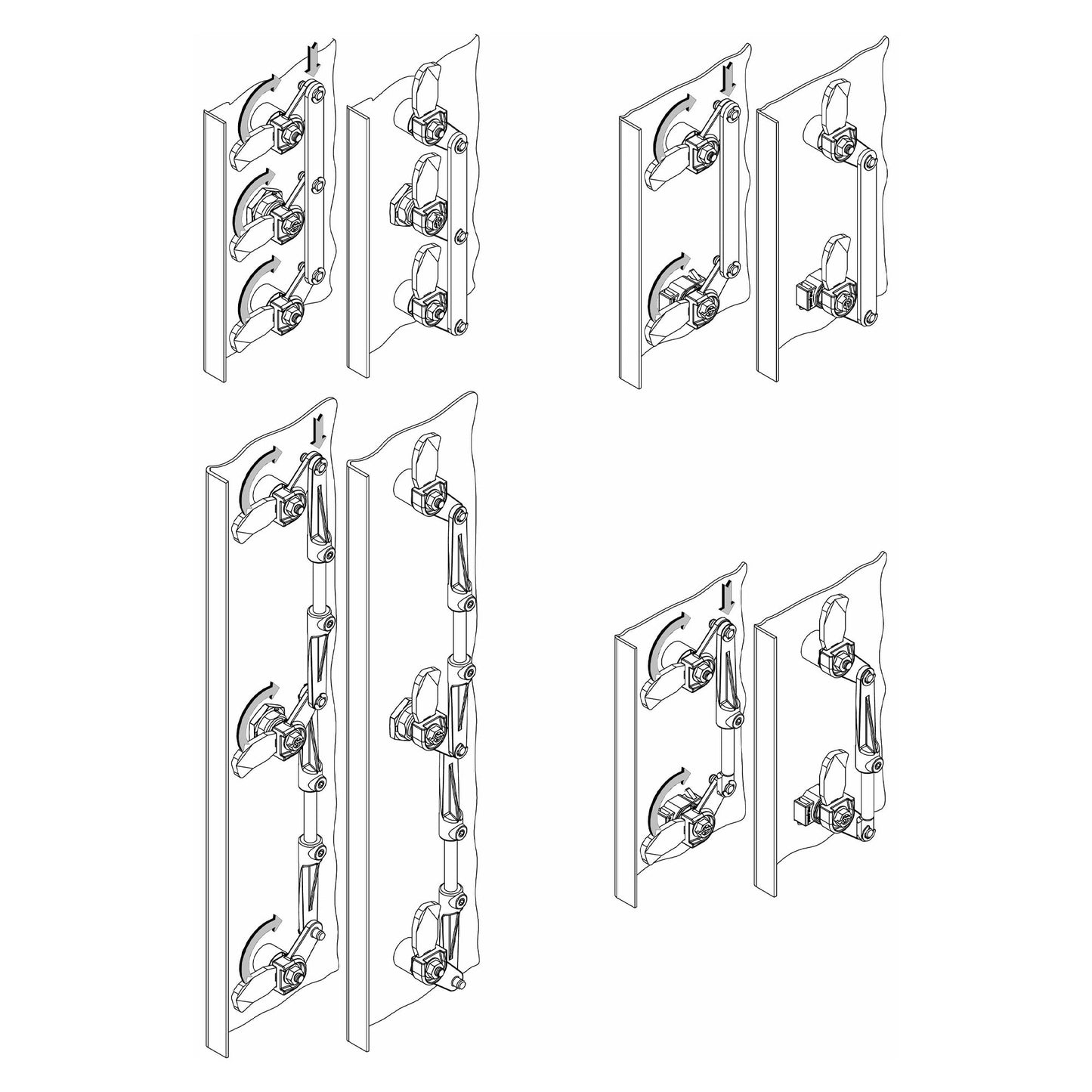

  • As the examples show, the controlling quarter-turn (2.) can be installed in different positions.
  • Includes 2 c-clips

Material & Finish:

  • Adapter and spacer: zinc die, zinc plated
  • C-clip: steel, zinc plated

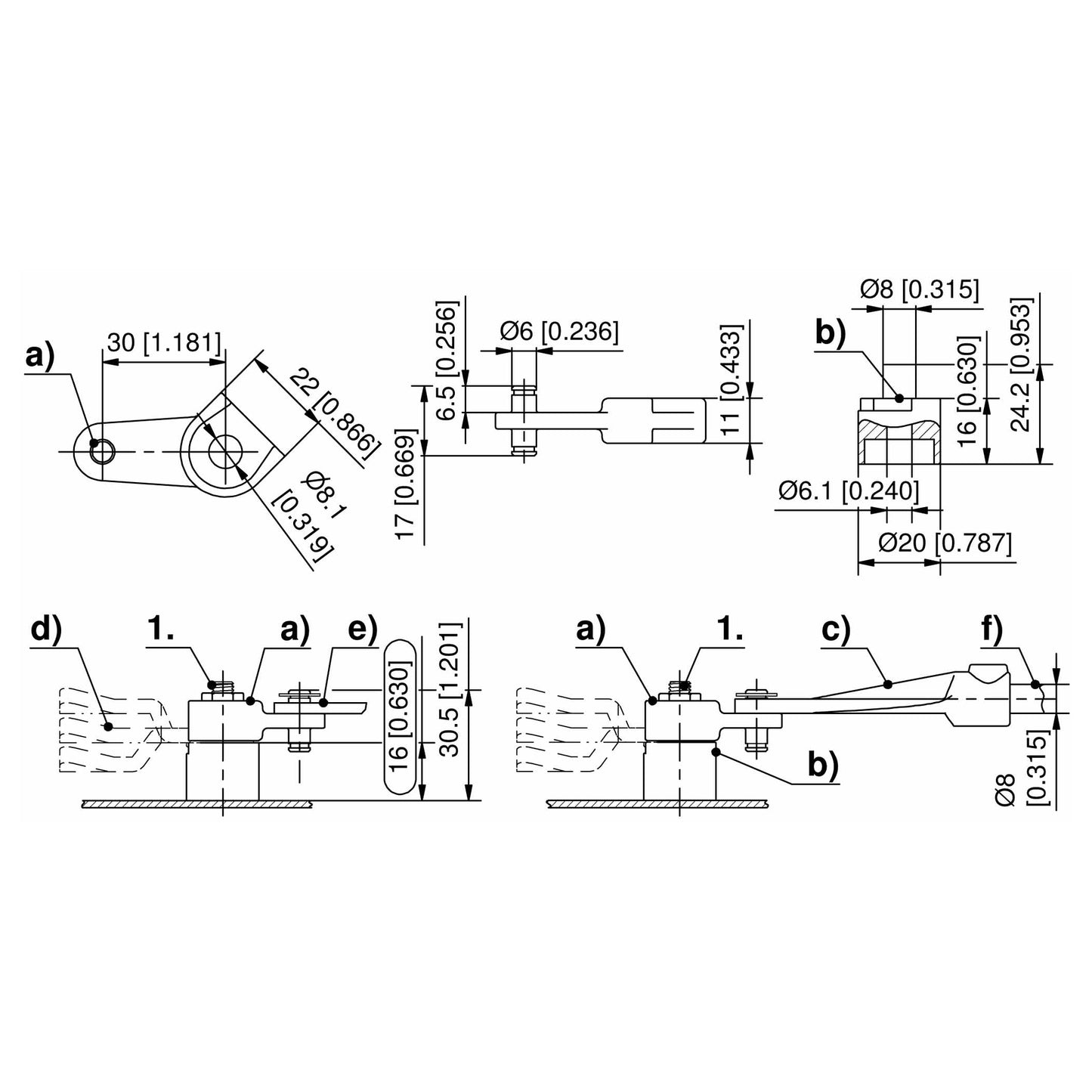

Remarks:

1. weld-stud M6x32
e) and f): for flat rods please contact DIRAK.
H-dimension (18) only for sheet thickness 2mm.
