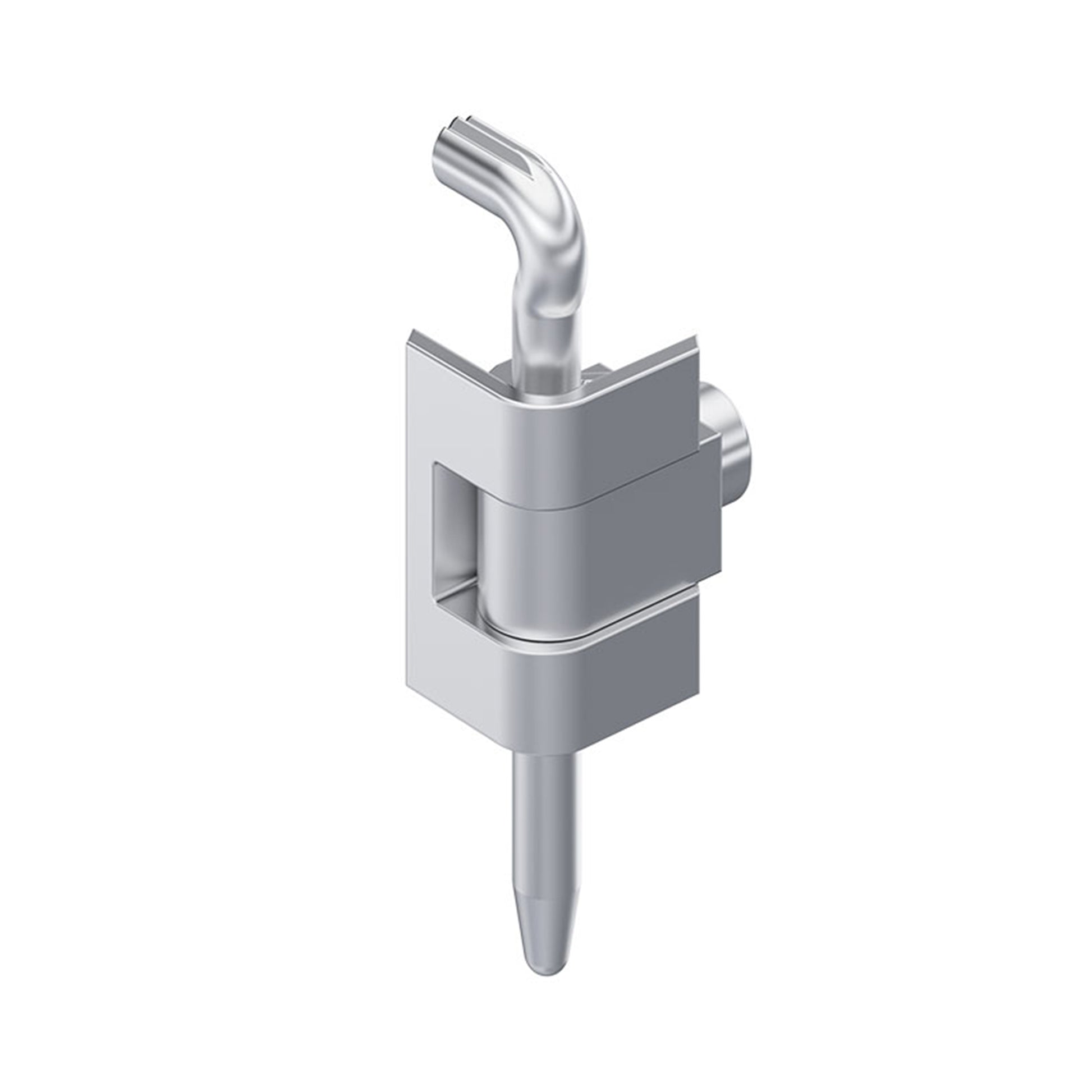

Dirak Corner Hinge (180° Degree) - Stainless Steel

Dirak Corner Hinge (180° Degree) - Stainless Steel

SKU:212.9201.00-00000

Price on Application

Please check availability: Dirak products are generally custom ordered from the supplier based on individual project requirements. Please note, some items may not be readily available in stock at time of enquiry. Delivery times from Dirak can vary accordingly however the majority of orders take between 14-21 days to be received into warehouse by Selectlok Australia.

Features:

  • For surface-mounted doors for single cabinets
  • Hinge party visible
  • Door bending 20mm
  • RH/LH application
  • 180° opening angle
  • Includes M6x12 and serrated washer for installation

    Dimensions:

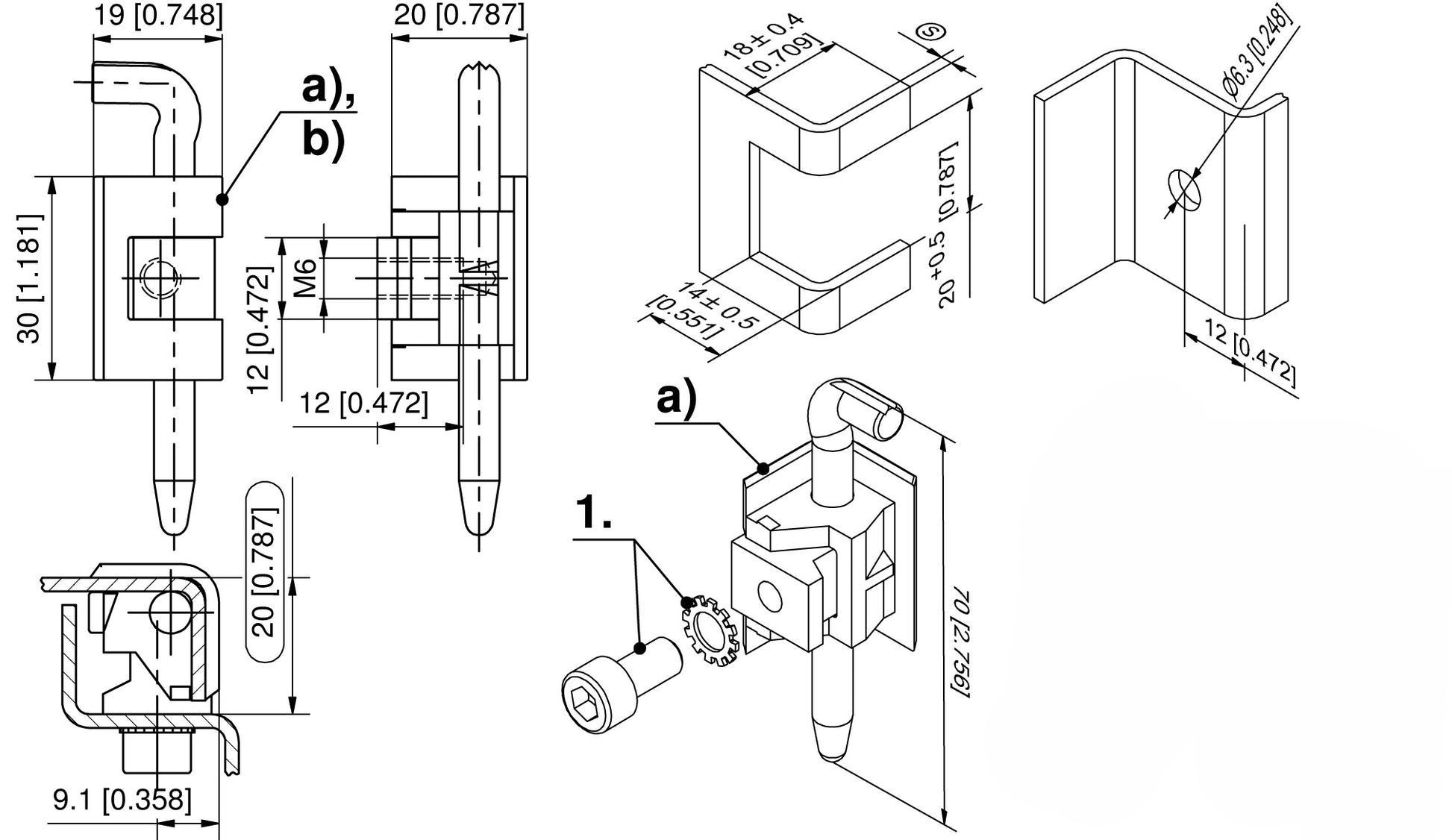

    • Please refer to the drawings and datasheet
    • Pin length = 70mm
    • Door thickness = 1.5-2mm

    Materials:

    • Hinge parts = stainless steel (AISI 316)
    • Pin = Stainless steel

    Download Datasheet

    Part Numbers: 212.9201.00-00000
