EXCLUSIVE AUSTRALIAN DISTRIBUTOR

Dirak Heavy Duty Latch System for RV & HVAC Applications

Dirak Heavy Duty Latch System for RV & HVAC Applications

SKU:232-9303

Price on Application

Please check availability: Dirak products are generally custom ordered from the supplier based on individual project requirements. Please note, some items may not be readily available in stock at time of enquiry. Delivery times from Dirak can vary accordingly however the majority of orders take between 14-21 days to be received into warehouse by Selectlok Australia.

Features:

  • Handle outside
  • Without lock, with key cylinder or insert
  • Suitable for different door-thicknesses
  • Lockable handles, keyed alike, are equipped with stainless steel dust-shutter
  • IP65 according to DIN EN 60529 by sealing kit (optional)

Dimensions:

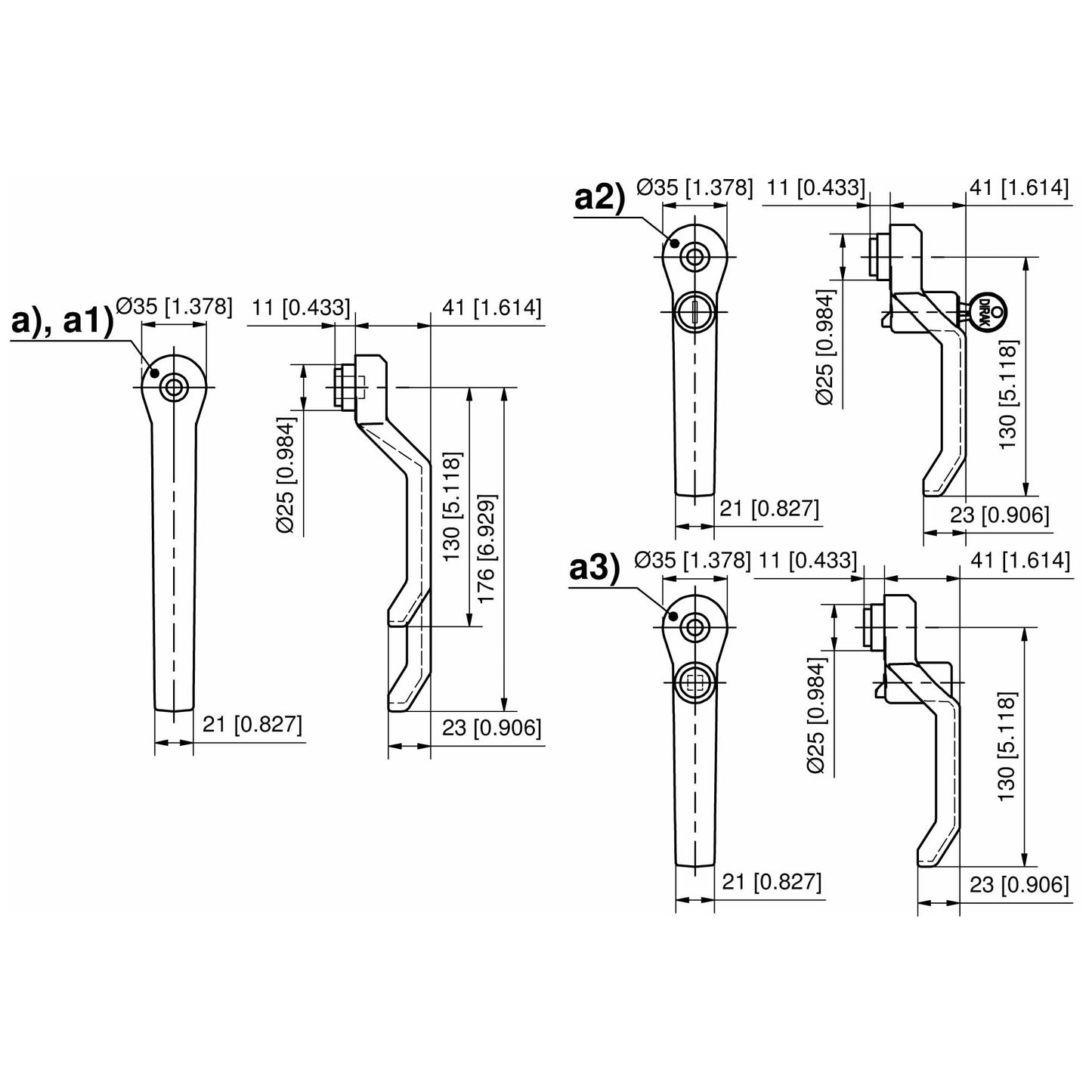

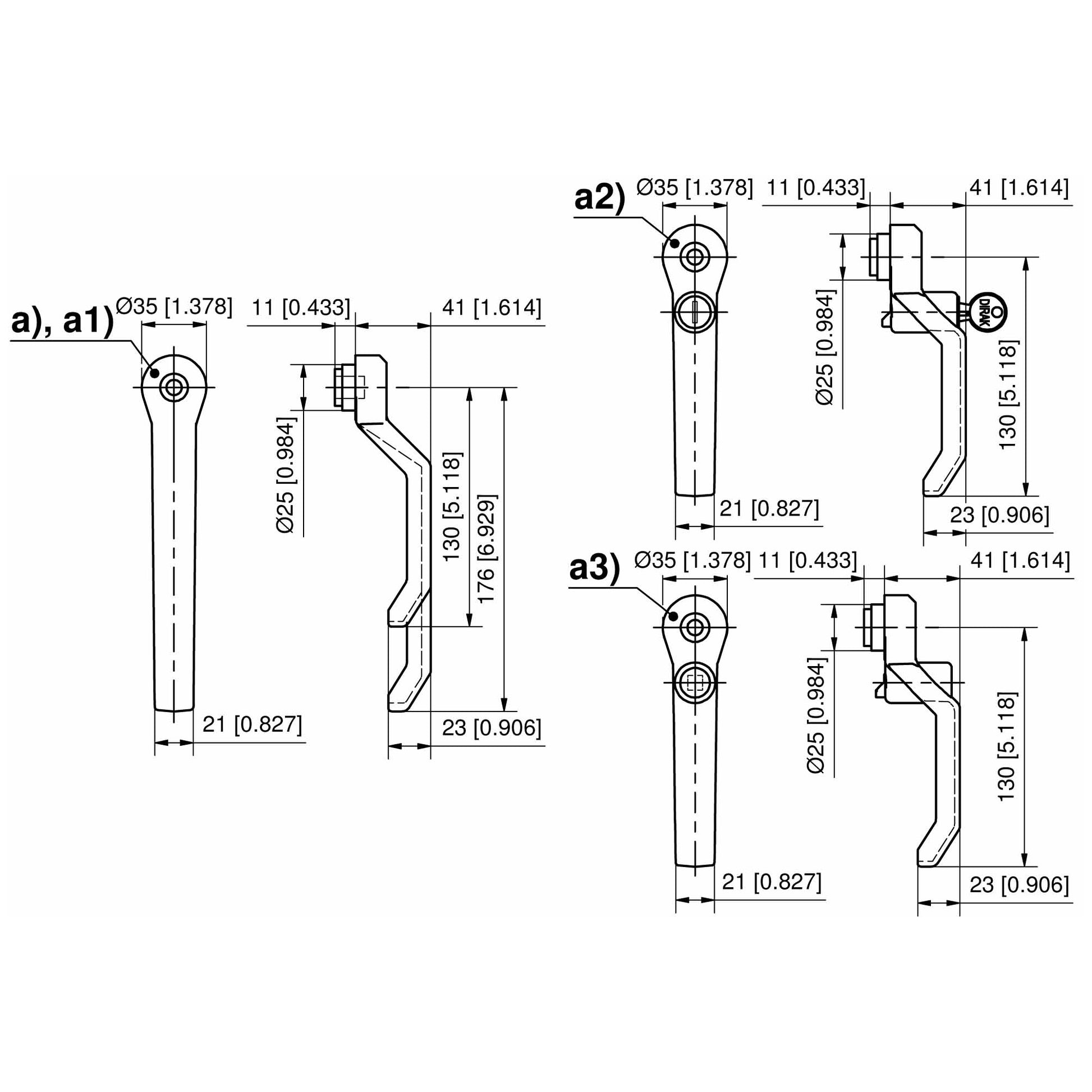

  • Please refer to drawings and datasheet
  • Multiple handle configurations available - Please contact us or refer to Dirak's website for more information

    Material & Finish:

    • a), a2) and a3)

    Handle: PA, black

    • a1)

    Handle: PA, black / steel, zinc plated

    • a3)

    Insert: zinc die, chrome plated

    Download Datasheet

    Part Numbers:

    Handle outside, without lock: 232-0201.00-00000; 232-0202.00-00000; 232-0207.00-00000; 232-0208.00-00000

    Handle outside, with cylinder: 232-9303.00-00000; 532-9303.00-00000; 232-9304.00-00000

    Handle outside, with insert: 232-9401.00-00000; 232-9402.00-00000; 232-9403.00-00000; 232-9404.00-00000; 232-9405.00-00000; 232-9406.00-00000; 232-9407.00-00000; 232-9408.00-00000; 232-9409.00-00000; 232-9410.00-00000; 232-9411.00-00000; 232-9412.00-00000; 232-9413.00-00000; 232-9414.00-00000; 232-9415.00-00000; 232-9416.00-00000; 232-9417.00-00000; 232-9418.00-00000; 232-9419.00-00000; 232-9420.00-00000
