Dirak Padlockable L Handle - Chrome
Dirak Padlockable L Handle - Chrome
SKU:200-9463.00-00000; 200-9491.00-00000
Price on Application
Features:
- RH / LH application
- IP65 according to DIN EN 60529
- Grounding by grounding nut
- Suitable for padlocks between Ø8mm to Ø10mm
- Padlock feature only if cam is at 90° to the L Handle
Dimensions:

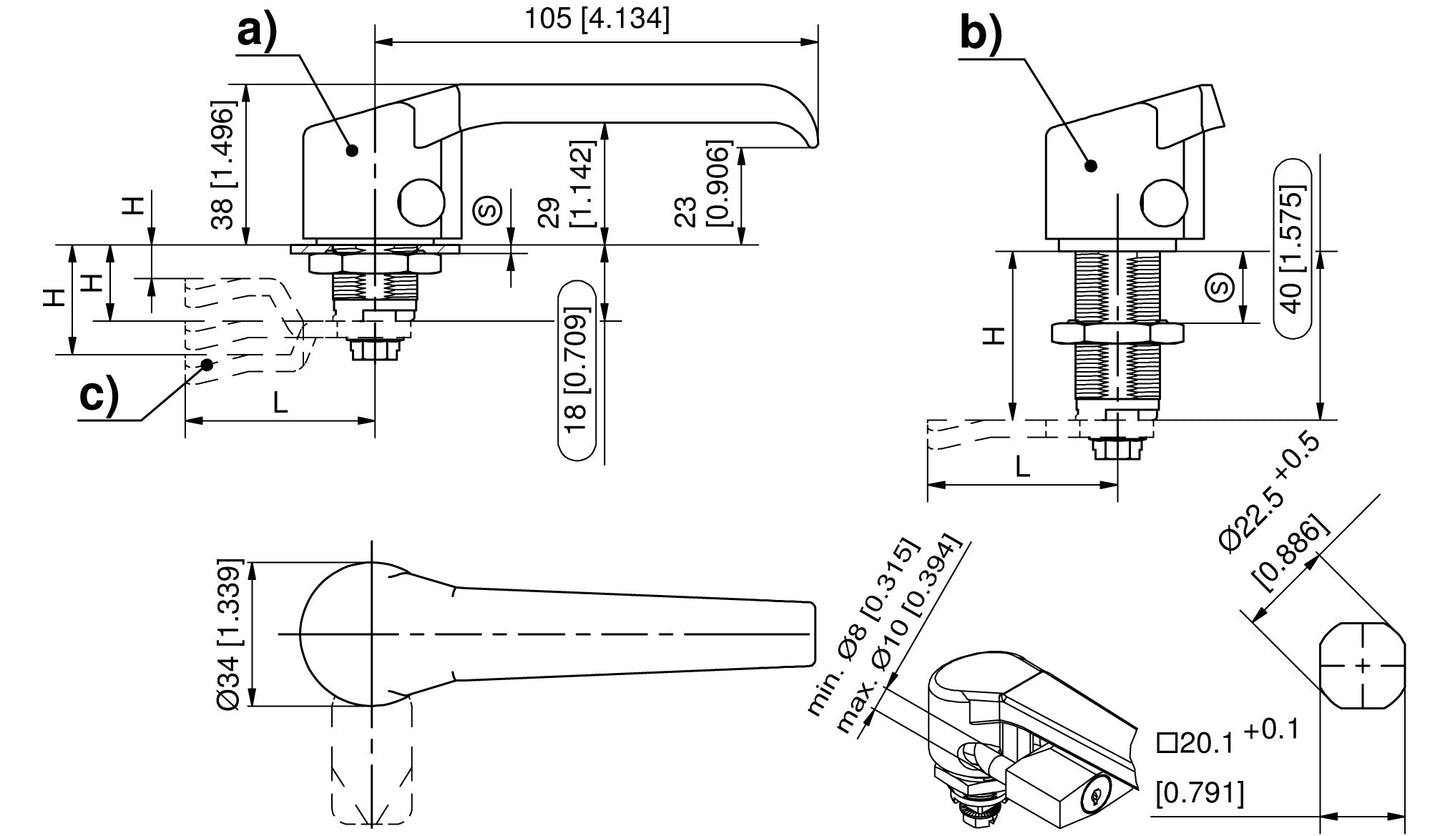

- Please refer to drawings and datasheet
- Housing length: 18mm or 40mm
- Door Thickness: 8mm or 30mm
Material & Finish:
- Handle = Zinc die, chrome plated
- Housing = Zinc die, zinc plated
- Grounding nut = Zinc die
- O-Ring = Nitrile butadiene rubber (NBR)
Part Numbers: 200-9463.00-00000; 200-9491.00-00000
