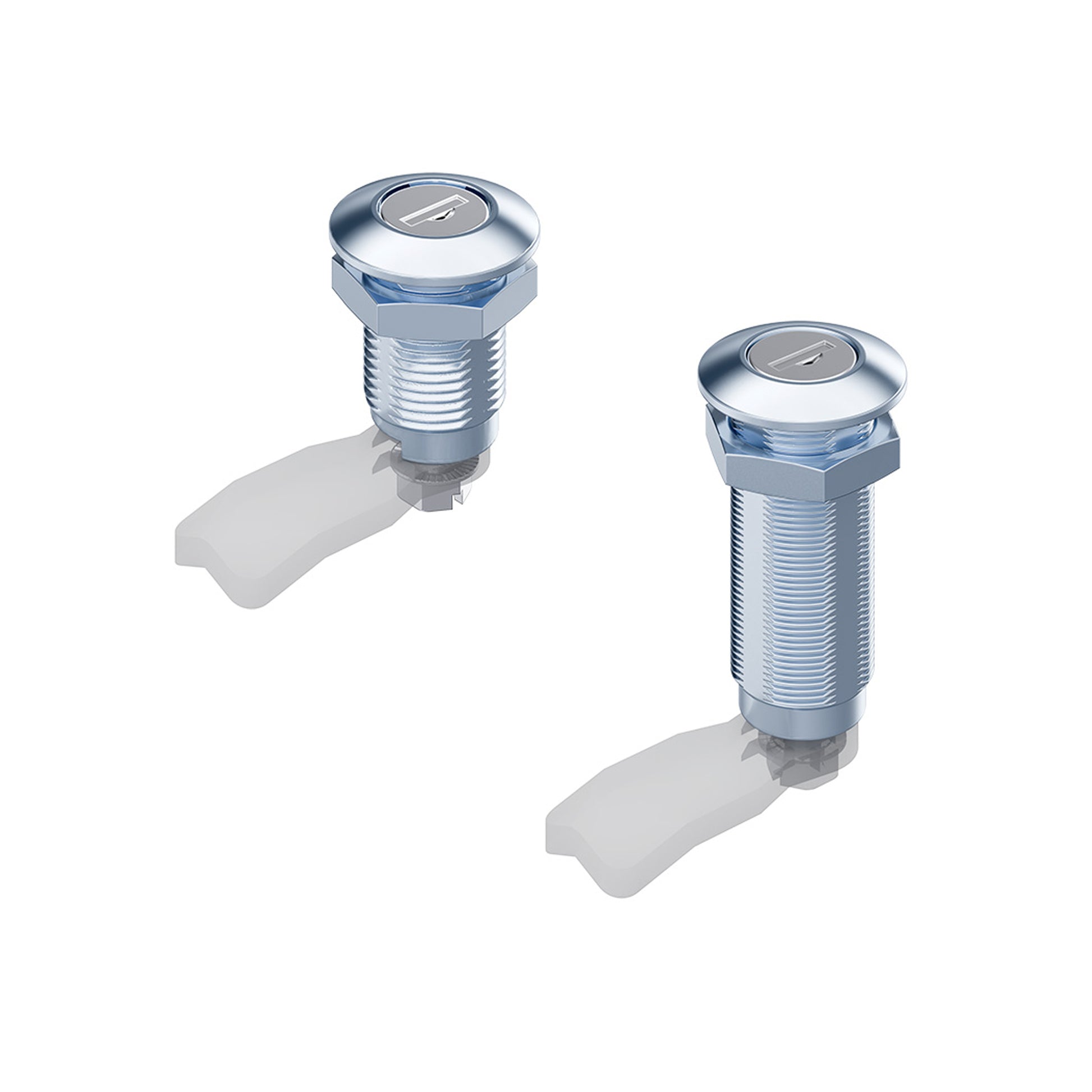

Dirak Quarter Turn - 30mm Housing

Dirak Quarter Turn - 30mm Housing

100-9081.00-10030

$65.73 AUD
$65.73 AUD
Sale Out of Stock
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)

Features:

  • Flush cylinder quarter-turn for cutout Pr20.1.
  • 30mm housing lengths.
  • IP65 according to DIN EN 60529 by dust cap 200-4101 (optional).
  • IP65/IP67 according to DIN EN 60529 by dust cap 200-4103 (optional).
  • RH / LH application.
  • The quarter-turn can be screwed into the cutout with the pre-assembled cam.
  • Keyed alike Dirak 1333
  • 2 keys are included in the scope of delivery.
  • With stainless cylinder cover and dust-shutter.

Material & Finish:

  • Housing: zinc die, chrome plated or black
  • Nut and serrated screw: steel, zinc plated
  • Adapter: zinc die, untreated

Remarks:

Completely pre-assembled without cam.
Negatively bent cams cannot be installed pre-assembled
Maximum load for the key 4 Nm.

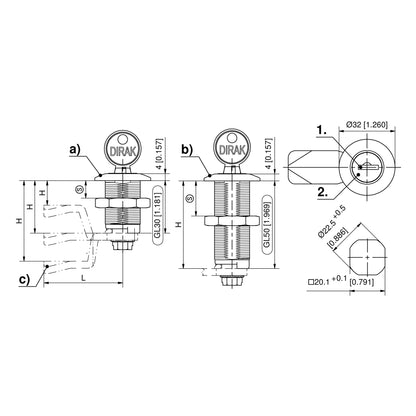

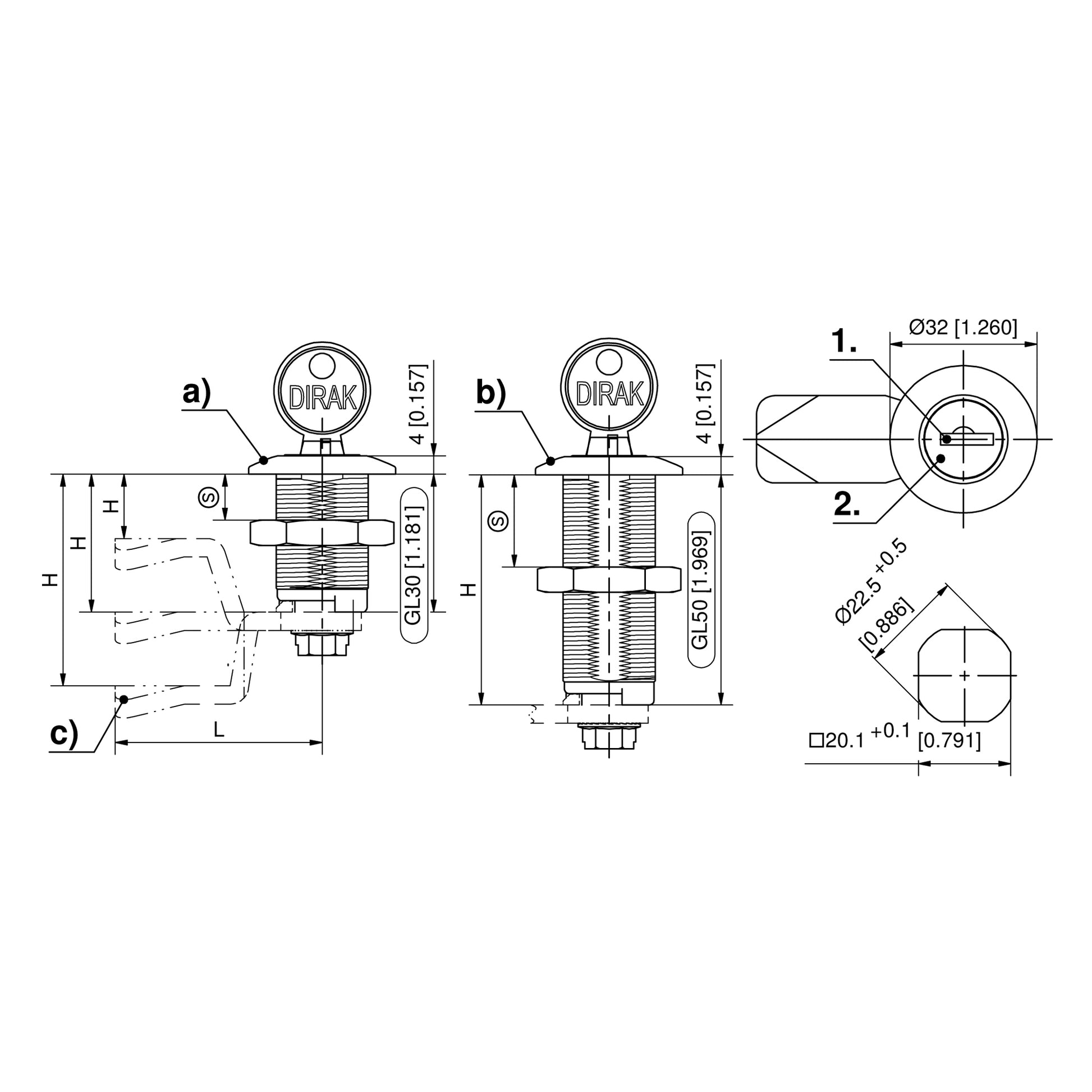

1. dust-shutter
2. cylinder cover
