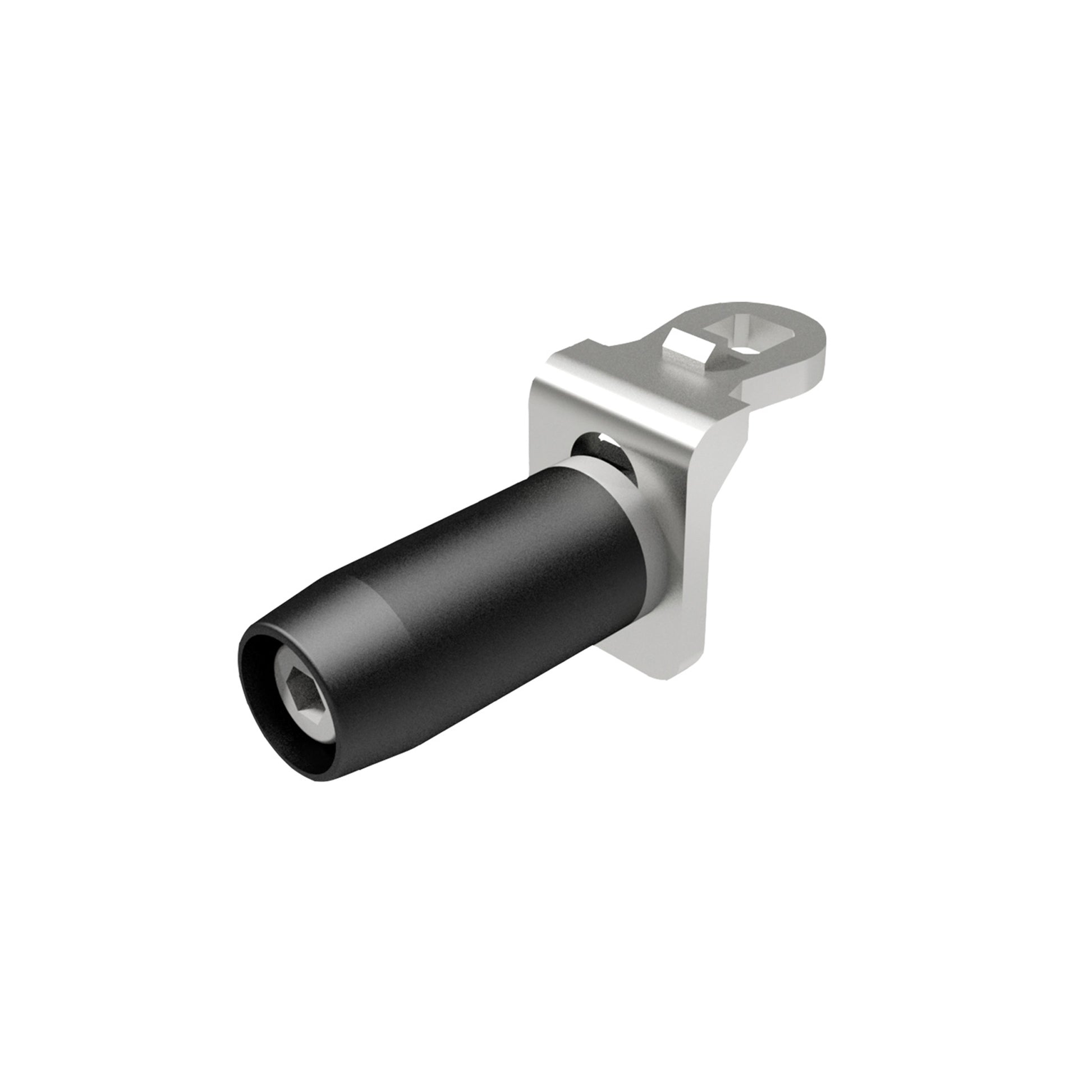

Dirak Roller Cam for Quarter Turn

Features:

• The roller cam reduces the friction and eases the closing.
• No scratching or spalling of the paint at the inner part of the bending.
• Adjustable in height from H20 to H25.
• Suitable for all inserts, swinghandles and multipoint locking systems with square 8mm.
• H-dimension of the cam easy to adjust because of impressed height marks.

Material & Finish:

• Cam: zinc die, zinc plated
• Roller: PA, black
• Tenon blocks, distance bushing: zinc die, untreated
• Socket head screw: teel, zinc plated

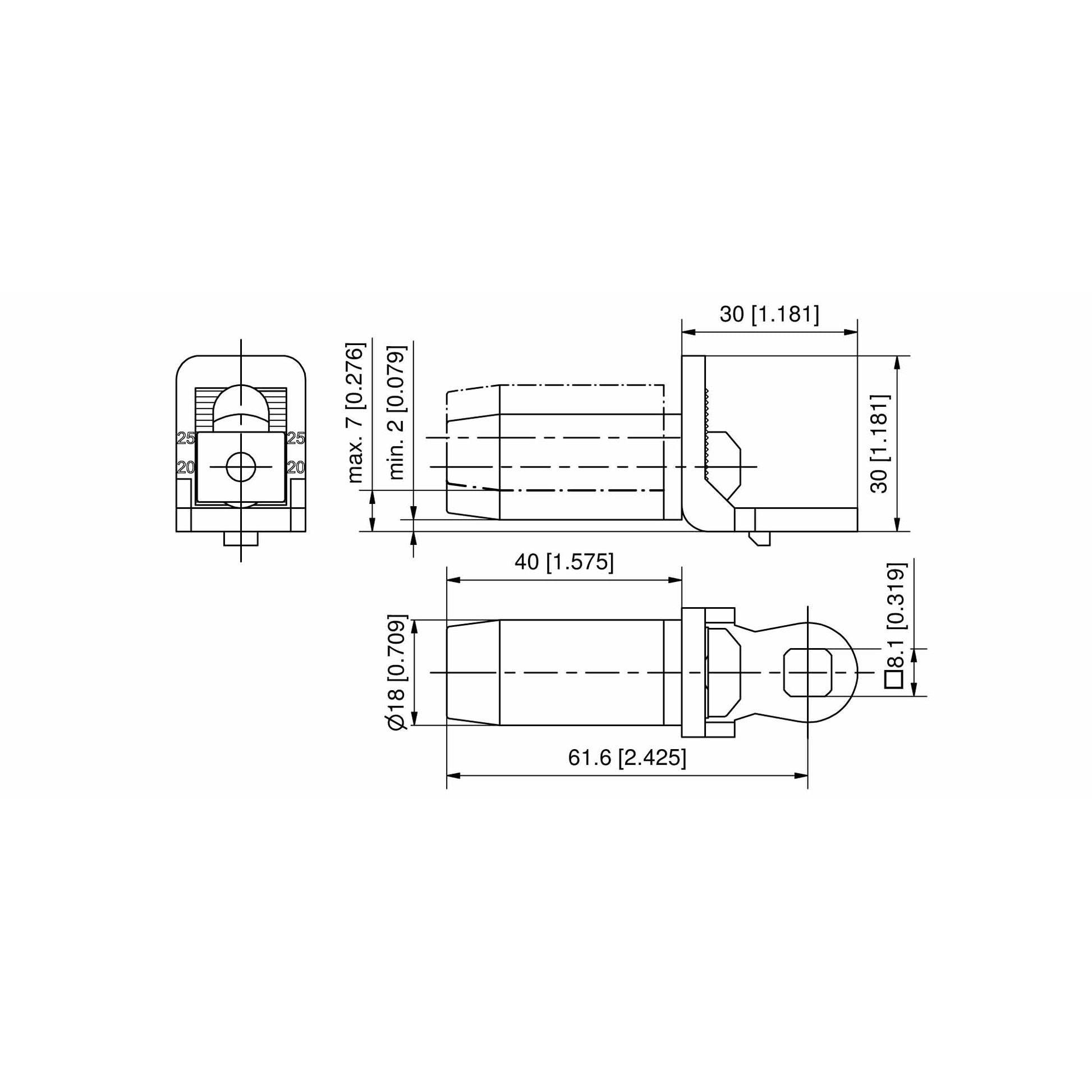

Remarks:

• Length: 61.6mm
• Diameter: 18mm
• Variable H-Dimension: 20-25mm
