EXCLUSIVE AUSTRALIAN DISTRIBUTOR

Dirak Rosettes for Heavy Duty Latches

Dirak Rosettes for Heavy Duty Latches

SKU:232-9141.00-00000; 232-0410.00-00001

Price on Application

Please check availability: Dirak products are generally custom ordered from the supplier based on individual project requirements. Please note, some items may not be readily available in stock at time of enquiry. Delivery times from Dirak can vary accordingly however the majority of orders take between 14-21 days to be received into warehouse by Selectlok Australia.

Features:

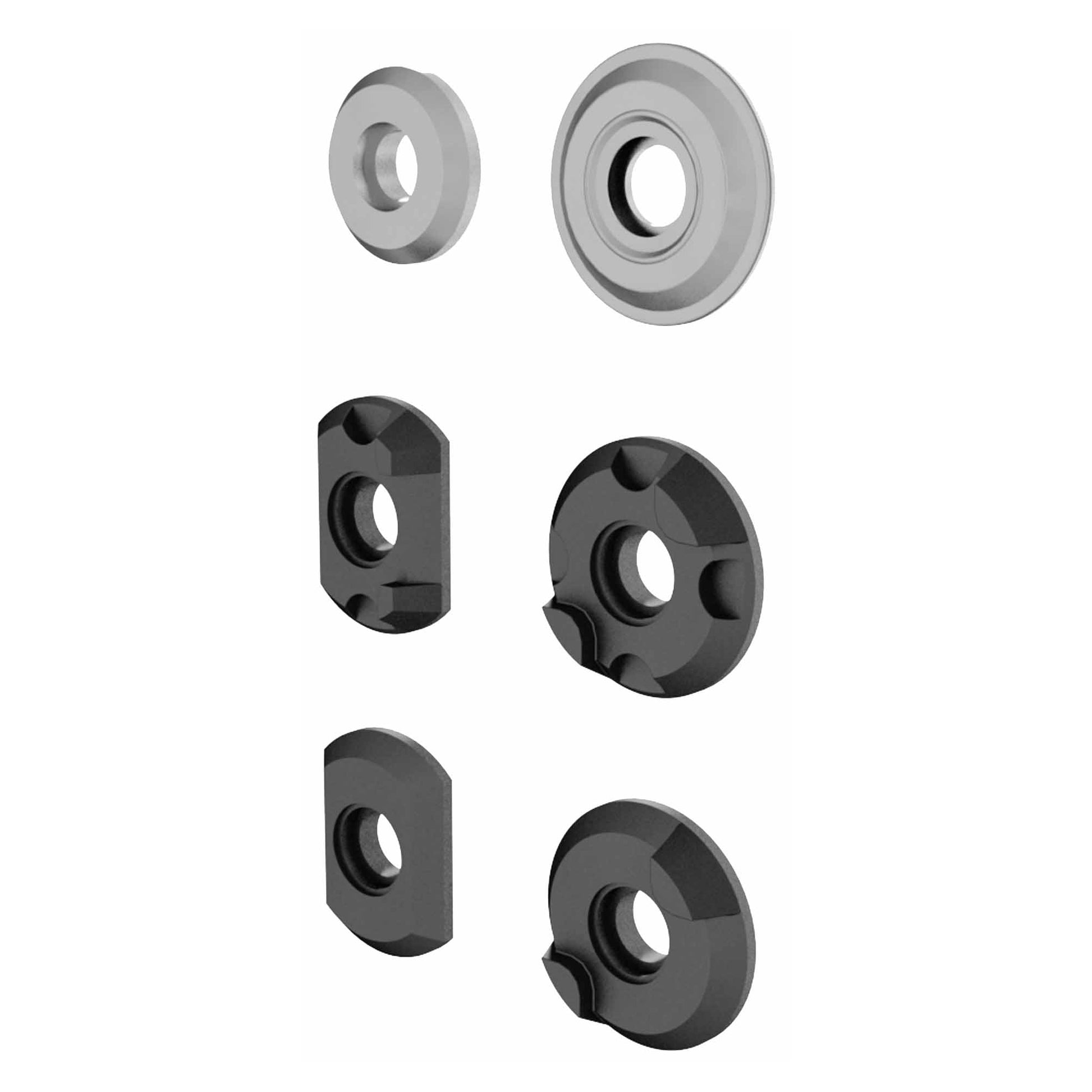

  • Rosettes round and oblong
  • With and without stop
  • With or without latch recesses

Remarks:

u) latch recess
v) stop

Dimensions:

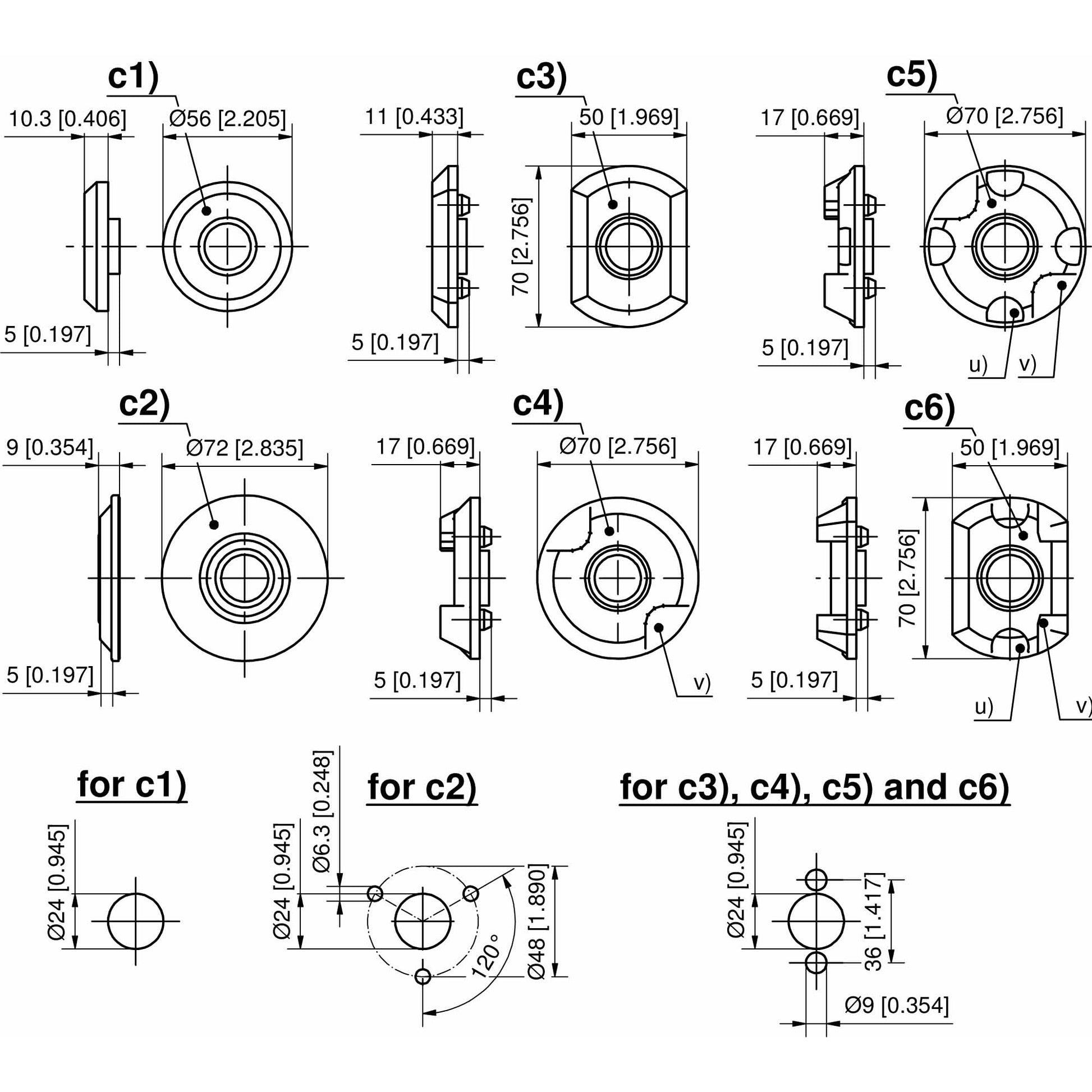

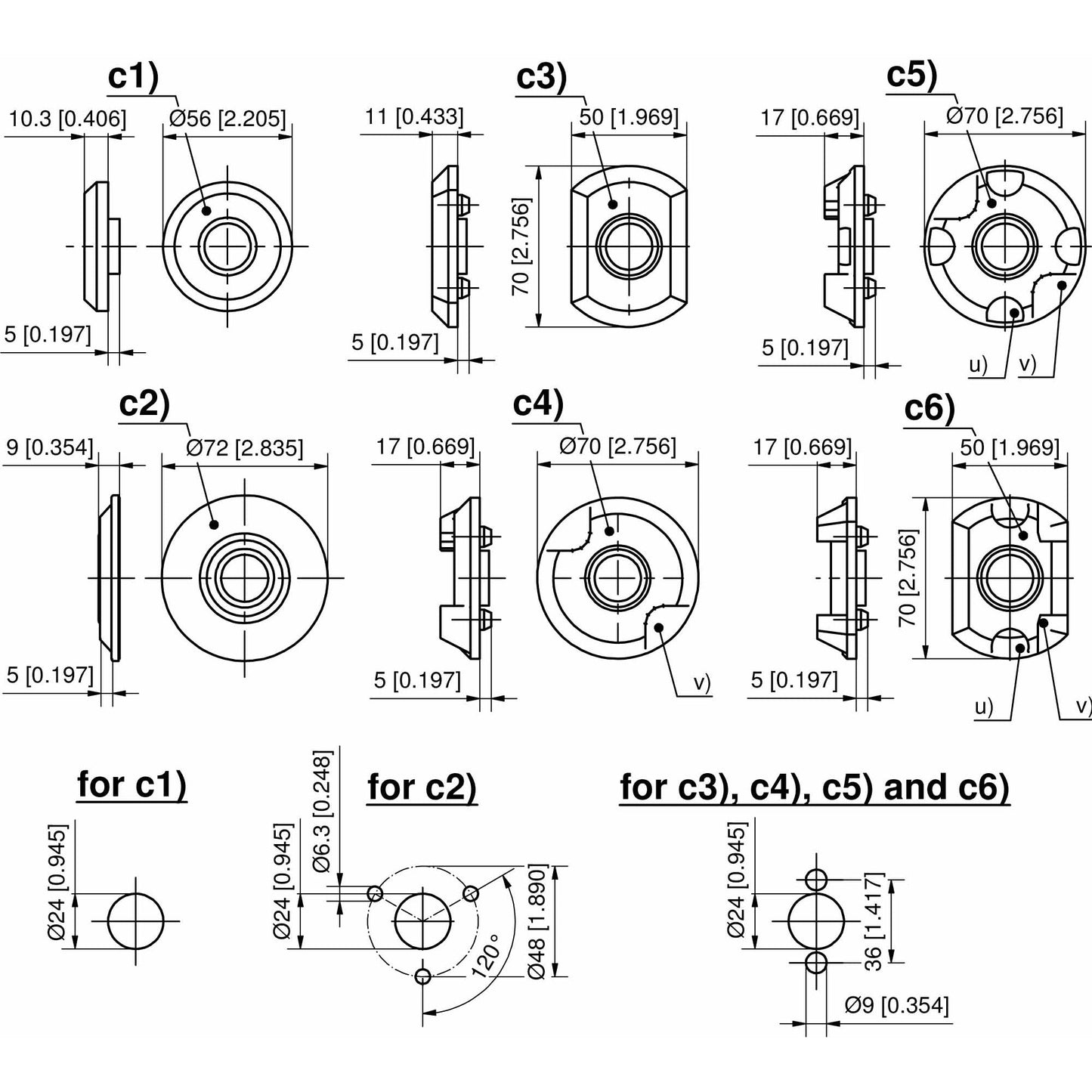

  • Please refer to drawings and datasheet
  • Multiple handle configurations available - Please contact us or refer to Dirak's website for more information

Material & Finish:

  • Rosettes: PA, black or steel, zinc plated
  • Sealing kits: EPDM / NBR, black

Download Datasheet

Part Numbers:

Rosettes: 232-0401.00-00000; 232-0402.00-00000; 232-9141.00-00000; 232-0410.00-00001; 232-0410.03-00000; 232-0409.00-00000

Sealing Kits: 232-8710.00-01401; 232-8710.00-01402
