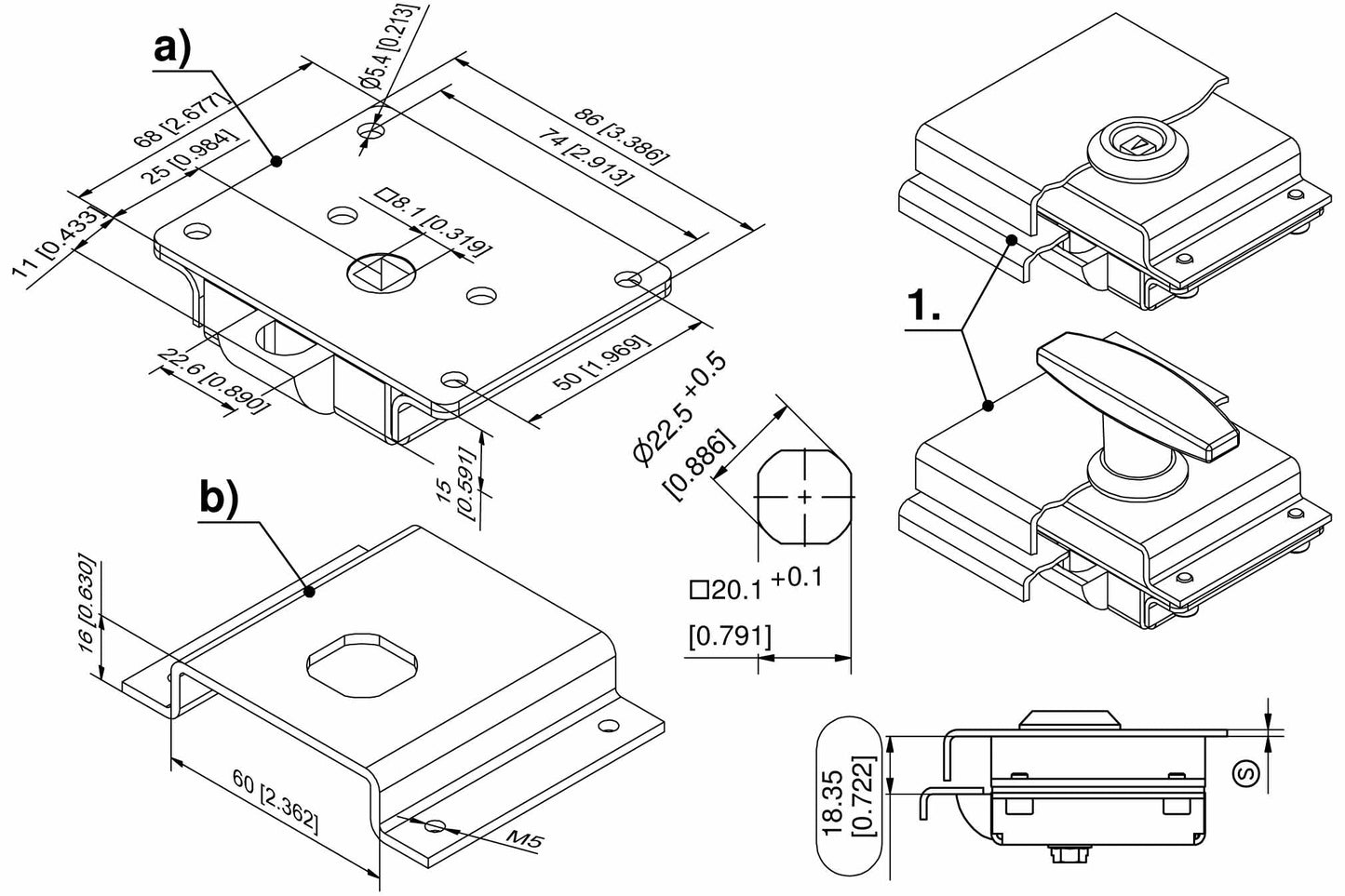

Dirak Heavy Duty Slam Latch and Lock Support

Features:

• Slam latch and lock support sold seperately
• Slam latch for doors and panels

• Can be opened by key or handle
• The slam latch is screwed onto the latch support

• Which is either screwed or, in case of heavy application, welded to the door additionally

• If assembled without insert, it can be opened with tapered square key
• The slam bolt has a slam feature

Material & Finish:

• Housing and lock support = steel, zinc plated

• Bolt = zinc die, zinc plated


Handles and Keys sold seperately

Download Datasheet

Part Numbers: 229-9101.00-00000; 229-0501.00-00000
