Dirak Slam Latch for Sliding Door

Features:

• Slam latch consists of two parts (bolt and locking element) for sliding doors
• The door-part catches the slam-bolt and is also the limit stop for the frame part

• When using extruded aluminium profiles, different profile widths can be used to oblong holes

• Finger-tip grip allows easy opening

• Opening by pulling the handle element

• Self-closing by sliding the door shut

• Both self-adhesive rectangular profiles have to be installed after assembly of the slam latch at the inner side of the locking element to absorb noise and vibrations

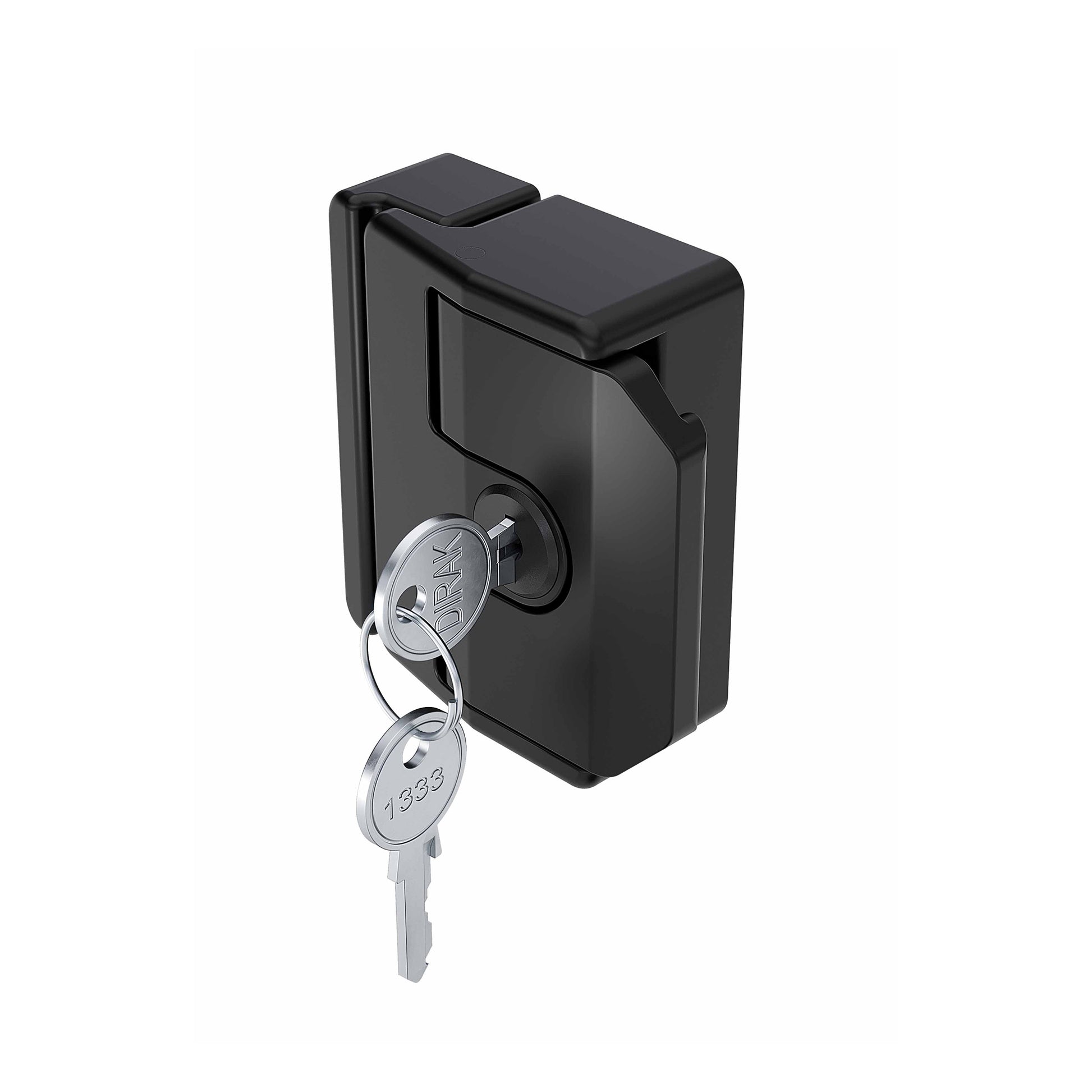

• Version with cylinder includes 2 keys

Material & Finish:

• Bold and locking element = zinc die, black

• Slot nuts = steel, zinc plated

• Cylinder = PA, black
• Spring = stainless steel
• Rectangular seal = polyurethane, black

Download Datasheet

Part Numbers: 265-9610.00-00000; 265-9610.00-01333; 265-9610.00-09999
