Dirak Stainless Steel Cam With Stopper (L:45mm / L:35mm)

Dirak Stainless Steel Cam With Stopper (L:45mm / L:35mm)

200-05xx, 200-4535.00-000xx

Price on Application
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)

Please check availability: Dirak products are generally custom ordered from the supplier based on individual project requirements. Please note, some items may not be readily available in stock at time of enquiry. Delivery times from Dirak can vary accordingly however the majority of orders take between 14-21 days to be received into warehouse by Selectlok Australia.

Features:

  • Cam with ramp and stopper
  • Single point locking
  • Available in lengths of 45mm and 35mm

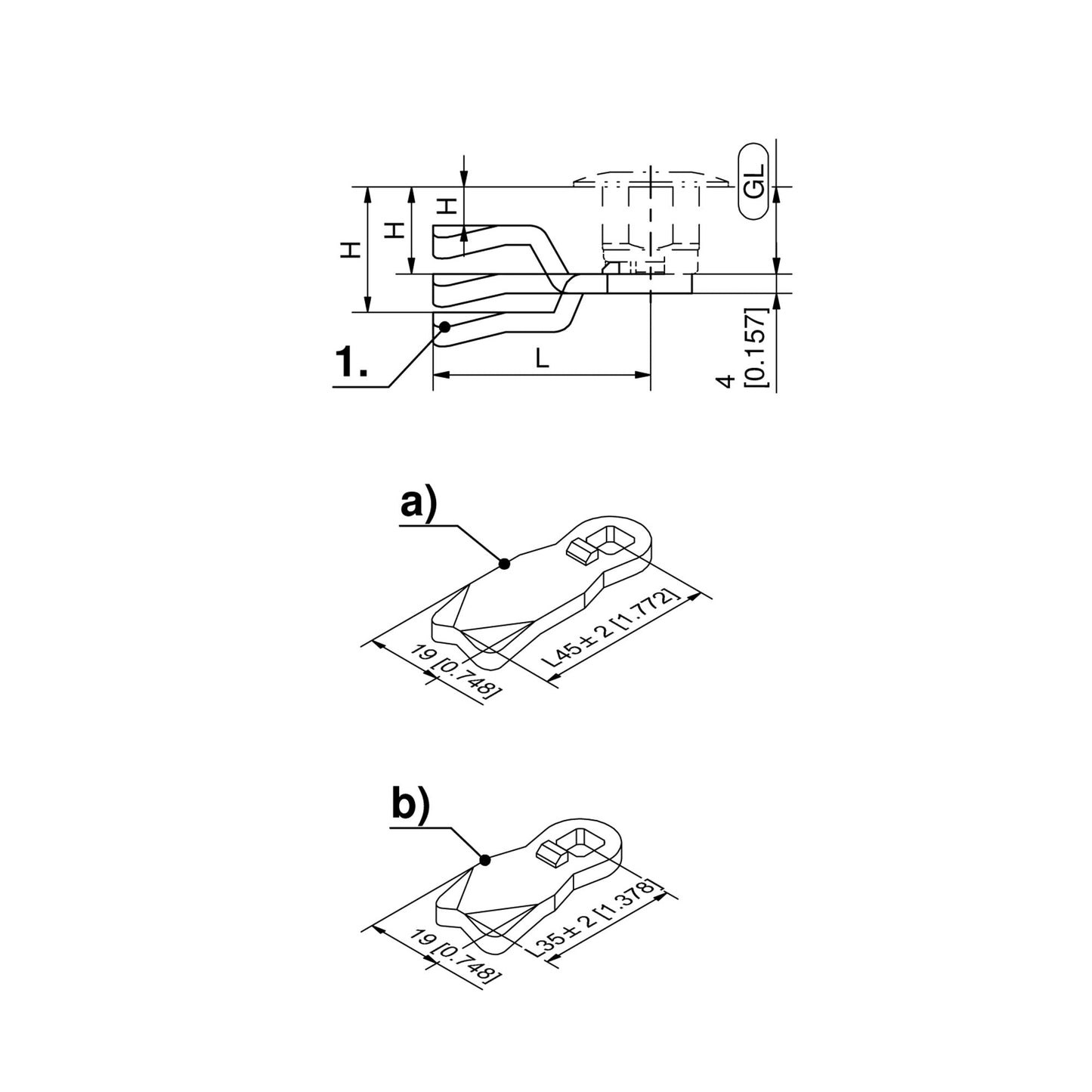

Dimensions:

Part Numbers: 200-05xx
  • Length = 45mm
  • Various H dimensions = 6mm to 50mm

OR

Part Numbers: 200-4535.00-000xx

  • Length = 35mm
  • Various H dimensions = 18mm to 22mm

Materials:

  • AISI 304 Grade Stainless Steel

Download Datasheet

Part Numbers - L:45mm
200-0506, 200-0508, 200-0510, 200-0514, 200-0516, 200-0518, 200-0520, 200-0522, 200-0524, 200-0526, 200-0528, 200-0532, 200-0540, 200-0542, 200-0550

Part Numbers - L:35mm
200-4535.00-00018, 200-4535.00-00020, 200-4535.00-00022
