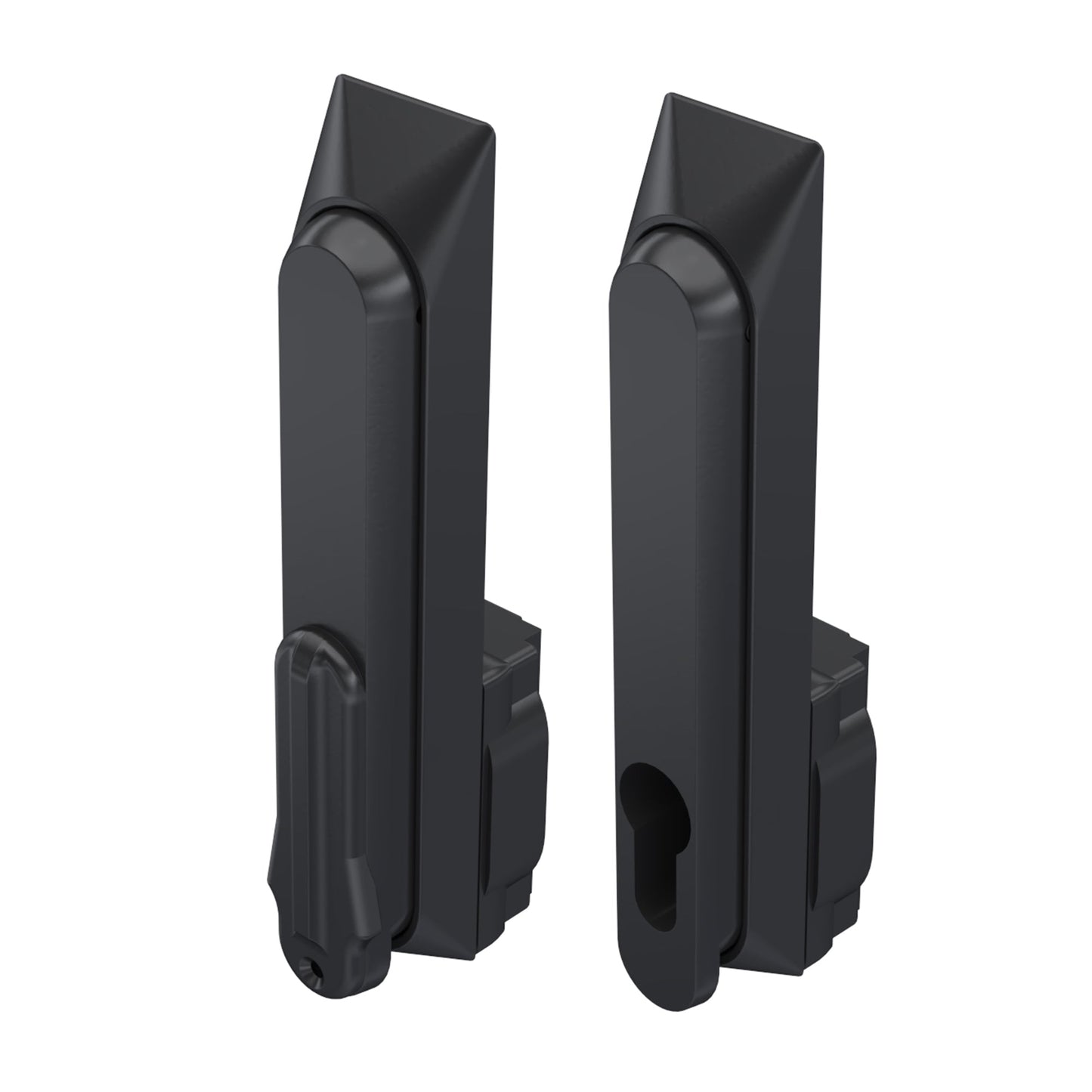

Dirak Swing Handle - Black Polyamide

Dirak Swing Handle - Black Polyamide

SKU:207-9282.00-00000; 207-9283.00-00000; 207-9284.00-00000

Price on Application

Please check availability: Dirak products are generally custom ordered from the supplier based on individual project requirements. Please note, some items may not be readily available in stock at time of enquiry. Delivery times from Dirak can vary accordingly however the majority of orders take between 14-21 days to be received into warehouse by Selectlok Australia.


  • Swing handle with liftable operating lever
  • 90 ° closing rotation
  • Can be locked with profile cylinders with 45° or 90° locking cam
  • Configurations suitable for 40mm OR 45mm profile cylinders
  • Can be fitted with or without a dust cover, for both profile cylinder options
  • IP65 according to DIN EN 60529 (when fitted with a dust cover)
  • RH/LH application
  • Grounding by grounding clip (optional add-on)
  • Includes M5x16 screws for fastening cylinder

    Material & Finish:

    • Handle = Polyamide, Black
    • Base = Polyamide, Black
    • Shaft = Brass
    • Dust Cover (Optional) = Polyamide, Black
    • Seals = Nitrile Butadiene Rubber (NBR)

    Download Datasheet

    Part Numbers: 207-9282.00-00000; 207-9283.00-00000; 207-9284.00-00000
