EXCLUSIVE AUSTRALIAN DISTRIBUTOR

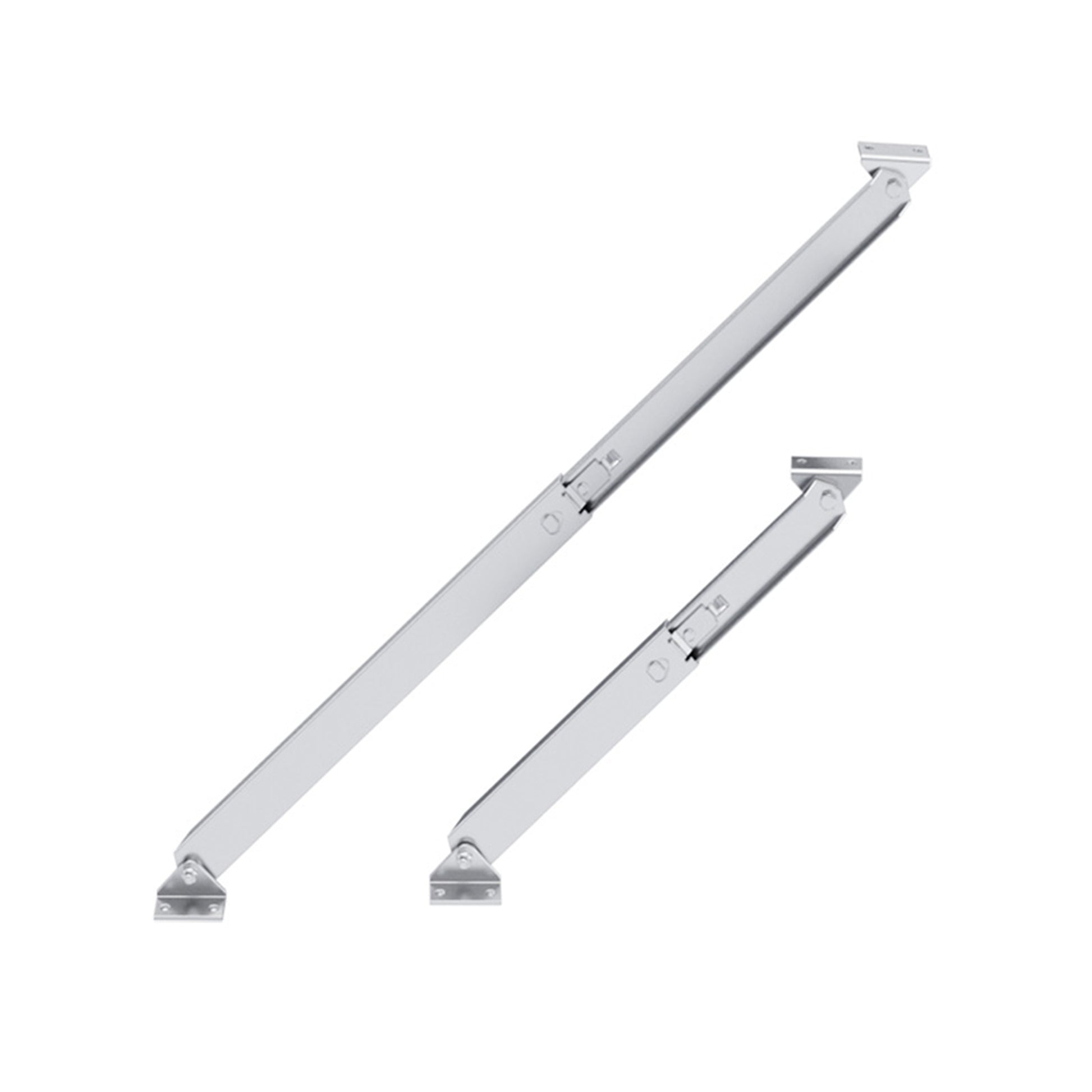

Dirak Telescopic Door Cover Stay

Dirak Telescopic Door Cover Stay

SKU:230-9305.00-00000; 230-9306.00-00000

Price on Application
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)

Features:

  • Clicks into place
  • When using two cover stays ring bolts can be screwed on the inside of both locks. After connecting them with a steel wire both cover stays can be unlocked simultaneously.
  • RH and LH application

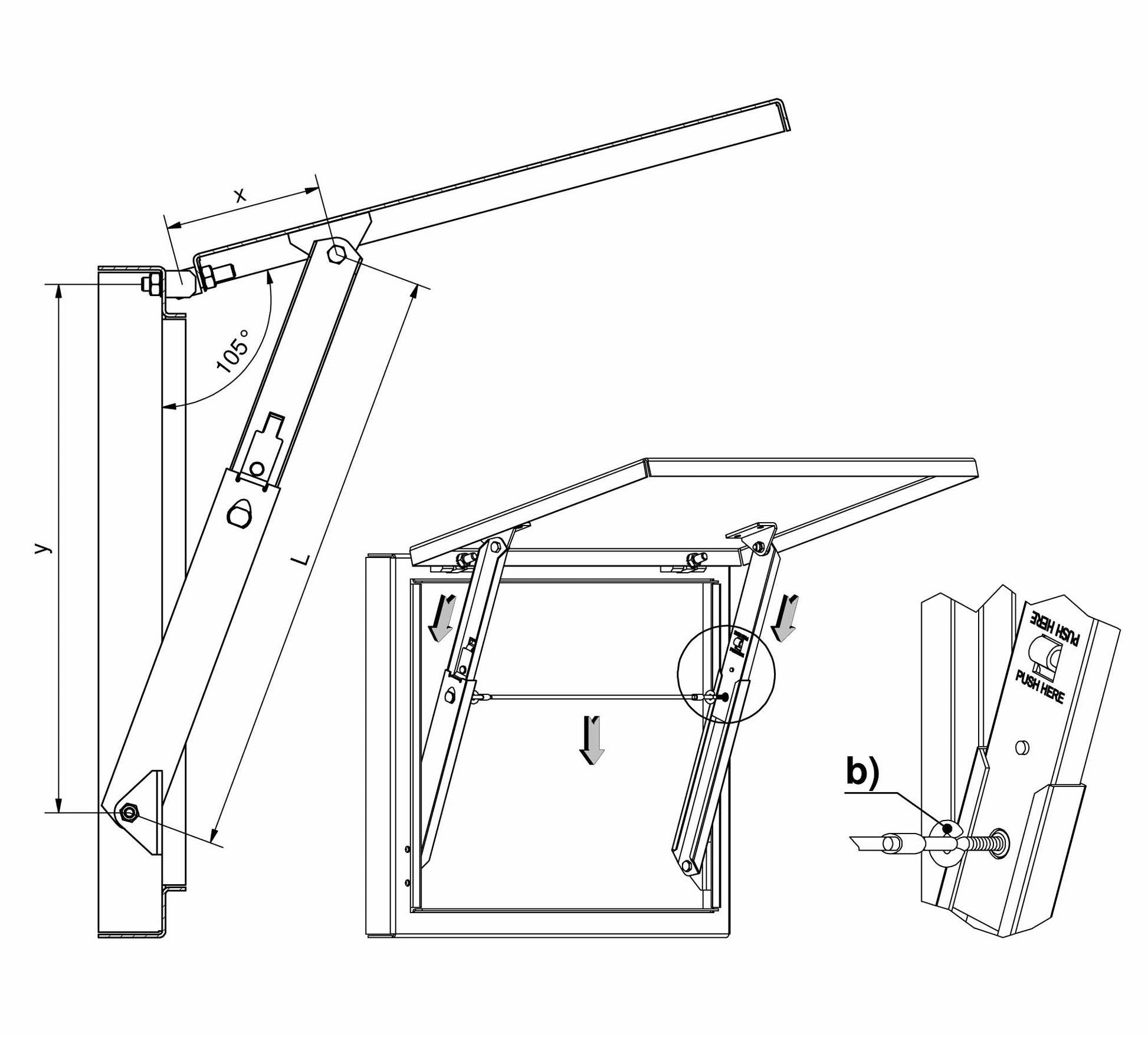

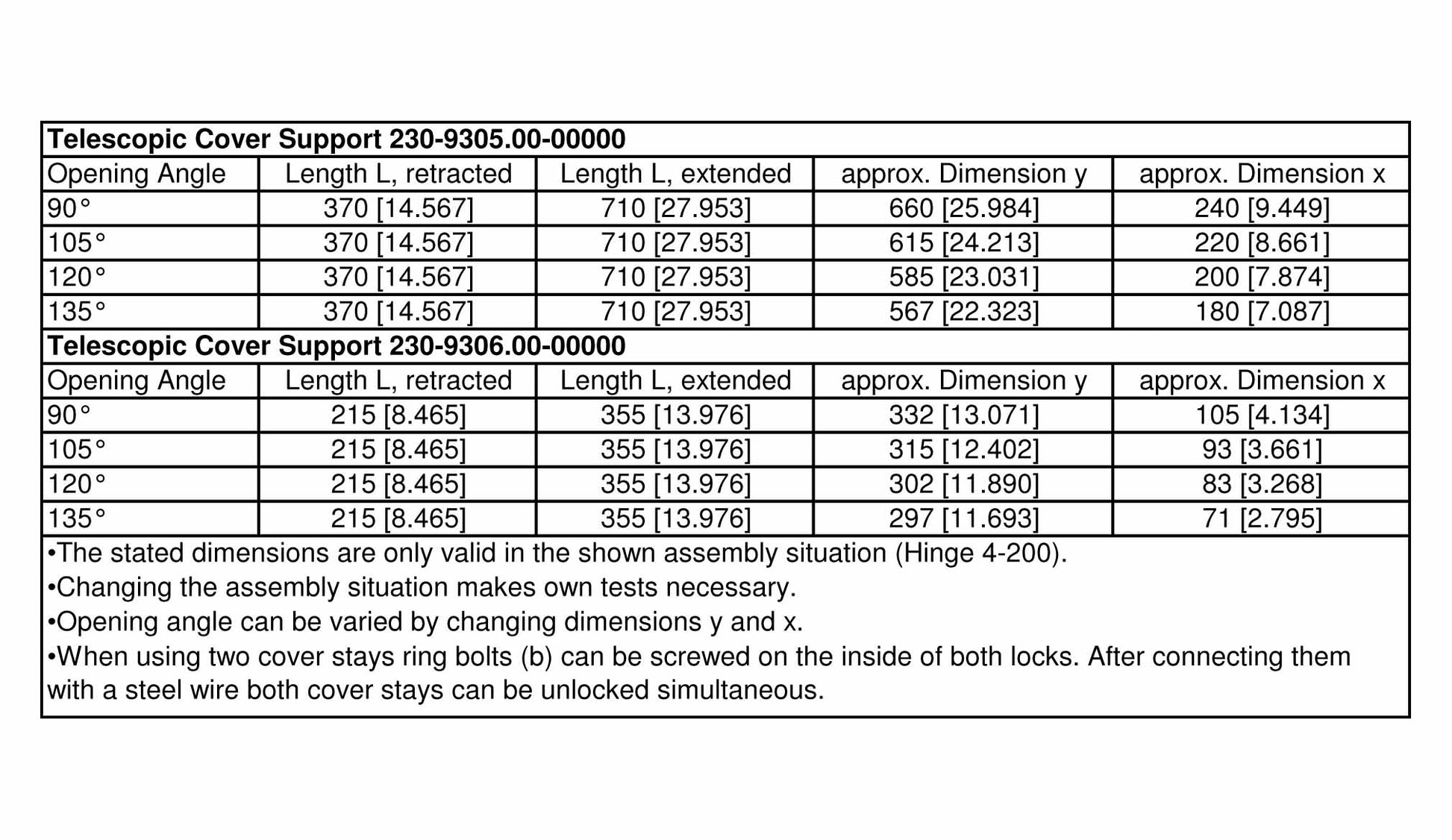

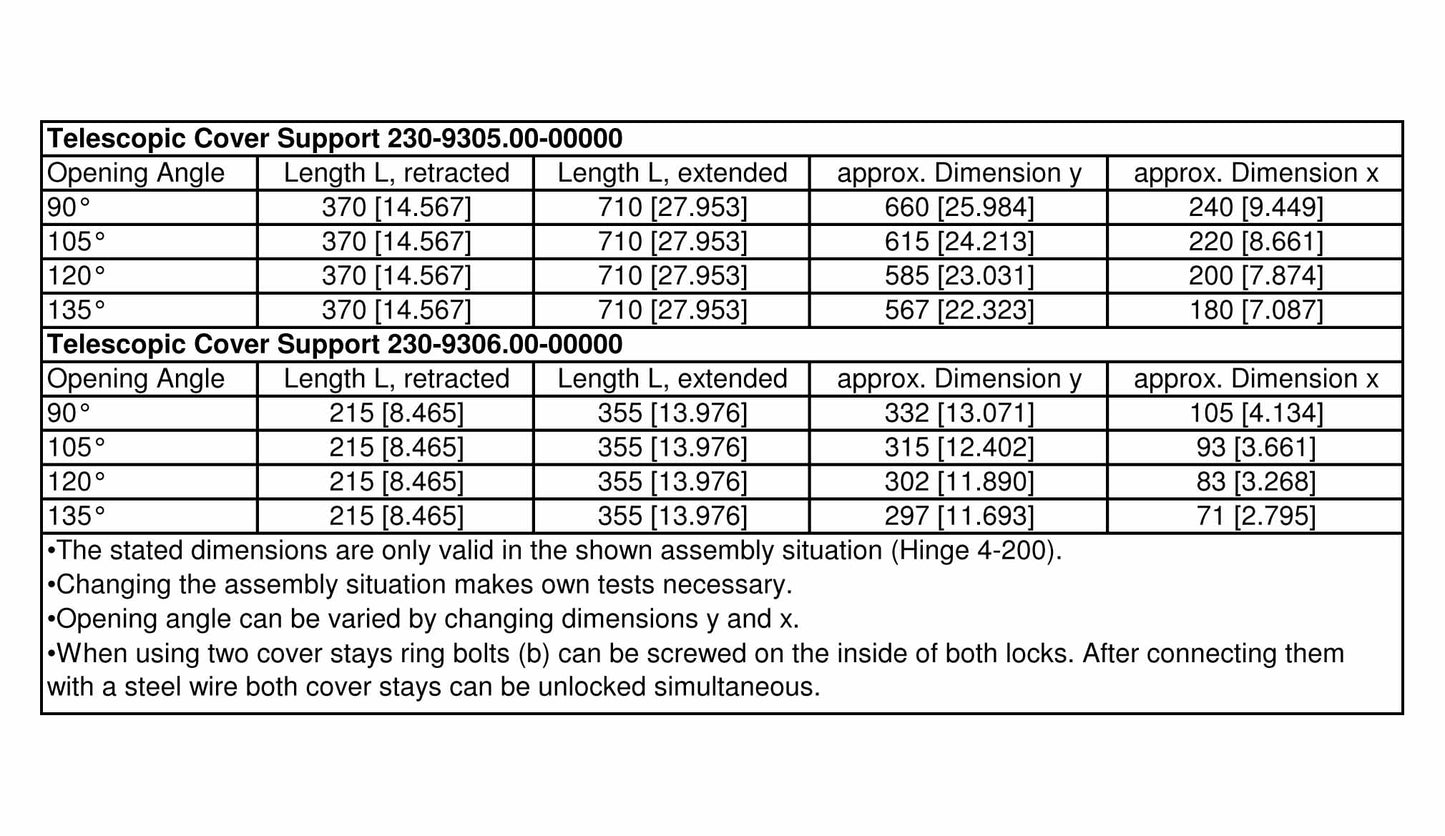

  • Please note: the opening angle is determined by the dimensions X and Y. Refer to the datasheet for further information.

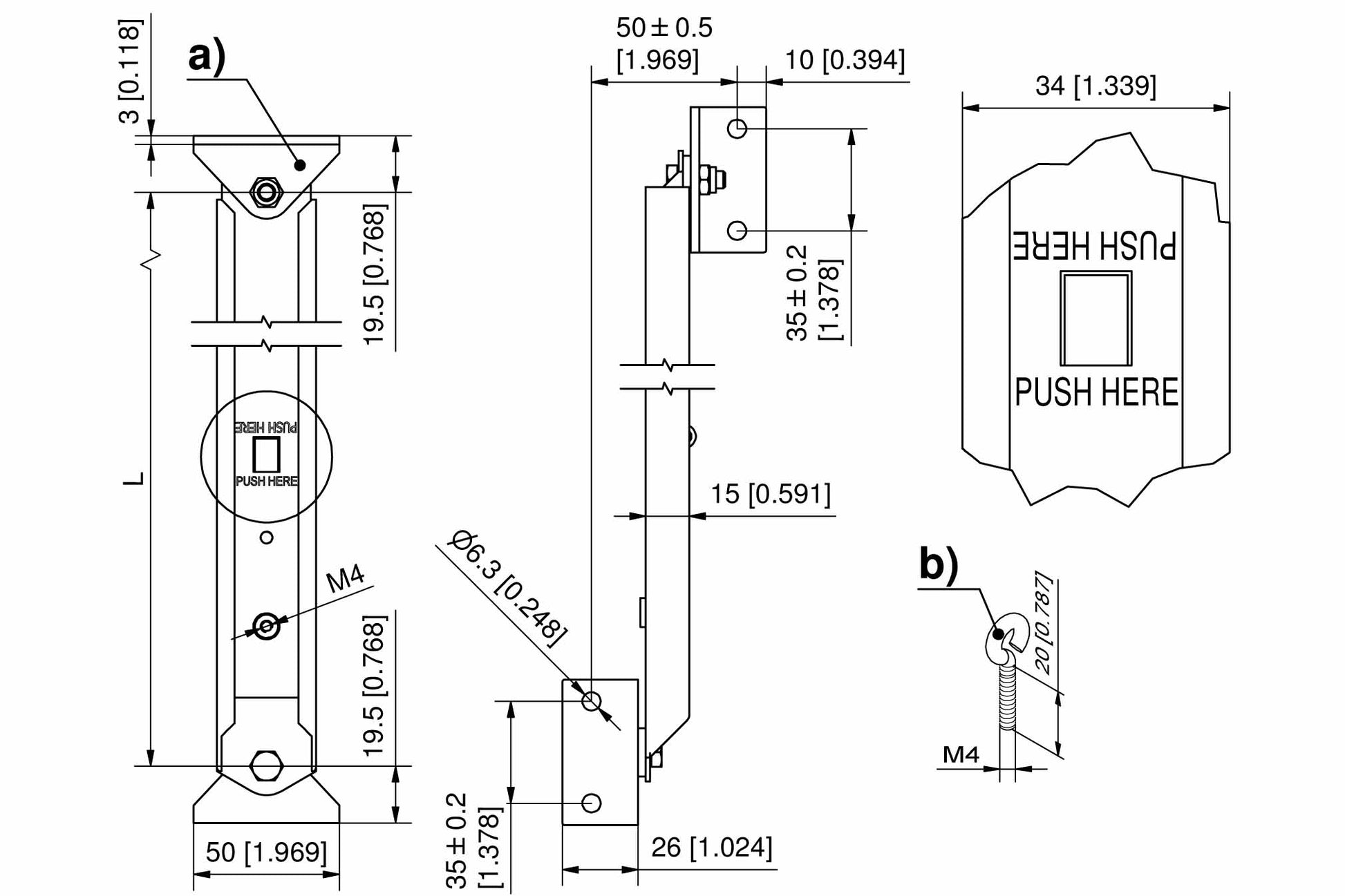

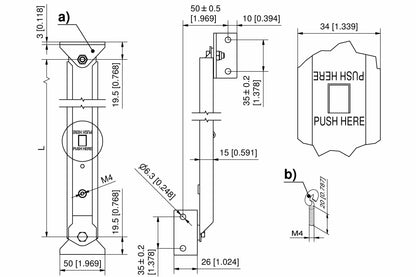

Dimensions:

  • Retracted Length = 215mm ±2 or 370mm±2
  • Extended Length = 370mm±2 or 710mm±2

Material & Finish:

  • Telescopic cover support = steel, zinc plated
  • Spring = stainless steel

Download Datasheet

Part Numbers: 230-9305.00-00000; 230-9306.00-00000
