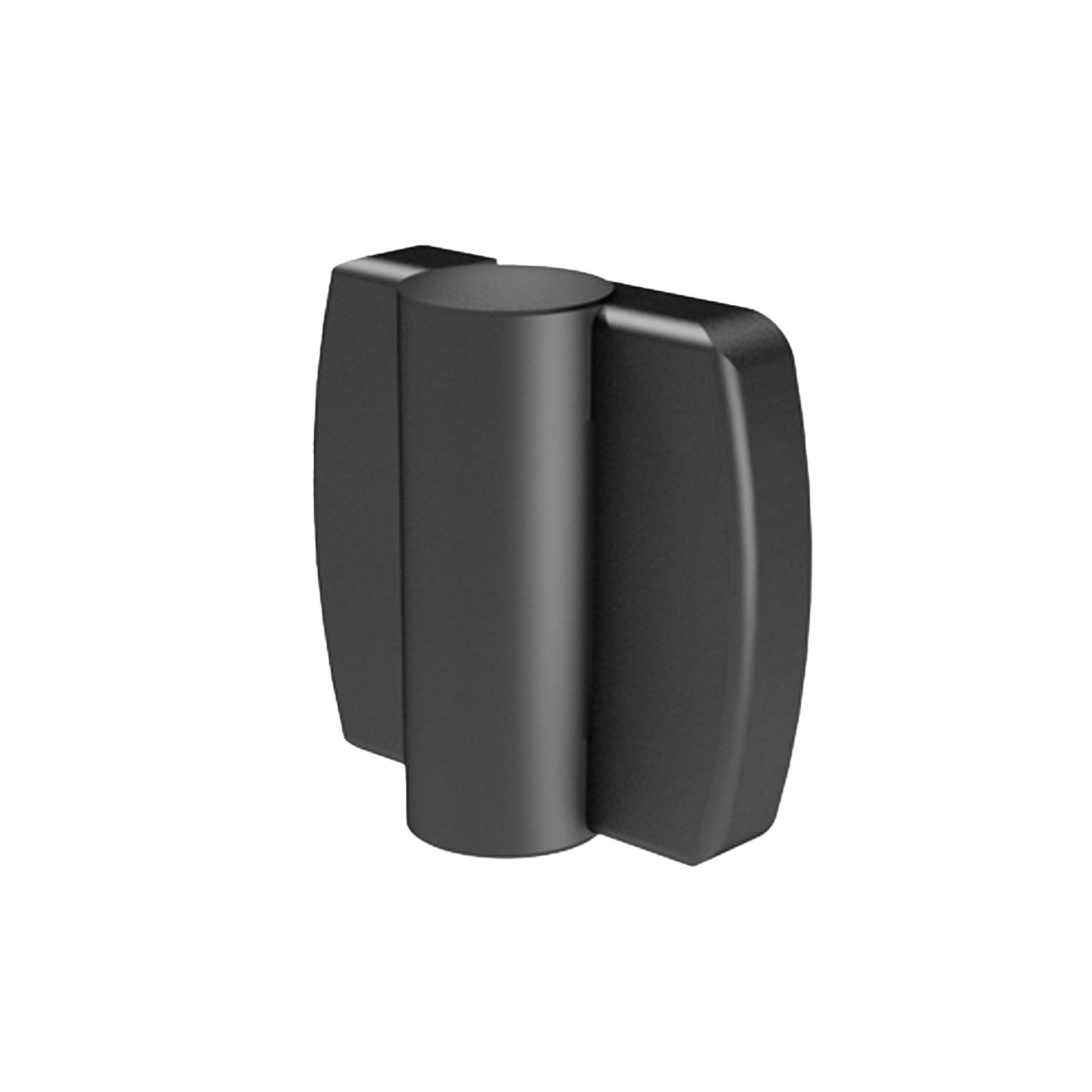

Dirak: Torque Butt-Hinge Pr01 270°
Dirak: Torque Butt-Hinge Pr01 270°
SKU:703-9011.00-00000
Price on Application
Please check availability: Dirak products are generally custom ordered from the supplier based on individual project requirements. Please note, some items may not be readily available in stock at time of enquiry. Delivery times from Dirak can vary accordingly however the majority of orders take between 14-21 days to be received into warehouse by Selectlok Australia.
Couldn't load pickup availability
Hinge with constant torque throughout its full range of motion
Features
- Designed for: Nested doors
- Hinge concealment: Visible
- Application: Can be configued for either RH / LH applications
- ROM: 270° Opening angle

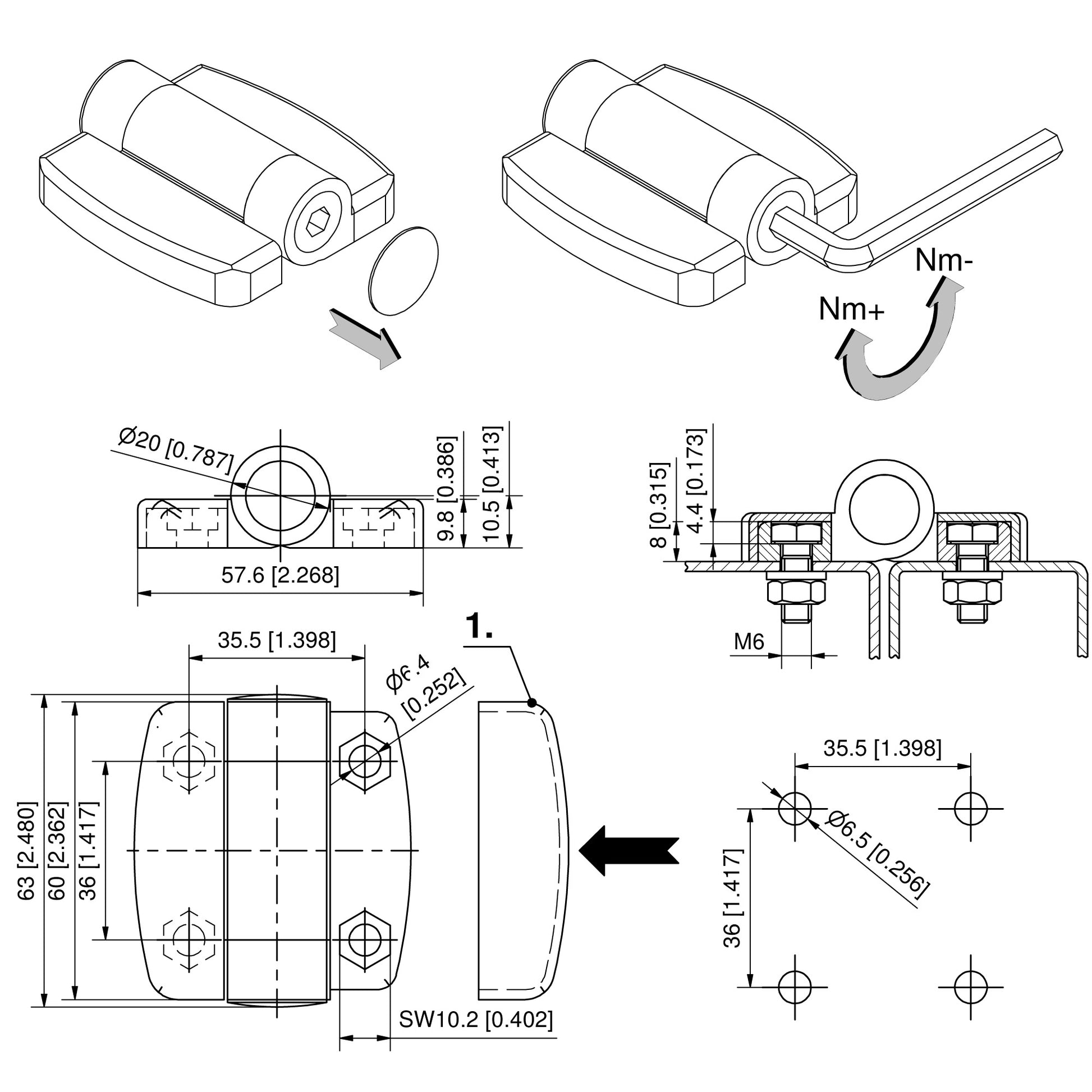

- Torque: Continuously adjustable from 0-5Nm (The adjustment of the torque is made with a hexagon socket key size 4 in the hinge shaft)
-
The doors may be moved into any position and remain at exactly that position
- Free from any detent
-
Also usable as coverstay for light duty application
Material, Finish & Dimensions
- Hinge and covers: PA, black
- Pin: 304 stainless steel
- Base dimensions: 63mm (L) x 57.6mm (W)
Part Numbers: 703-9011.00-00000
