Eclipse: Compression Folding-T Handle

Disclaimer: Please ensure you select the correct grip range for your application. Grip range is calculated from the material in your build. Please read the product datasheet to assist in determining the correct grip range before purchase.

20% restocking fee may apply for non-warranty returns.

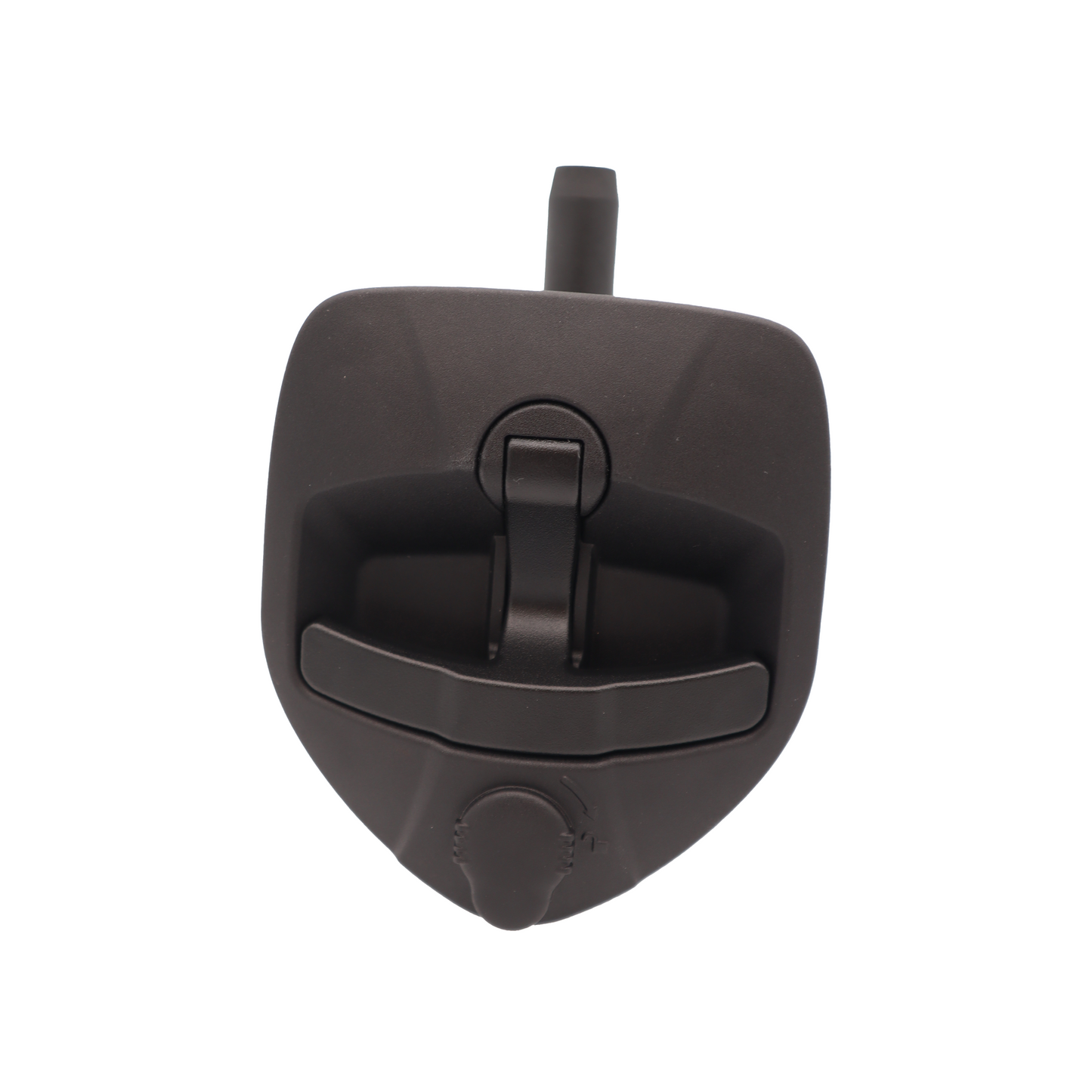

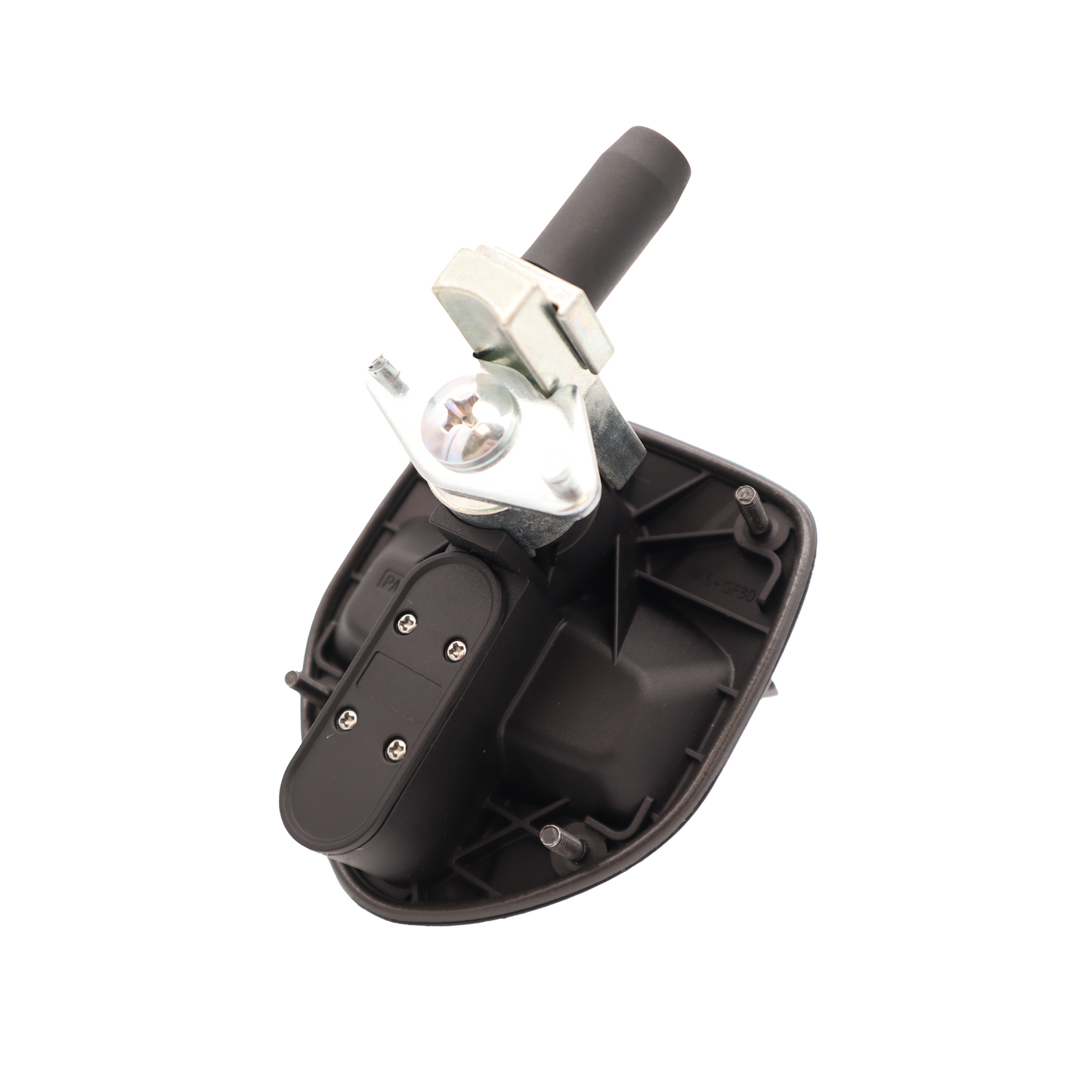

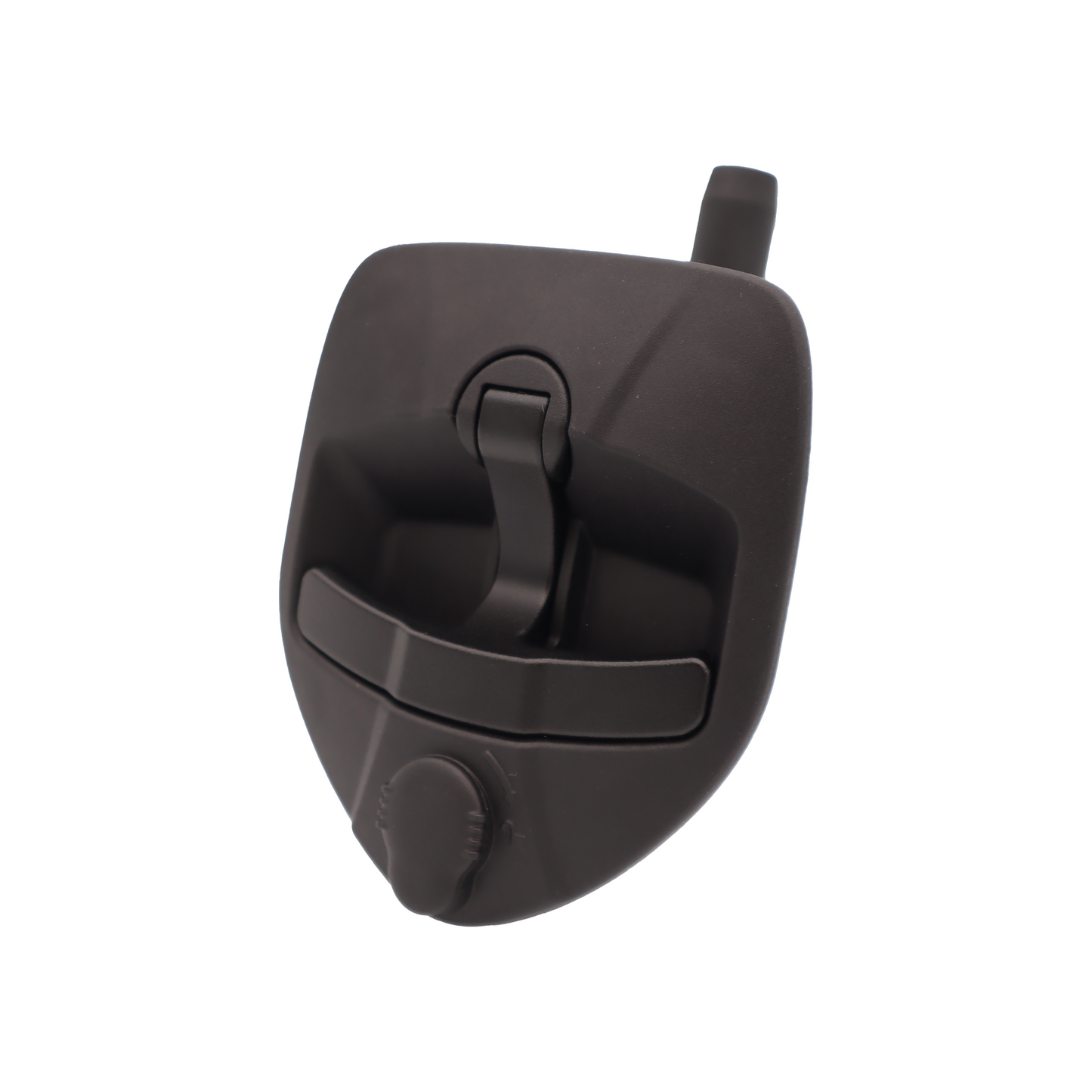

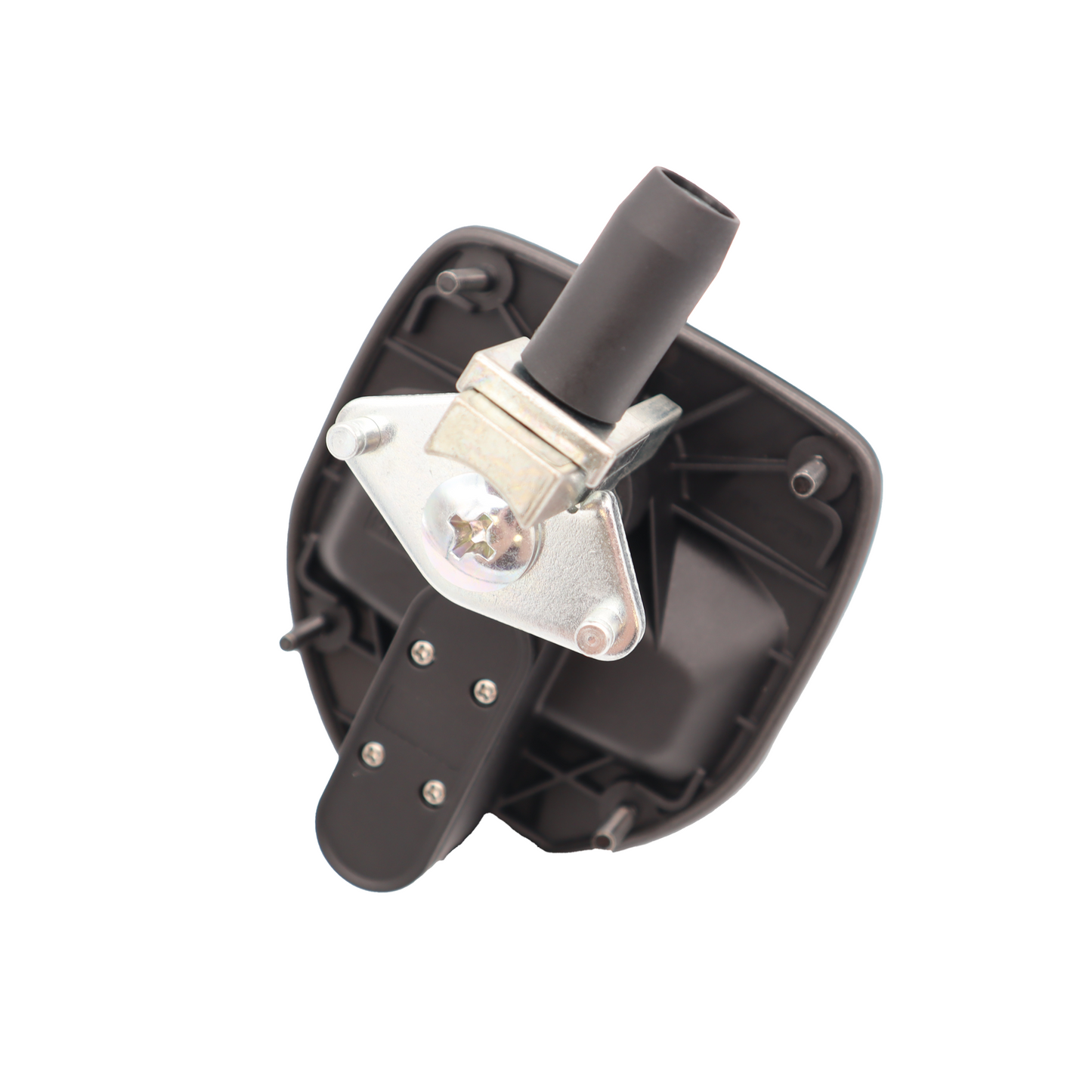

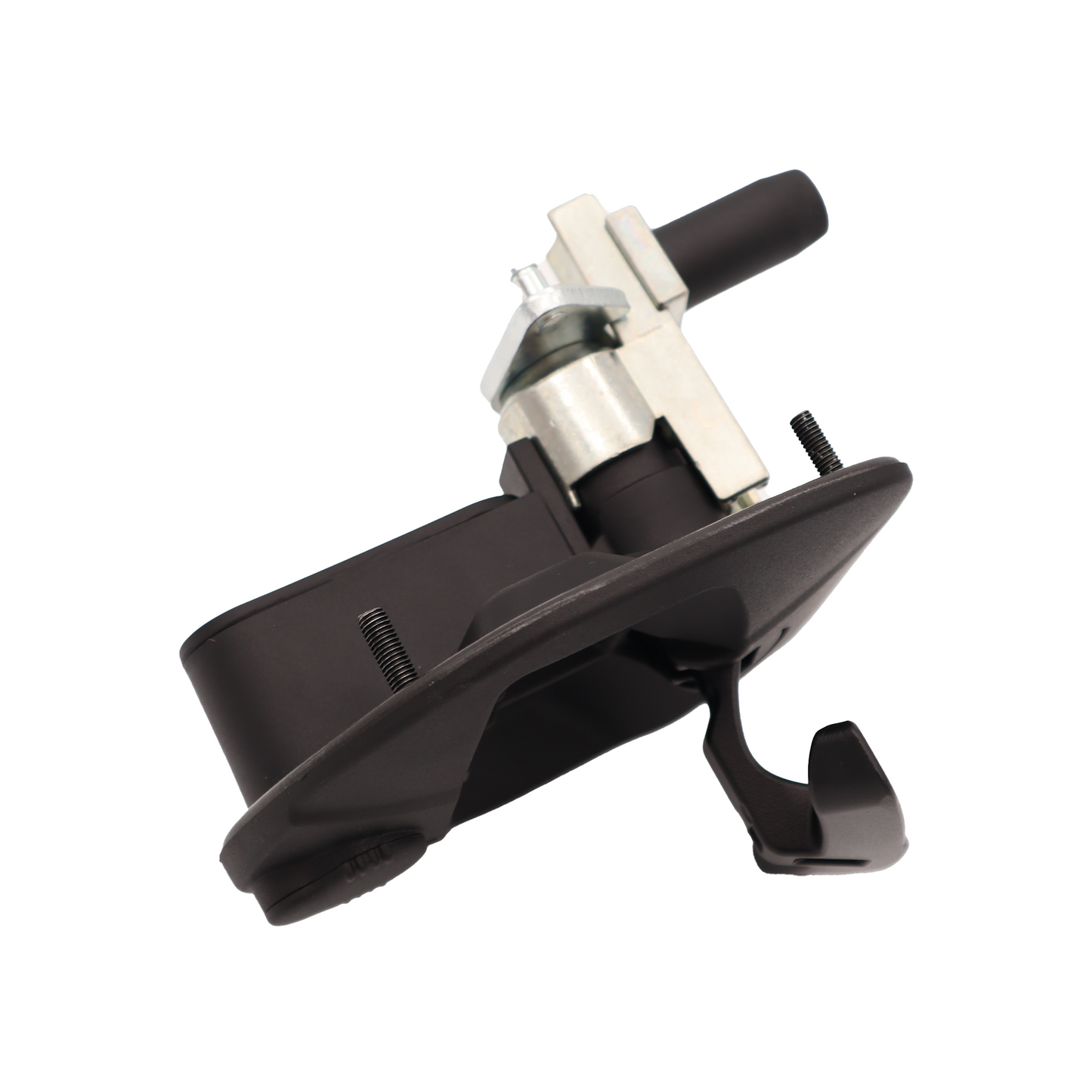

Introducing our new Eclipse - Compression Folding-T Handle. Selectlok's response to the ever-growing demand from our customers who want a folding-T that offers inbuilt handle compression. Offering 180° handle rotation, an adjustable three-point roller cam that features 4mm of compression action, keyed CH751, IP66 and available both with and without a pad lockable hasp. Check out the Eclipse today to see why it might be the perfect handle to include in your next build or project.

Features:

• Aesthetically pleasing water drop shape
• 4mm compression action
• 180° handle rotation
• Adjustable three-point roller cam (H= 12~60mm)
• Keyed alike CH751
• Rear fixing, cast-in M5 studs (threaded)
• Black powder coated (textured)
• IP66 rated (with dust cap fitted)

Cutout Dimensions:

• Height: 106mm
• Width: 97mm
• Stud size: M5 x 18mm

Material & Finish:

• Handle: Zinc alloy, textured powder coat, black

• Housing: PA6+GF30, black
• Key head: PA6+GF30, black

• Shaft: 304 stainless steel
• Cam: SUS304, passivation treatment
• Roller: Glass fibre reinforced polyamide (PA6)
• Padlock Hasp: SUS304 stainless steel, passivated
