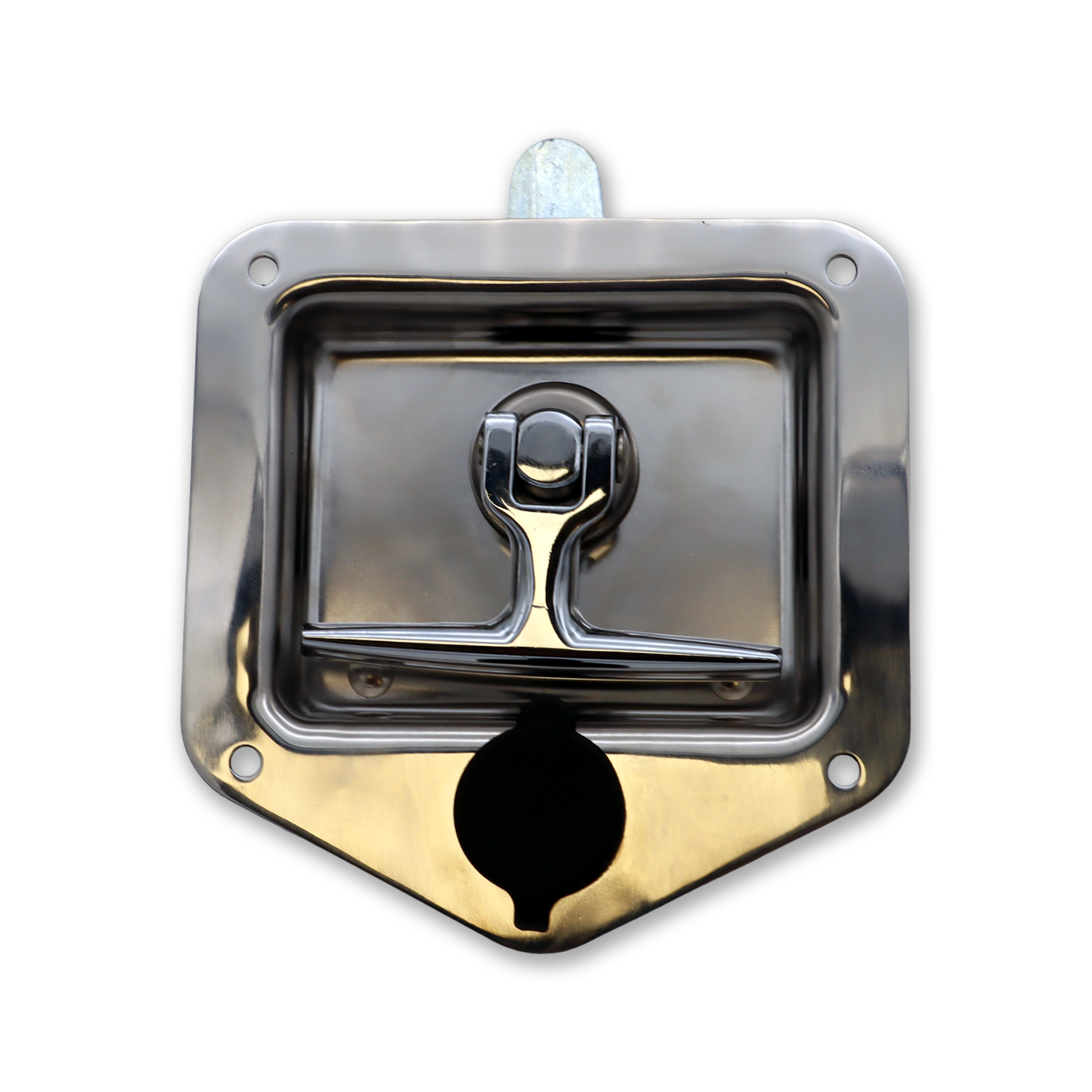

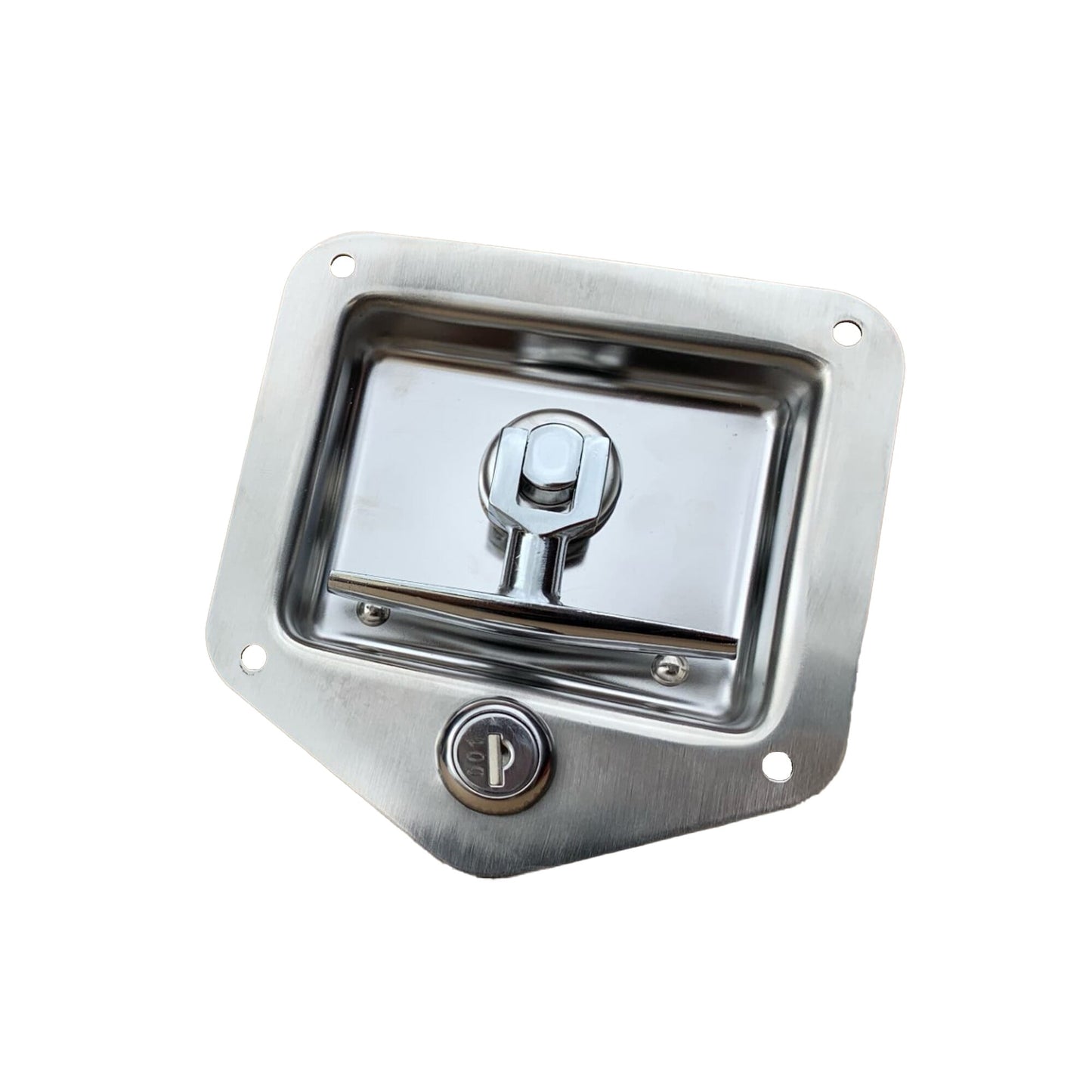

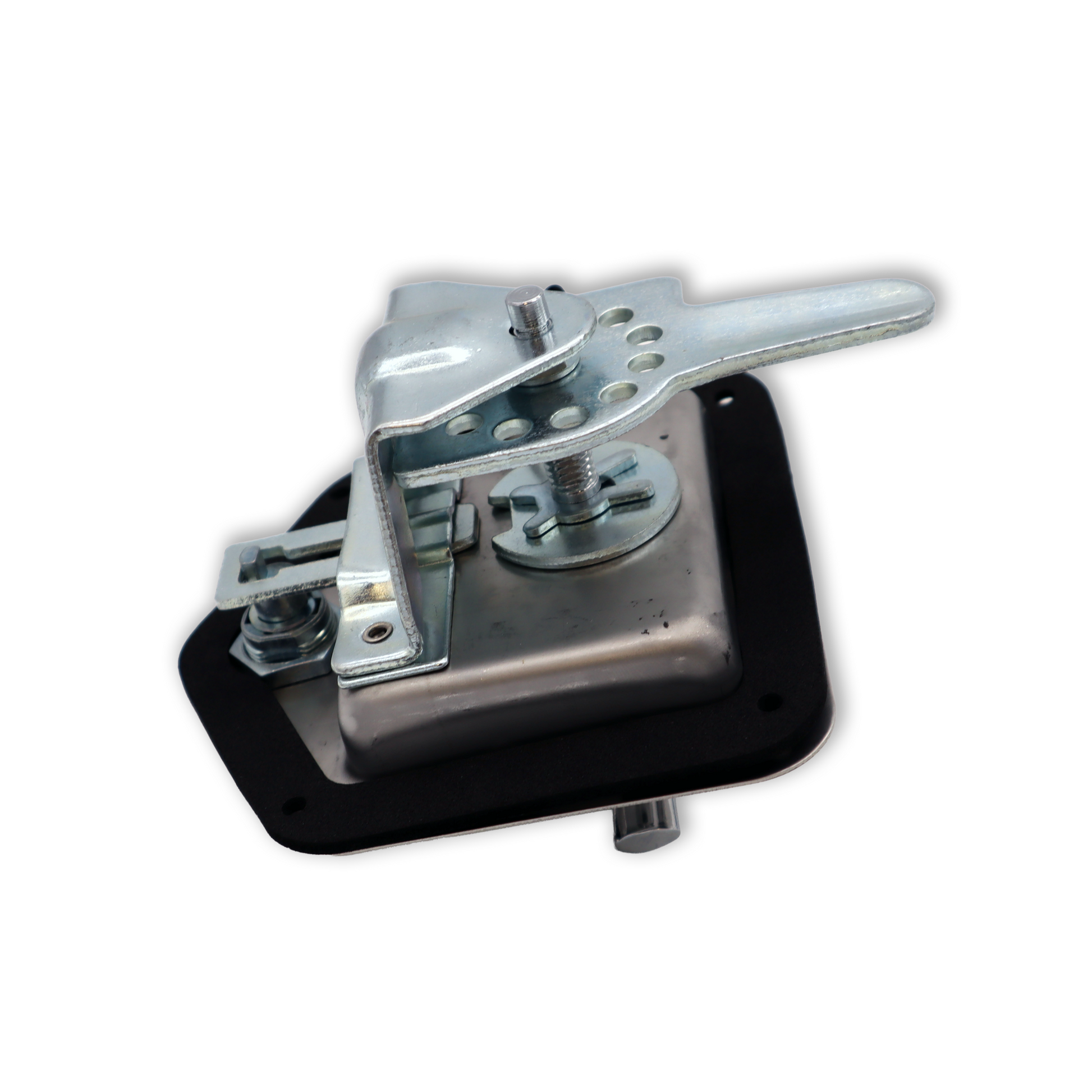

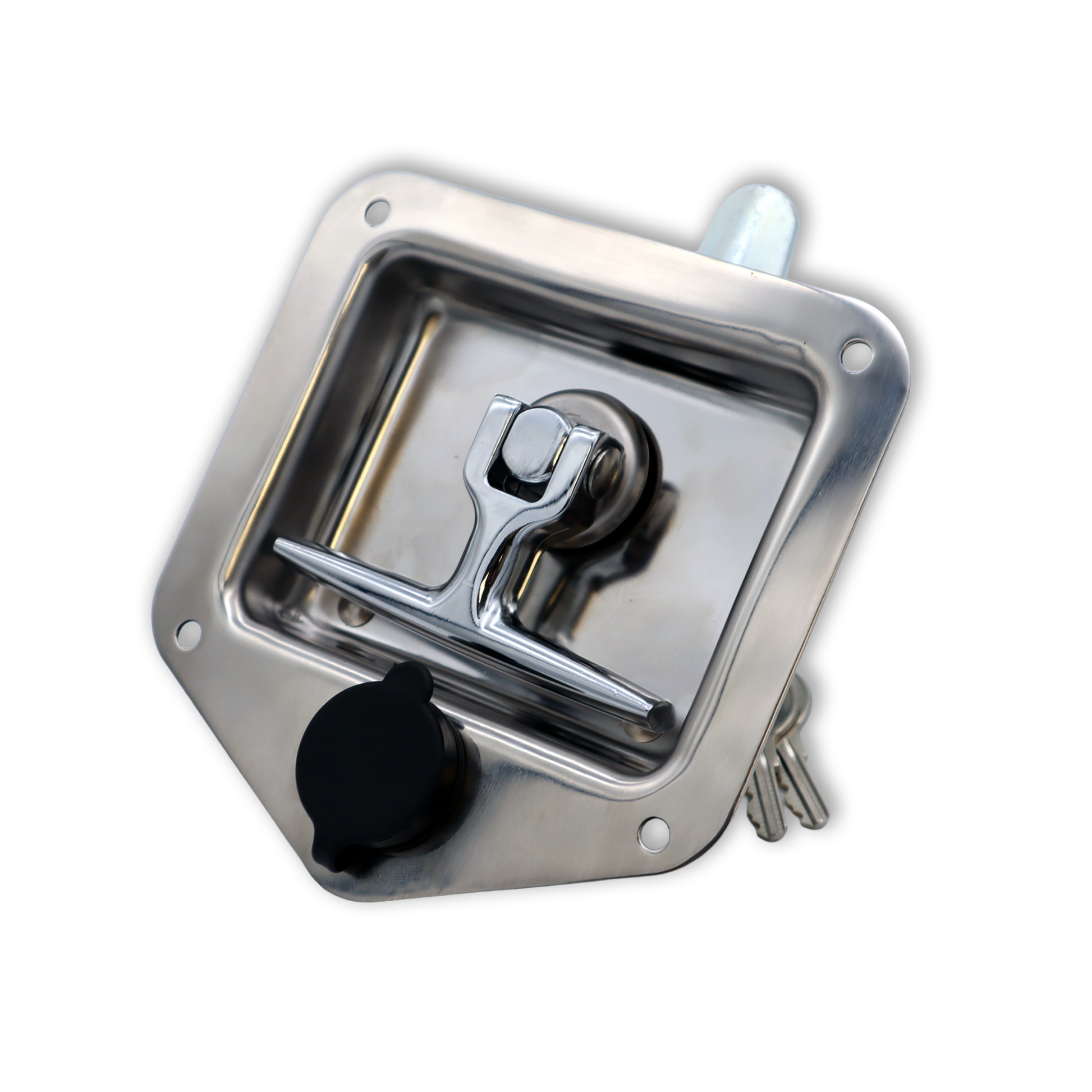

Economy Folding T-Handle with Holes (Stainless Steel)

Economy Folding T-Handle with Holes (Stainless Steel)

SKU:10502-CH510

Regular price $29.95 AUD
Regular price $42.40 AUD Sale price $29.95 AUD
Sale Out of Stock
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)

Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine, VIC)

Features:

  • Suitable for single or multi-point locking
  • Flat cam (0mm offset)
  • CH510 key (w/ dust cap)
  • Front fixing, 5mm holes
  • Stainless steel, polished dish w/ chrome plated handle
  • Foam gasket included
  • Suitable for hole mounting

Dimensions:

  • Height:  124mm
  • Width:  121mm
  • Mounting Hole Measurements:  99mm (left to right), 84mm (top to bottom)
  • Adjustable flat cam (H=):  30mm to 46mm

Material & Finish:

  • Handle:  Zinc die-cast, chrome plated
  • Bracket:  Zinc die-cast, zinc plated
  • Dish:  304 stainless steel, polished
  • Cam & shaft:  Mild steel, zinc plated

Accessories:

  • Pins for rods:  10502-PIN
  • Rods:  ROD###E
