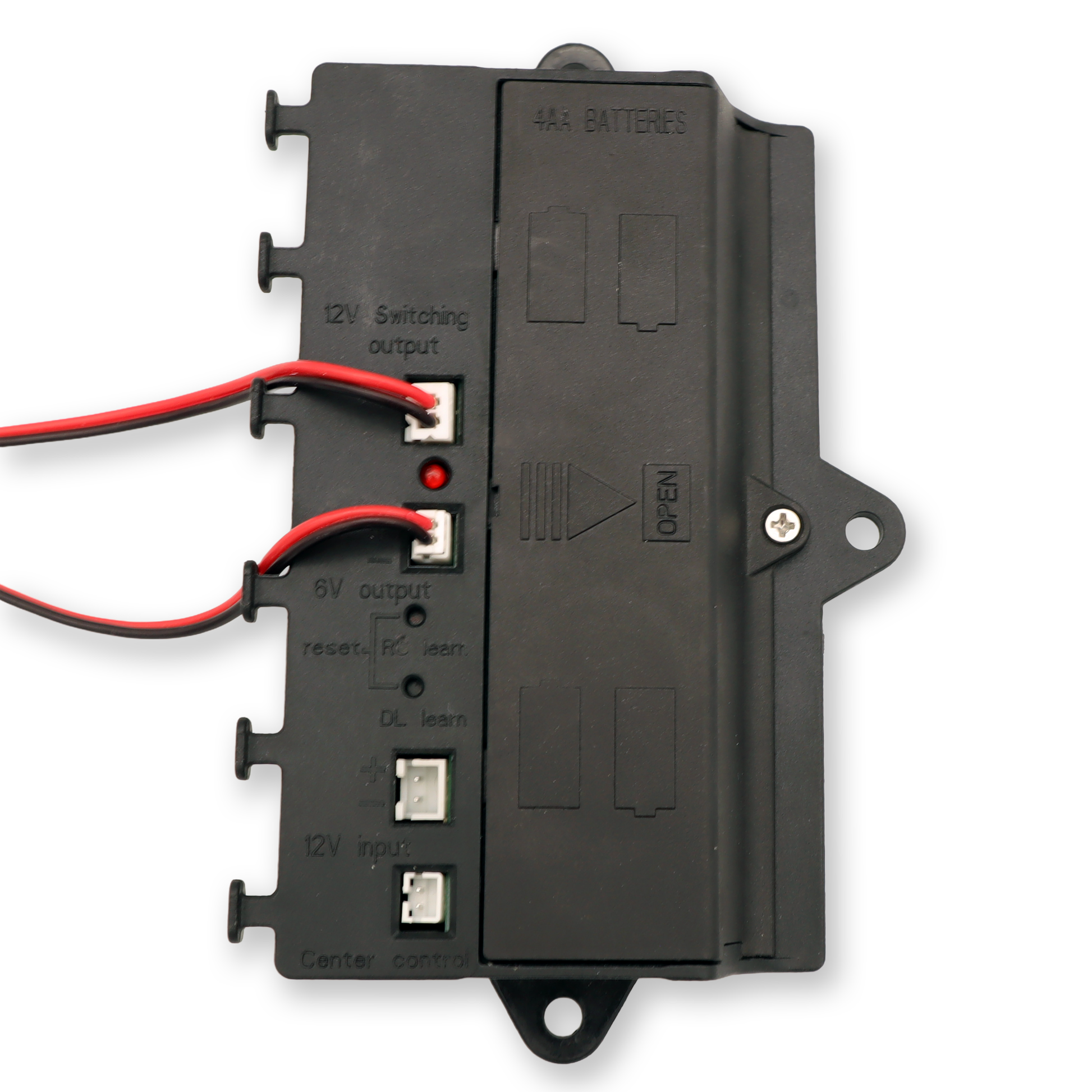

ELS | NP0044: Control Box Module (6V/12V Central Locking)

Please Note: Compatible accessories & componentry (SOLD SEPARATELY)

ELS (Electronic Locking Solutions) | NP0044: Control Box Module (6V / 12V Central Locking)

Features

• Control box (assembly componentry for either a complete of part there of): Either 6V/12V electronic central locking / ELS system
• Can be configured as:

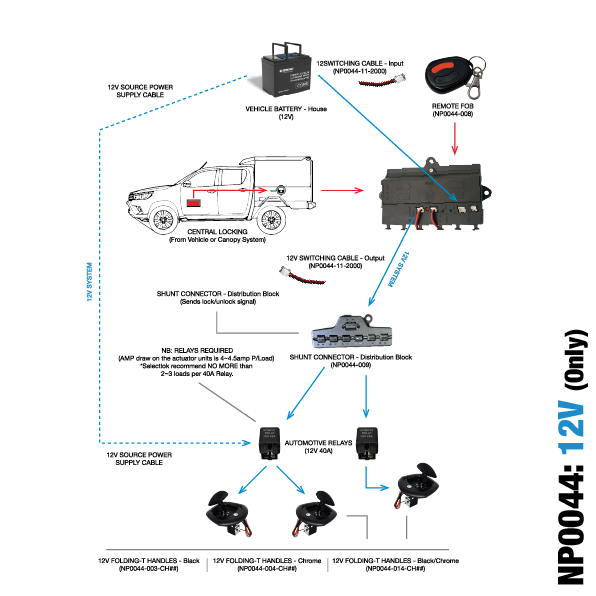

  • Hardwired - Via 12V vehicle or 12V standalone power supply (long cable harness)

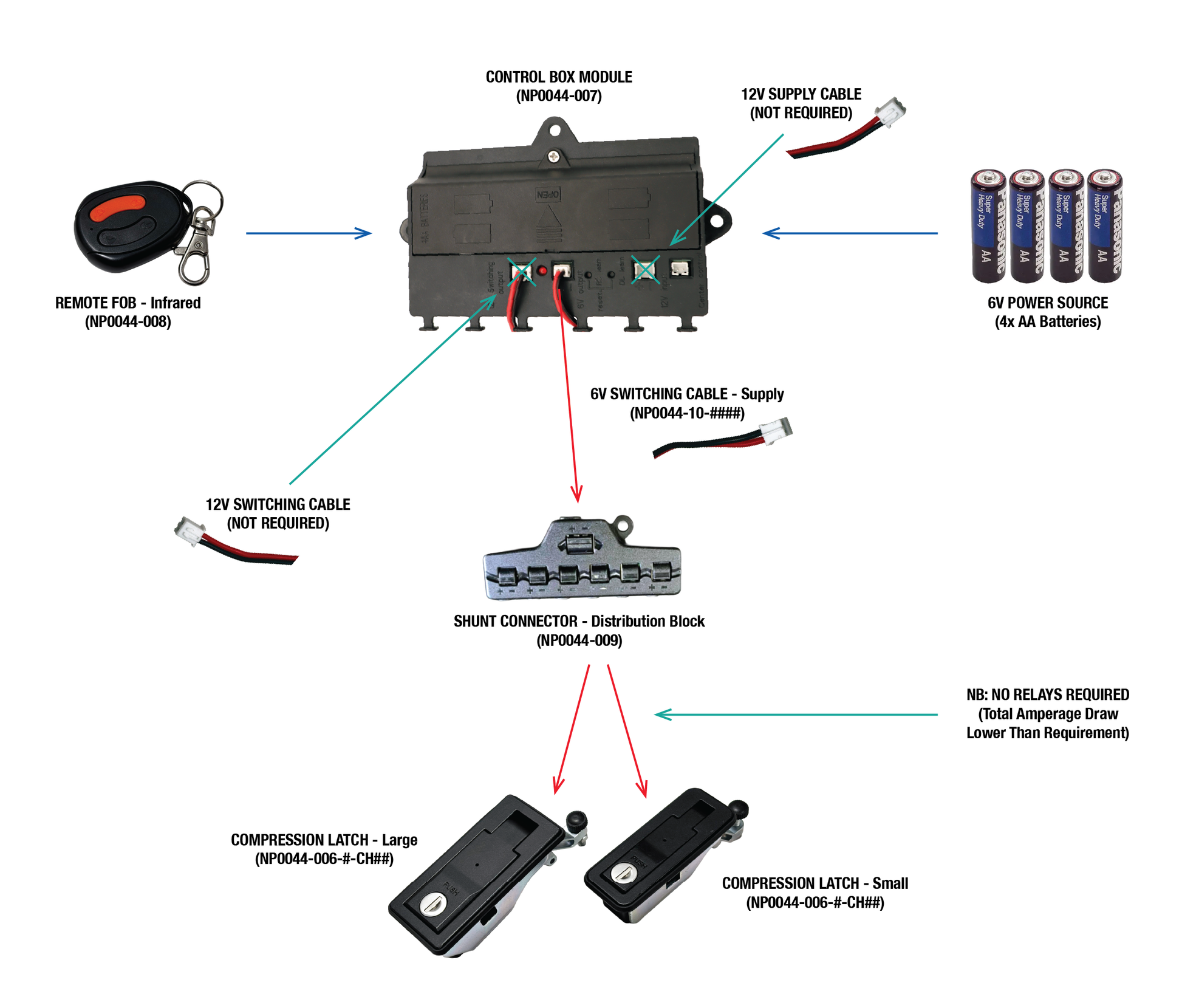

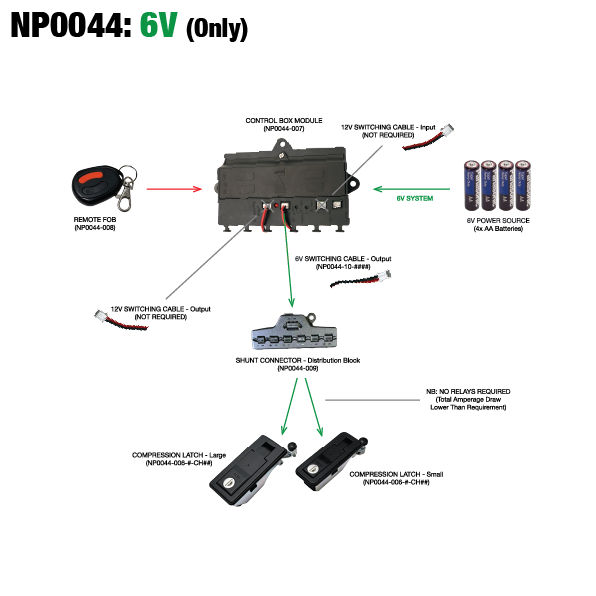

  • Wireless - 6V / AA batteries (integrated) power supply
  • Semi-wireless - Via a “short-tethered” 12V standalone / “side-by-side” power supply (short cable harness)
• Compatible power supplies:
  • 6V DC
  • 12V switching or non-switching

Component Specifications

• Base dimensions: 144mm (H) x 88mm (W) x 21.5mm (D)
• Mounting Point profile: 3x Ø5mm (dia)
  • North/South hole centres - 132mm (HC)
• RHS hole centre -
  • ꜏   82mm (from LHS edge)
  • ꜊   -6mm (from RHS edge)

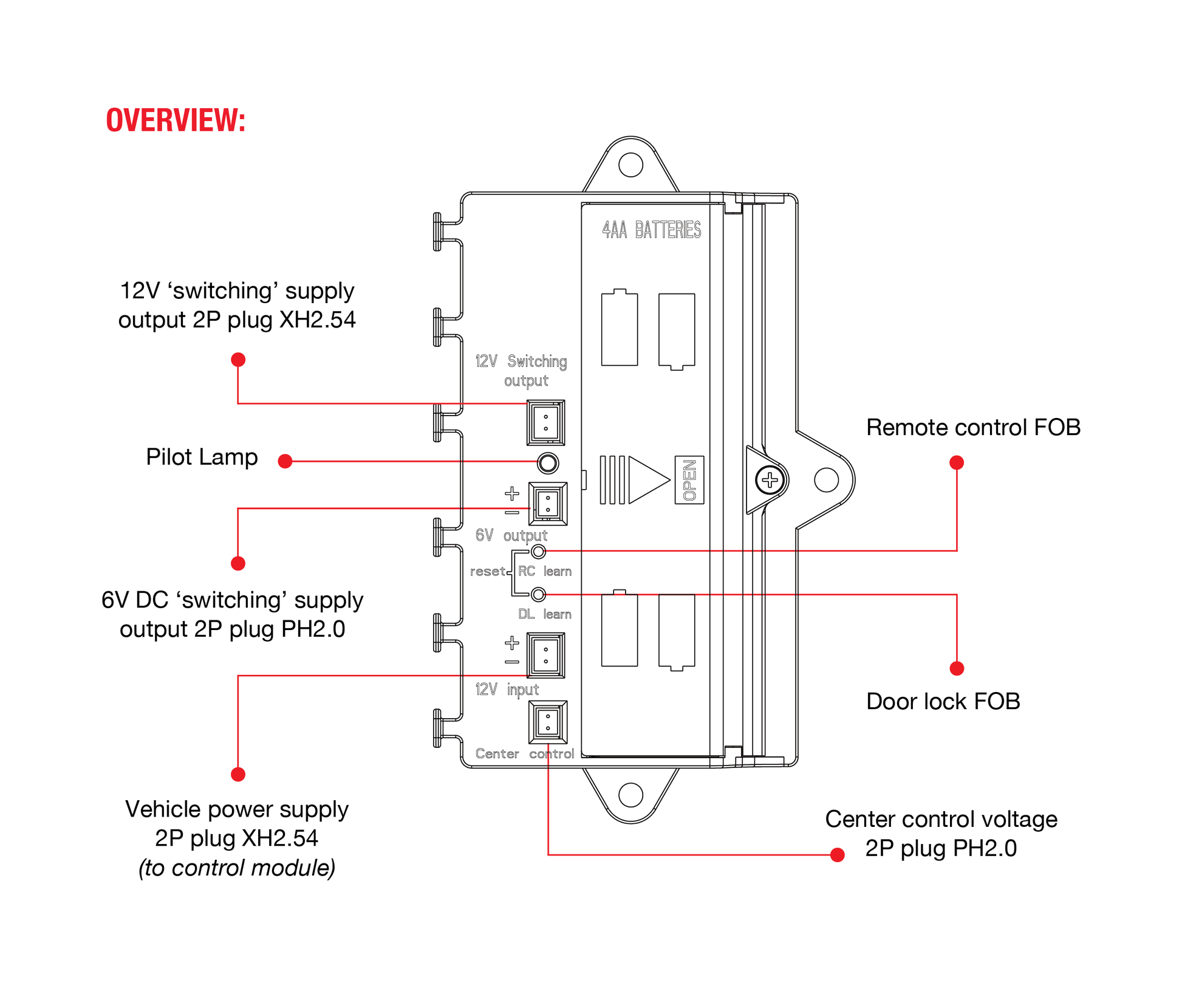

• Supply plugs:
  • 12V switching output
  • 6V output
  • 12V input

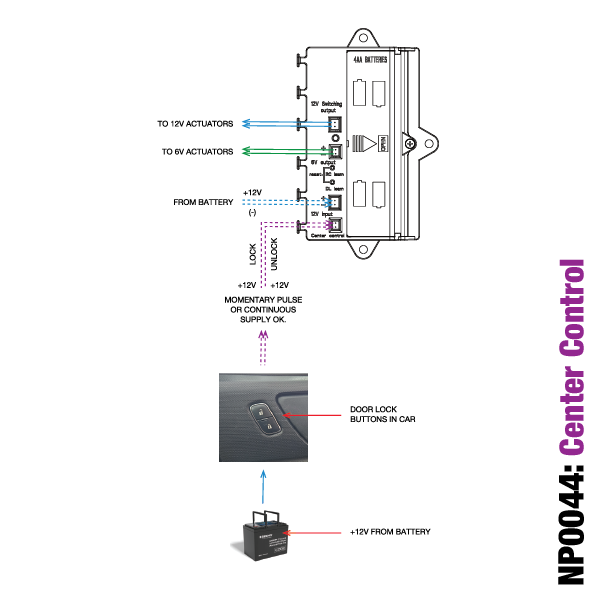

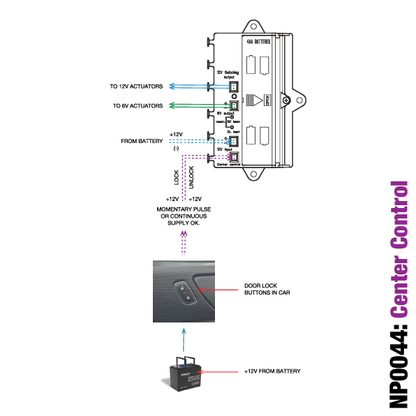

  • Centre control
• Three levels of control (for both):
  • *Without* 12V switching (and)
  • *With* 12V switching

Installation

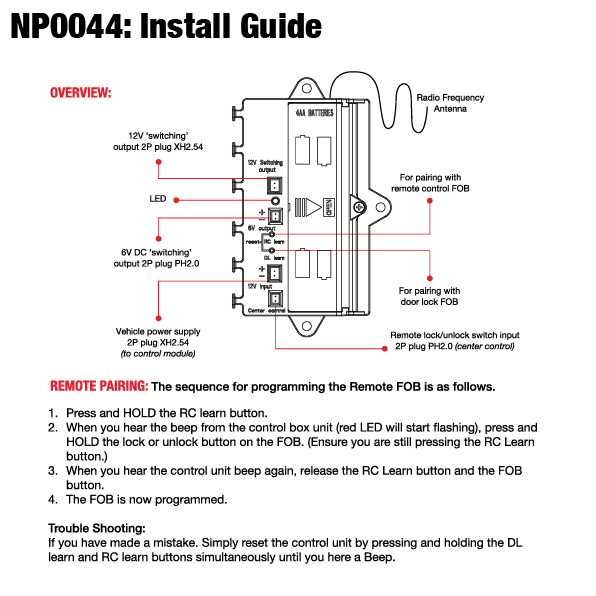

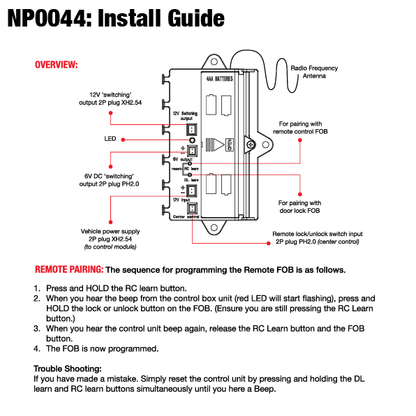

Please refer to the control box user manual (refer to the link below) for user setup and installation instructions.

• Including: Product overview, wiring diagrams, power connection instructions, control level instructions (power supply) and remote controller alignment.

Remarks

Compatible accessories & componentry: SOLD SEPARATELY

• Shunt connectors: Alternative sizes/terminal qty available upon request (subject to additional costs, MOQs and lead times)

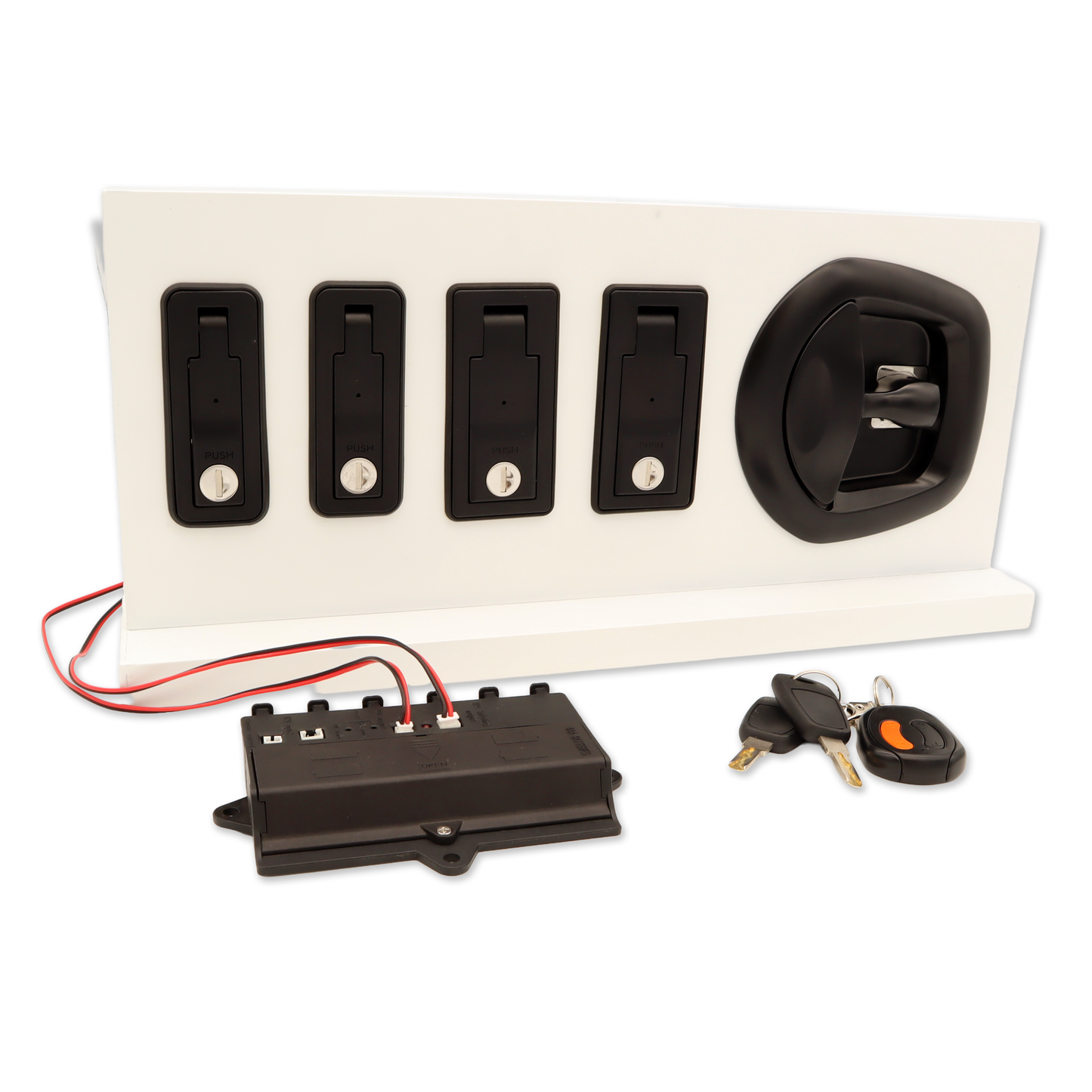

• Compatible with integrated systems (incorporating): ELS | NP0044: folding-t handles w/ mounting bracket and/or push-button compression latches.

ELS & Central Locking

Overview

The NP0044 ELS range is engineered to provide a compact, low-power, electronic locking solution.

This system is intended to operate as either a self-contained closed-circuit configuration or as part of a wider integrated ELS central locking ecosystem to provide reliable remote locking functionality, while maintaining a default secure locked state when inactive.

Understanding ELS / CL Actuation for Compression Latches

Selectlok’s ELS NP0044 Control Box Module and complementary range are designed to operate within an Electronic Locking Solution (ELS) ecosystem. This may be configured as either a self-contained (closed circuit) central locking system or as part of a broader integrated ELS architecture.

The NP0044 latches and handles can be locked or unlocked by either:

• Pressing the remote control button, or
• Using the manual key override

The time-delay features on some of the range is factory set and is not user adjustable.

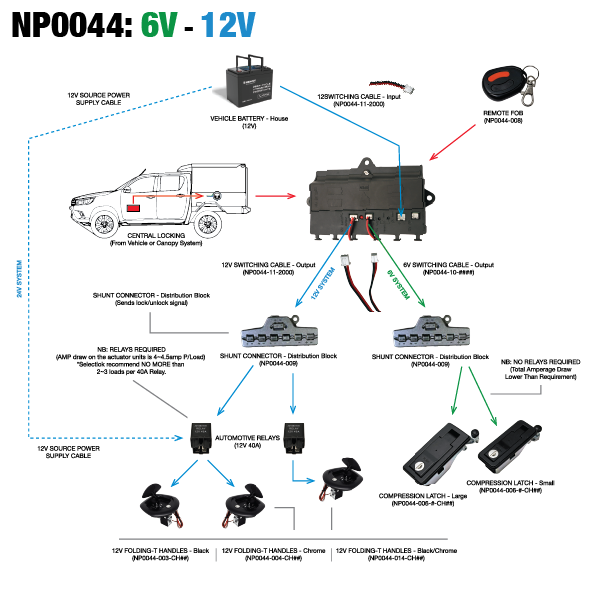

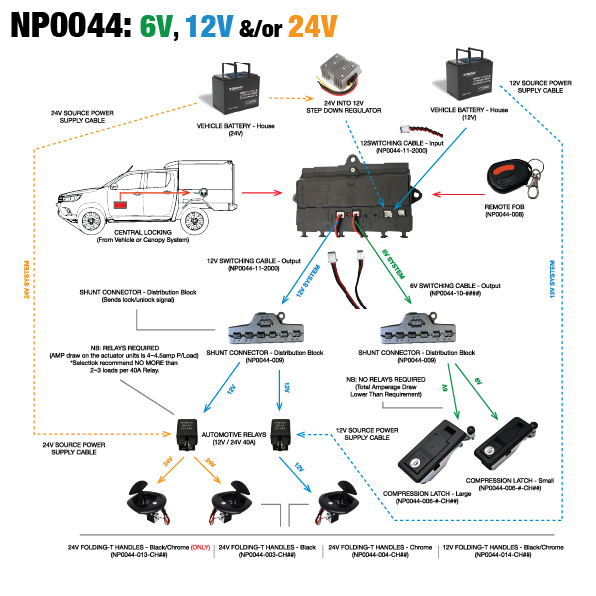

Depending on the ecosystems configuration, power may be supplied through either:

• 4 x AA batteries (1.5V each) / 6V DC input, or
• An external 12V supply that is stepped down to a compatible 6V output via the Control Box Module.
• An external 24V supply that is stepped into 12V (if required) prior to reaching the control module to ensure compatibility with 6V output via the Control Box Module.

Important Installation and Configuration Notes

While it may be technically possible to modify certain parameters of the system through advanced wiring configurations, Selectlok strongly discourages attempting to alter the time-delay or actuation characteristics without appropriate technical expertise.

Selectlok does not provide guidance on methods to bypass or modify these features. Attempting to do so may void warranty coverage.

For installation or configuration advice, Selectlok recommends consulting a qualified automotive electrical specialist for all system integration queries.

Supporting Technical Resources

Amp Draw & Relay Usage

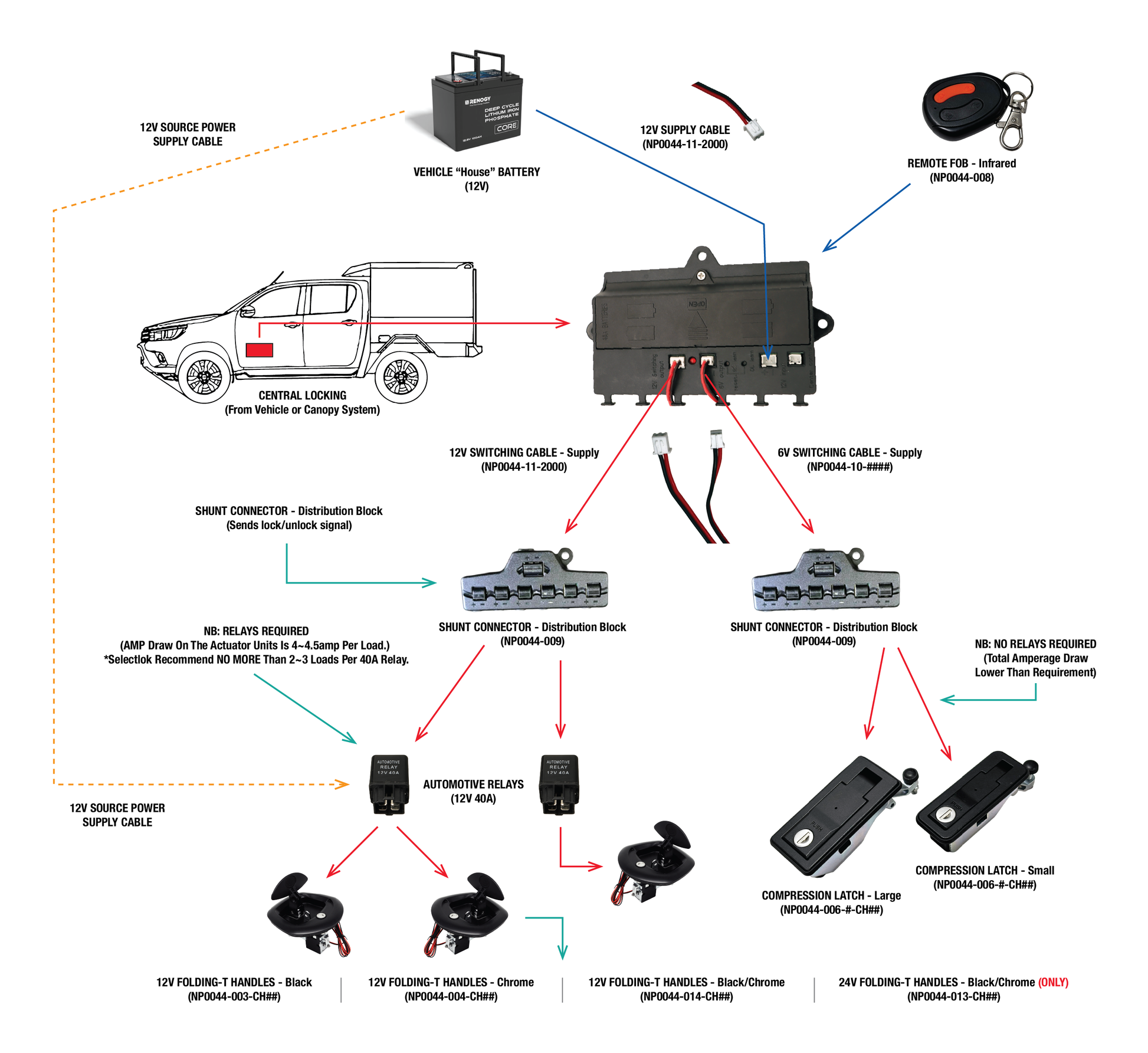

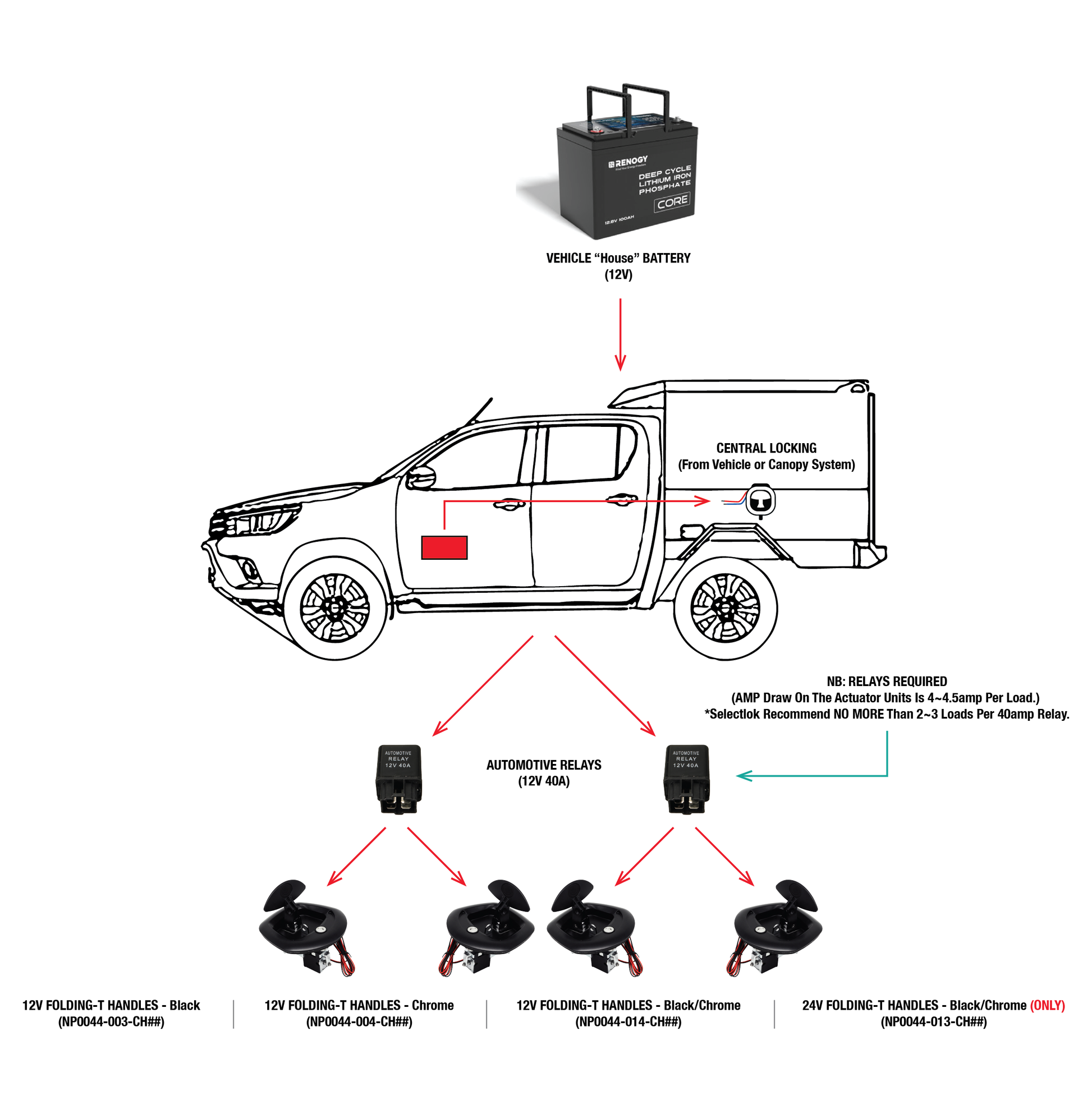

Current draw on actuator-based locking units is approximately 2–4 A (amps) per load. Selectlok recommends a maximum of three (3) units per 40 A relay.

View Our Technical Datasheet

View Our NP0044: Electronic Locking Solution (ELS) Quick Install Guide

View Our NP0044, Control Box (ELS) User Manual

Glossary Of Terms

MLA | CL | ELS | IOT

Acronyms commonly associated with the actuation methods of Selectlok’s Electronic Locking Solutions ecosystem products.

These may include electronically powered central locking solenoid or actuator kits (6V/12V/24V), digital access and smart locking systems, electronic lock positioning sensors, control boxes, shunt connectors, remote controls and power supplies.

• MLA: Manual Locking Actuation
• CL: Central Locking
• ELS: Electronic Locking Solutions / ELS Ecosystems
• IOT: Internet Of Things
