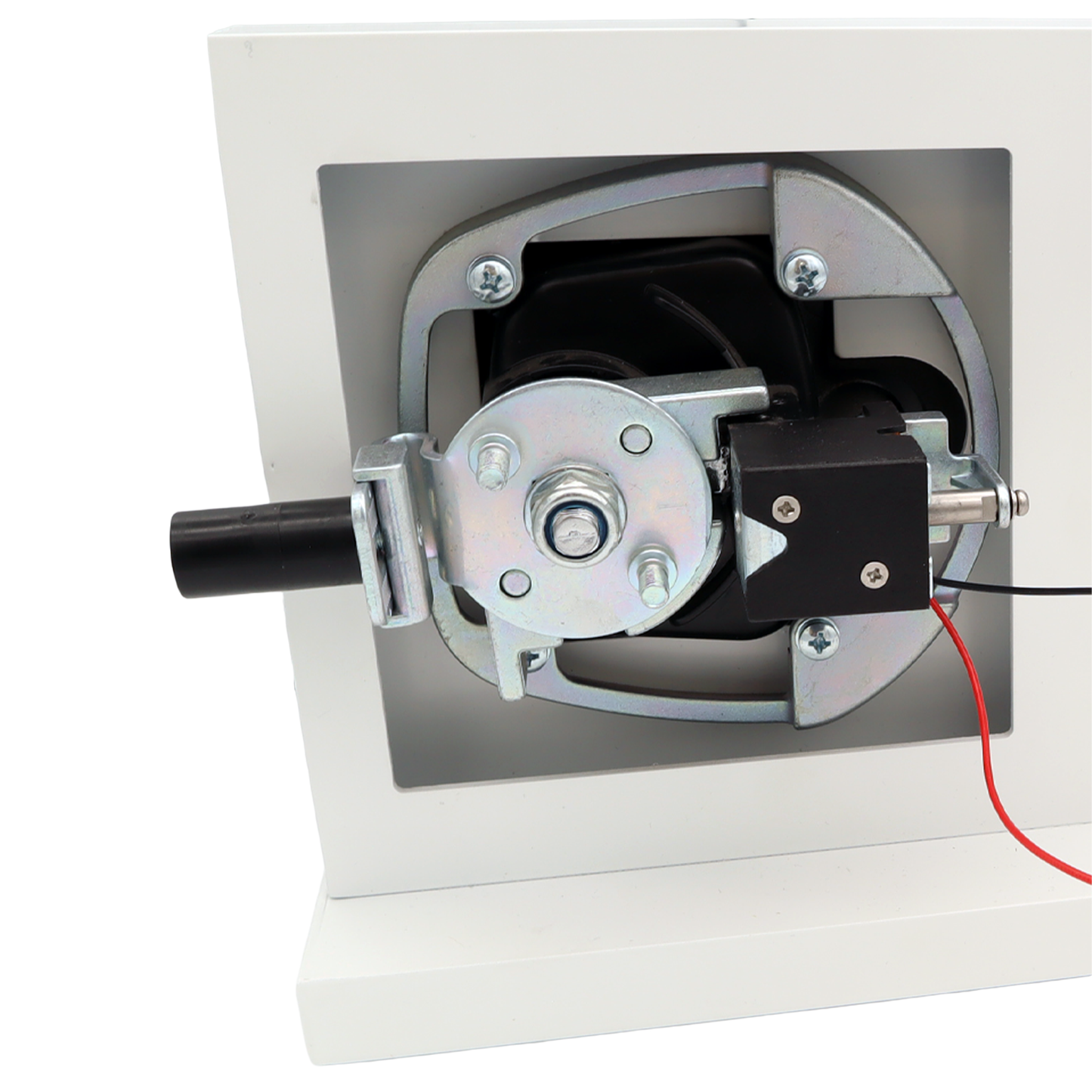

ELS | NP0044: Folding-T Handle, Integrated Central Locking (Inc. Mounting Bracket, 12V)

ELS (Electronic Locking Solutions) | NP0044: Folding-T Handle with Integrated Electronic Central Locking (Includes Mounting Bracket)

Features

• Aesthetically pleasing, contemporary folding-t design
• Keyed alike: CH05, CH06, CH08, CH09

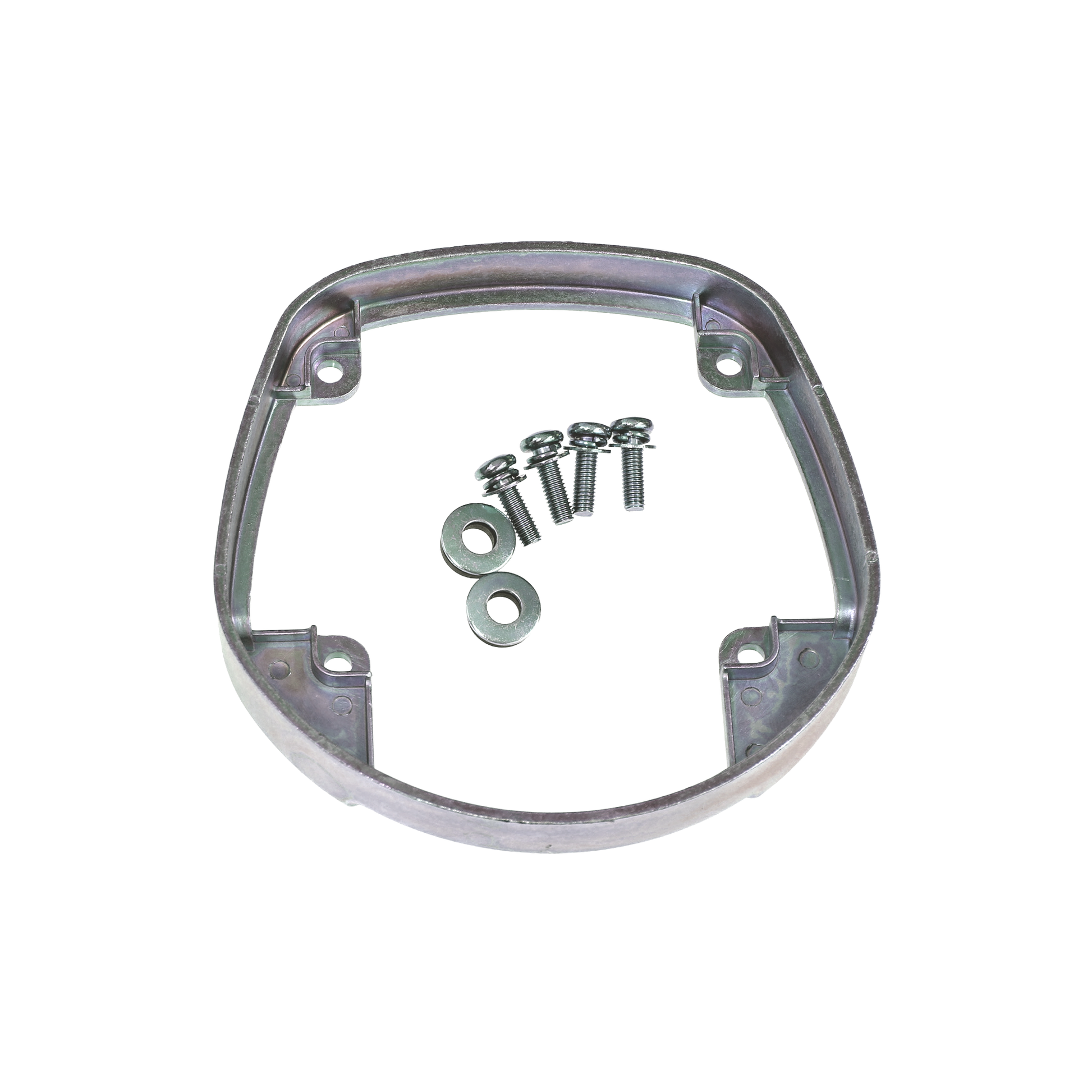

• Rear fixing, mounting bracket
• Operational features:

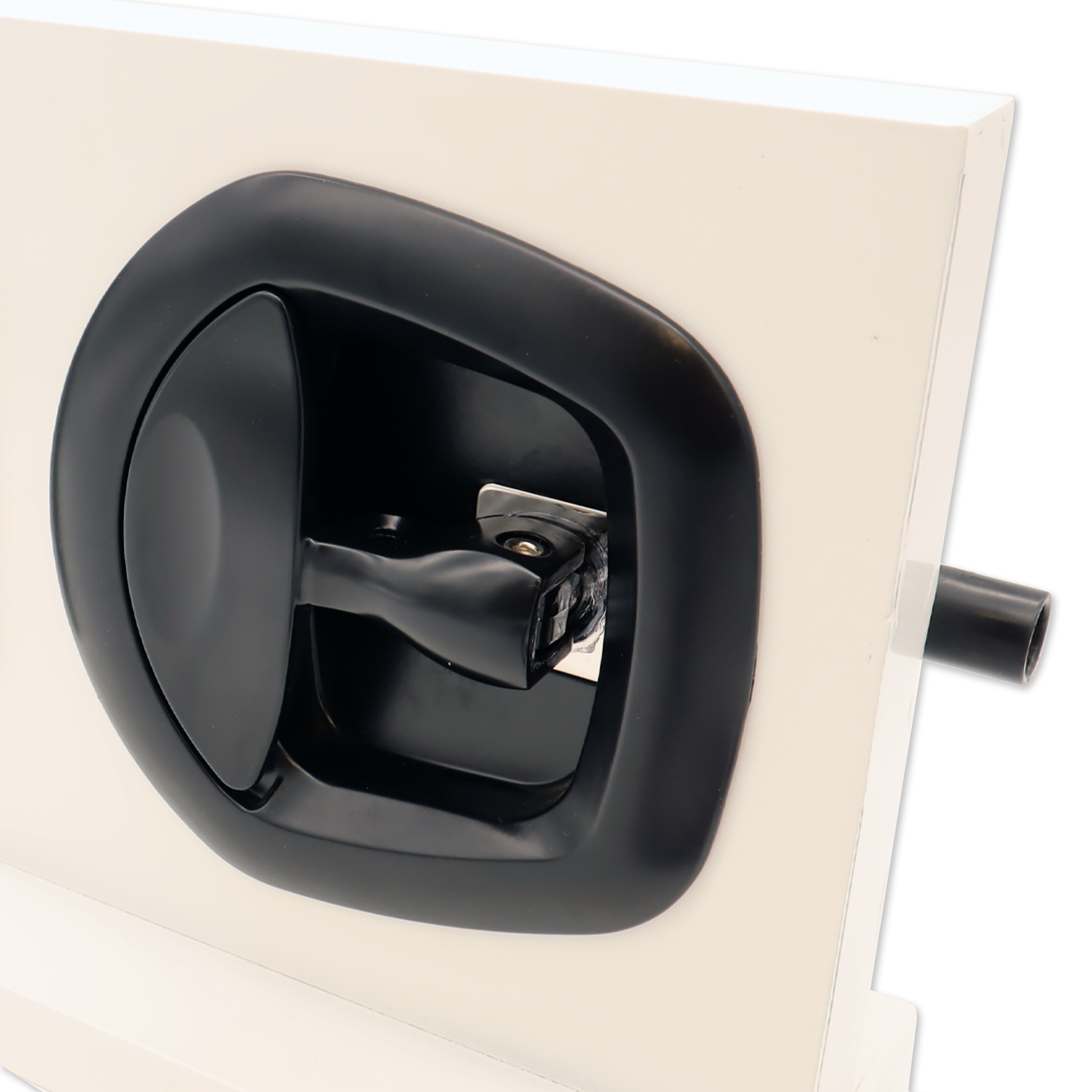

  • 4.5mm of compression action

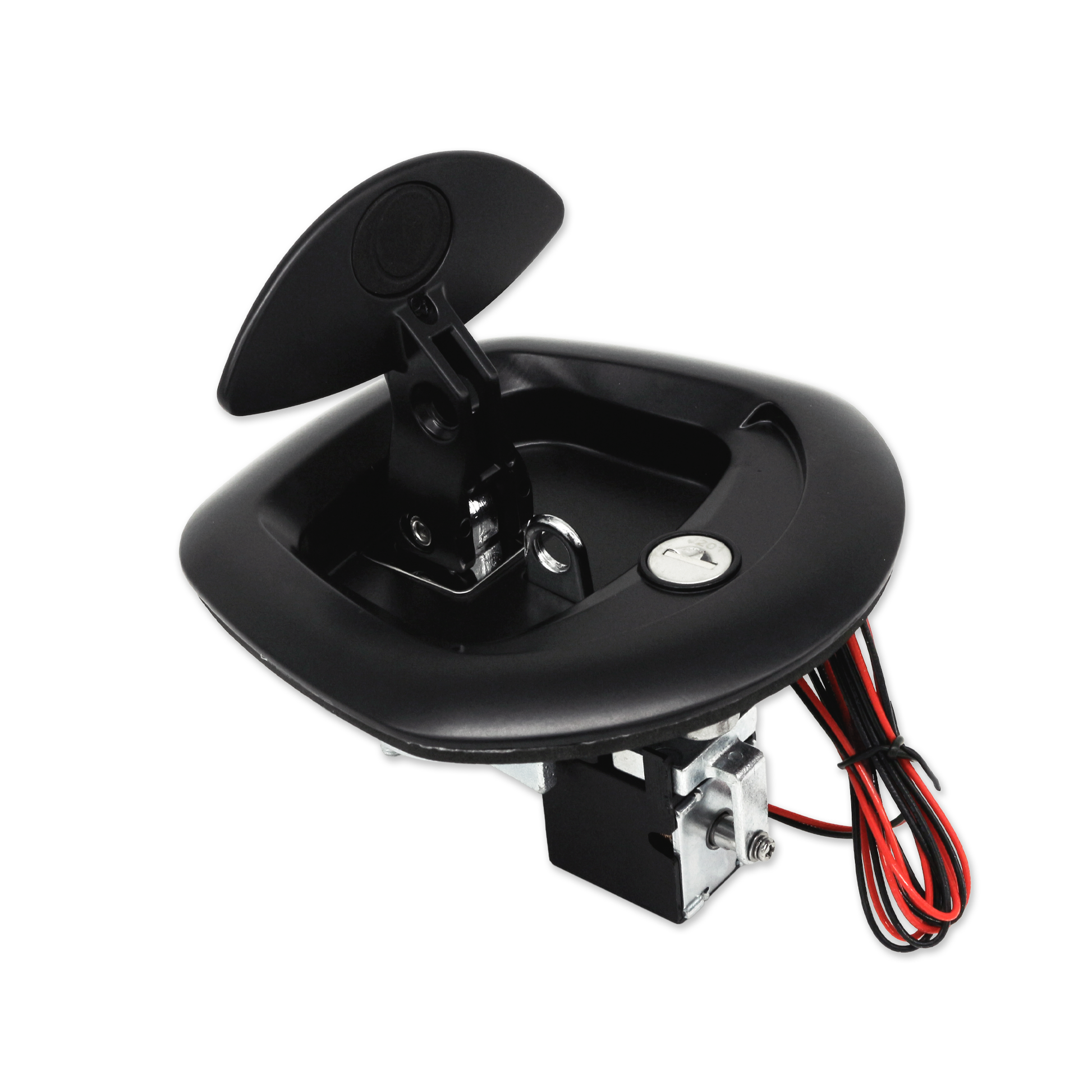

  • Integrated electronic central locking (ELS) handles with manual key override (Manually actuated locking [MLA] handles also available)
  • Integrated padlock hasp (Ø8mm)
  • 90° handle rotation
  • Adjustable three-point roller cam
• Compatible power supplies:
  • 12V (only) switching or non-switching
• Rear fixing, mounting bracket
• Supplied with gasket

Dimensions, Materials & Finish

Dimensions

• Handle dish: 139mm (H) x 139mm (W) x 80mm (D)
• Cutout profile: 106mm (H) x 90mm (W)
• Grip range: 28mm ~ 48mm (H=)
• Roller:
  • Short - 19.8mm (L) x Ø17mm / Ø16.7mm (dia/taper)
  • Long - 34.5mm (L) x Ø17mm / Ø16.7mm (dia/taper)

Materials & Finish

• Handle and dish: Zinc alloy, die-cast
• Cam, shaft and bracket mount: Zinc die-cast, zinc plated
• Roller: Glass fibre reinforced polyamide (PA6)
• Colour and finish:

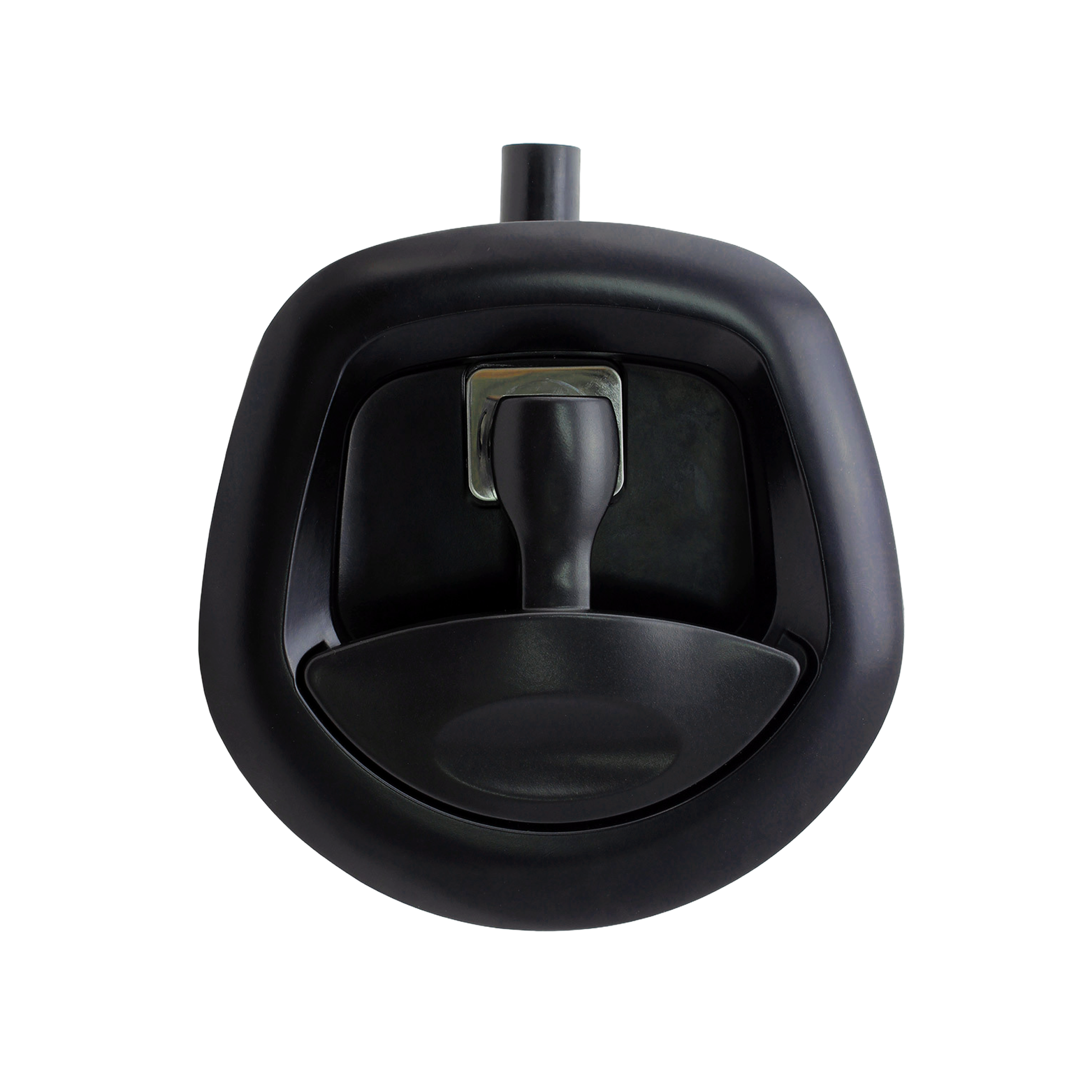

  • Black, powder-coated

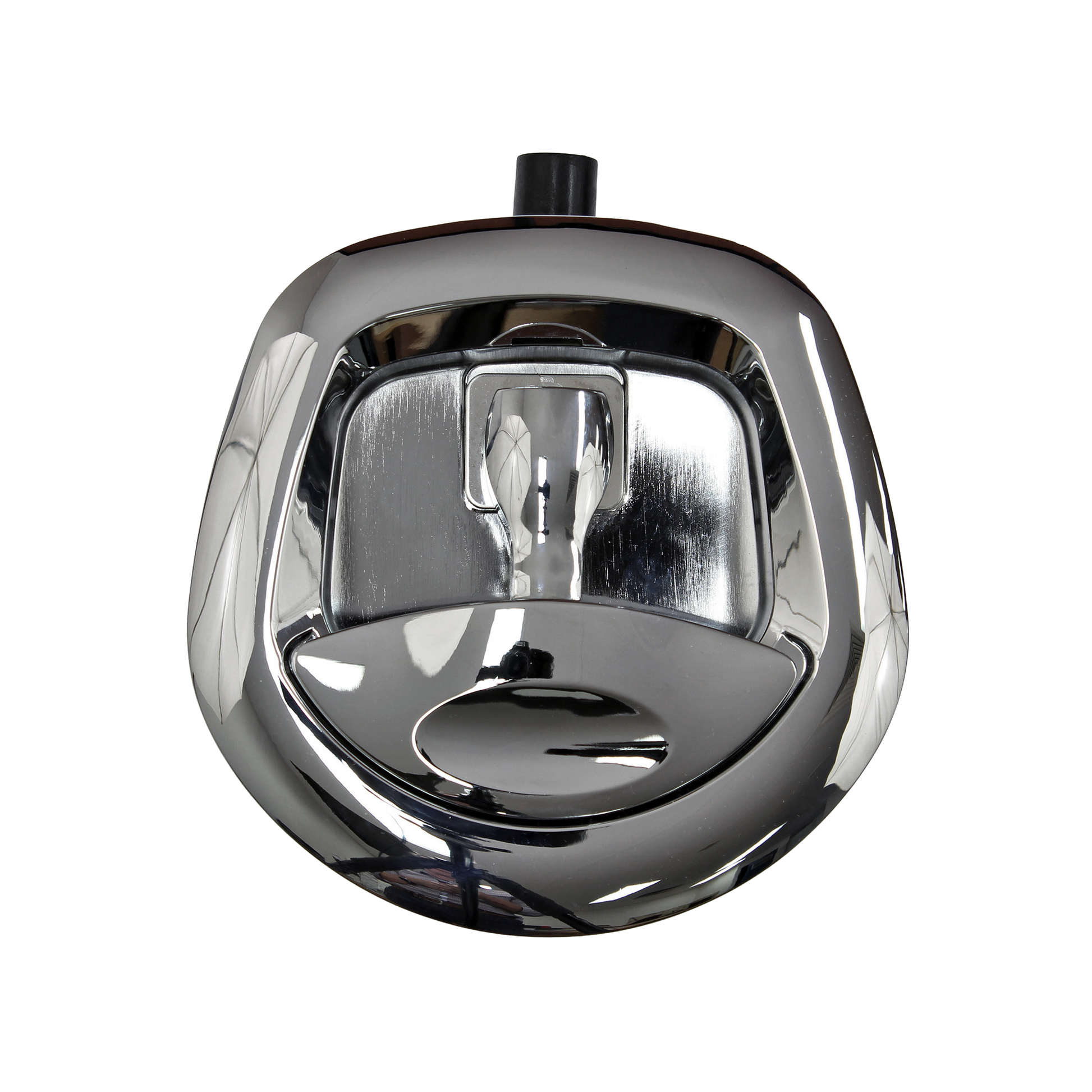

  • Chrome plated

Remarks

Includes: 2x alternative length roller options (interchangable)

Compatible with: ELS | NP0044: electronic central locking, 6V/12V control box and shunt. (Compatible power supplies: 6V DC and/or 12V switching or non-switching)

• Can be hardwired into exisitng vehicle central locking system or installed “wirelessly” via standalone 6V/12V power supply.
• Can also be configured into integrated systems alongside ELS variants of our NP0044: folding-t handles. (Incorporate with: ELS | NP0044: folding-t handle w/ mounting bracket & electronic central locking, 6V/12V control box and shunt)

View Our Technical Datasheet

View Our NP0044, Control Box (ELS) User Manual

Please Note

Amp Draw & Relay Usage

AMP Draw on the actuator units is approx. 2-4amp per load. Selectlok recommends no more than 3x units per 40amp relay.

Glossary Of Terms

ELS | ECL | IECL | MLA

Acronyms; Commonly associated w/ reference to the actuation methods of our range of Electronic Locking Solutions products.

Including: Electronically powered central locking actuator kits (6V/12V/24V), digital access and smart locking systems, electronic lock positioning (park) sensors, control boxes, shunt connectors, remote controls and batteries, etc.

• ELS: Electronic Locking Solutions
• ECL: Electronic Central Locking
• IECL: Integrated Electronic Central Locking
• MLA: Manual Locking Actuation
