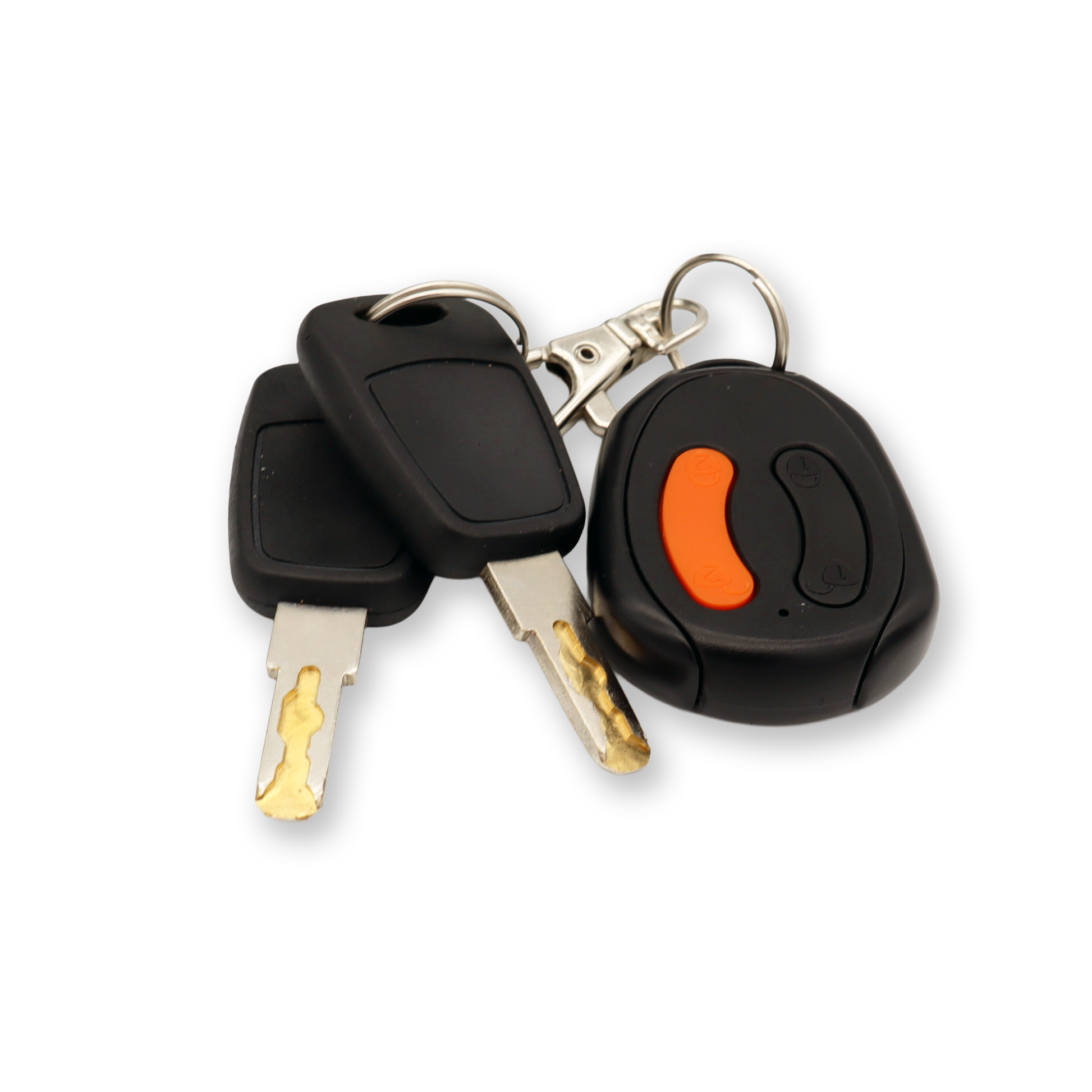

ELS | NP0044: Push-Button Remote Control FOB (6V/12V Central Locking)

ELS (Electronic Locking Solutions) | NP0044: Push-Button Remote Control FOB (6V / 12V Central Locking)

Features

• Push-Button Remote Control FOB (assembly componentry for either a complete of part there of): Either 6V/12V electronic central locking / ELS system
• Compatible with ELS | NP0044:
  • Control box
  • Compression latches
  • Folding-t with mounting bracket
• Integrate with central locking ELS systems configured as:
  • Exisiting: Integration within exisiting OEM vehicle central locking modules/systems
  • Hardwired - Via 12V vehicle or 12V standalone power supply (long cable harness)
  • Wireless - 6V / AA batteries (integrated) power supply
  • Semi-wireless - Via a “short-tethered” 12V standalone / “side-by-side” power supply (short cable harness)

Component Specifications

• Three levels of alignment:
  • Level 3 - Remote controller and control box alignment
  • Level 2 - (A) Remote controller and control box alignment (B) If the remote controller and control box are aligned with switch 1, then also align the rv door lock and remote control with switch 1. If they are using switch 2, then do the same as above to align with switch 2.
  • Level 1 - Control box and door lock alignment

Installation

Please refer to the control box user manual (refer to the link below) for user setup and installation instructions.

• Including: Product overview, wiring diagrams, power connection instructions, control level instructions (power supply) and remote controller alignment.

Remarks

Components: Sold separately

• Shunt connectors: Alternative sizes/terminal qty available upon request (subject to additional costs, MOQs and lead times)

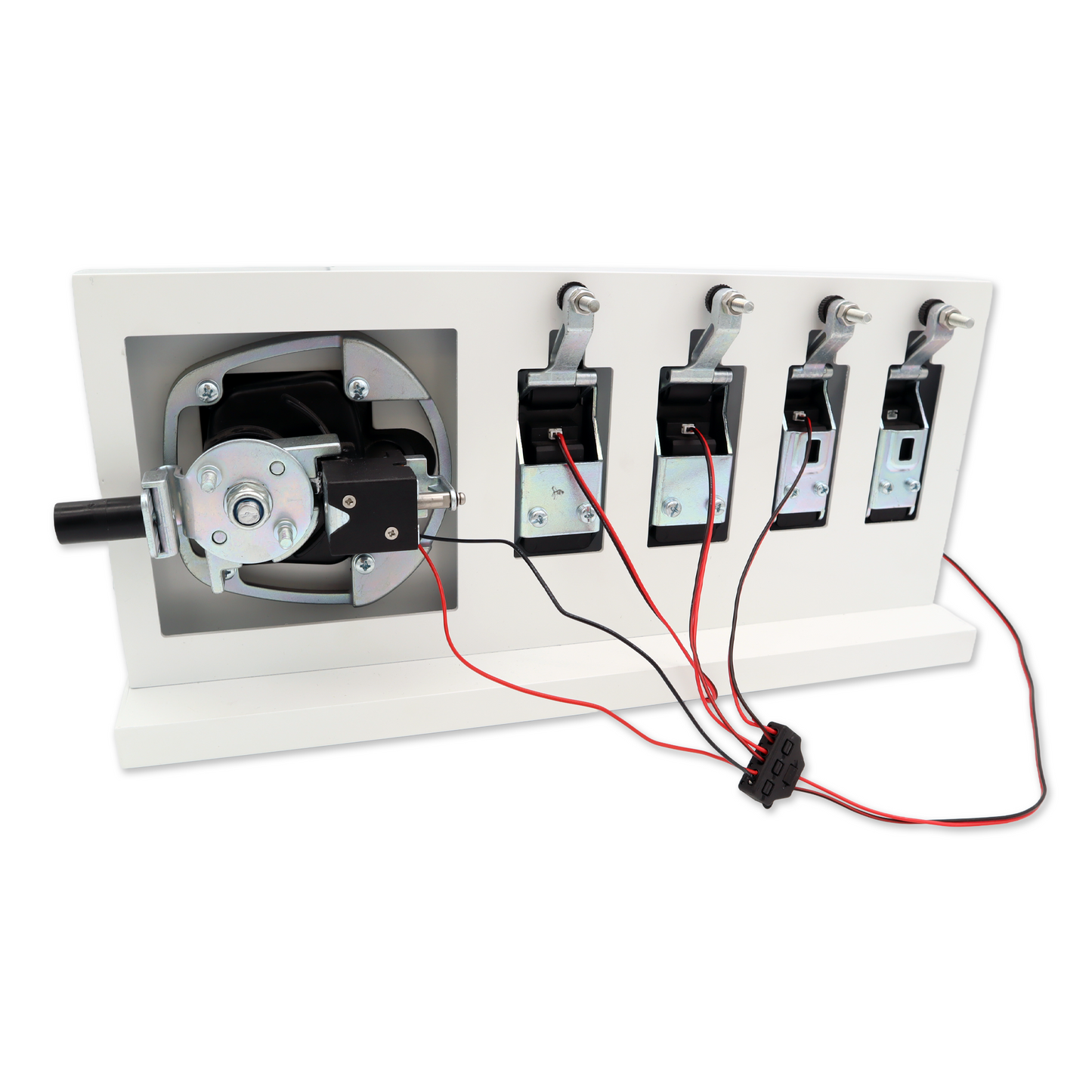

• Compatible with integrated systems (incorporating): ELS | NP0044: folding-t handles w/ mounting bracket and/or push-button compression latches.

View Our Technical Datasheet

View Our NP0044, Control Box (ELS) User Manual

Please Note

Amp Draw & Relay Usage

ELS folding-t and compression latches AMP Draw on the actuator units is approx. 2-4amp per load. Selectlok recommends no more than 3x units per 40amp relay.

Glossary Of Terms

ELS | ECL | IECL | MLA

Acronyms; Commonly associated w/ reference to the actuation methods of our range of Electronic Locking Solutions products.

Including: Electronically powered central locking actuator kits (6V/12V/24V), digital access and smart locking systems, electronic lock positioning (park) sensors, control boxes, shunt connectors, remote controls and batteries, etc.

• ELS: Electronic Locking Solutions
• ECL: Electronic Central Locking
• IECL: Integrated Electronic Central Locking
• MLA: Manual Locking Actuation
