ELS | NP0044: Shunt Connector (6V/12V Central Locking)

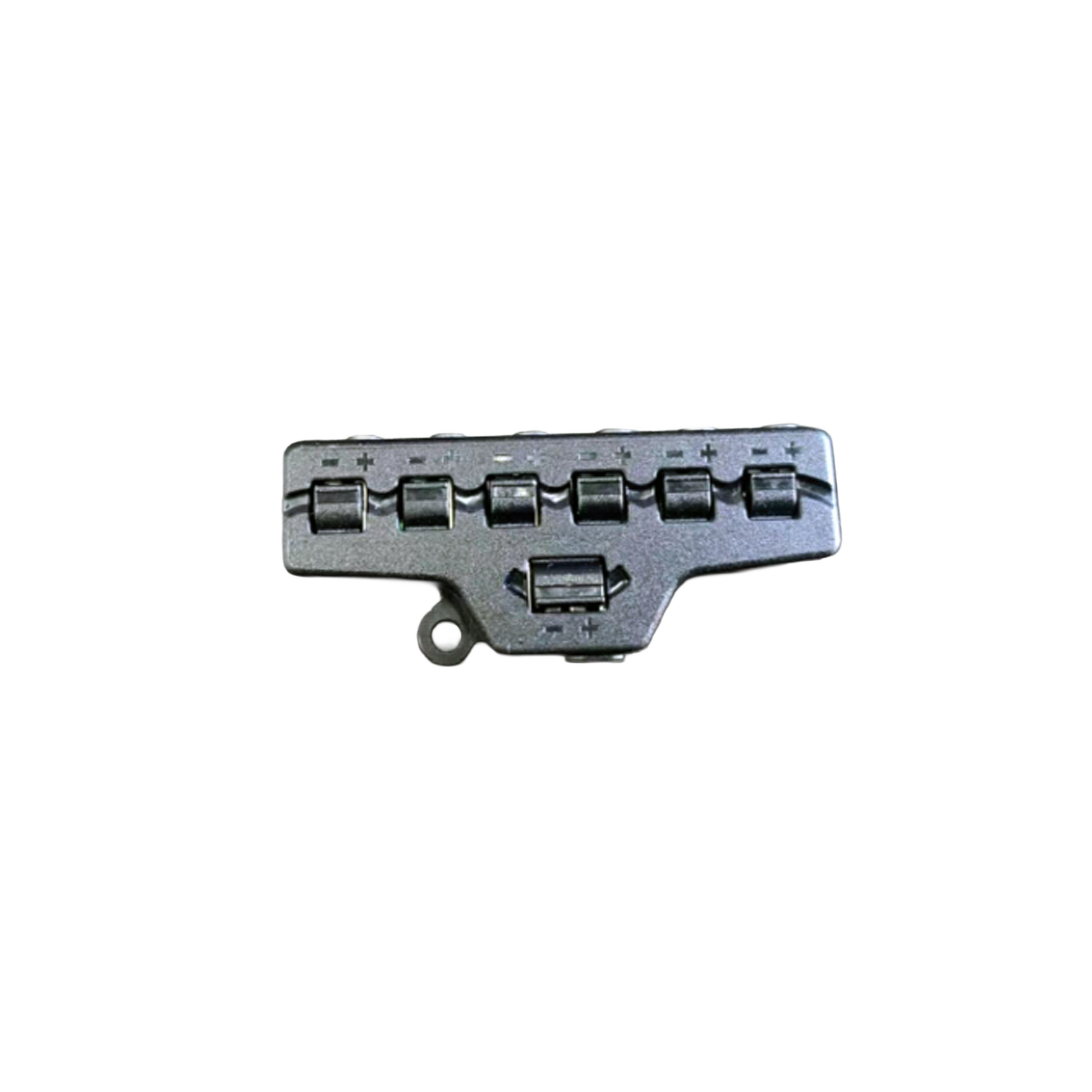

ELS (Electronic Locking Solutions) | NP0044: Shunt Connector (6V / 12V Central Locking)

Features

• Shunt connector (assembly componentry for either a complete of part there of): Either 6V/12V electronic central locking / ELS system
• Can be configured as:
  • Hardwired - Via 12V vehicle or 12V standalone power supply (long cable harness)
  • Wireless - 6V / AA batteries (integrated) power supply
  • Semi-wireless - Via a “short-tethered” 12V standalone / “side-by-side” power supply (short cable harness)
• Compatible power supplies:
  • 6V DC
  • 12V switching or non-switching

Component Specifications

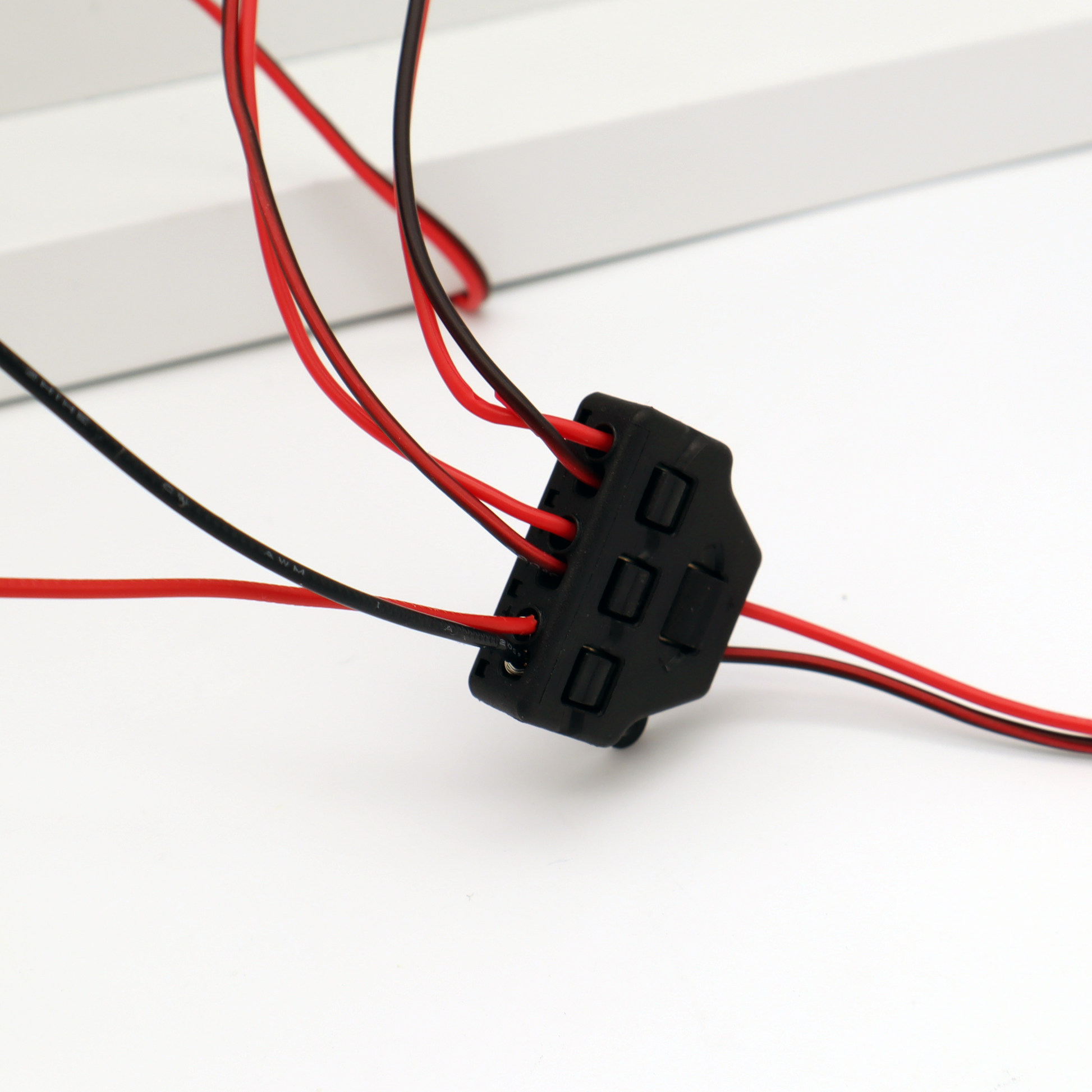

• Terminal tunnel: Ø 0.61mm (conductor OD)
• Terminal supply: +/- input, +/- output

Installation

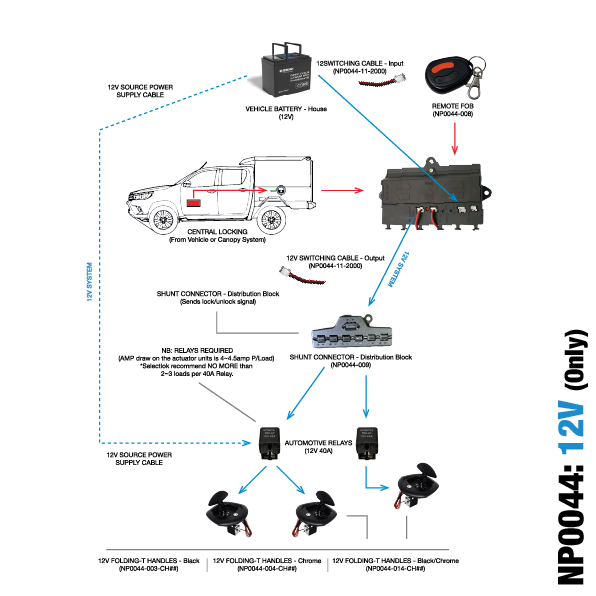

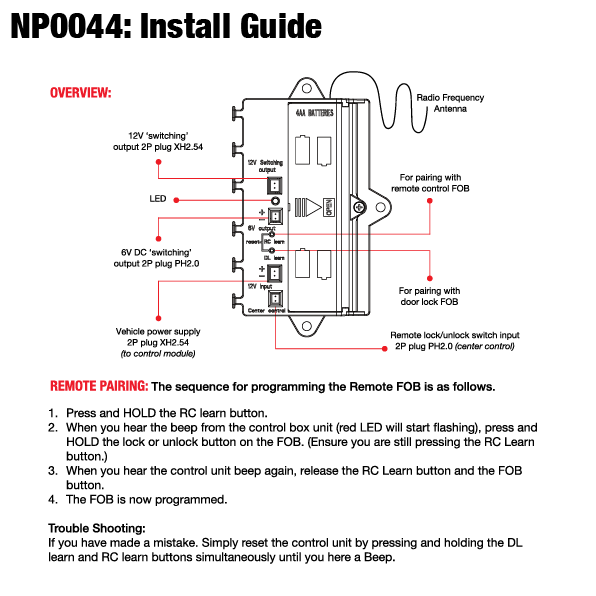

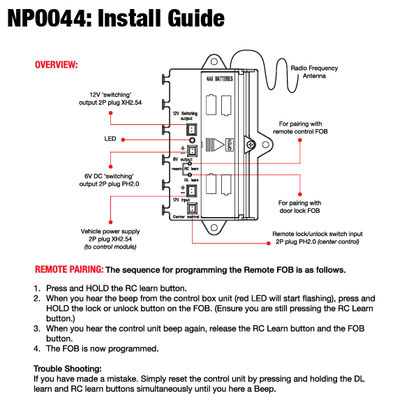

Please refer to the control box user manual (refer to the link below) for user setup and installation instructions.

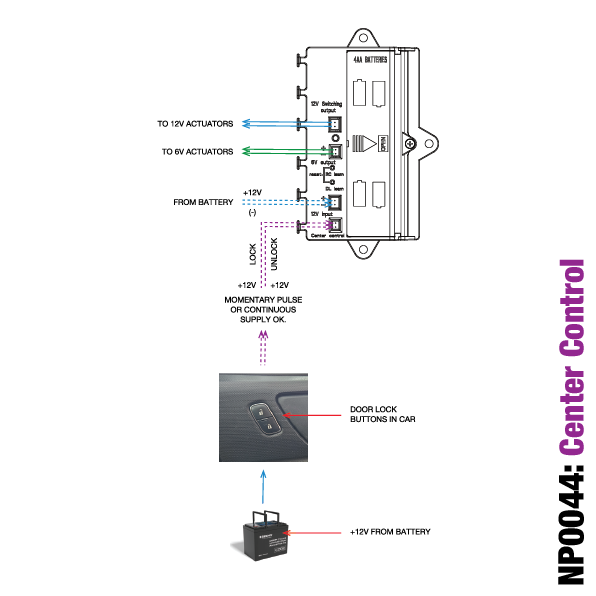

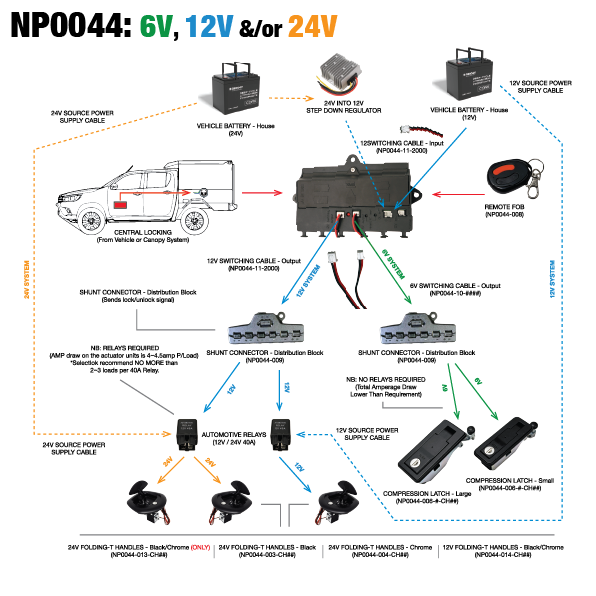

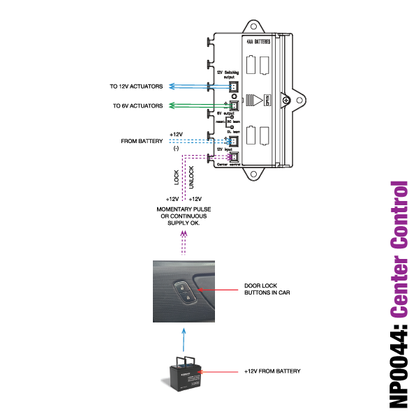

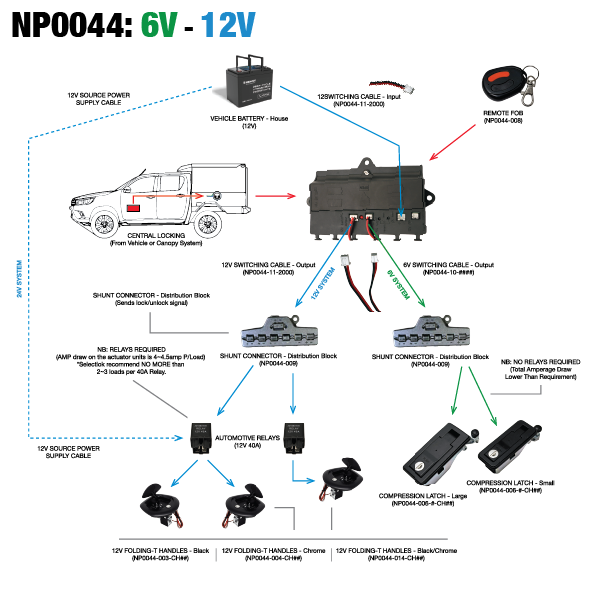

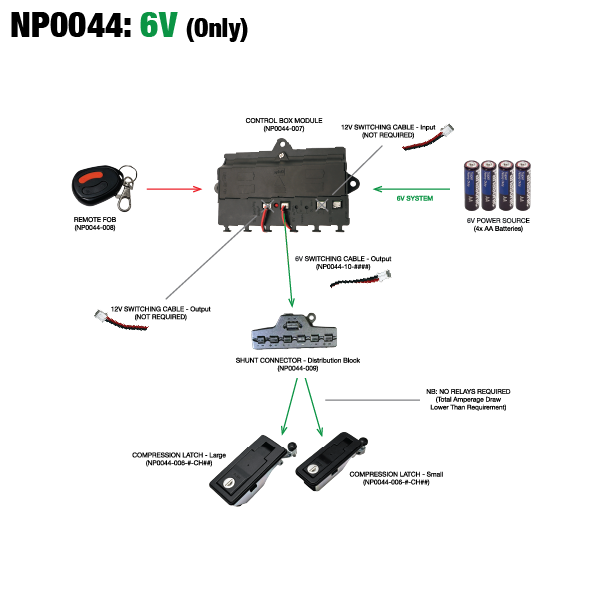

• Including: Product overview, wiring diagrams, power connection instructions, control level instructions (power supply) and remote controller alignment.

Remarks

Components: Sold separately

• Shunt connectors: Alternative sizes/terminal qty available upon request (subject to additional costs, MOQs and lead times)

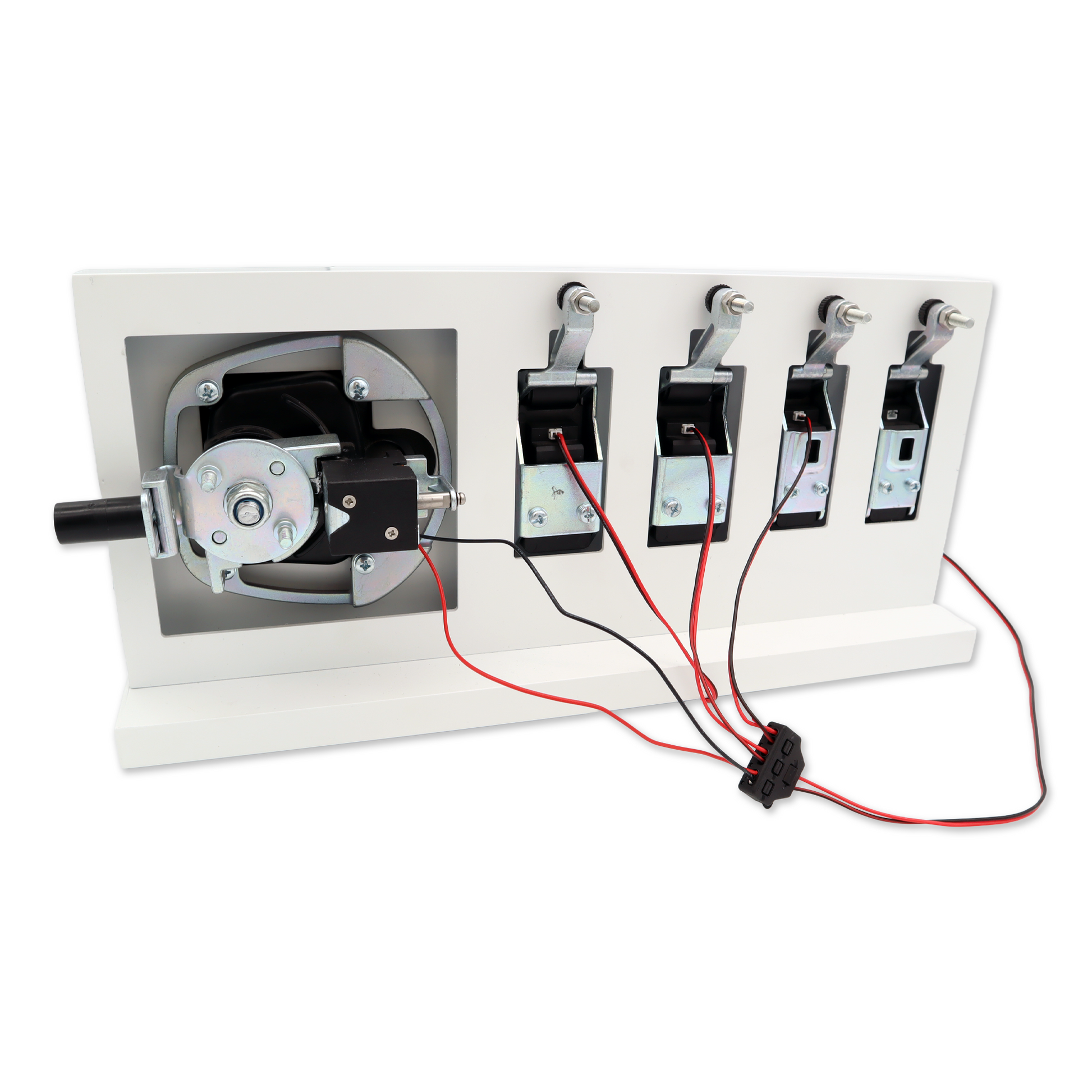

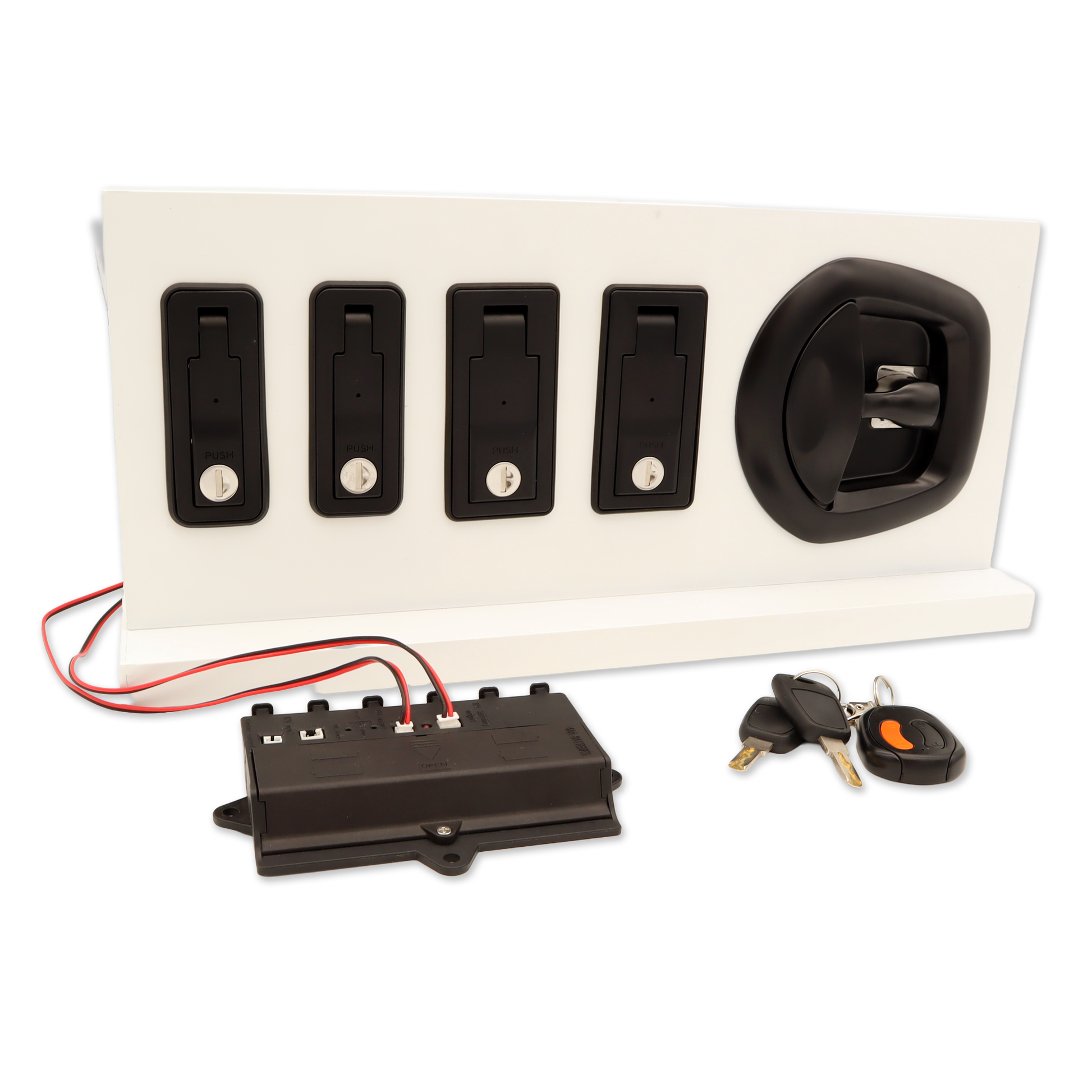

• Compatible with integrated systems (incorporating): ELS | NP0044: folding-t handles w/ mounting bracket and/or push-button compression latches.

View Our Technical Datasheet

View Our NP0044, Control Box (ELS) User Manual

Please Note

Amp Draw & Relay Usage

ELS folding-t and compression latches AMP Draw on the actuator units is approx. 2-4amp per load. Selectlok recommends no more than 3x units per 40amp relay.

Glossary Of Terms

ELS | ECL | IECL | MLA

Acronyms; Commonly associated w/ reference to the actuation methods of our range of Electronic Locking Solutions products.

Including: Electronically powered central locking actuator kits (6V/12V/24V), digital access and smart locking systems, electronic lock positioning (park) sensors, control boxes, shunt connectors, remote controls and batteries, etc.

• ELS: Electronic Locking Solutions
• ECL: Electronic Central Locking
• IECL: Integrated Electronic Central Locking
• MLA: Manual Locking Actuation
