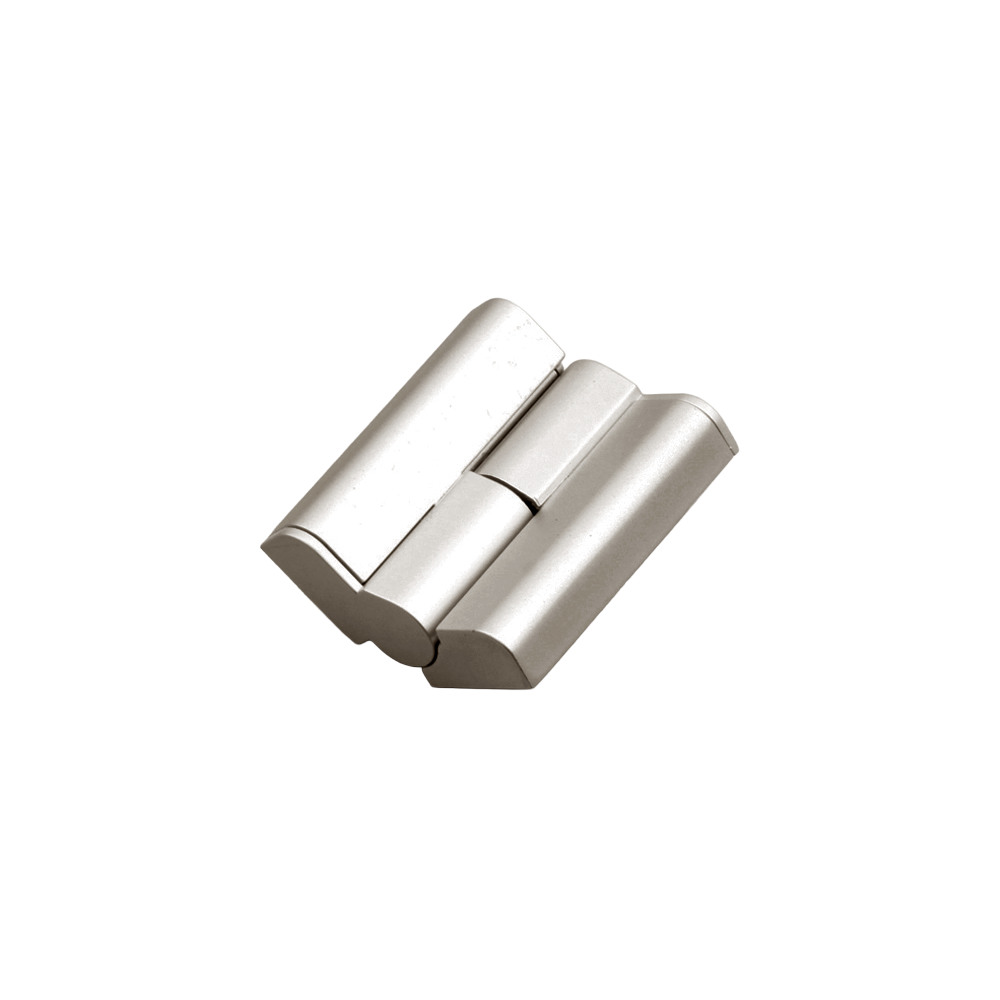

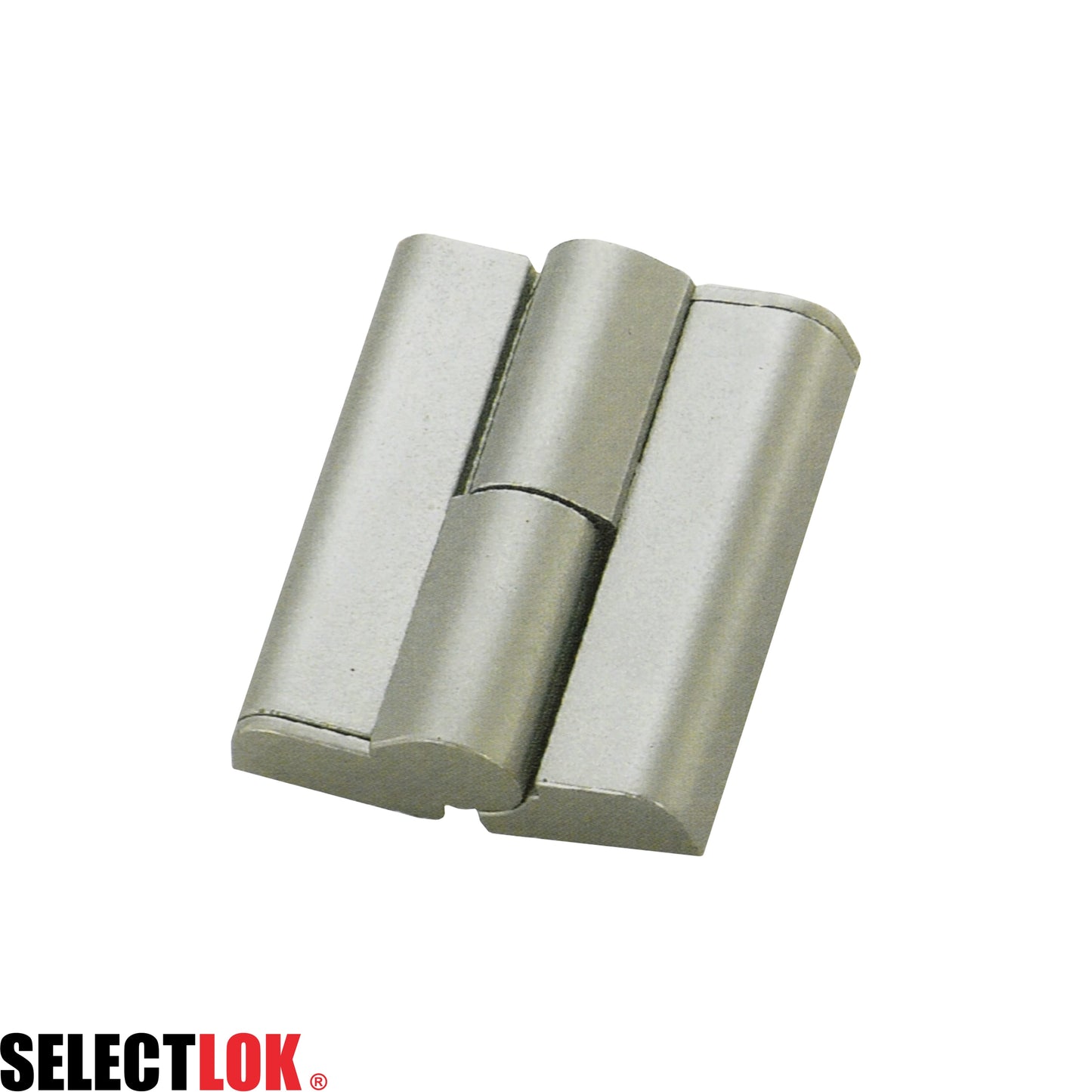

Friction Assisted, Torque Butt-Hinge (Light-Duty)

Friction Assisted Torque Butt-Hinge (Light-Duty)

Features

• Action: Light-duty
• Easy installation: Front fixing, M5 bolts (not supplied) with belie cover/caps (for concealing bolts heads)
• Range of motion (ROM):
  • Free swing: Throughout the hinge’s full ROM (opening angle ranges from 0°/90°/180°)
• Torque function: Symmetric
• Torque adjustment: Non-adjustable
• Torque specification: Friction assisted
• Torque mechanism: Exposed axle, friction-fit shaft actuation
• Operational load: Is borne solely by the torque (friction-fit) mechanism throughout the hinge’s full range of motion
• Install orientation: Suits both left-handed (LH) and right-handed (RH) applications
• Premium materials: Stainless steel shaft & nanometer painted

Materials, Finish & Dimensions

Materials

• Body: Zinc die-cast
• Shaft: Stainless steel 304
• Finish: Silver nanometer painted

Dimensions

• Base: 59 mm (L) x 48 mm (W) x 19.5 mm (H)
• Hole centres: 45 mm (L) x 27 mm (W)
• Mounting holes: Ø5.2 mm (dia.) x 4 (qty)

Remarks

• Alternate uses: Also compatible as a coverstay for light-duty applications
