iLOQ NFC Cam Lock

iLOQ NFC Cam Lock

SKU:G50S.1

Price on Application
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)

Please check availability: iLOQ products are generally custom ordered from the supplier based on individual project requirements and may not be readily available in stock at time of enquiry.

  • No Batteries
  • No Keys
  • No Maintenance

The patented, award winning iLOQ S50 locking system offers advanced security and convenient access sharing capabilities for master-key locking environments.

The iLOQ S50 Cam lock offers a flexible solution for locking medical cabinets, key boxes, IT and distribution cabinets and many more. The lock harvests electricity wirelessly from NFC field, which enables using phone not only as a key but also as a power source thus the lock is completely battery free. As no batteries are required, the locks are maintenance free and environmentally friendly green solution that eliminates work, costs, waste and harm associated with battery powered solutions.

The lock doesn’t have a keyway due to the contactless NFC operation. It is designed to be used in harsh environments where the locks are exposed to dust, moisture and varying temperature conditions ranging from extremely cold to hot weather.

The phone as a key enables flexible access sharing with time restrictions and audit trail reporting over the air. The security level is kept high and security gaps caused by lost key can be eliminated completely without costly change of locks and keys.

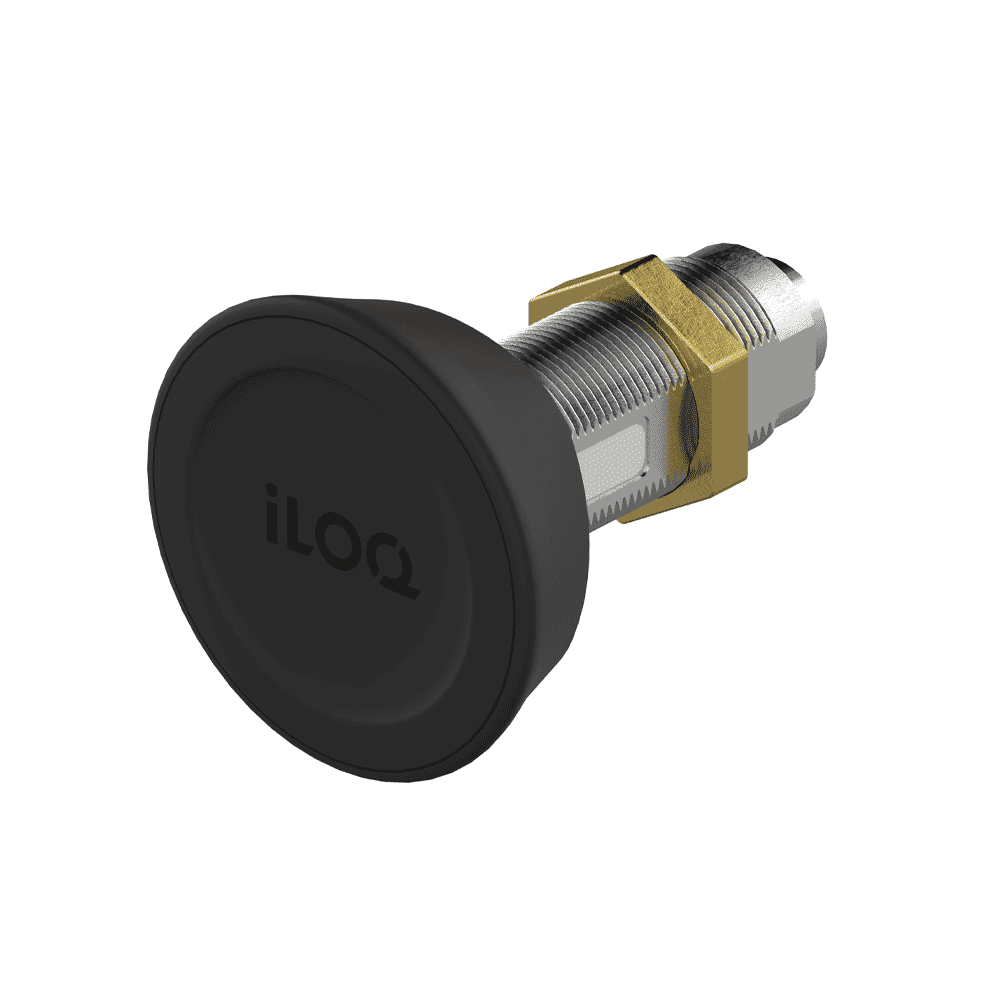

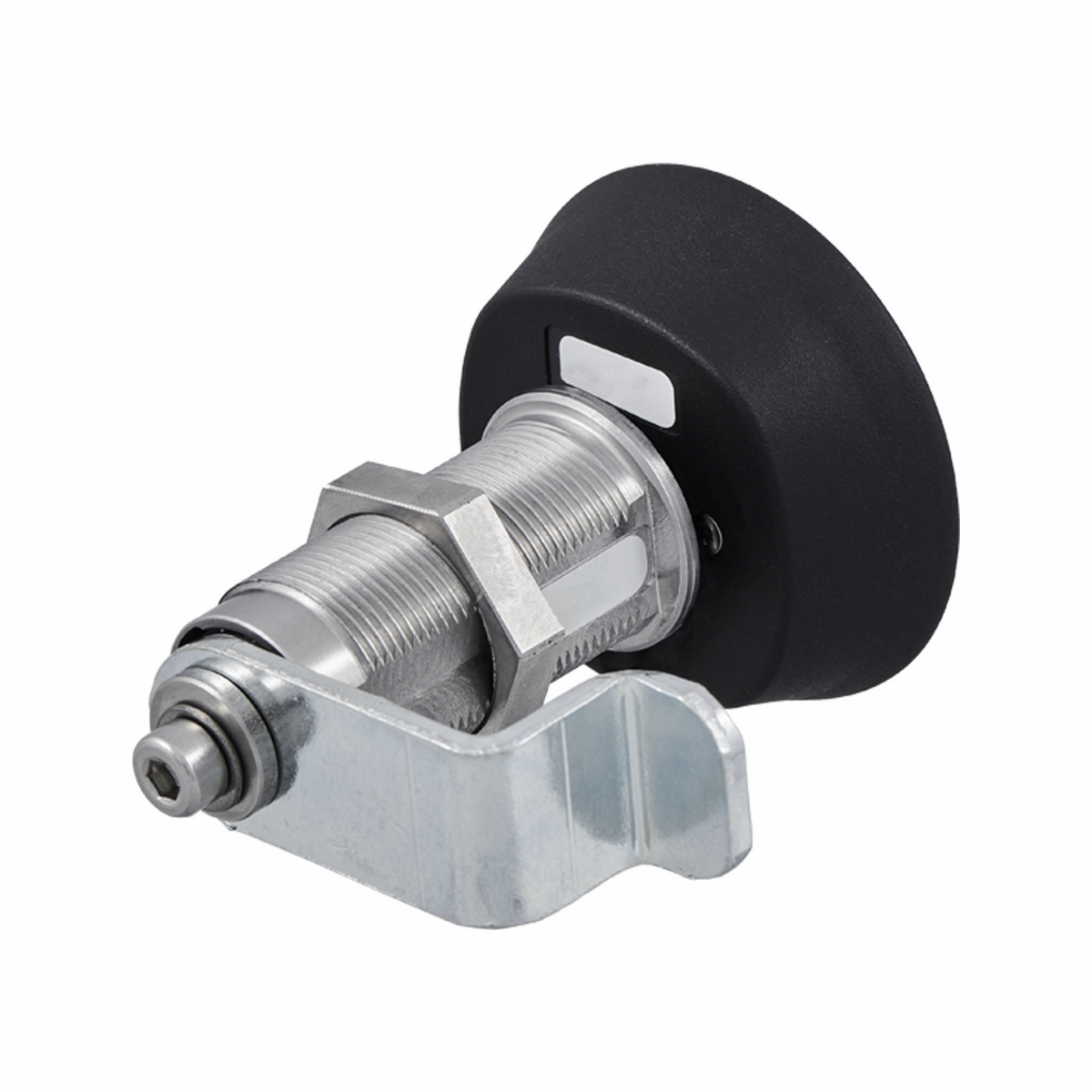

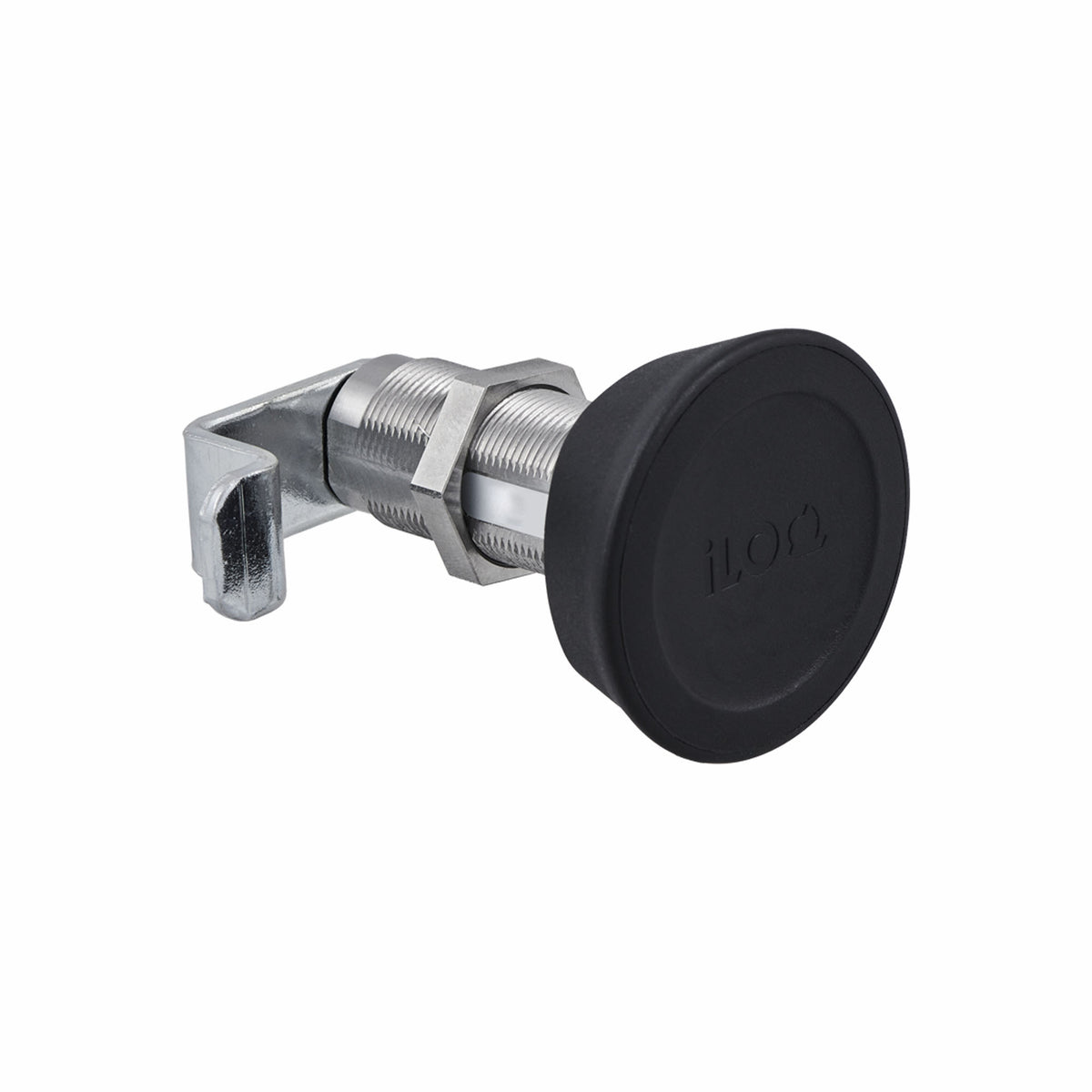

NFC Cam Lock G50S.1

  • Battery-free programmable electromechanical cam lock for iLOQ S50 locking system
  • Available in different country variations
  • NFC-powered: no batteries required for the lock
  • Opening with NFC enabled smartphone* or iLOQ K50S Key Fob
  • Secured using powerful AES256 encryption and mutual authentication
  • Initial programming with PC and iLOQ P50S.1 Programming Token in connection to server
  • Access right list for access groups
  • Blocklist for individual lost keys
  • Internal audit trail record with time stamp (can be configured on/off)
  • Supports time restrictions
  • Can be configured to require online opening authentication
  • Re-programming with keys (Android phone or K50S Key Fob)
  • Firmware updateable
  • .130 – opening and closing with user credential
  • .140 – opening with user credential and closing without user credential (rachet function)

NFC Cam Lock is available

  • In different country variations
  • With user credentials needed to open and close or just close

Accessories

  • AG50.1 Finnish tail piece set for Finnish type of cams (incl. to G50S.1x0.FI)
  • AG50.2 Extension ring 4mm
  • AG50.3 Round escutcheon for G50S cam lock
  • AG50.4 Swedish tail piece set for Swedish type of cams (incl. to G50S.1x0.SE)
  • AG50.5 Swedish installation adapter for 21mm hole
  • AG50.6 Anti-rotation installation plate for wooden door
